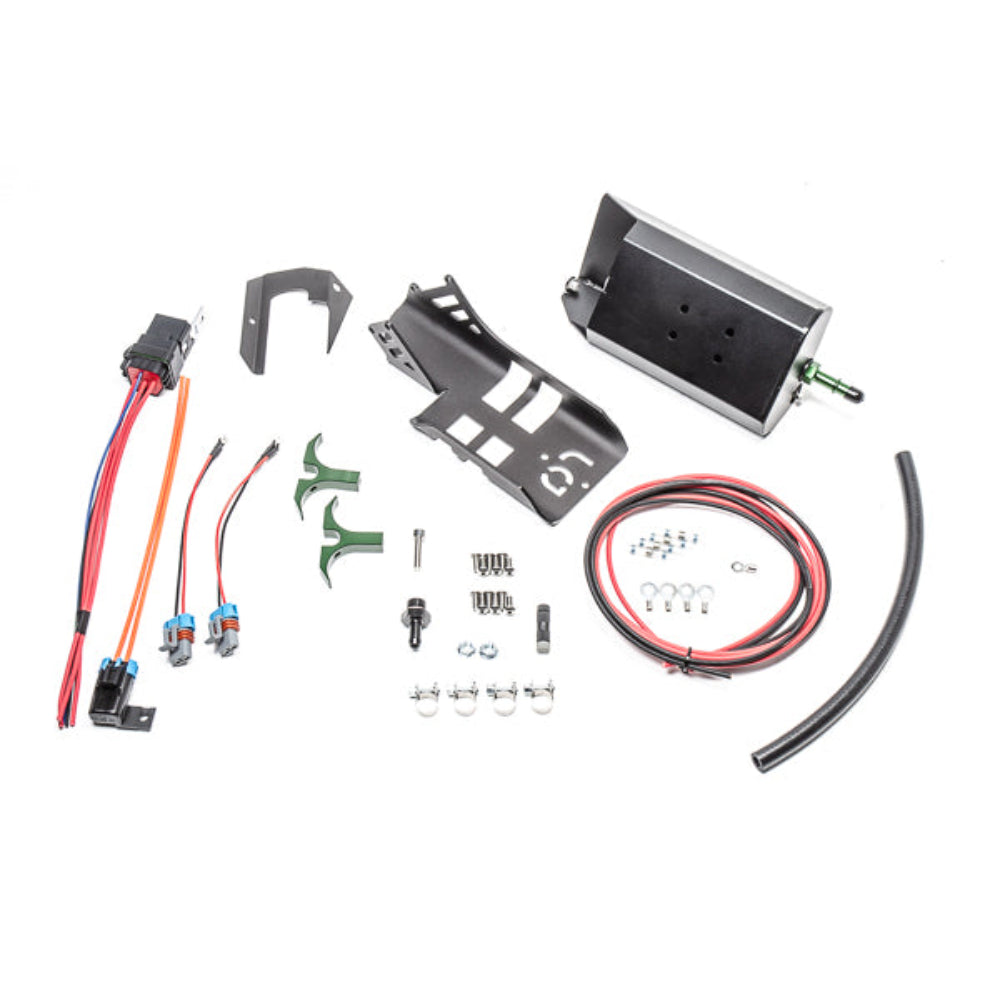

Radium Engineering Fuel Hanger Surge Tank Add-on For GSS342 Or AEM 50-1200 - Nissan S14 S15 R33 R34 - Pumps Not Included

Radium Engineering FHST (fuel hanger surge tank) add-on is the ultimate solution for fuel starvation issues. Due to the saddle-bag style OEM fuel tank and insufficient baffling in late model Nissans, fuel slosh is common when driven aggressively. Unstable pressure resulting in a lean fuel mixture can cause engine damage. A stand-alone surge tank is an excellent device for eliminating fuel starvation issues, but installation can be complex. This add-on is a fully functional fuel surge tank mounted inside the OEM tank.

This product is to be used with one of the fuel hangers above. It is recommended to use a single pump hanger to feed the surge tank. The surge tank can then be equipped with one or two fuel pumps to feed the engine.

As shown above, simple plug and play connections are all that is required to attach the 2 systems together

The surge tank can hold 1 or 2 aftermarket pumps including brushless variations. With the addition of the fuel pump in the OEM location, there could be 2-3 pumps inside the gas tank (total). Even with all of the extra fuel pumps, the FHST system is very straight forward and relatively simple to install.

No grinding, bending, or modification of the vehicle is required. Furthermore, the system is compatible with all alternative fuels such as E85.

What keeps the surge tank full?
The surge tank fuel pump(s) are supplied with fuel from 4 different sources:
1. The high flow (low pressure) fuel pump located in the OEM location.
2. The fuel returning from the fuel pressure regulator (FPR).
3. The fuel transfer from the integrated venturi jet pump siphon.
4. The 355LPH one-way fill valve on the bottom of the surge tank.

FUEL PUMP INFORMATION
Both brushed and brushless fuel pumps are compatible with the FHST Add-On. Fuel pumps are not provided but can be purchased from the links below.

20-0700
Walbro GSS342 255lph
AEM 50-1200 E85
+AEM 50-1230
+AEM 50-1235

20-0701
Walbro F90000267 E85
Walbro F90000274 E85
Walbro F90000285 E85
+Walbro F90000295
+Ti Automotive E5LM (brushless)

+These pumps do NOT feature a check valve. If this is required, purchase 20-1534.

This product is compatible with the following vehicles:

Nissan S14 Silvia (All models/trims/RHD/LHD)
Nissan S14 200SX (All models/trims/RHD/LHD)
Nissan S14 240SX (All models/trims/RHD/LHD)
Nissan S15 Silvia (All models/trims/RHD/LHD)
Nissan S15 200SX (All models/trims/RHD/LHD)
Nissan R33 Skyline (All models/trims/RHD/LHD)
Nissan R34 Skyline (All models/trims/RHD/LHD)
