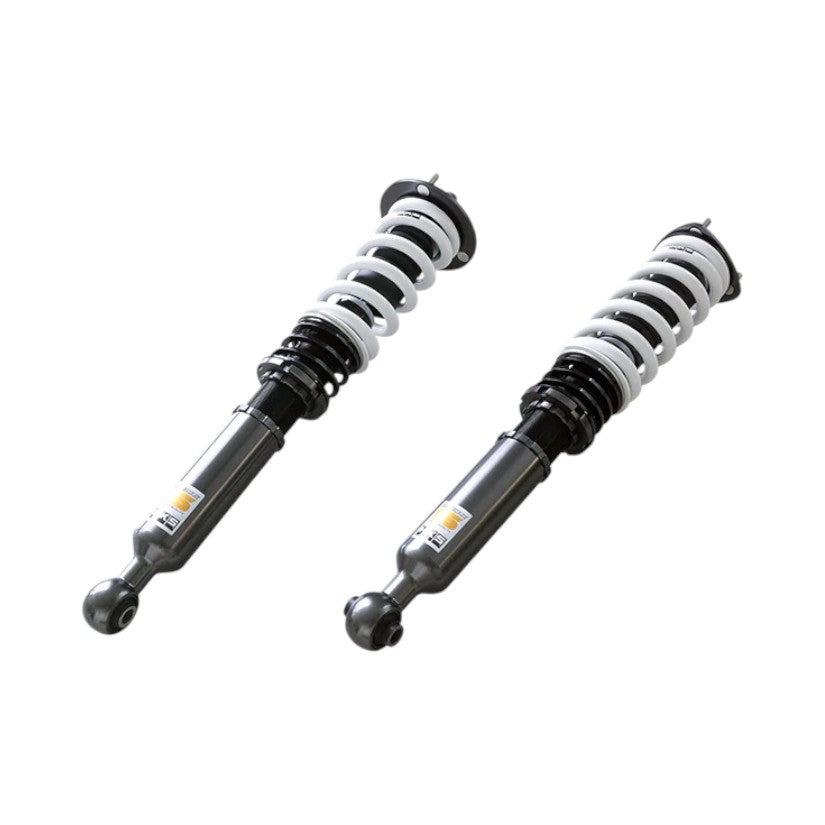

Hipermax S is built around driving comfort in the broadest sense — ride quality alongside the confidence that comes from predictable handling. The dual PVS preload valve system suppresses unnecessary damping force at higher piston speeds, a marked improvement in ride comfort that costs nothing in driving performance. A revised needle jet shape widens the range of damping adjustment across the 30 available steps, and a new bump stop rubber shape cuts body roll while retaining ride comfort in a way conventional hydro bump stops cannot manage.
Low friction internals developed through advanced tribology raise durability and reduce friction, benefiting both ride quality and handling. Optimised internal parts and improved build quality carry a three year warranty.
Key Features
- 30 step damping adjustment
- Dual PVS preload valve system
- Single tube dampers
- Shock case length adjustment
- Wide range damping adjustment mechanism
- Evolved bump stop rubber
- Low friction internal components
- Rubber upper mounts
- Aluminium brackets
- PNS coating
- Special oil
- Spring rate changes and overhaul service available
- Three year warranty
Specifications
| Front |
Rear |
| Spring rate |
157 N/mm (16.0 kgf/mm) |
98 N/mm (10.0 kgf/mm) |
| Spring length |
200mm (straight) |
220mm (straight barrel) |
| Upper mount |
Rubber |
Rubber |
| Height at factory setting |
-17mm (0 to -53mm) |
-19mm (0 to -77mm) |
Please Note
- Spring rate changes at the factory setting are not recommended, front or rear
Compatible With
- Lexus IS F USE20 (2008 - 2013) - 2UR-GSE
