Enables a Nexus ECU or VCU to integrate and control a supported GM 6L series automatic transmission. Plug and play with the Nexus Rebel LS ECU and terminated harness via the transmission breakout connector. Setup is handled through the Haltech NSP software or Haltech Connect App.
While all reasonable care has been taken to support known TCM operating systems, some may not yet be supported. If an unsupported OS is encountered, a third-party tool will be required to extract the OS binary. It is advised to have access to such a tool before purchasing.

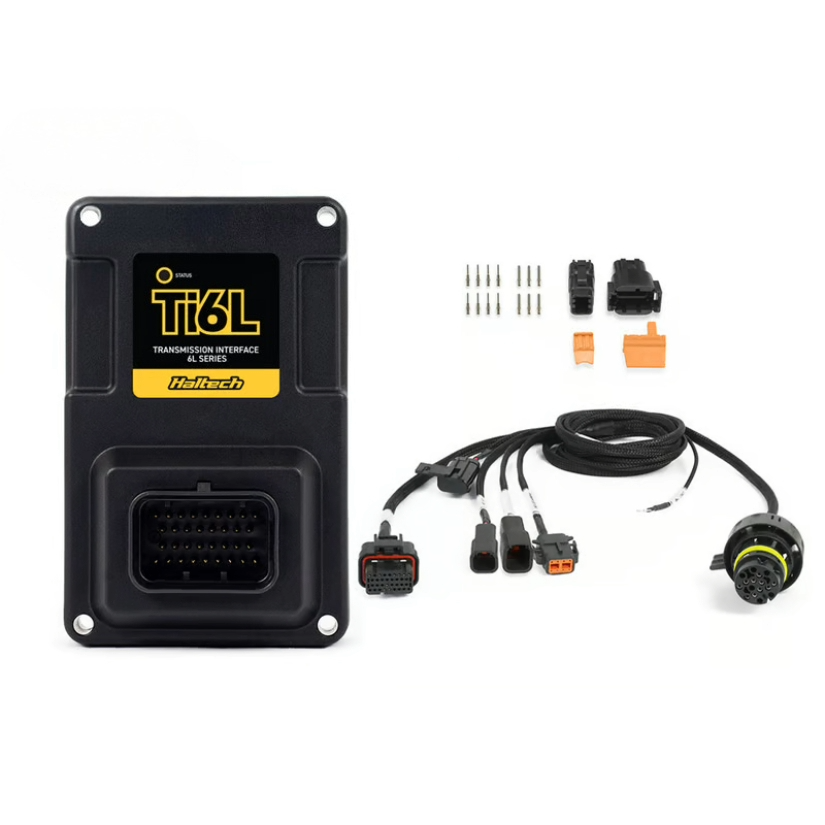

Includes
- HT-196002 Nexus Ti6L
- HT-187007 Nexus Series 6Lx0 transmission harness
- Mounting hardware
- Opposing connectors
- Quick start guide
Specifications
- Connector: 34-pin AMP Superseal Keyway Type 2
- CAN 1: Haltech protocol
- CAN 2: 6L TCM protocol
- Operating voltage: 8–22V
- Max ambient temperature: 105°C / 221°F
- IP rating: IP66
