| Type | APP CR 3-Way |
| Part No | YS01-SB-3WASCR008 |
| Model | IMPREZA WRX STI |
| Body Style | GRB/GRF(5door) |
| Year | 08-14 |
| Note | WRX STi 2.0L/2.5L (30mm) (PCD114.3) |
| Front Upper Mount | P/U* |
| Rear Upper Mount | A/U or P/U |
| Front Spring Rate (kgs) | 14 |
| Rear Spring Rate (kgs) | 16 |
| Front Strut | Inverted Strut |
| Rear Strut | Standard Strut |

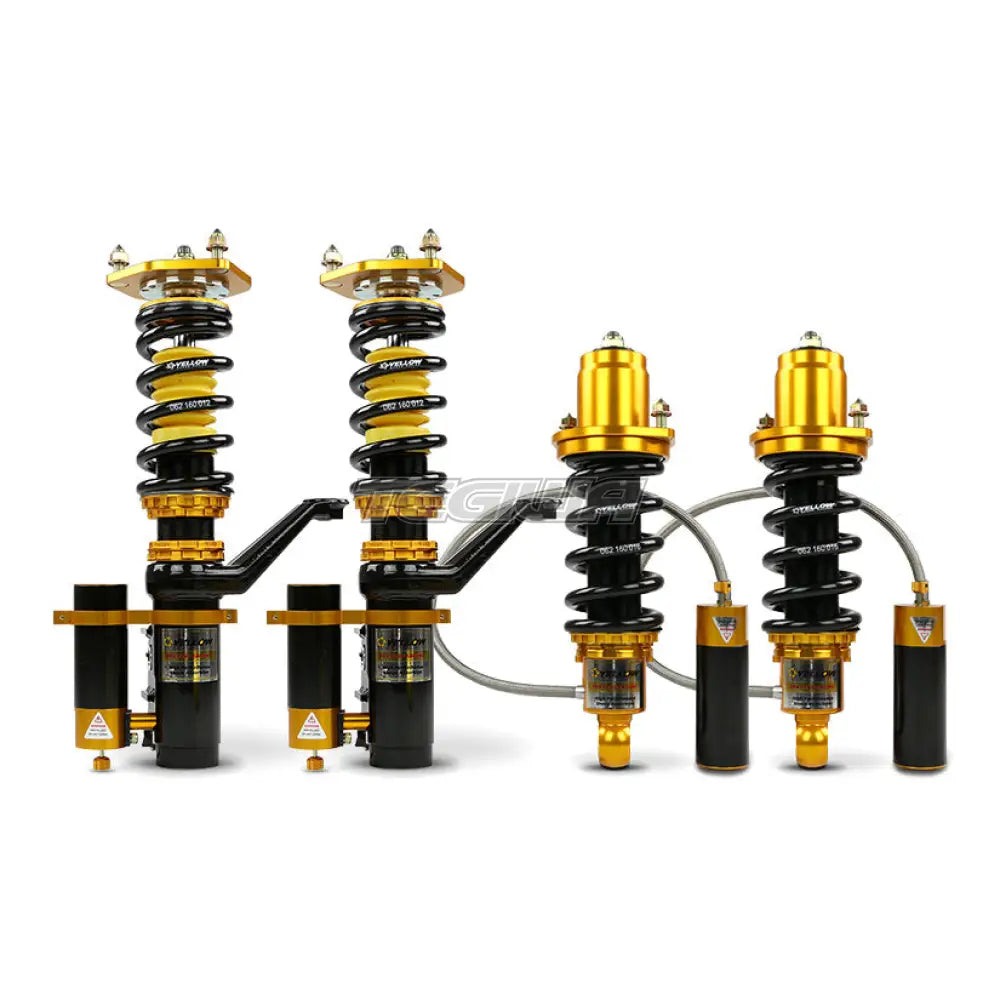

ADVANCED PRO PLUS is a 2-way coilover system with inverted mono tube dampers made for vehicles with MacPherson strut type only. The system allows you to adjust the rebound and compression damping Shock & Spring Seperately. With an external reservoir, this system provides extra oil capacity to dissipate heat well, which allows you to operate these coilovers for long period and improves performance & handling due to more stable variations in damping rates during the high speed driving. The braided hose is utilised to connect the external reservoir through upper mounts; this is ideal to allow for variable mounting locations when the external reservoir is mounted.
