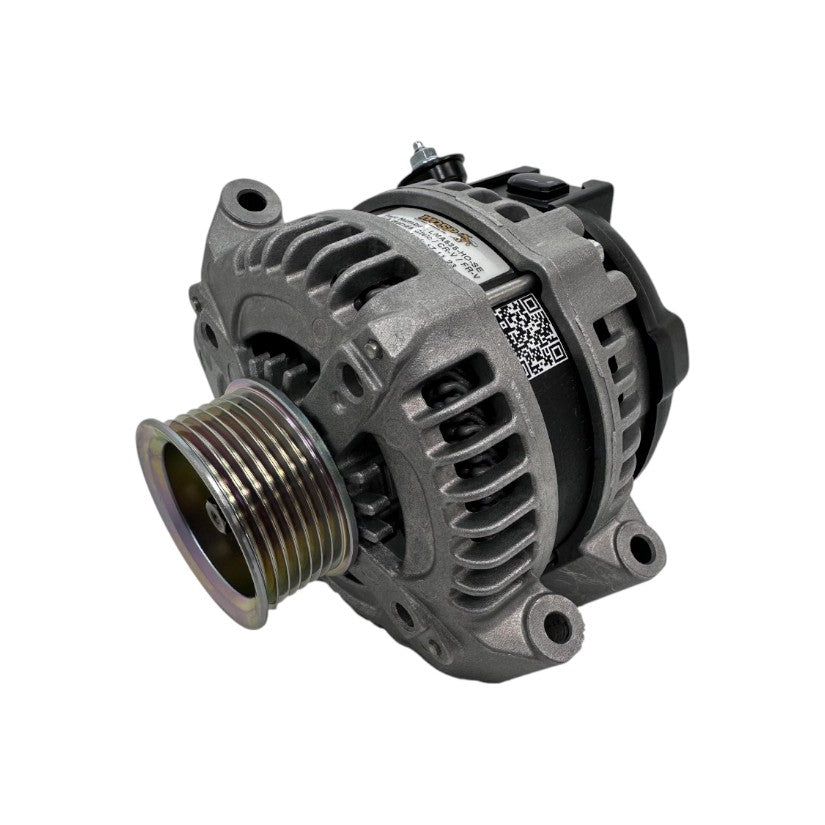

Designed and manufactured in house by WOSPerformance, these super-efficient units are based around the latest generation of alternator technology. These race proven compact alternators offer the best size and power / weight ratio available, and at far lower rpm than alternatives, due to a patented design which enables them to deliver up to 80% of maximum output at average idle speeds – catering for the large electrical loads usually found at this time.
WOSPerformance build these as high output, low rpm, application specific 'fit and forget' direct replacement OE units.
Please note high output alternators require more rpm to charge and become less efficient at idle / low rpm.
Please note: Civic EP3 / EV1 fitment: fit spacers on both bottom lugs.
Specification
| Output |
320A |
| Voltage |
12V |
| Polarity |
-VE |
| Connection |
B+ |
| Construction |
Cast |
| Mounting |
PAD |
| Lugs |
3 |
| Pulley |
LMP050 |
| Weight |
5.3Kg / 11.71lbs |
Vehicle Applications
- Honda Civic 2.0 Petrol K20A2 / K20A3 MK VII 'Type-R / Sport' (EV1 / EP3) '01-'05 (Fit spacers on both bottom lugs)
- Honda CR-V 2.0 Petrol K20A4 Mk II (RD5 / RD8) '01-'07
- Honda FR-V 2.0 Petrol K20A9 (BE3) '05-'06
- Honda Stream 2.0 Petrol K20A1 (RN3) '01-'06
OE Cross Reference
- Lucas LRA02355
- Lucas LRA03274
Built to order by WOSPerformance in the UK.
