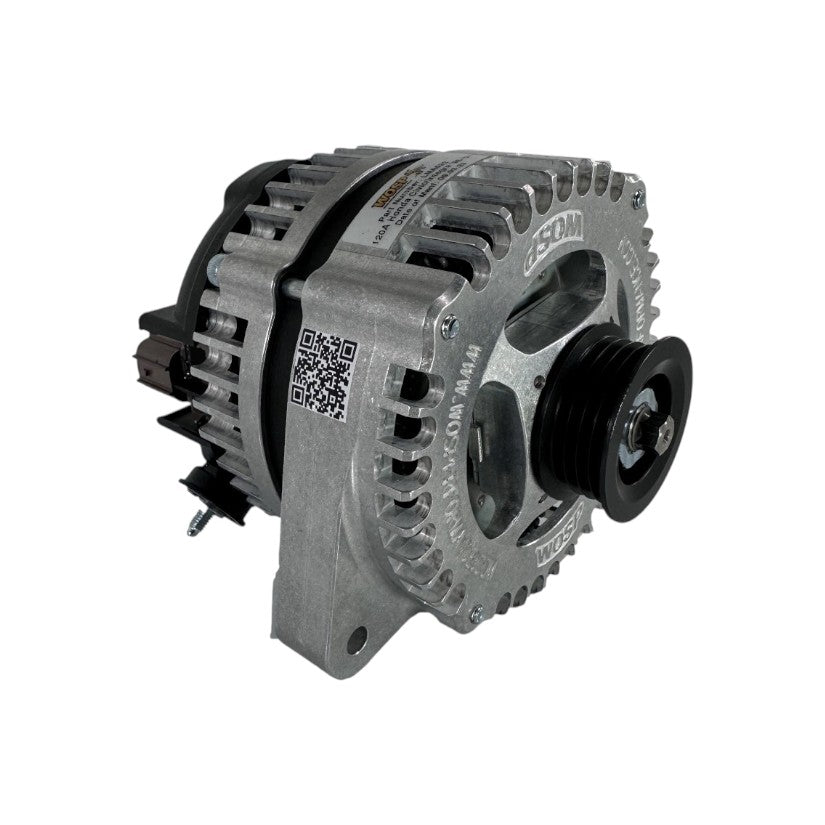

Designed and manufactured from billet in house by WOSPerformance, these super-efficient units are based around the latest generation of alternator technology. These race proven compact alternators offer the best size and power / weight ratio available, and at far lower rpm than alternatives, due to a patented design which enables them to deliver up to 80% of maximum output at average idle speeds – catering for the large electrical loads usually found at this time.
WOSPerformance build these as high output, low rpm, application specific 'fit and forget' direct replacement OE units.
Please note high output alternators require more rpm to charge and become less efficient at idle / low rpm.
Specification
| Output |
175A |
| Voltage |
12V |
| Polarity |
-VE |
| Connection |
B+ / IG / C / L / FR |
| Construction |
Billet |
| Mounting |
R/H |
| Lugs |
2 |
| Pulley |
LMP084 |
| Weight |
5.3Kg / 11.71lbs |
Vehicle Applications
- Acura Integra 1.8L '96-'99
- Honda (B Series engine) '95-'01 / B16 & B18 (OBD-2 square plug)
- Honda Civic 1.6 / 1.8 Petrol B16A2 / B18C4 Mk VI (MB6 / EK4) '95-'01
- Honda CR-V 2.0 Petrol B20B3 / B20B9 / B20Z1 / B20Z3 Mk I (RD1 / RD3) '97-'02
- Honda Integra 1.8 Petrol B18C6 (DC2) '97-'01
OE Cross Reference
- Lucas LRA02296
- Lucas LRA02275
Built to order by WOSPerformance in the UK.
