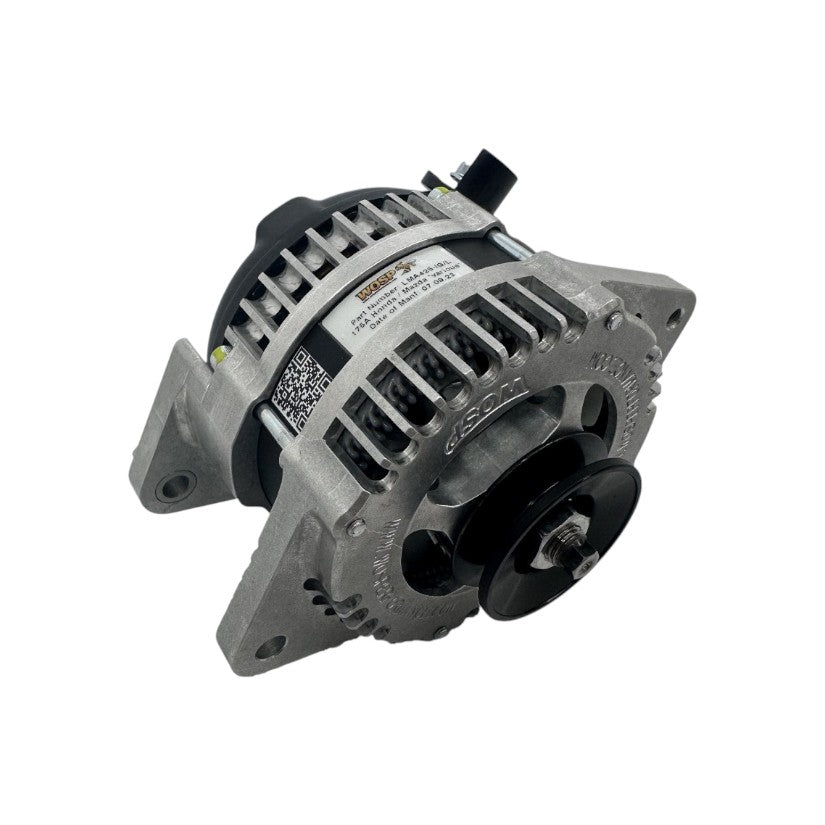

Designed and manufactured from billet in house by WOSPerformance, these super-efficient units are based around the latest generation of alternator technology. These race proven compact alternators offer the best size and power / weight ratio available, and at far lower rpm than alternatives, due to a patented design which enables them to deliver up to 80% of maximum output at average idle speeds – catering for the large electrical loads usually found at this time.
WOSPerformance build these as high output, low rpm, application specific 'fit and forget' direct replacement OE units.
Please note high output alternators require more rpm to charge and become less efficient at idle / low rpm.
Specification
| Output |
175A |
| Voltage |
12V |
| Polarity |
-VE |
| Connection |
B+ / IG / L |
| Construction |
Billet |
| Mounting |
180° |
| Lugs |
3 |
| Pulley |
LMP187 |
| Weight |
5.3Kg / 11.71lbs |
Vehicle Applications
- Honda Accord 2.2 Petrol F22A3 Mk IV (CB3 / CB7) '90-'93
- Mazda 626 2.0 Petrol 8218 / 8227 Mk I (GB1) '79-'82
- Mazda 626 Coupe 1.6 Petrol 8214 Mk I 'Hardtop' (GB1) '78-'80
- Mazda 929 2.0 Petrol 8449 / 8455 HE52 / HE53 / HE55 / HE61 Mk II / Mk III (LA4 / HBS) '79-'86
- Mazda 929 Coupe 2.0 Petrol HE26 / HE27 / HE29 / HEB2 Mk III 'Hardtop' (HBS) '81-'83
- Mazda Montrose 2.0 Petrol 8218 / 8227 (CB2) '79-81
- Mazda RX7 1.1 Petrol 12A / 12AN2 / N210 Mk I (SA2) '79-'87
OE Cross Reference
- Lucas LRA00402
- Lucas LRA02563
Built to order by WOSPerformance in the UK.
