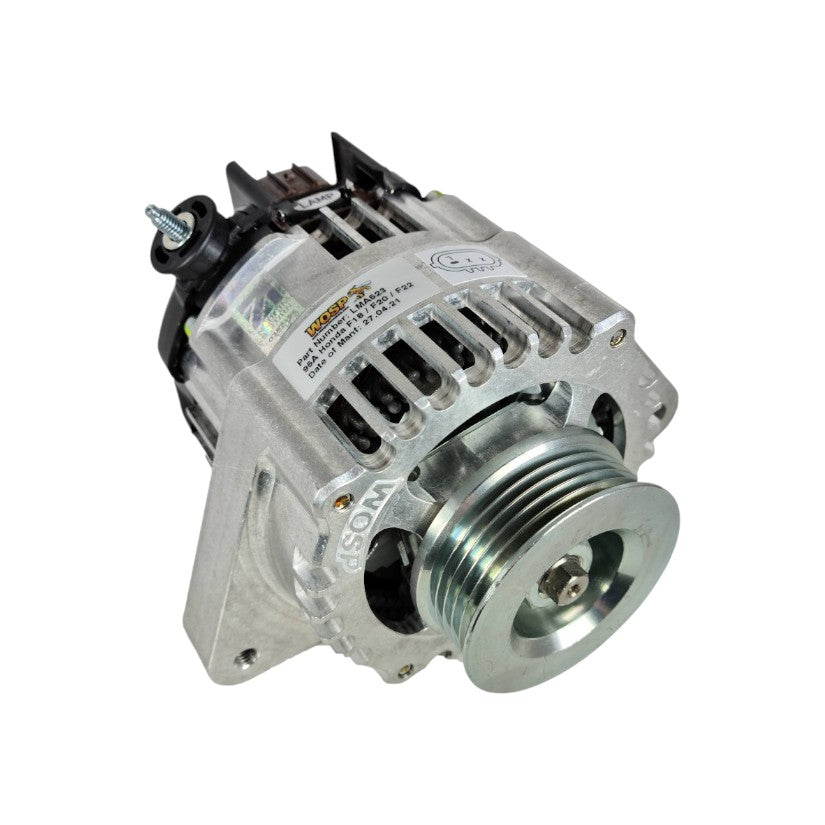

Designed and manufactured from billet in house by WOSPerformance, these super-efficient units are based around the latest generation of alternator technology. These race proven compact alternators offer the best size and power / weight ratio available, and at far lower rpm than alternatives, due to a patented design which enables them to deliver up to 80% of maximum output at average idle speeds – catering for the large electrical loads usually found at this time.
WOSPerformance build these as high output, low rpm, application specific 'fit and forget' direct replacement OE units.
Please note high output alternators require more rpm to charge and become less efficient at idle / low rpm.
Specification
| Output |
170A |
| Voltage |
12V |
| Polarity |
-VE |
| Connection |
B+ / FR / L |
| Construction |
Billet |
| Mounting |
R/H |
| Lugs |
2 |
| Pulley |
LMP011-15 |
| Weight |
3.9Kg / 8.61lbs |
Vehicle Applications
- Honda F18 / F20 / F22 (Rover 618 / 620 / 825)
- Honda Accord 1.8 / 2.0 / 2.2 Petrol F18A3 / F20Z1 / MA420 / F22Z2 Mk V (CE7 / CC7 / CE4 / CE8 / CE9) '93-'98
- Honda Prelude 2.0 Petrol F20A4 Mk IV (BB3) '91-'96
- Rover 618 1.9 Petrol F18A / F18A3 Mk I (RH) '94-'99
- Rover 620 2.0 Petrol F20Z1 / F20Z2 Mk I (RH) '93-'99
- Rover 825 2.5 Petrol 25K4F Mk I (RS) '96-'98
OE Cross Reference
Built to order by WOSPerformance in the UK.
