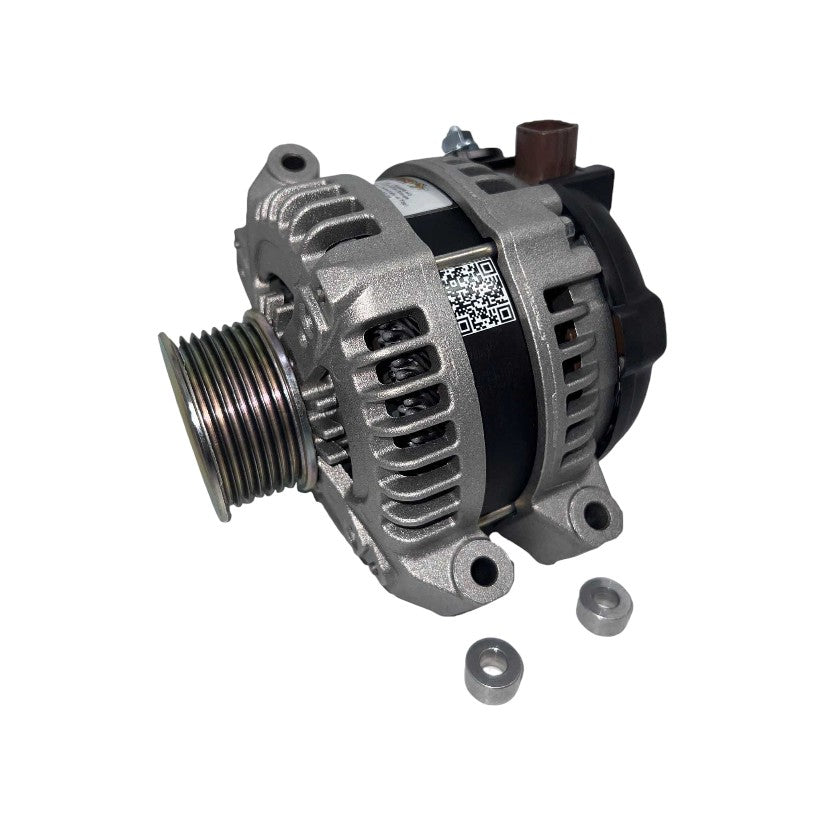

Designed and manufactured in house by WOSPerformance, these super-efficient units are based around the latest generation of alternator technology. These race proven compact alternators offer the best size and power / weight ratio available, and at far lower rpm than alternatives, due to a patented design which enables them to deliver up to 80% of maximum output at average idle speeds – catering for the large electrical loads usually found at this time.
WOSPerformance build these as high output, low rpm, application specific 'fit and forget' direct replacement OE units.
Please note: Civic EP3 / EV1 fitment: fit spacers on both bottom lugs.
Specification
| Output |
120A |
| Voltage |
12V |
| Polarity |
-VE |
| Connection |
B+ / IG / C / L / FR |
| Construction |
Cast |
| Mounting |
PAD |
| Lugs |
3 |
| Pulley |
LMP050 |
| Weight |
5.3Kg / 11.71lbs |
Vehicle Applications
- Honda Civic 2.0 Petrol K20A2 / K20A3 MK VII 'Type-R / Sport' (EV1 / EP3) '01-'05 (Fit spacers on both bottom lugs)
- Honda CR-V 2.0 Petrol K20A4 Mk II (RD5 / RD8) '01-'07
- Honda FR-V 2.0 Petrol K20A9 (BE3) '05-'06
- Honda Stream 2.0 Petrol K20A1 (RN3) '01-'06
OE Cross Reference
- Lucas LRA02355
- Lucas LRA03274
Built to order by WOSPerformance in the UK.
