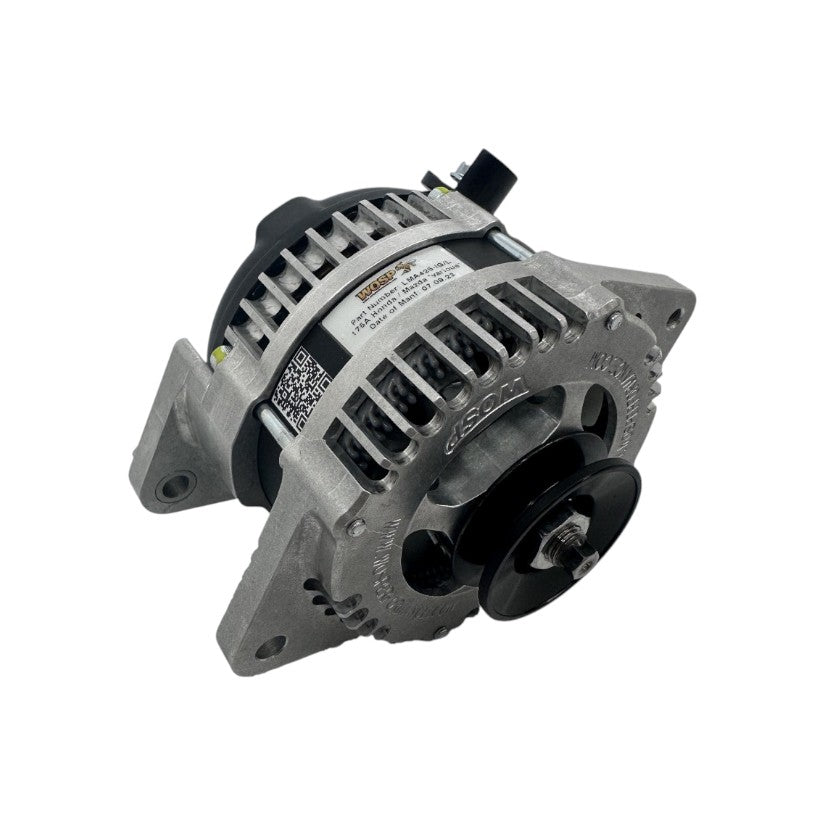

Designed and manufactured from billet in house by WOSPerformance, these super-efficient units are based around the latest generation of alternator technology. These race proven compact alternators offer the best size and power / weight ratio available, and at far lower rpm than alternatives, due to a patented design which enables them to deliver up to 80% of maximum output at average idle speeds – catering for the large electrical loads usually found at this time.
WOSPerformance build these as high output, low rpm, application specific 'fit and forget' direct replacement OE units.
Specification
| Output |
120A |
| Voltage |
12V |
| Polarity |
-VE |
| Connection |
B+ / IG / L |
| Construction |
Billet |
| Mounting |
180° |
| Lugs |
3 |
| Pulley |
LMP187 |
| Weight |
5.3Kg / 11.71lbs |
Vehicle Applications
- Honda Accord 2.2 Petrol F22A3 Mk IV (CB3 / CB7) '90-'93
- Mazda 626 2.0 Petrol 8218 / 8227 Mk I (GB1) '79-'82
- Mazda 626 Coupe 1.6 Petrol 8214 Mk I 'Hardtop' (GB1) '78-'80
- Mazda 929 2.0 Petrol 8449 / 8455 HE52 / HE53 / HE55 / HE61 Mk II / Mk III (LA4 / HBS) '79-'86
- Mazda 929 Coupe 2.0 Petrol HE26 / HE27 / HE29 / HEB2 Mk III 'Hardtop' (HBS) '81-'83
- Mazda Montrose 2.0 Petrol 8218 / 8227 (CB2) '79-81
- Mazda RX7 1.1 Petrol 12A / 12AN2 / N210 Mk I (SA2) '79-'87
OE Cross Reference
- Lucas LRA00402
- Lucas LRA02563
Built to order by WOSPerformance in the UK.
