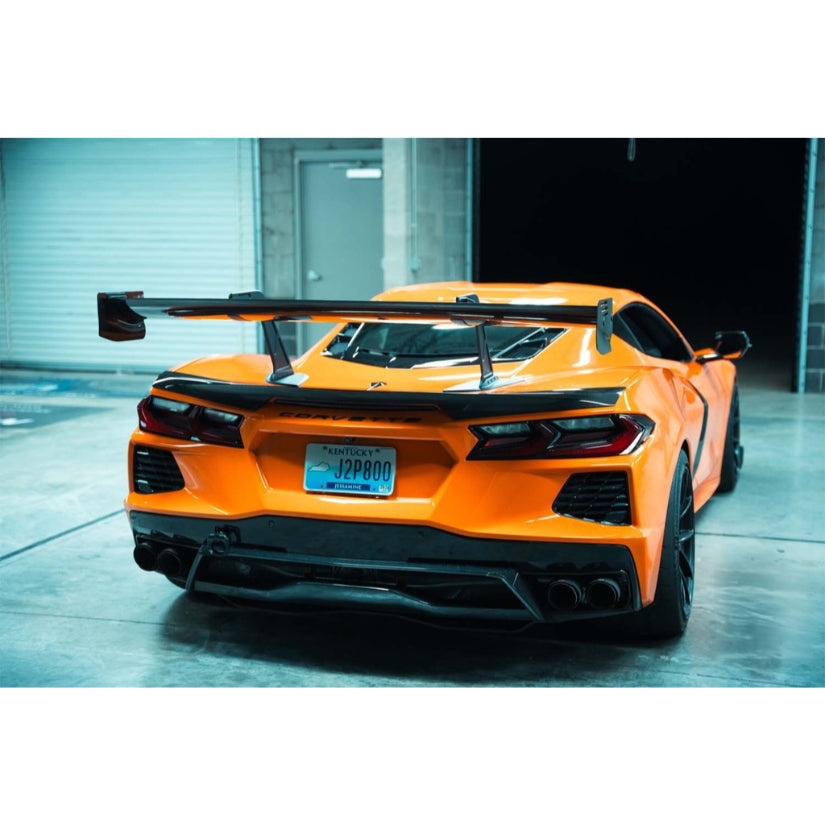

A bolt-on swan neck rear wing for the C8 Corvette Stingray, developed using CFD, wind tunnel testing, and in-house scan data for a near-OEM fit to the factory engine cover. Airfoil optimised using the ANSYS Adjoint Solver. The swan neck top-mount design exposes more of the wing's underside to the low-pressure zone, increasing downforce efficiency compared to bottom-mount designs. Capable of generating and withstanding 500+ lbs of downforce. Uprights are positioned in already-disturbed airflow to minimise aerodynamic penalty. Suited to track use where a significant increase in rear downforce is needed to balance a front aero package.

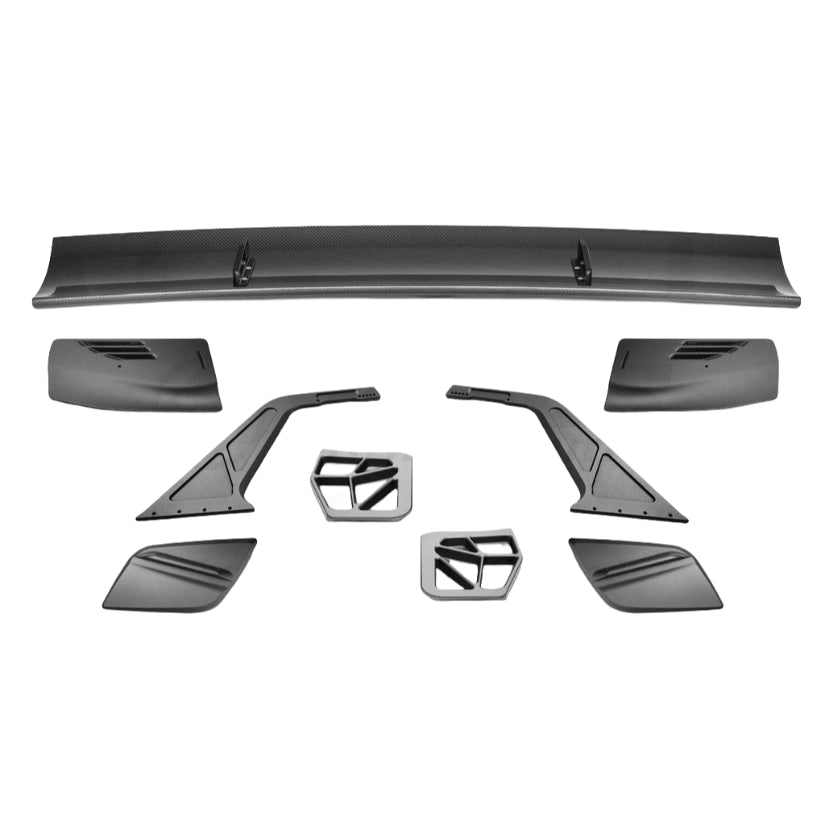

Includes
- Carbon fibre rear wing assembly
- 2 x machined aluminium swan neck rear wing uprights
- 2 x machined aluminium rear engine cover mounts
- 2 x machined aluminium rear engine cover bottom supports

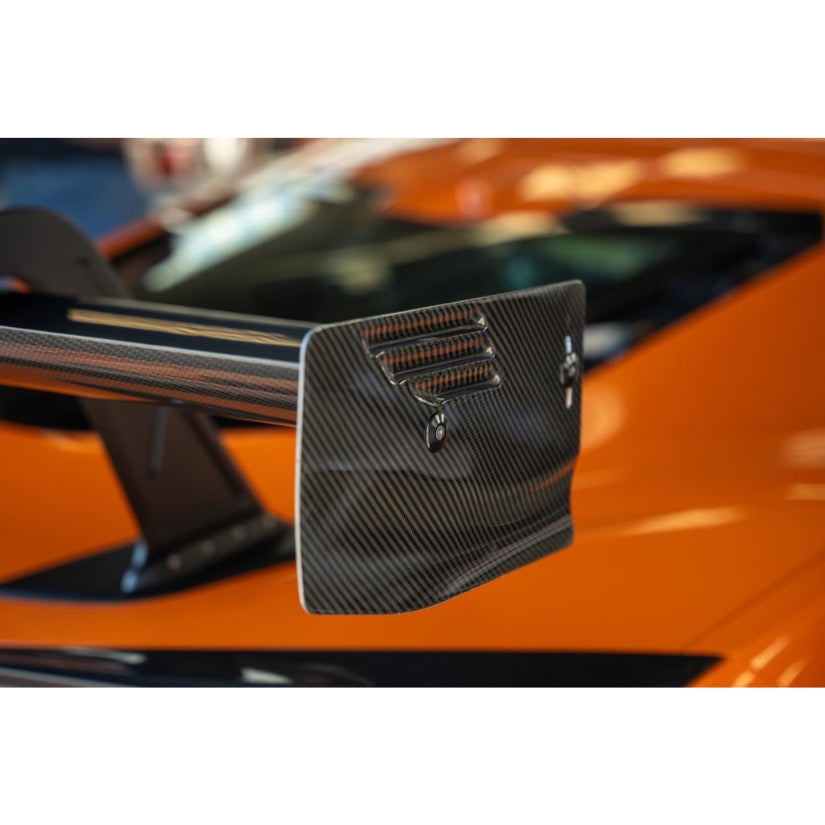

- 2 x vented carbon fibre rear wing endplates
- Full hardware kit
Specifications
- Wing: 2x2 twill pre-preg carbon fibre, autoclave cured, automotive high-gloss clear, with machined billet aluminium uprights
- Mounting kit: 6061-T6 aluminium, machined in-house on 5-axis CNC
- Hardware: stainless steel throughout
