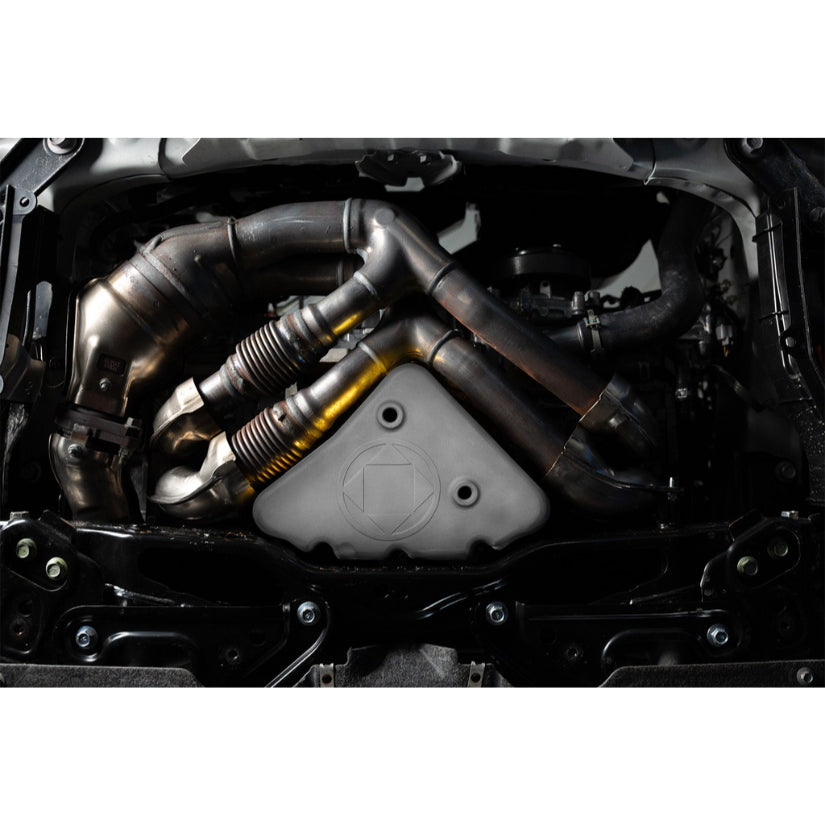

The FA24 engine in the Toyota GR86 and Subaru BRZ is known to suffer significant oil pressure loss under hard track driving, particularly through right-hand corners. Verus Engineering's oil pan addresses this with an integrated baffle system that keeps oil closer to the pickup under high-G cornering, along with increased oil capacity for additional protection against both pressure loss and overheating. Developed using scan data to contour organically around the exhaust header. Compatible with the OEM exhaust header and EPA and CARB compliant.
On-track testing with the OEM pan recorded pressure drops as low as 23 PSI. With the Verus pan fitted, oil pressure was found to be significantly more stable, reducing the risk of premature bearing wear or engine failure.
Includes

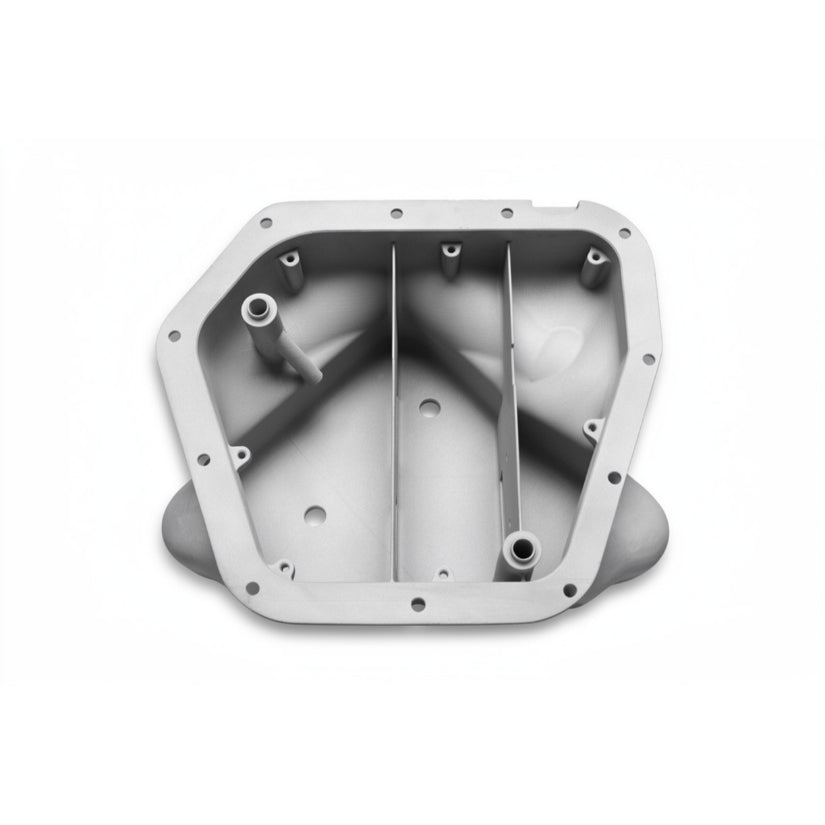

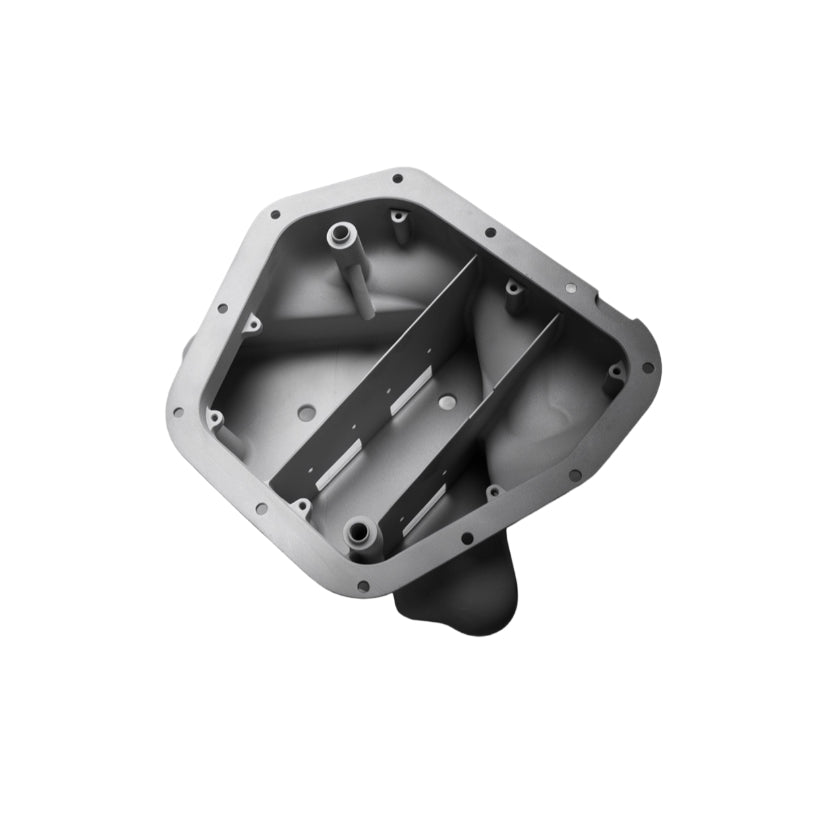

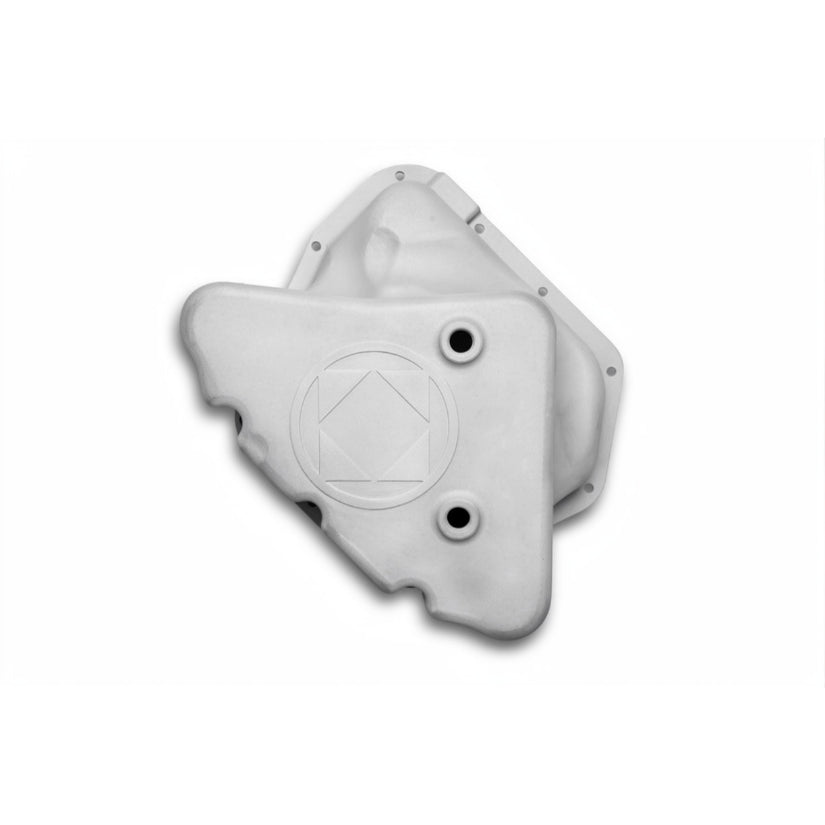

- 3D printed aluminium oil pan with integrated baffling
- Full hardware kit
Specifications
- Material: 3D printed aluminium
- Hardware: stainless steel throughout
