Tegiwa ABS Anti-Lock Brake System Delete Kit HONDA CIVIC TYPE R EP3 01-06
By removing the ABS on your car, the braking performance is greatly improved and allows for a much stronger pedal feel due to no more intrusive ABS system. Removing the ABS also saves weight and helps to free up space in the engine bay too!

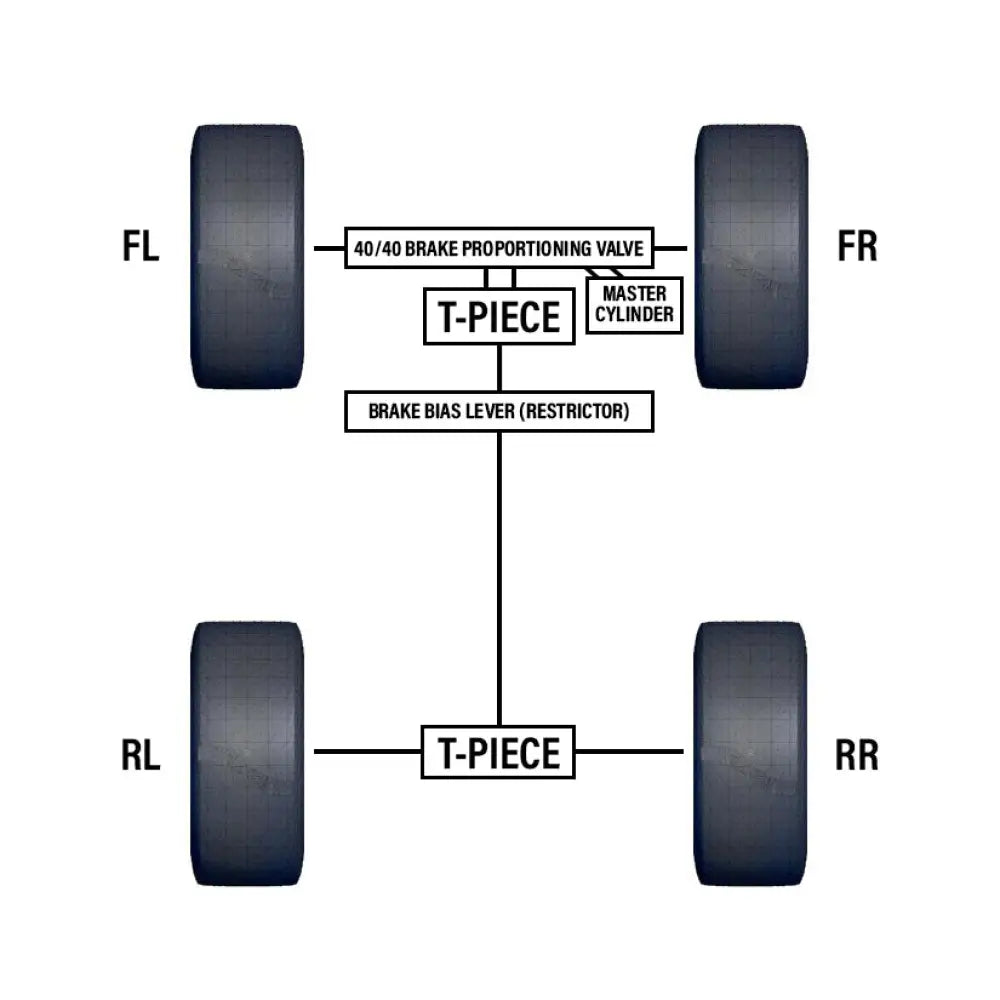

This install kit mounts the brake proportioning valve in the original abs pump location to keep things as simple as possible. If you prefer a cleaner looking install that requires a bit more work then you can purchase our tucked kit which mounts the prop valve under the scuttle. You will receive the same components in each kit but with different line lengths depending on the fitting location.

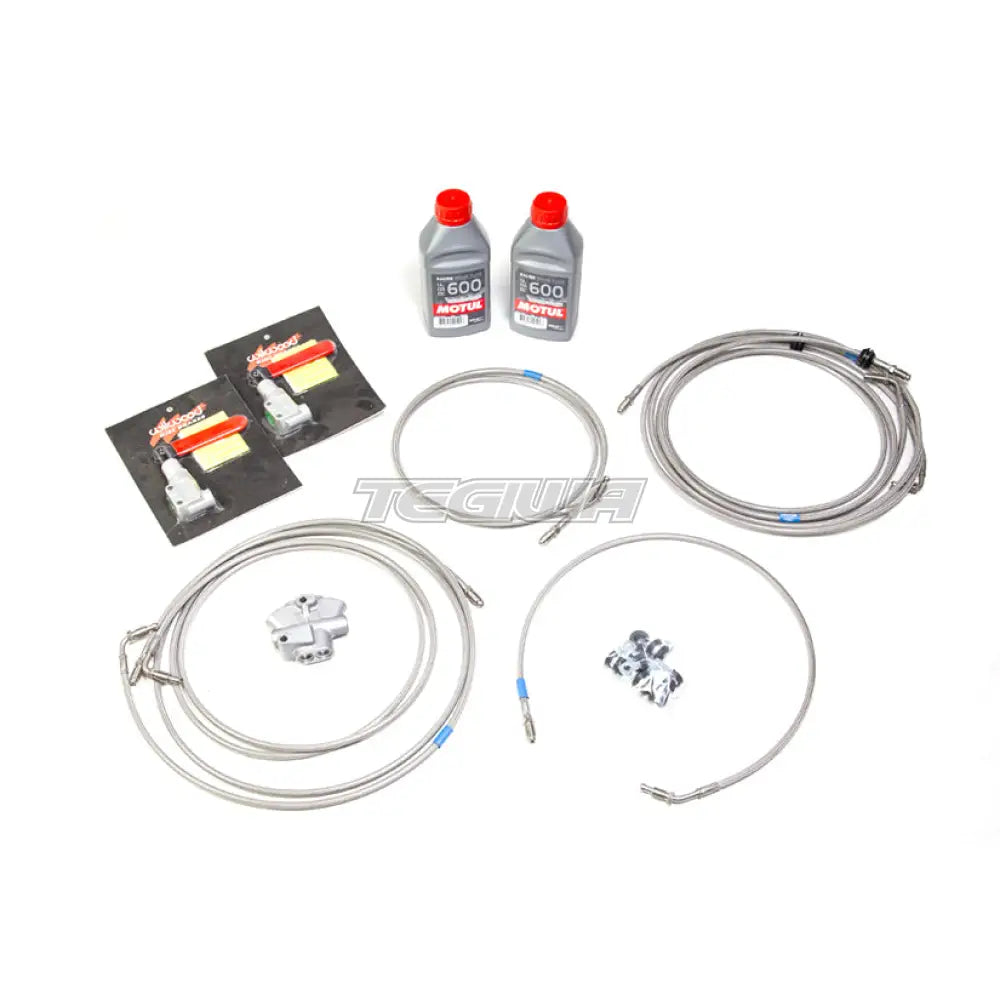

The Easy kit includes:

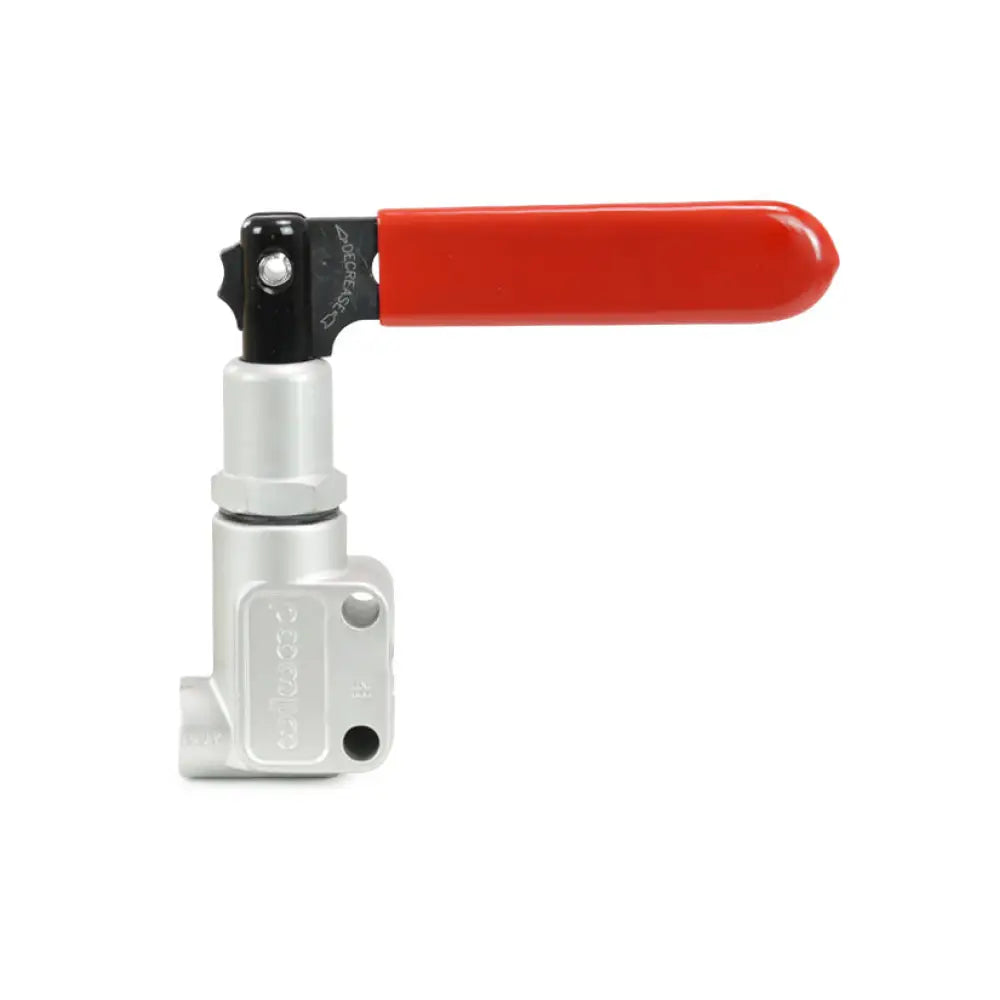

- 2X Wilwood Brake Proportioning Valve Bias Adjuster Metric Lever
- Genuine Nissin 40/40 Brake Proportioning Valve
- 2x 500ml Motul RBF 600

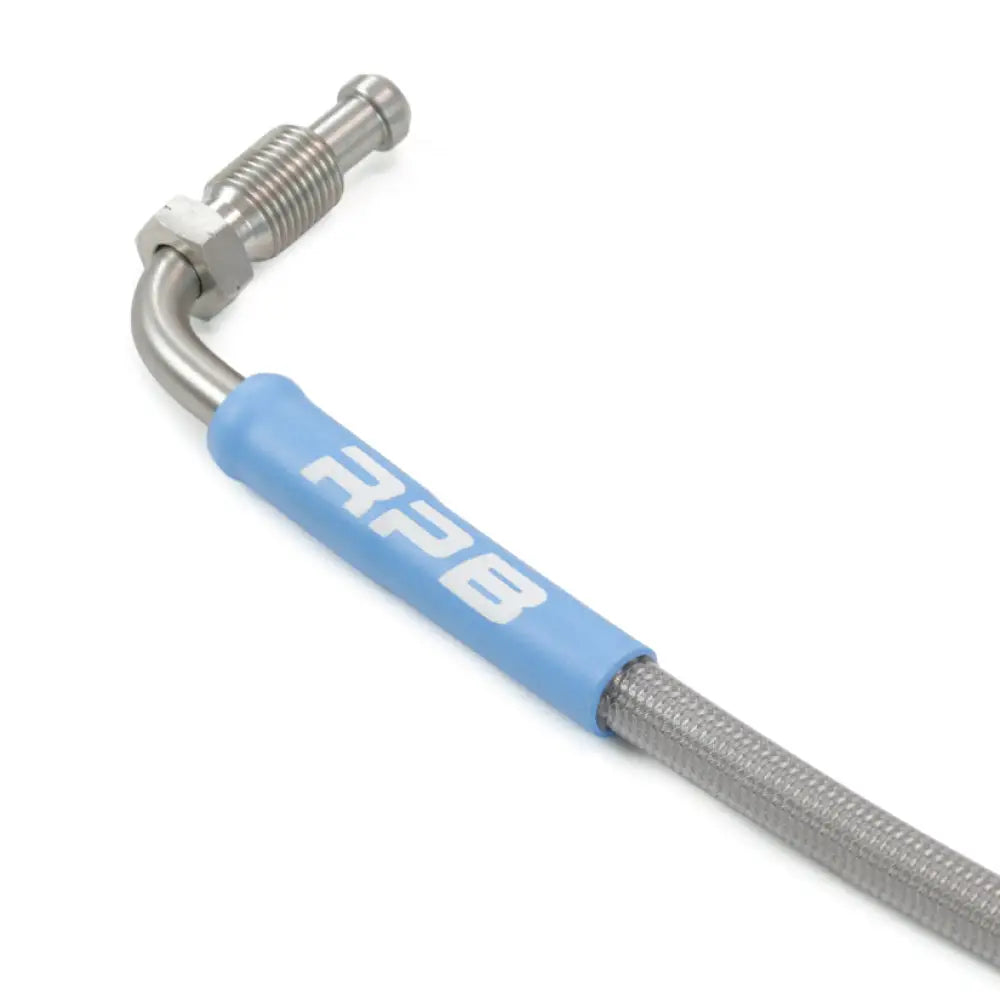

- 6x RPB Lines
- 2x Master cylinder to 4040 valve (652mm long)
- 2x 4040 to Bias Levers (2550mm long)
- 2x Bias Levers to rear quarters (2400mm long)

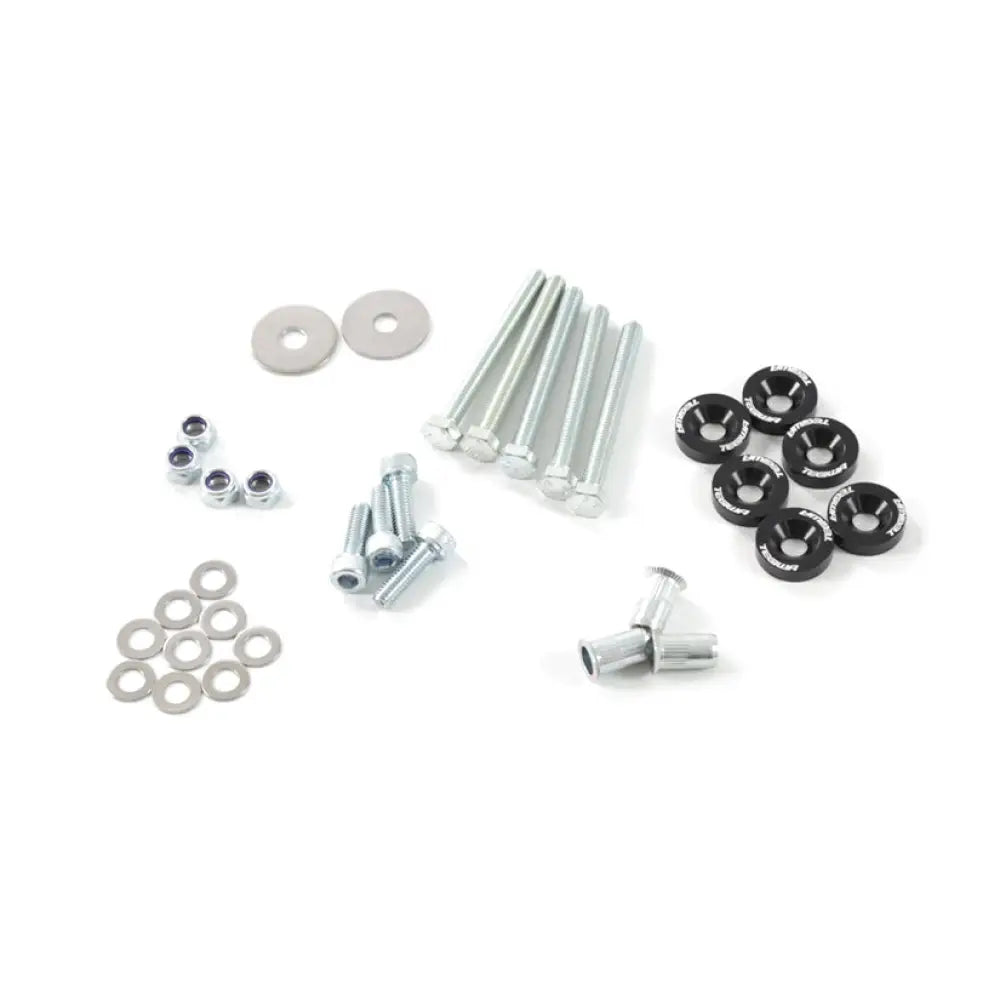

- Fitting Kit
- Fitting Guide
The tucked install kit mounts the brake proportioning valve under the scuttle for a cleaner look and less cluttered engine bay. If you want a simpler install then you can select our "easy" kit which mounts the prop valve to the original ABS pump location. You will receive the same components in each kit but with different line lengths depending on the fitting location.

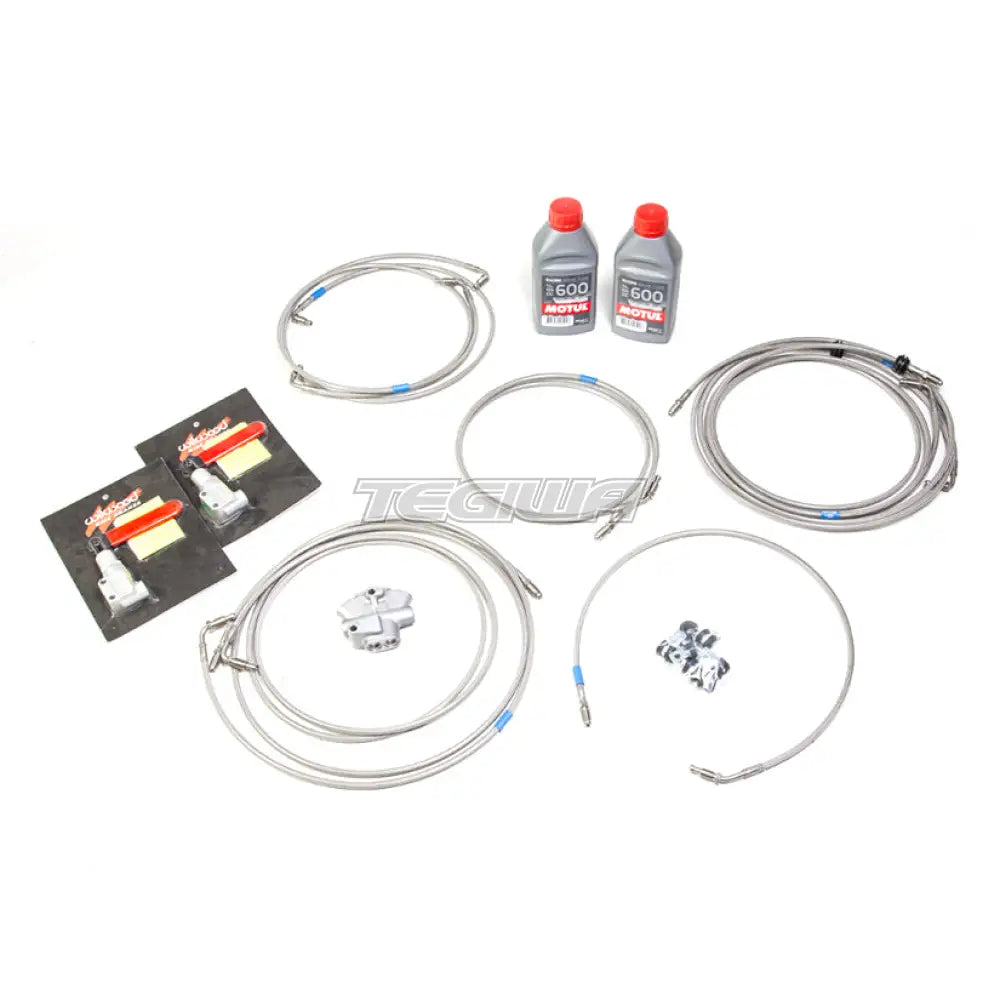

The Tucked kit includes:
- 2x Wilwood Brake Proportioning Valve Bias Adjuster Metric Lever
- Genuine Nissin 40/40 Brake Proportioning Valve
- 2x 500ml Motul RBF 600
- 8x RPB Lines
- 2x Master cylinder to 4040 valve (1130mm long)
- 1x 4040 to left front arch (710mm long)
- 1x 4040 to right front arch (1460mm long)
- 2x 4040 to Bias Levers (1950mm long)
- 2x Bias Levers to rear quarters (2400mm long)
- Fitting Kit
- Fitting Guide
