T7Design Odyssey PC680 Alloy Battery Tray Kit Honda Civic Type R EP3 Integra DC5

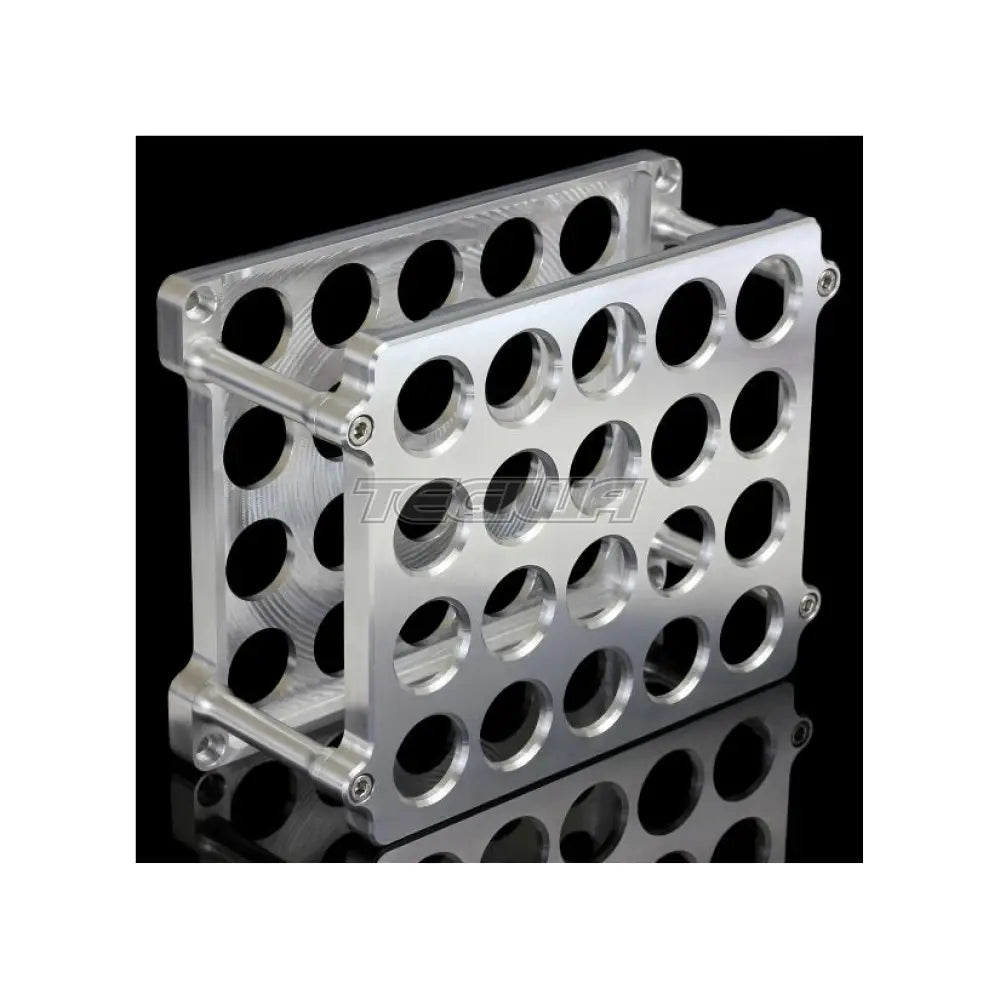

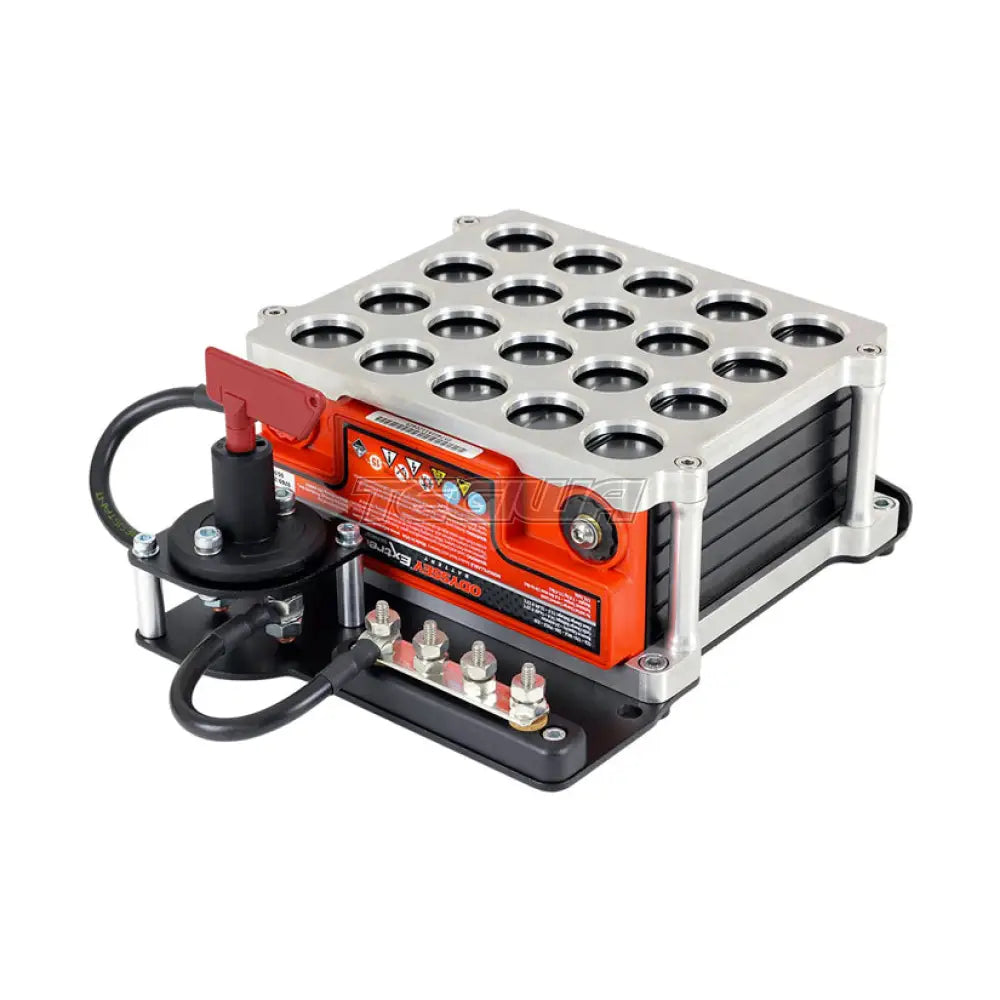

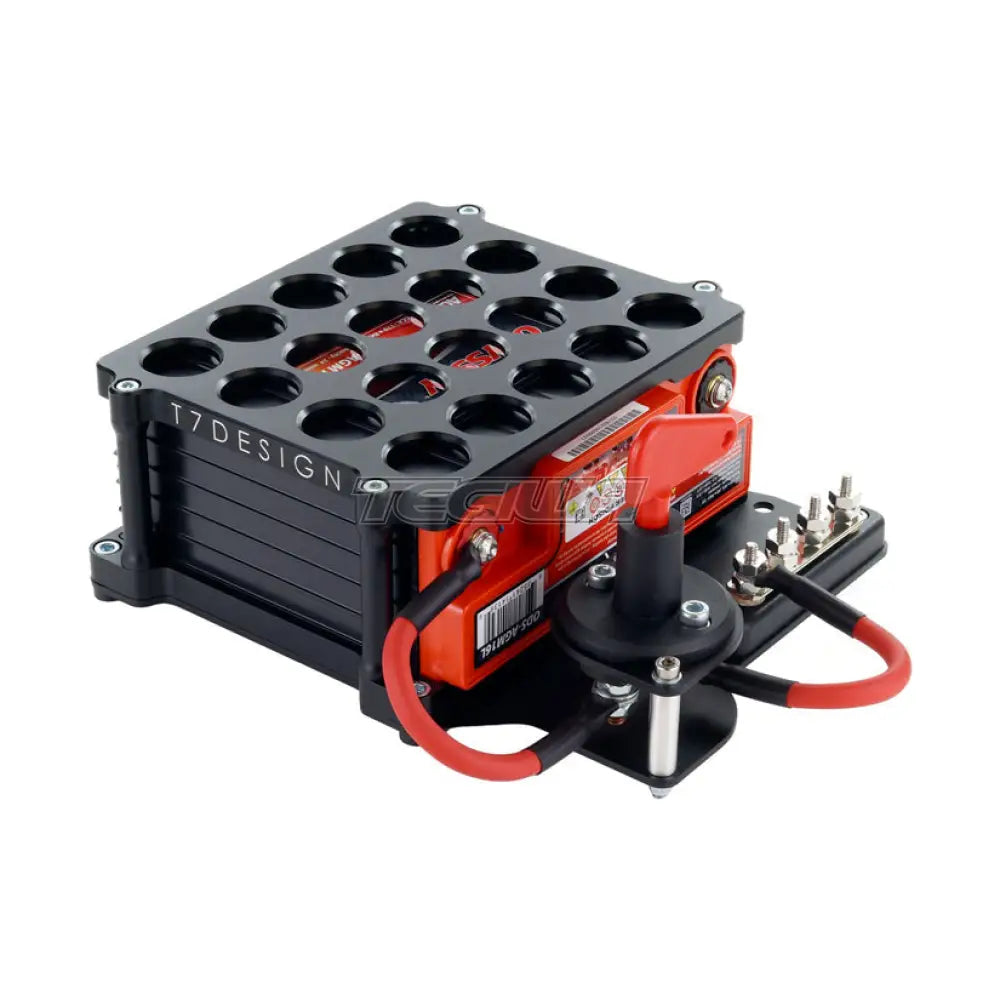

T7Design's billet Odyssey PC680 battery tray and mounting kit for the Honda Civic (EP3) and Integra (DC5) models is designed to fit underneath where the original battery would sit within the engine bay, not only does this free up space, it also saves 5kg of weight and incorporates a battery cut off switch and busbar to distribute power to your fuse box and starter motor, plus extra for electrical accessory expansion like EPS. The only components needed to complete installation are earth cables and an Odyssey PC680 battery.
Included in the kit are a number of foam spacers to take up any small variations in the dimensions of the battery during its manufacture, as the battery is a fully sealed design the battery must be held with just the right amount of pressure without the risk of breaking the seal. The spacers also help dampen vibration and movement within the billet housing.
| Specification | Metric | Imperial & Other |
| Tray Height | 86.5 mm | 3.41" |
| Tray Width | 210 mm | 8.27" |
| Tray Depth | 171 mm | 6.73" |
| Weight | 0.7 kg | 1.54 lbs |
| Fitment | Odyssey PC680 | |
| Material | Billet Aluminium 6082 | |
| Finish | Polished Aluminium | |
| Kit Part Number | 571-E5C-39C | |
| Quantity | Item |
| 1x | Billet Top Plate |
| 1x | Billet Bottom Plate |
| 4x | Billet Posts |
| 4x | Foam Spacers |
| 1x | Mounting Tray for EP3/DC5 Chassis |
| 1x | 4 Stud BusBar |
| 1x | Battery Cut off Switch |
| 2x | Power Cables |
| 1x | Bolt Pack |
| 1x | Mounting Pack inc Spacers |
- Please note that no battery is included.
£240.00
£240.00
ETA: 2-5 Working Days From Order Date
-
Free UK Delivery
On all orders over £100.
Worldwide Shipping Available On Checkout.
