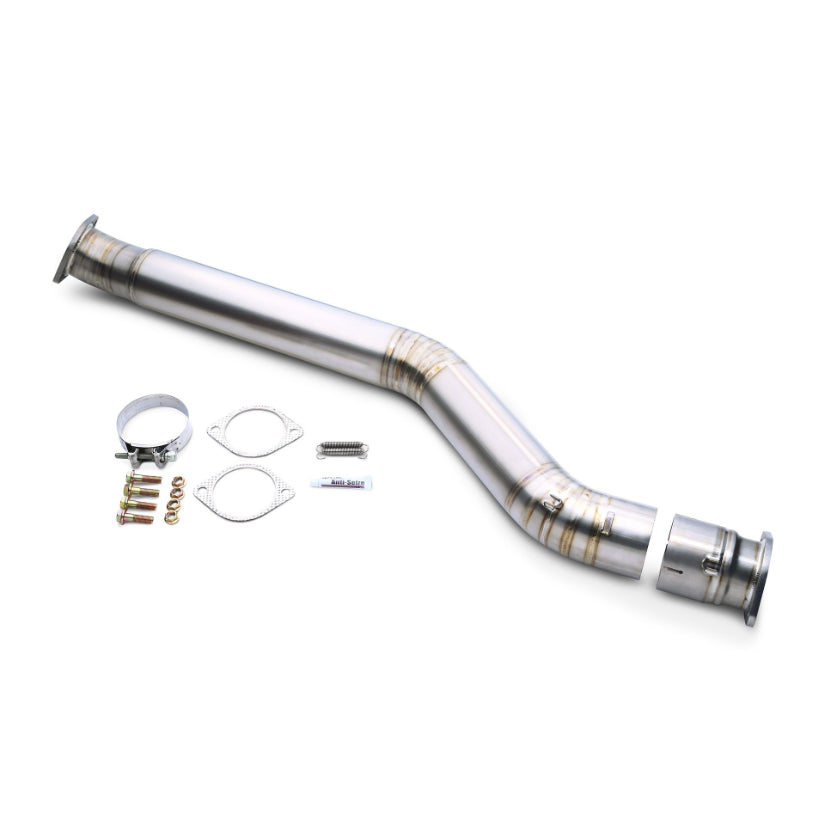

RSE Full Titanium Mid Pipe Toyota Supra JZA80
The standard JZA80 centre section narrows as it goes, running 70mm at the front and tapering down to 64mm. Real Speed Engineering's full titanium mid pipe does the opposite, opening up from 76.3mm to 89.1mm along its length so the exhaust gets a clear path rather than a pinch point on the way out. Wall thickness is 1mm against the standard 1.5mm, bringing the pipe down to just 1.6kg against the 6.2kg standard section, a saving of 4.6kg. It's supplied with an 80mm adapter flange, two gaskets, a clamp band, flange bolts and nuts, springs and anti-seize compound.
Key Features
- Full titanium construction with 1mm wall thickness (standard 1.5mm)
- 1.6kg against the 6.2kg standard centre section, a saving of 4.6kg
- Pipe diameter opening from 76.3mm to 89.1mm, where the standard section narrows from 70mm to 64mm
- Complete kit including 80mm adapter flange, two gaskets, clamp band, four M10 flange bolts, four M10 flange nuts, two springs and anti-seize compound
Please Note
- The supplied adapter flange is used when fitting to the standard exhaust. To run this mid pipe with the RSE exhaust RB6090-TY03A, the adapter flange is removed and the universal adapter RB6120-0000A is used instead, which is a separate purchase
- Installation should be carried out by a qualified technician. RSE specify 34.3 to 39.2Nm on the M10 flange nuts and 25Nm on the clamp band
Compatible With
- Toyota Supra JZA80, 6-speed manual and 4-speed automatic, 1993 to 2002 (2JZ-GTE)
This product is intended for motorsport/competition use and should NOT be used on public roads.
