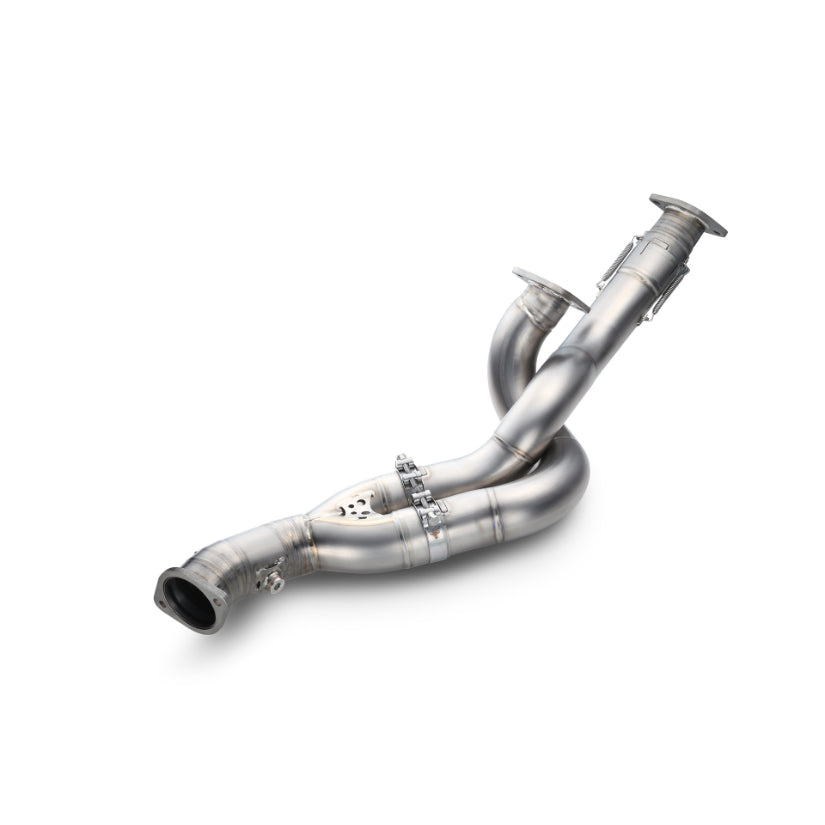

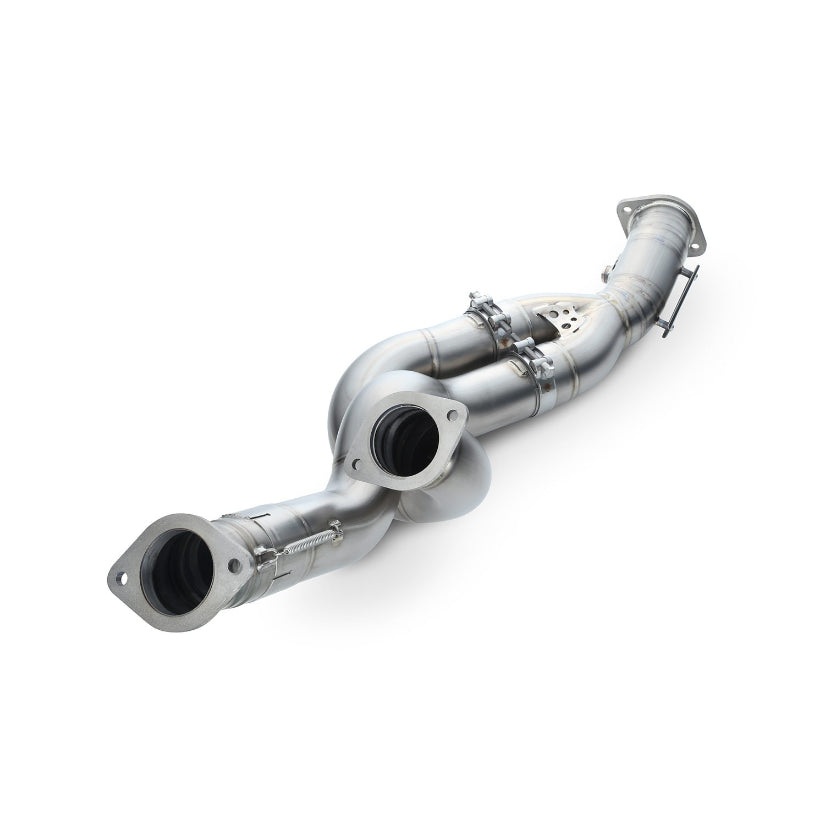

RSE Full Titanium Front Pipe Nissan GT-R R32 R33 R34
Real Speed Engineering's full titanium front pipe for the RB26DETT is built to an equal-length layout, with each runner matched to give the turbochargers an even, uninterrupted feed. Main pipe diameter steps up through 70mm, 76.3mm and 80.5mm against the standard 60mm to 70mm pipework, and wall thickness drops to 1.2mm from the standard 2mm steel, bringing the complete pipe down to 3kg against 5.6kg standard.
Equal-length layouts usually cost ground clearance, but RSE have routed the larger pipework so that it sits no lower than the rest of the exhaust system behind it, so there's nothing extra hanging down to catch. Titanium flanges are used at both ends, 70mm at the front and 80.5mm at the rear, both 8mm thick. It fits all three RB26 GT-Rs.
Key Features
- Full titanium construction using RSE's own titanium material
- Equal-length runner layout for an even feed to both turbochargers
- 3kg against the 5.6kg standard front pipe, a saving of 2.6kg
- Stepped 70mm, 76.3mm and 80.5mm main pipe diameter (standard 60mm to 70mm)
- 1.2mm wall thickness (standard 2mm)
- Titanium flanges, 70mm front and 80.5mm rear, both 8mm thick
- Ground clearance no lower than the rest of the exhaust system, despite the equal-length routing
- Fits BNR32, BCNR33 and BNR34
Please Note

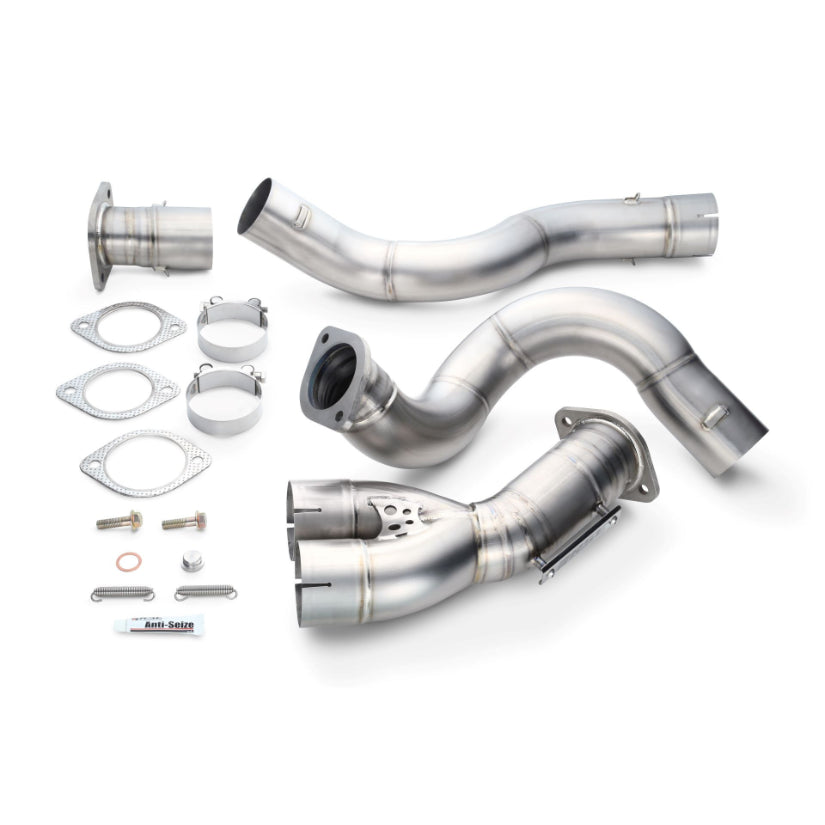

- Builds into a complete titanium exhaust with the matching cat straight pipe, RB6100-NS00A, and the model-specific rear system: RB6090-NS05A for BNR32, RB6090-NS05B for BCNR33, RB6090-NS05C for BNR34
Compatible With
- Nissan Skyline GT-R BNR32, BCNR33 and BNR34 (RB26DETT)
This product is intended for motorsport/competition use and should NOT be used
on public roads.
