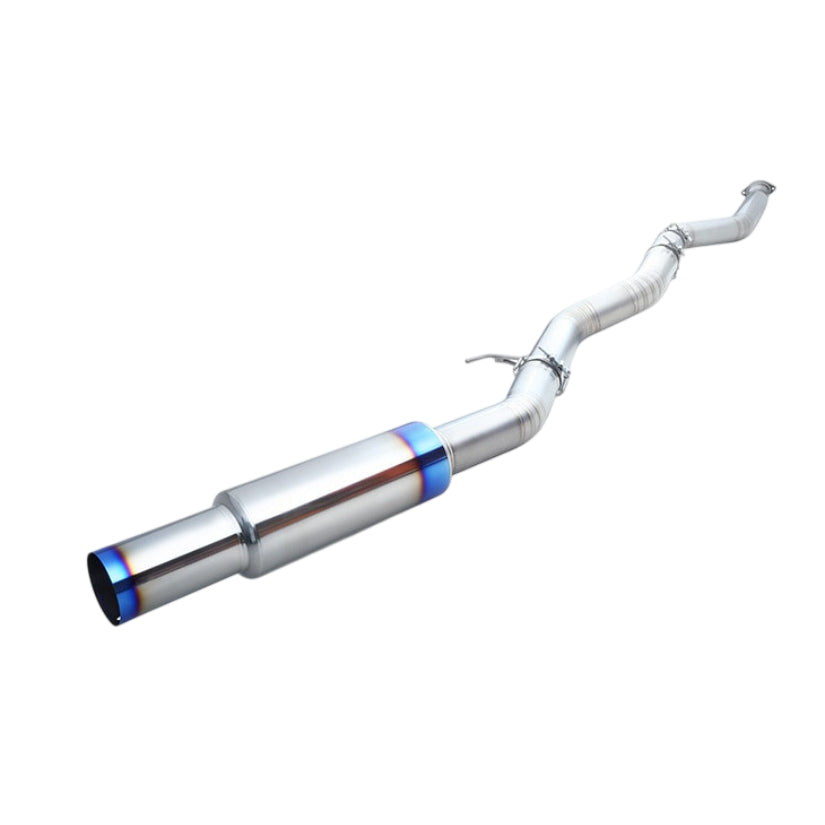

RSE Full Titanium Exhaust Toyota Supra JZA80
The standard JZA80 rear section splits and narrows as it goes, running 70mm into a pair of 64mm pipes and then a pair of 48.6mm pipes, feeding twin oval centre silencers of 250 by 110mm and a 350 by 195mm oval main silencer. Real Speed Engineering replace all of it with a single path that opens up from 76.3mm to 101.6mm, running into one 152mm titanium silencer and a 115mm titanium tip in place of the standard 100mm outlet.

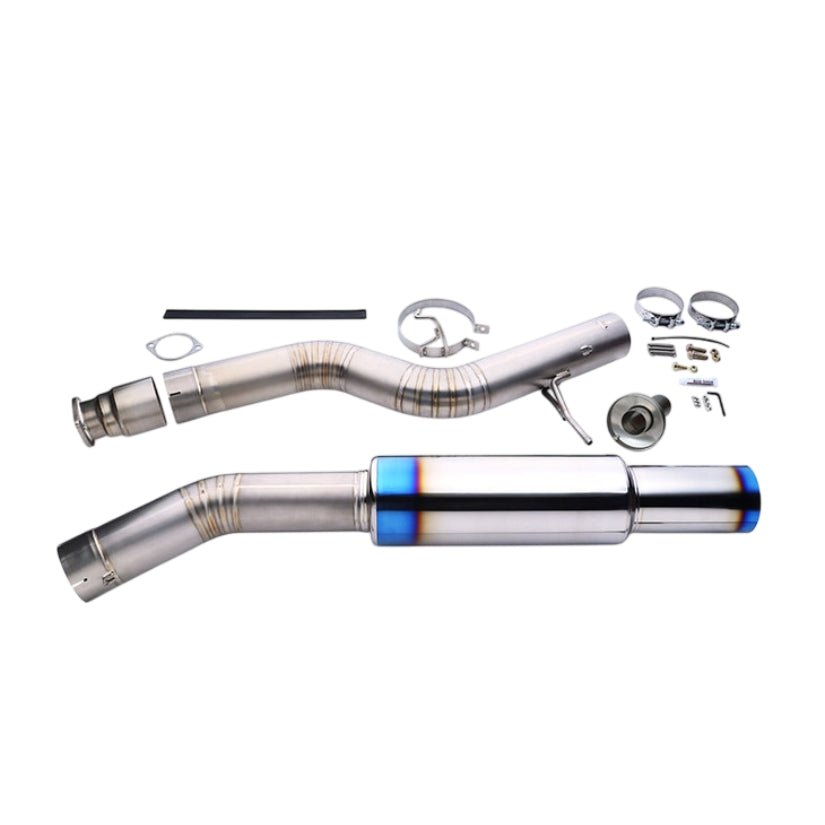

Wall thickness is 1mm throughout against the standard 1.5mm, with 8mm flanges, and the complete exhaust weighs 6kg against the 17.7kg standard unit, a saving of 11.7kg. It's supplied as a complete kit with the gaskets, bolts and anti-seize compound needed for fitting, so there's no need to source any standard parts before installation.
Key Features
- Full titanium construction with 1mm wall thickness throughout (standard 1.5mm)
- 6kg against the 17.7kg standard exhaust, a saving of 11.7kg
- Main pipe opening from 76.3mm to 101.6mm, replacing standard pipework that splits and narrows to twin 48.6mm
- Single 152mm titanium silencer, replacing the standard twin 250 by 110mm centre silencers and 350 by 195mm main silencer
- 115mm titanium exhaust tip (standard 100mm)
- 8mm thick flanges
- Complete kit including gaskets, fixings and anti-seize compound
Please Note
- Builds into a complete titanium exhaust with the matching mid pipe, RB6110-TY03A, and the universal adapter, RB6120-0000A
Compatible With
This product is intended for motorsport/competition use and should NOT be used on public roads.
Do not drive at high speeds with the SOUND REDUCER installed as it may become damaged or broken.
