RSE Full Titanium Exhaust Toyota 86 / GR86 / Subaru BRZ Type-D

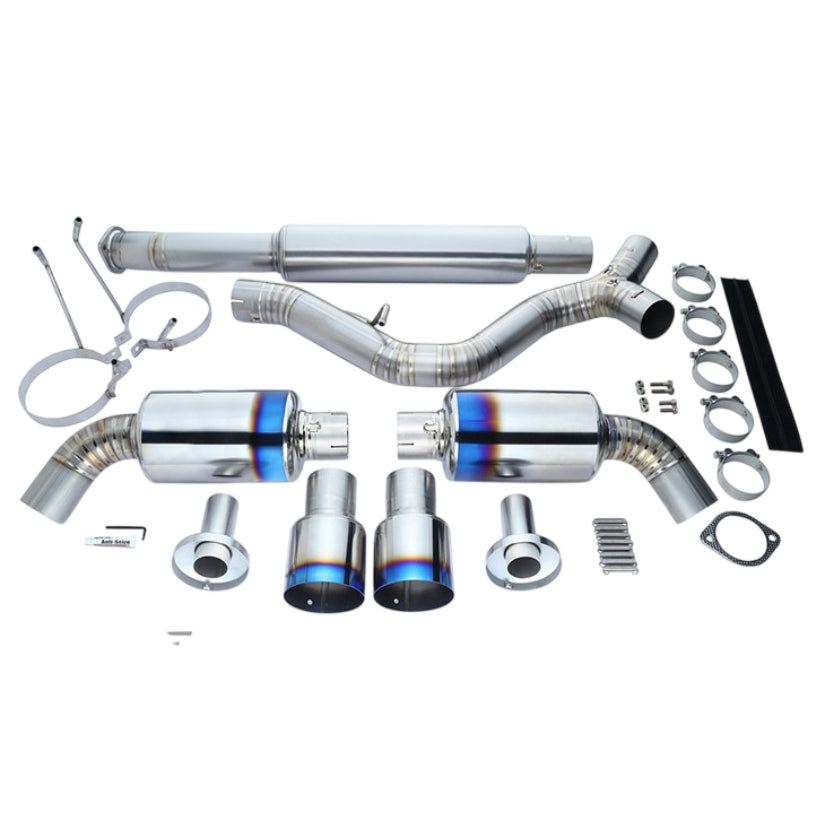

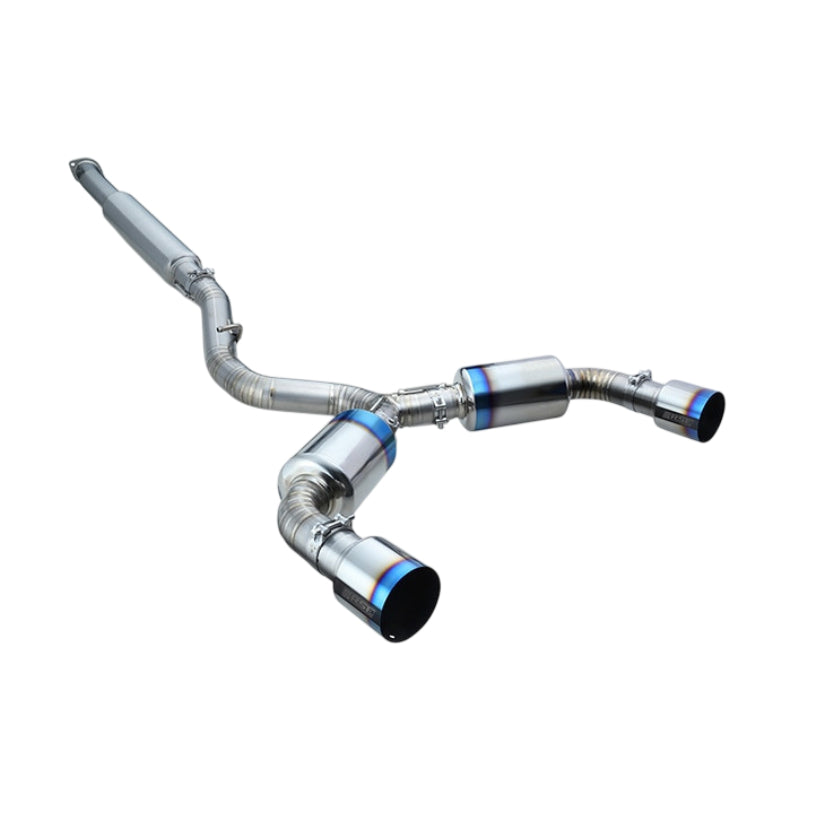

The standard 86 and BRZ exhaust runs pipework of only 53.5 to 55mm, and Real Speed Engineering's Type-D replaces it with 80.5mm titanium stepping down to 76.3mm, feeding twin 152mm titanium silencers and a 118mm sub silencer into dual 115mm tips. Wall thickness is 1mm throughout with 8mm flanges, and the complete exhaust weighs 10.9kg against 16kg standard on the ZN8 and ZD8 cars, or 17.4kg on the earlier ZN6 and ZC6. It's supplied as a complete kit with the gaskets, bolts and anti-seize compound needed for fitting, with no standard parts to source beforehand.
Key Features
- Full titanium construction with 1mm wall thickness throughout
- 10.9kg against 16kg standard on ZN8 and ZD8, or 17.4kg on ZN6 and ZC6
- 80.5mm stepping to 76.3mm main pipe diameter (standard 53.5 to 55mm)
- Twin 152mm titanium silencers with 118mm titanium sub silencer
- Dual 115mm titanium exhaust tips (standard twin 110mm)
- 8mm thick flanges
- Fits all four chassis, ZN6, ZC6, ZN8 and ZD8
- Complete kit including gaskets, fixings and anti-seize compound
Please Note
- Sound levels are RSE's own reference figures, measured at 5,250rpm with the exhaust alone fitted. On ZD8: 105 decibels with no sound reducer, 99 decibels with a sound reducer, 94 decibels with the Sound Reducer ver.2. On ZN6: 108, 101 and 95 decibels respectively
Compatible With
- Toyota 86 and Scion FR-S ZN6, Subaru BRZ ZC6 (FA20)
- Toyota GR86 ZN8, Subaru BRZ ZD8 (FA24)
This product is intended for motorsport/competition use and should NOT be used on public roads.
