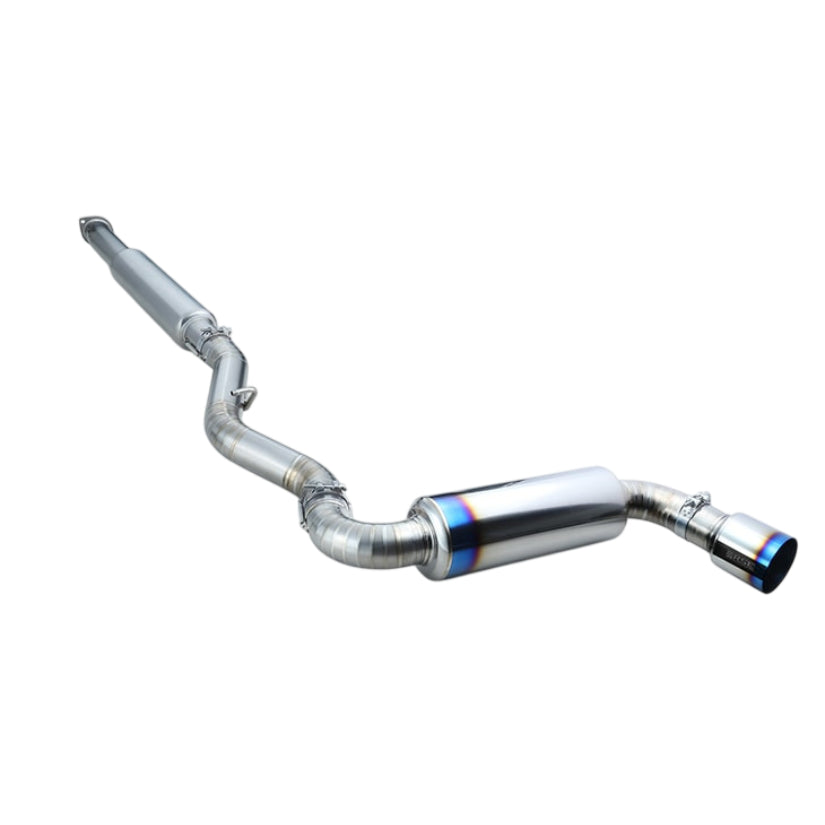

RSE Full Titanium Exhaust Toyota 86 / GR86 / Subaru BRZ Type-80 Ver.2

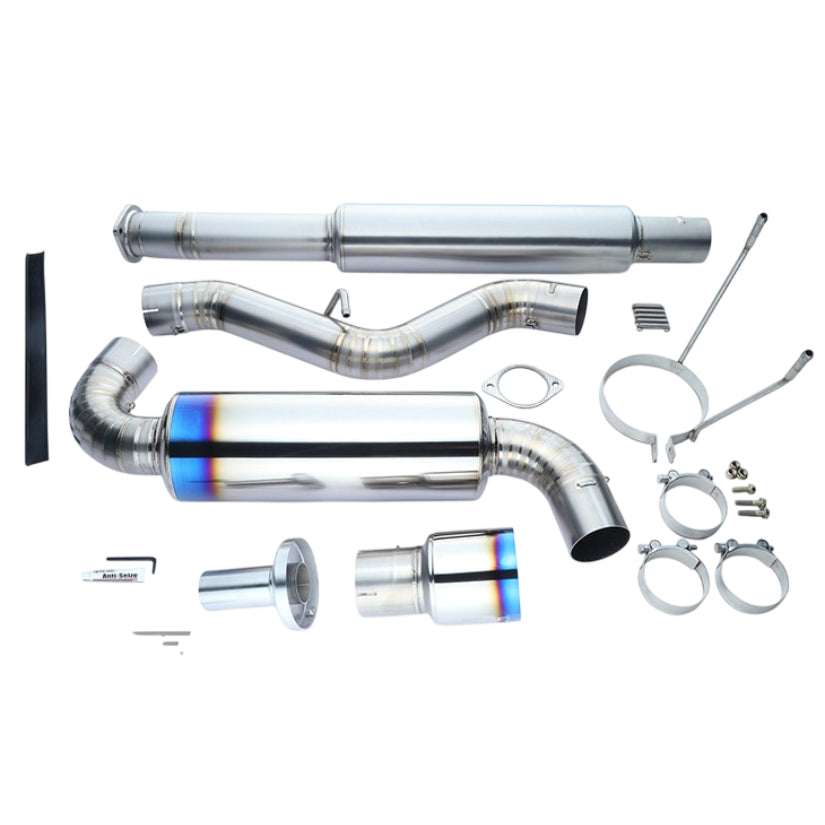

The standard 86 and BRZ exhaust runs pipework of only 53.5 to 55mm out to a pair of 110mm exits, and Real Speed Engineering's Type-80 Ver.2 replaces it with 80.5mm titanium into a 152mm silencer and a 118mm sub silencer, finishing in a single 115mm titanium tip. Wall thickness is 1mm throughout with 8mm flanges, and the complete exhaust weighs 8.5kg against 16kg standard on the ZN8 and ZD8 cars, or 17.4kg on the earlier ZN6 and ZC6. It's supplied as a complete kit with the gaskets, bolts and anti-seize compound needed for fitting, with no standard parts to source beforehand.
Key Features
- Full titanium construction with 1mm wall thickness throughout
- 8.5kg against 16kg standard on ZN8 and ZD8, or 17.4kg on ZN6 and ZC6
- 80.5mm main pipe diameter (standard 53.5 to 55mm)
- 152mm titanium silencer with 118mm titanium sub silencer
- Single 115mm titanium exhaust tip (standard twin 110mm)
- 8mm thick flanges
- Fits all four chassis, ZN6, ZC6, ZN8 and ZD8
- Complete kit including gaskets, fixings and anti-seize compound
Please Note
- Sound levels are RSE's own reference figures, measured at 5,250rpm with the exhaust alone fitted. On ZD8: 105 decibels with no sound reducer, 100 decibels with a sound reducer, 96 decibels with the Sound Reducer ver.2. On ZN6: 108, 102 and 96 decibels respectively
- Converts the car to a single exit in place of the standard twin 110mm outlets
Compatible With
- Toyota 86 and Scion FR-S ZN6, Subaru BRZ ZC6 (FA20)
- Toyota GR86 ZN8, Subaru BRZ ZD8 (FA24)
This product is intended for motorsport/competition use and should NOT be used on public roads.
