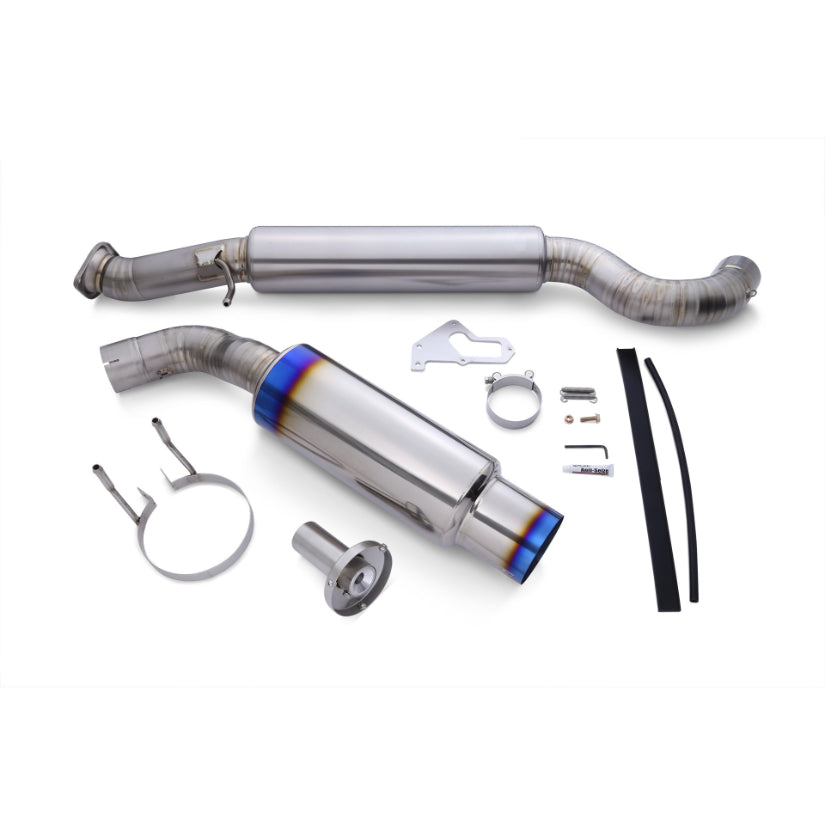

RSE Full Titanium Exhaust Toyota GR Corolla (Type-R, Single Exit)
Single-exit layout, and the lighter of the two configurations.
- One 115mm titanium tip
- 152mm titanium silencer with 119mm titanium sub silencer
- 6.5kg against the 14.75kg standard exhaust, a saving of 8.25kg
- 93 decibels with no sound reducer, 89 decibels with a sound reducer, 82 decibels with the Sound Reducer ver.2

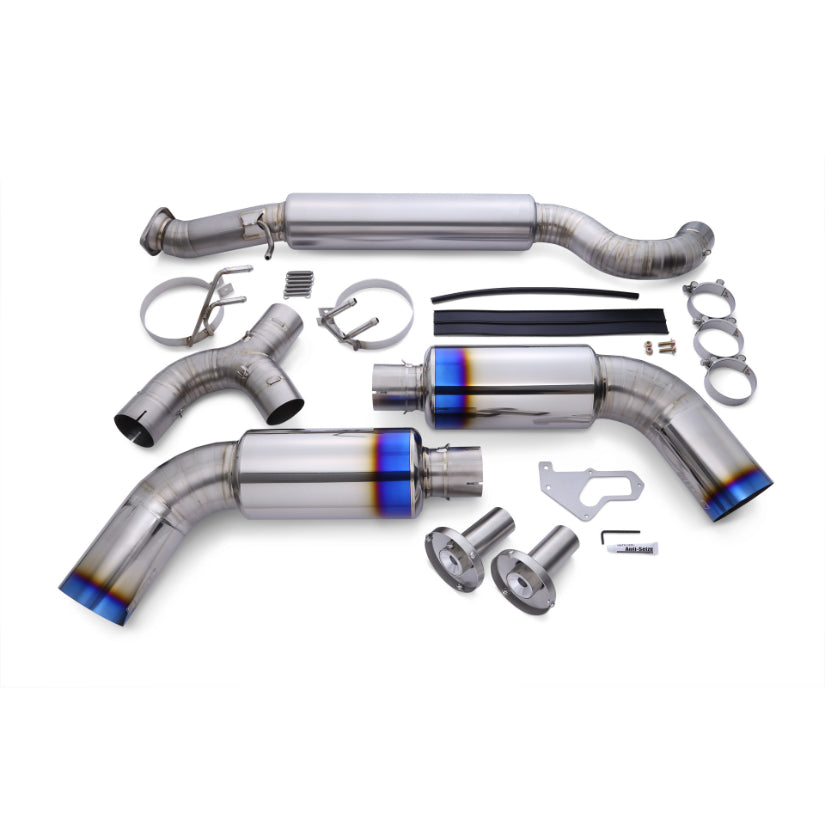

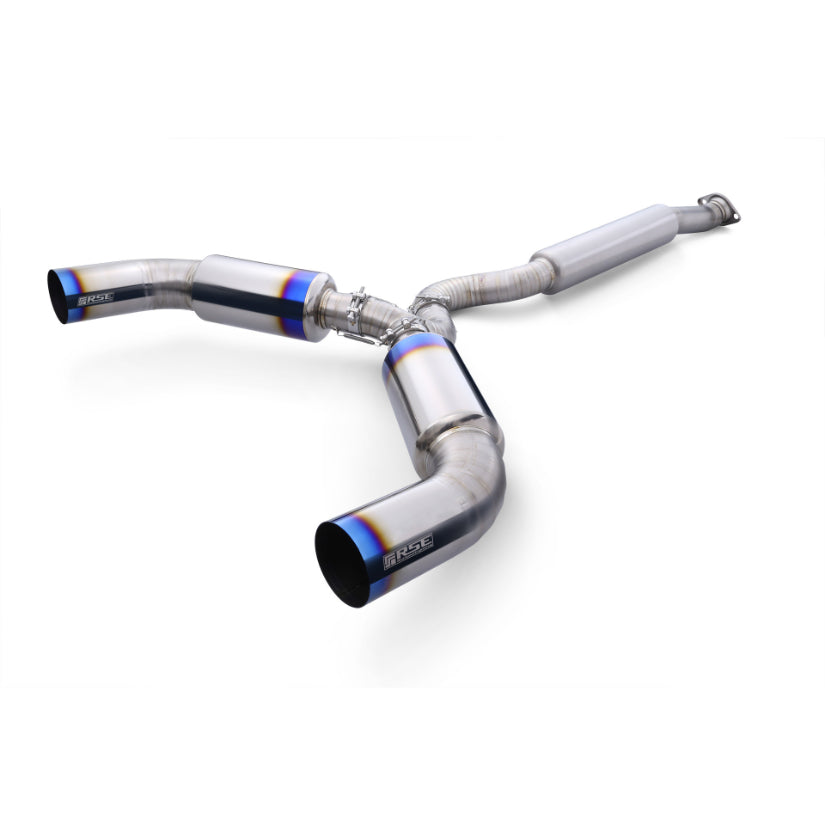

RSE Full Titanium Exhaust Toyota GR Corolla (Type-D, Dual Exit)
Dual-exit layout, using the same 80.5mm pipework as the Type-R.
- Two 115mm titanium tips
- 152mm titanium silencer with 119mm titanium sub silencer
- 9.95kg against the 14.75kg standard exhaust, a saving of 4.8kg
- 94 decibels with no sound reducer, 90 decibels with a sound reducer, 84 decibels with the Sound Reducer ver.2
The standard GR Corolla exhaust runs pipework that narrows from 70mm to 64.3mm, feeding a 217.6mm silencer and the car's distinctive three-exit arrangement of twin 86.14mm outlets either side of a single 164.3mm centre pipe. Real Speed Engineering replace it with 80.5mm titanium pipework at 1mm wall thickness, a 152mm titanium silencer and a 119mm titanium sub silencer, exiting through 115mm titanium tips. Flanges are 2mm against the standard 3mm. It's supplied as a complete kit with the gaskets, bolts and anti-seize compound needed for fitting, so there's no need to source any standard parts before installation. It's available in two exit configurations.
Key Features
- Full titanium construction with 1mm wall thickness throughout
- 80.5mm main pipe diameter, replacing standard pipework that narrows from 70mm to 64.3mm
- 152mm titanium silencer (standard 217.6mm) with 119mm titanium sub silencer (standard 120.3mm)
- 115mm titanium exhaust tips, replacing the standard twin 86.14mm outlets and 164.3mm centre pipe
- 2mm thick flanges (standard 3mm)
- Choice of single-exit or dual-exit configuration
- Complete kit including gaskets, fixings and anti-seize compound
Please Note
- Sound levels are RSE's own reference figures, measured at 4,200rpm with the exhaust alone fitted
Compatible With
- Toyota GR Corolla GZEA14H (G16E-GTS)
This product is intended for motorsport/competition use and should NOT be used on public roads.
Do not drive at high speeds with the SOUND REDUCER installed as it may become damaged or broken.
