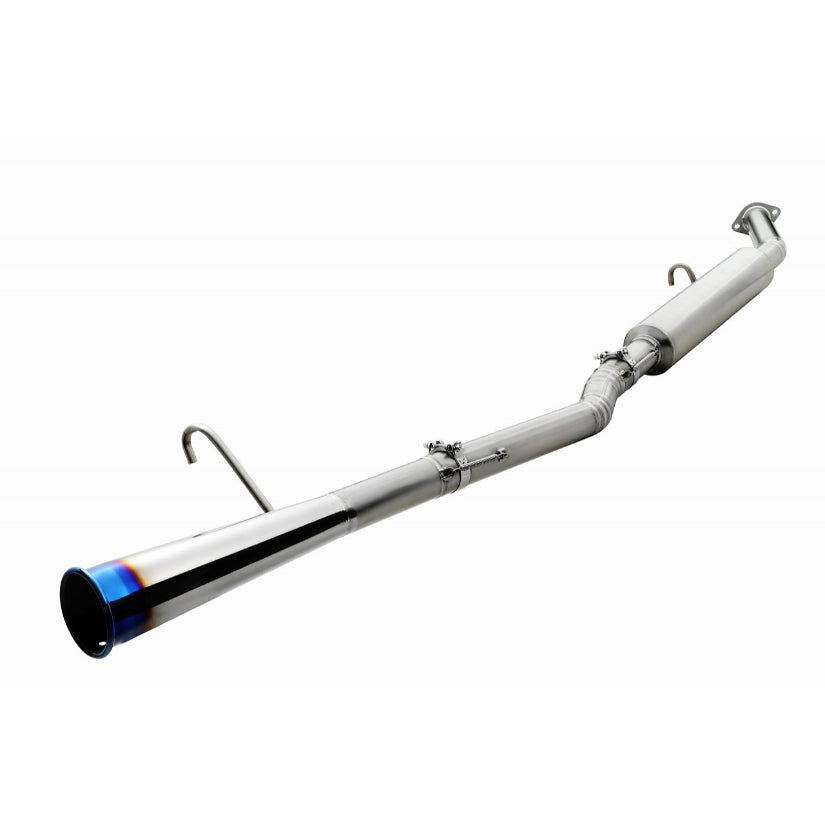

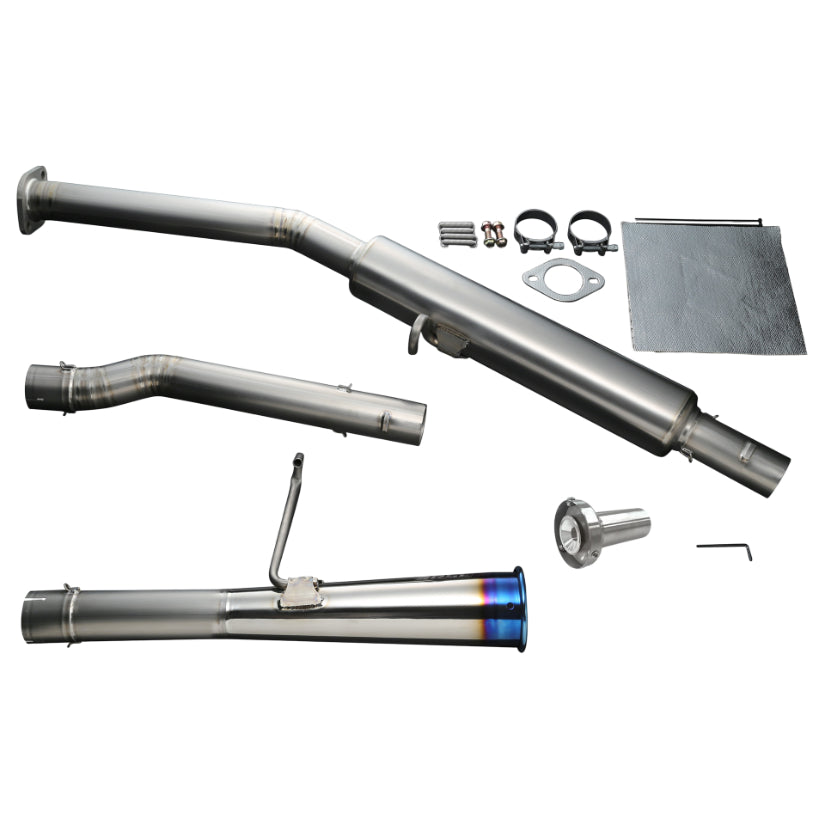

Type-R
The lighter of the two, running a compact 102mm titanium silencer.
- 102mm titanium silencer
- 3.7kg against the 10.8kg standard exhaust, a saving of 7.1kg

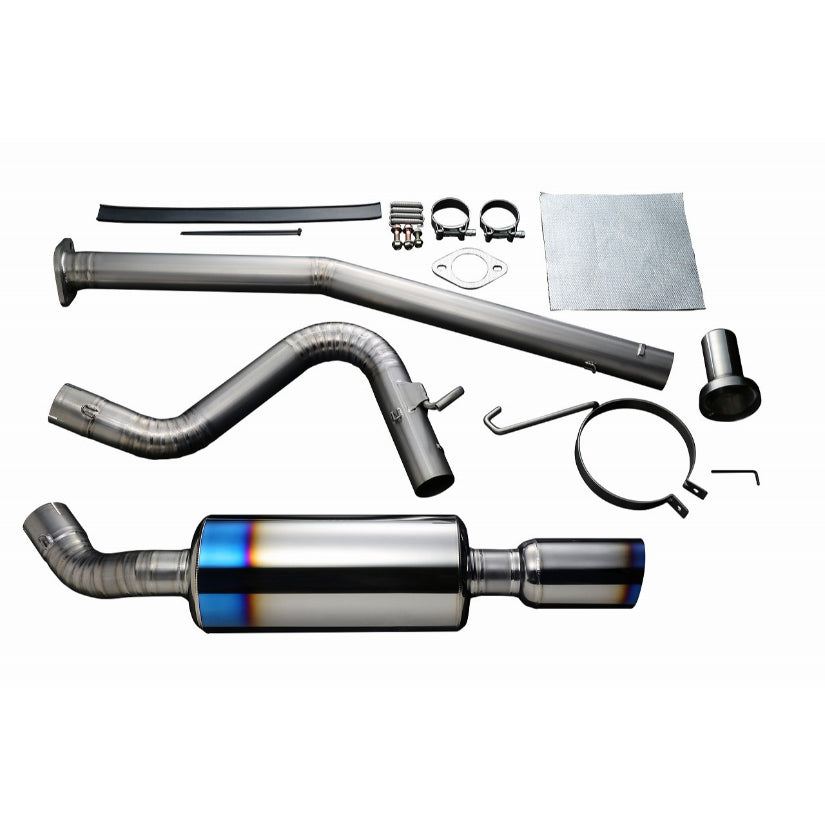

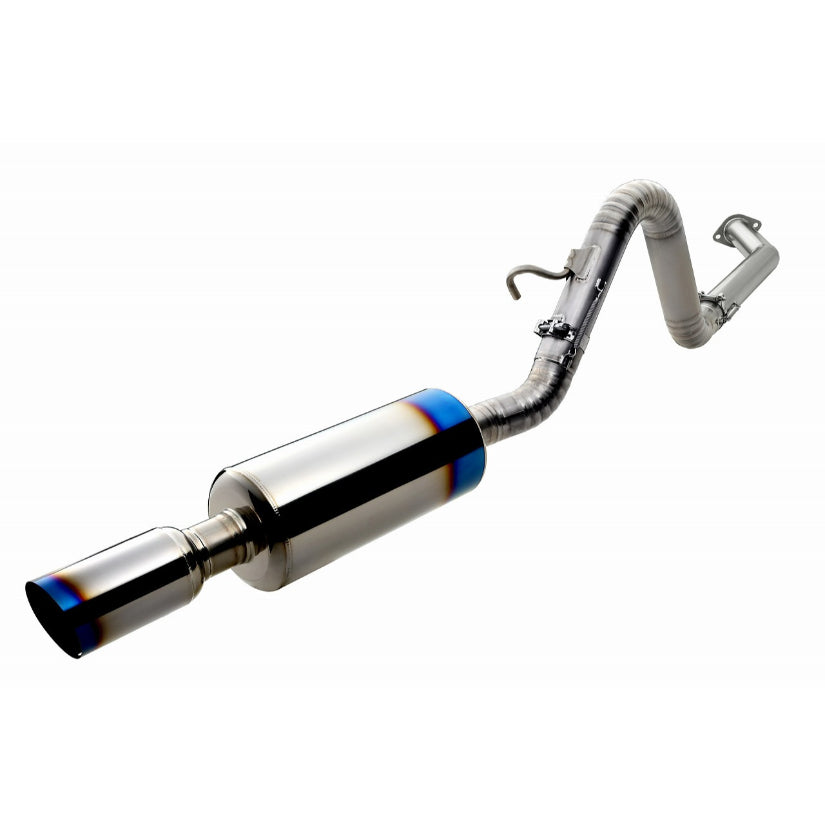

Type-S
Runs a larger 152mm titanium silencer, matching the standard silencer's diameter.
- 152mm titanium silencer
- 4.3kg against the 10.8kg standard exhaust, a saving of 6.5kg
RSE Full Titanium Exhaust Toyota Corolla Levin / Sprinter Trueno AE86
The standard AE86 exhaust runs 48.6mm pipework into a 152 by 90mm oval silencer and weighs 10.8kg. Real Speed Engineering replace it with 60.5mm titanium at 1mm wall thickness against the standard 1.5mm, exiting through an 89.1mm titanium tip in place of the standard 48.6mm curled outlet, with 8mm flanges. RSE have dyno tested the result against the standard system. It's available in two silencer configurations.
Key Features
- Full titanium construction with 1mm wall thickness (standard 1.5mm)
- 60.5mm main pipe diameter (standard 48.6mm)
- 89.1mm titanium exhaust tip (standard 48.6mm with R=3 curl)
- 8mm thick flanges (standard 9mm)
- Choice of Type-R or Type-S silencer
- Dyno tested by RSE against the standard system
Compatible With
- Toyota Corolla Levin and Sprinter Trueno AE86 (4A-G 16-valve)
This product is intended for motorsport/competition use and should NOT be used on public roads.
Do not drive at high speeds with the SOUND REDUCER installed as it may become damaged or broken.
