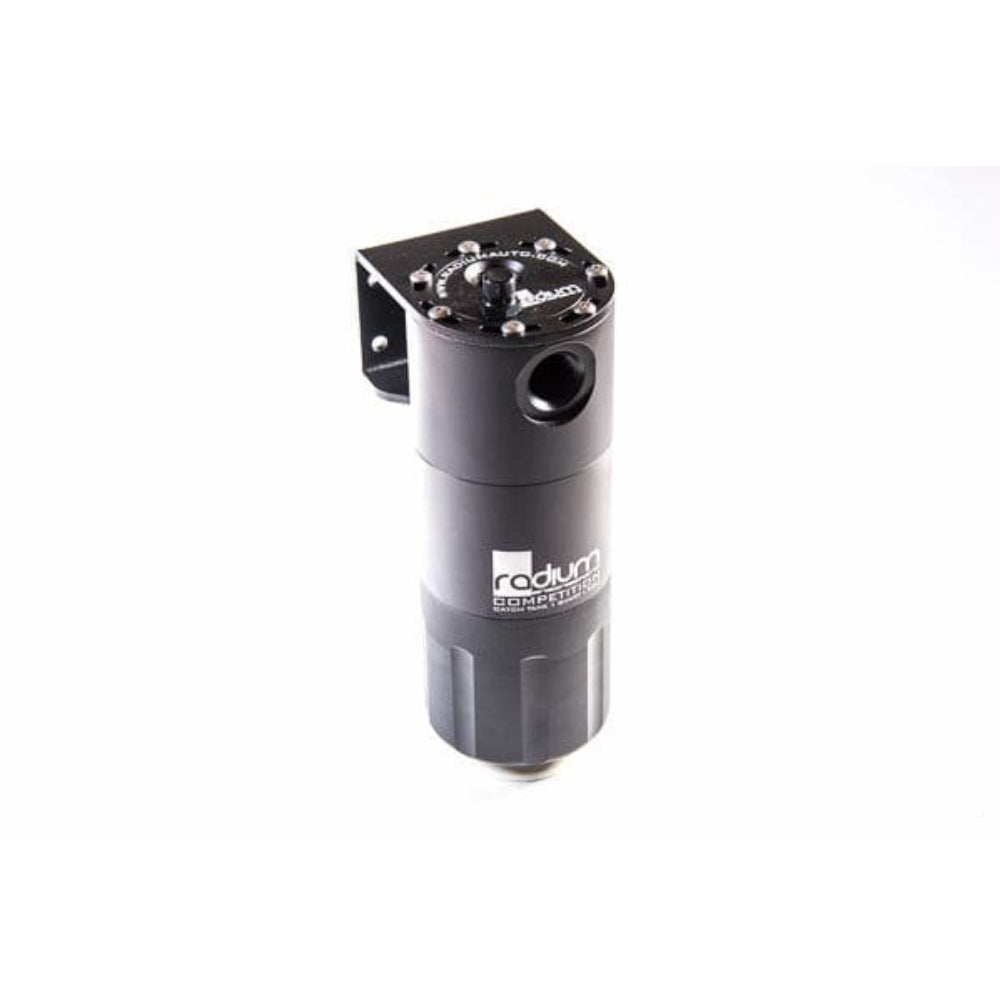

Radium Engineering Universal Tall Competition Catch Can Kit

Radium Competition Catch Cans (CCC) meet the common 1 quart minimum capacity requirements dictated by many organizing bodies including SCCA, NASA, and Formula Drift. This VTE (vent to engine) competition catch can is specifically made to recirculate clean air back into the intake. For a competition catch can that vents to atmosphere (VTA), click HERE.

It is CNC machined from solid 6061-T6 aluminum to provide the ultimate in function and finish. All of the CCC components are anodized to provide a long lasting durable surface finish. The inlet/outlet ports are machined with 10AN ORB (7/8"-14) threads.

SPECIFICATIONS

20-0071 AND 20-0072
INLET THREADS: 10AN ORB (7/8"-14)
OUTLET THREADS: 10AN ORB (7/8"-14)
DRAIN THREADS: 4AN ORB (7/16"-20)
OUTER DIAMETER: 3.45"

20-0071
WEIGHT: 2.6 lbs
HEIGHT: 9.0”
VOLUME: 1qt / 0.9L / 32floz

20-0072
WEIGHT: 2.25 lbs
HEIGHT: 6.3”
VOLUME: 0.625qt / 0.6L / 20floz
