Radium Engineering Remote Mount Vented Standard Filler 1.5in Elbow

Radium Engineering Remote Mount Vented Standard Filler 1.5in Elbow

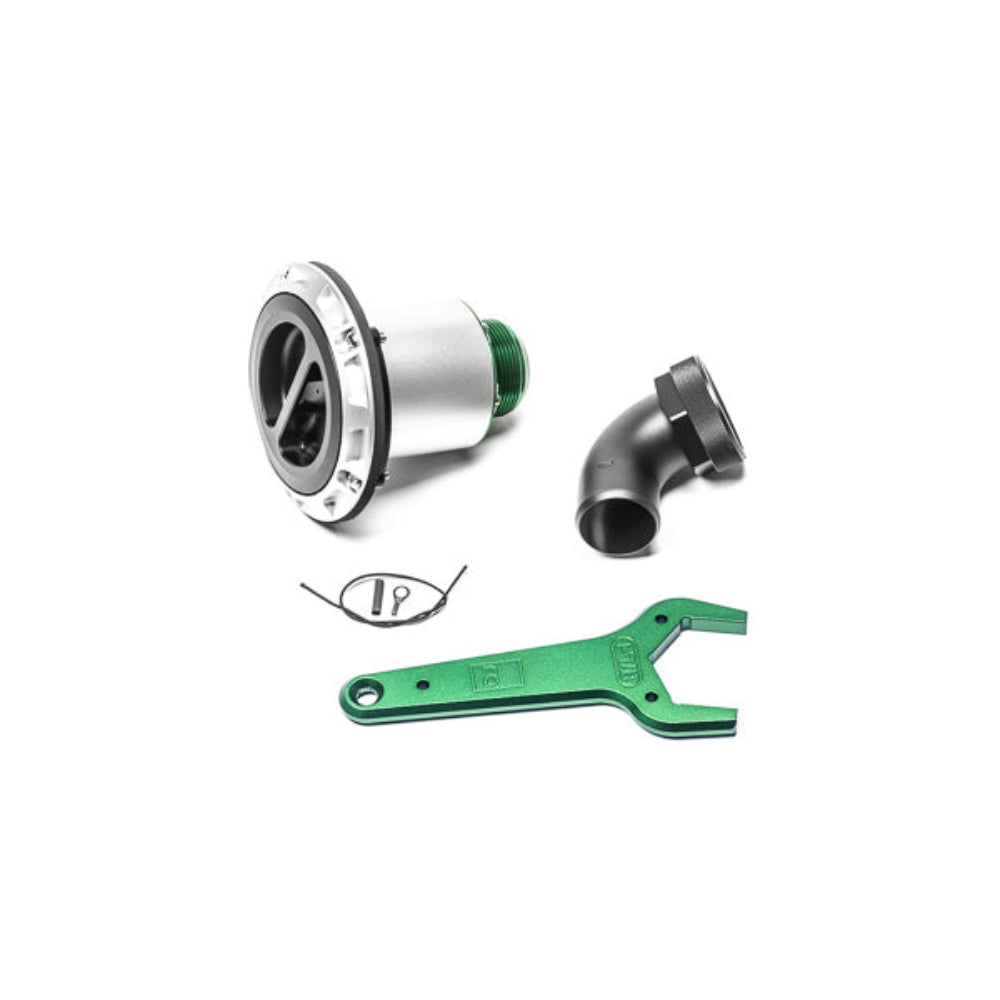

Designed for remote mounting to an external surface such as a fender. Requires a 77mm (3.03") hole to be fabricated. Includes a gasket, stainless steel hardware, an aluminum housing, aluminum nut ring and a tether. Also, an aluminum 1-7/8" wrench and a 75 degree 24AN elbow with a 1.5in barb.

The vented fuel cap has roll-over protection in case the vehicle ever becomes inverted. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.).

Specifications:
Filler Hose Requirement: 1.5"
Flange Outer Diameter: 4.75"
Bolt Circle Diameter: 4.25" PCD
Hose End Connection: 24AN
Hose End Angle: 75 degree

Notes:
1. Does not include accessories to connect to the fuel tank.
2. Can be upgraded later to a dry break using Radium 20-0549-V.
