Radium Engineering Remote Mount Fuel Filler 2.25in Vented

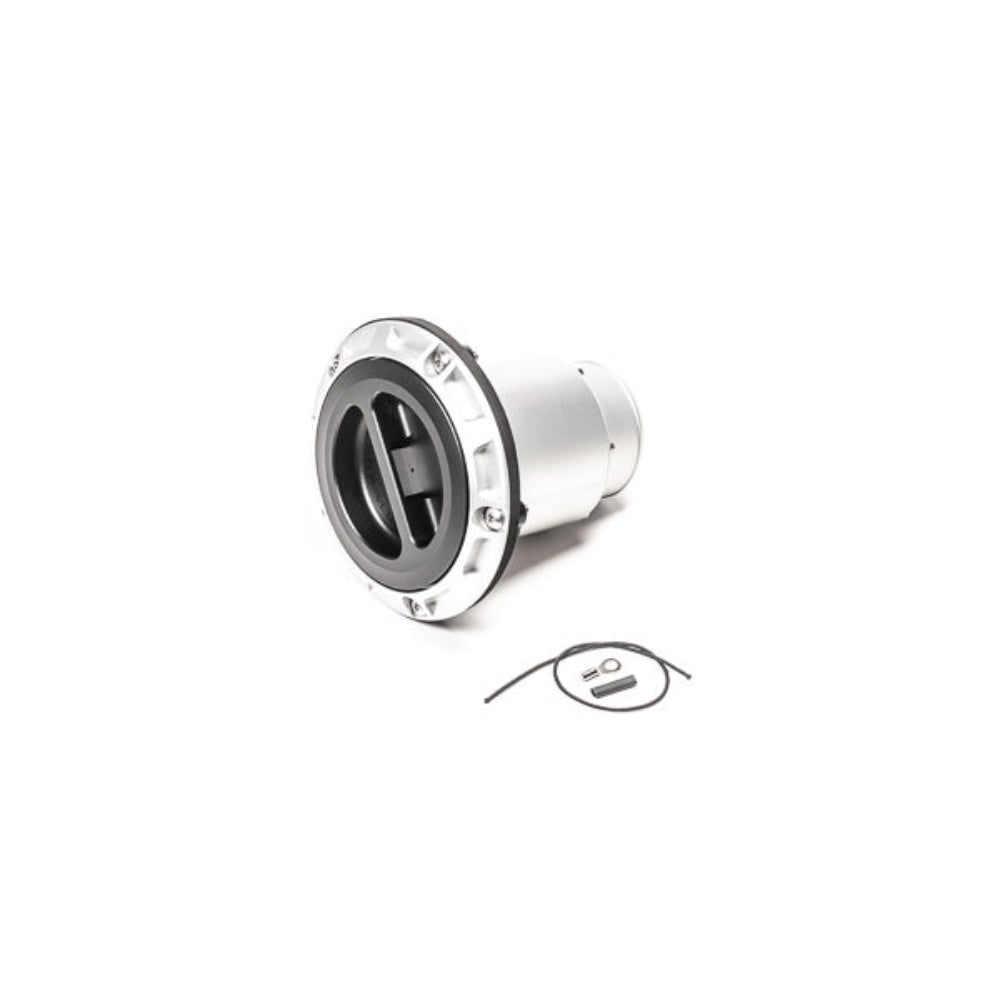

Radium Engineering Remote Mount Vented Standard Filler 2.25in
The fuel filler typically secures to the vehicle body. The vented fuel cap has roll-over protection if the vehicle ever becomes inverted.
The fill neck has a machined hose barb connection for 2.25in filler hose. The outer diameter is 4.75in and uses 4.25in P.C.D for the five M5 bolts. Total height is 4.1in. Requires a 77mm (3.03in) hole to be fabricated.

Included:
-Vented Cap with Roll-Over Protection
-Flanged Fill Neck for 2.25in ID Hose
-Ozone/Flame Resistant Gasket
-Anodized Aluminum Nut Ring
-Stainless Steel M5 Bolts
-Tether Components

Notes:
1. Does not include accessories to connect to the fuel tank.
2. Can be upgraded later to a dry break using Radium 20-0549-V.
