Radium Engineering Port Injection Kit For Ford Focus ST 13+ Focus RS 16+

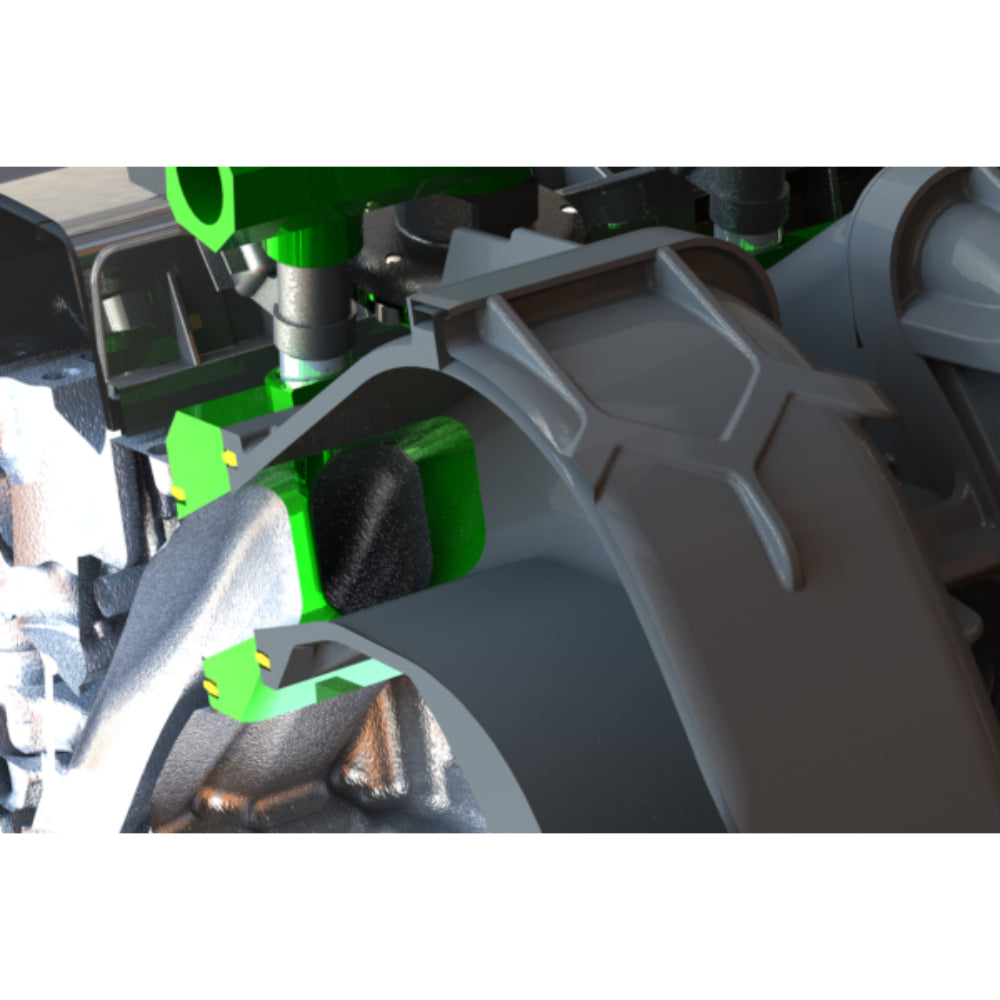

Radium Engineering Ford Port Injection Kit (PIK) installs between the intake manifold and the cylinder head and permits the use of port injectors to add additional fuel for high-horsepower Ford EcoBoost engines. This kit does NOT replace the OEM direction injection system. It includes the PIK adapter plate, custom fuel rail, fuel rail mounting hardware, and OEM Ford gaskets, as shown in the below picture. Stainless steel dowels are pressed into the adapter plate to make alignment during installation easier. It is compatible with all fuel types including popular alcohol mixtures such as E85.

The 6061 CNC machined aluminum adapter features a smoothed port divider promoting laminar flow into the combustion chambers. The injector spray pattern is divided evenly into each runner.

The fuel rail features a large 0.69" internal diameter bore. It is CNC machined from extruded 6063 aluminum and laser etched for a high quality surface finish. All 3 ports (ends and center) are machined with an 8AN ORB (3/4-16 female) port. For a list of 8AN ORB adapter fittings, go HERE. Machined insulating mounting spacers and washers are included to completely isolate fuel created by the cylinder head and transferred through the mounting bolts. The injectors are at a max angle to ensure proper spray into the ports.


VEHICLE COMPATIBILTY

2013+ Ford Focus ST EcoBoost
2016+ Ford Focus RS EcoBoost
2015+ Ford Mustang EcoBoost
