Radium Engineering Fuel Hanger Toyota Chaser Mark II Cresta - Pumps Not Included

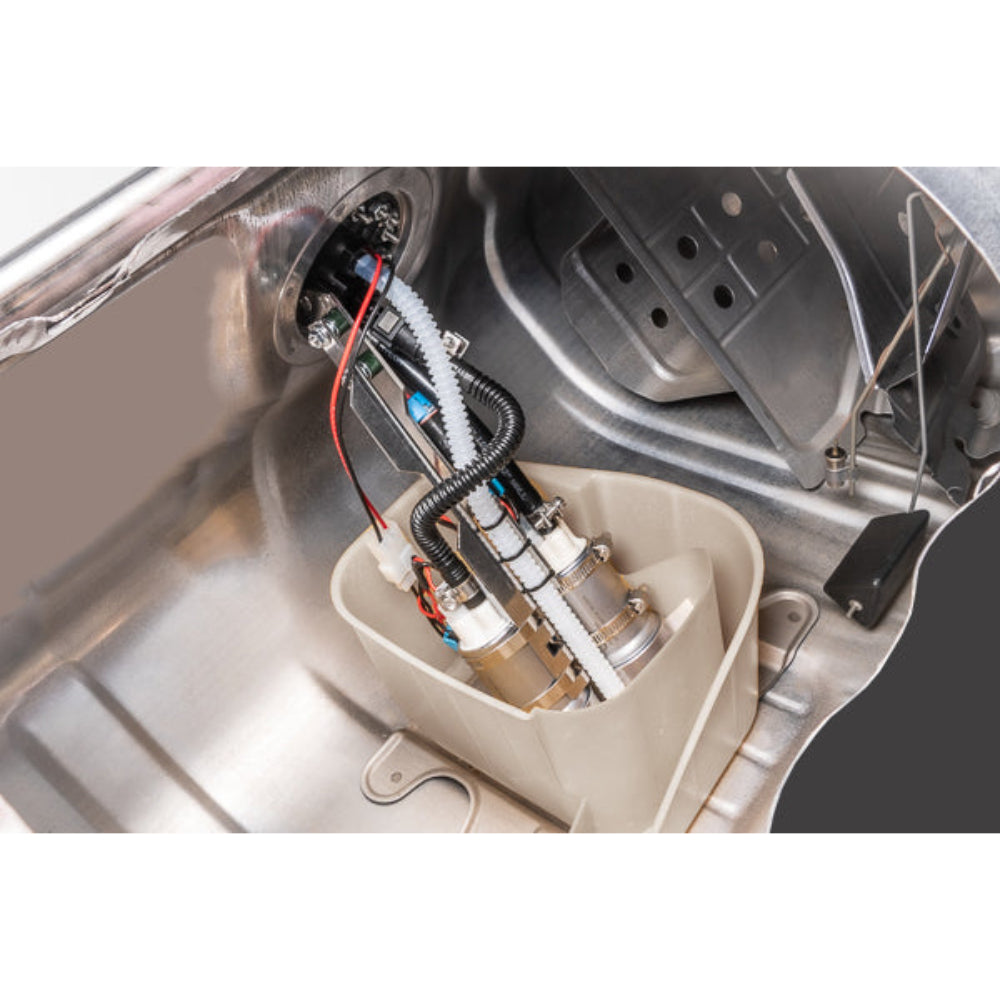

Radium Engineering Fuel Pump Hanger is a drop-in aftermarket fuel pump solution for supplying the fuel required to maximize power gains.

Features
-Drop-In Installation
-Dual Pump Capable with Popular Pumps
-Brushless Fuel Pump Compatibility
-High Current Electrical Hardware
-Anodized Aluminum Construction
-Gasoline, Methanol, and Ethanol Compliant
-Fuel Resistant Tubing and Wiring
-Stainless Steel Hardware

VEHICLE COMPATIBILITY
Toyota Chaser (X90)
Toyota Chaser (X100)
Toyota Mark II (X90)
Toyota Mark II (X100)
Toyota Cresta (X90)
Toyota Cresta (X100)

PUMP COMPATIBILITY
This system supports 1 or 2 aftermarket fuel pumps (sold separately):

*Walbro F90000267
*Walbro F90000274
*Walbro F90000285
*Walbro F90000295
*Walbro GSS342
*AEM 50-1000
*AEM 50-1200
**Bosch BR540
**Deatschwerks DW400
**Deatschwerks DW440 (brushless)
**Protec 11928 (brushless)
**Fuelab 49614 (brushless)
*Ti Automotive E5LM (brushless)

*Sock filters are provided in this kit for these pumps.
**Sock filters are included from the fuel pump manufacture.


PLUMBING
The feed port is tapped with 7/8-14 female threads (10AN ORB). The return port is tapped with 9/16-18 female threads (6AN ORB). Multiple adapter fittings are provided for connecting back to the OEM fuel lines.

If a second pump is installed, an SAE quick connector is provided that snaps into the underside of the fuel hat simplifying installation.

For later model vehicles that use the inverted flare feed line, a replacement PTFE feed hose is provided, as shown below.

ELECTRICAL
The custom designed stainless electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels.
