Radium Engineering Fuel Hanger Plumbing Kit - Stainless Toyota MK5 Supra

Radium Engineering Toyota Mk5 Supra Fuel filter plumbing kits include everything required to plumb the fuel system between the Radium fuel pump hanger (shown below) to a port injection fuel rail

High flow fuel lines to travel between the Radium fuel hanger and the port injection kit for the MK5 GR Supra. Includes fuel filter wtih stainless steel element, all fittings, lines and brackets.

A -8AN 90 degree PuskLok hose end (shown below left) is included for connecting to an -8AN male port injection fuel rail fitting (not included).

A -6AN 90 degree PuskLok hose end (below) is included for connecting to an -6AN male aftermarket FPR fitting (not included). A -6AN (3/8") fuel hose runs to the fuel pump hanger return port.

The feed and/or return hose can be easily modified for installation of an in-line flex fuel sensor. Furthermore, the hoses run though billet aluminum fuel line retainers.

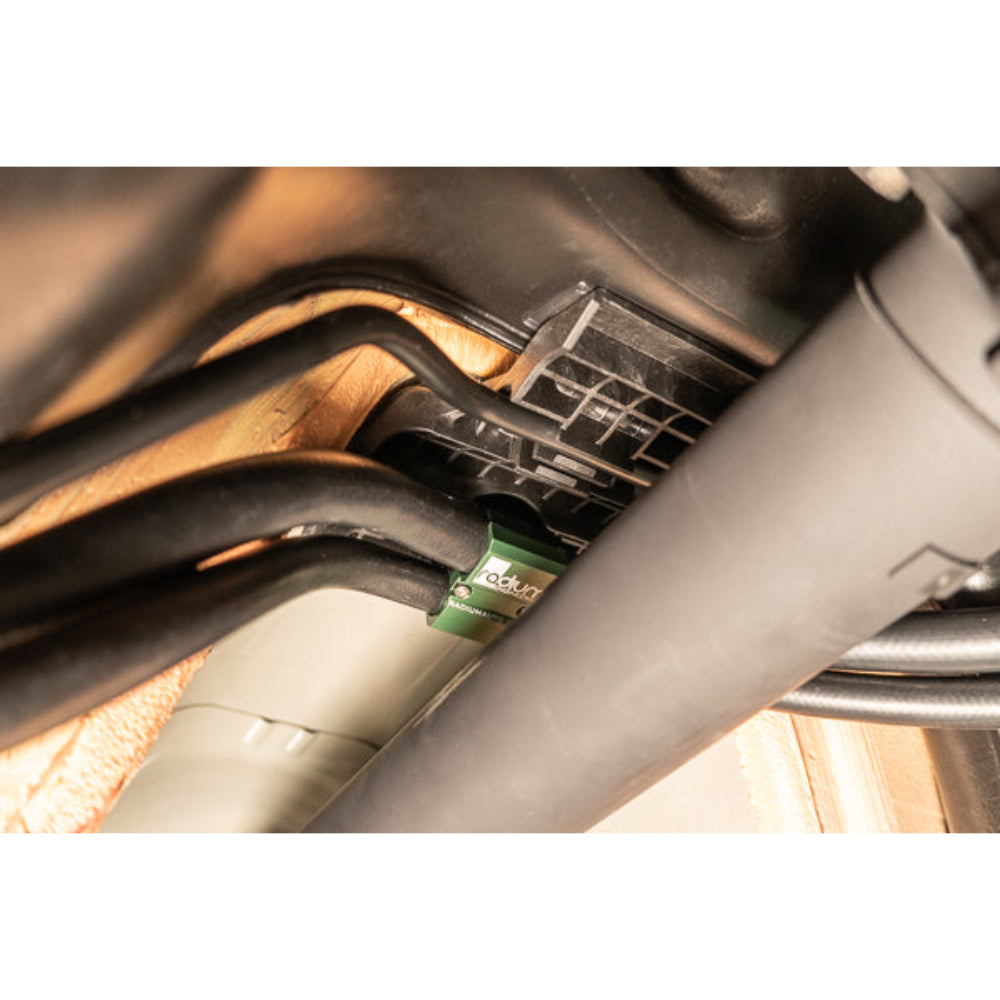

As shown below, a special retainer is provided to prevent the lines from contacting the driveshaft and exhaust when crossing over the tunnel

An -8AN (1/2") feed hose runs from the fuel pump hanger through the provided fuel filter using a specifically designed MK5 Supra bolt-on billet mount as shown below.

Depending on the kit selected (-03,-05), the fuel filter will be assembled with a choice of different elements

INCLUDES
-Fuel Filter Stainless
-8AN Fuel Filter Adapter Fittings
-Billet Aluminum MK5 Supra Filter Mount
-8AN and 6AN PushLok Hose Ends
-8AN Fuel Feed Hose
-6AN Fuel Return Hose
-Fuel Line Retainers
-Stainless Steel Hardware
