Radium Engineering Fuel Hanger Plumbing Kit Microglass Chevrolet Corvette 09-13

Radium Engineering Corvette Fuel pump Pluming kits provide all necessary plumbing to and from the engine including a fuel filter, fuel pressure regulator, fuel lines, adapter fittings, and mounting hardware.

From the fuel hanger pump outlet, 8AN PTFE fuel hose runs down to a chassis-mounted fuel filter near the fuel tank. Depending on the kit selected (-03,-05), the fuel filter will be assembled with a choice of different elements (stainless or microglass).
From the fuel filter another 8AN PTFE fuel hose runs through the tunnel parallel to the torque tube and into the fuel pressure regulator (FPR). The hose is secured with stainless steel cushioned clamps. Furthermore, thermal insulation is included to protect the hose from the exhaust system.


As shown above, the FPR secures to a billet aluminum mount near the brake master cylinder. NOTE: Because the brake master cylinder changed between 2008 and 2009, the mounting bracket changed accordingly (see P/Ns). The FPR has multiple high pressure ports. A SAE quick connect adapter is provided for connecting the FPR to the OEM fuel rail using the stock fuel feed line. NOTE: If aftermarket fuel rails are used, Radium Engineering recommends feeding each of the fuel rail front ports independently and plugging the rear ports. Because of engine variances, no parts are included for this procedure.

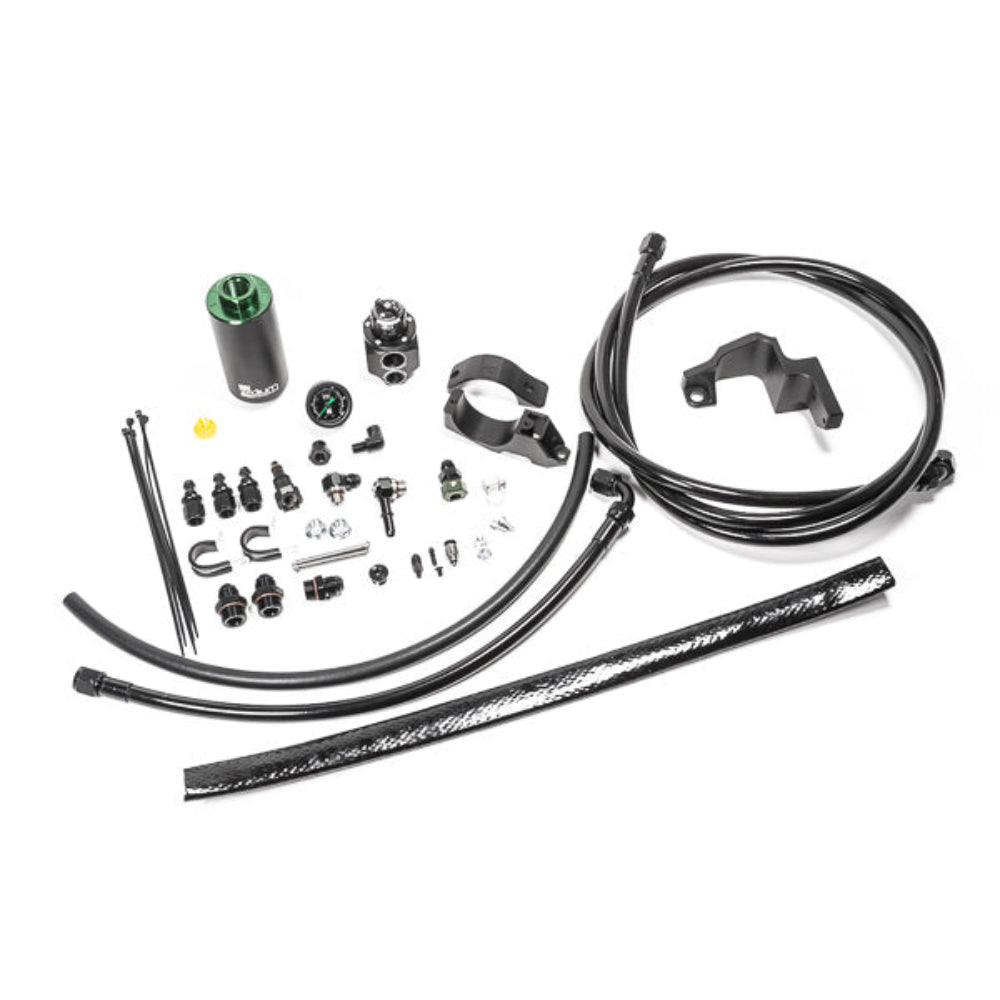

INCLUDES
-MPR-RA Fuel Pressure Regulator
-Fuel Pressure Gauge
-Filter (-03 Stainless or -05 Microglass)
-Corvette Fuel Filter Mount
-Corvette FPR Mount
-8AN Fuel Filter Adapter Fittings
-8AN PTFE Fuel Feed Hoses
-6AN Fuel Return Hose
-6AN PushLok Hose Ends
-Thermal Insulating Sleeve
-Connection to OEM Rails
-Fuel Feed Line Retainers
-Stainless Steel Hardware
