Radium Engineering Dual Catch Can Kit Fluid Lock Subaru BRZ Toyota GR86 22+

Radium Engineering 2022+ Subaru BRZ / Toyota GR86 Dual Catch Can Kit Fluid Lock For the ultimate in engine protection, Radium Engineering recommends the 20-0913-FL Dual Catch Can Kit.

Radium Engineering oil catch can is essential to protect the engine from elevated levels of crankcase blow-by accumulated from aggressive driving. Excess oil-saturated air circulating back into the air intake stream can lead to degraded performance. Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick.

FEATURES
-Less oil consumption effectively raises octane
-Cleaner air increases engine performance
-Prevents sludge buildup in the intake
-Lowers hydrocarbon emissions
-Capacity: 7 fluid ounces
-Height (without fittings): 5 inches
-Outside Diameter: 2.45 inches

PLATFORM SPECIFICS
The catch cans are strategically located for compatibility with Right Hand Drive (RHD) and Left Hand Drive (LHD) variations. Minor brake line clearancing is necessary on RHD installations. Both kits are compatible with all current aftermarket forced induction kits. For mounting, the kits use factory bosses and holes on the chassis. No cutting, drilling or permanent modification to the vehicle are required.

The two oil catch can kits are completely independent of each other and are sold individually or together. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems route clean filtered air back in through the engine to be burned and to promote negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors into the cabin.

This catch can runs inline with the 5/8" PCV (positive crankcase ventilation) valve. When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valve closes and, thus, this hose experiences no flow. Conversely, the PCV hose will experience "metered" vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run.

NOTE: Because the Radium Engineering catch cans are pressure sealed, they are great for boosted applications as well. Connecting to the intake manifold is permitted.

COMPATIBILITY
2022+ Toyota GR86
2022+ Subaru BRZ

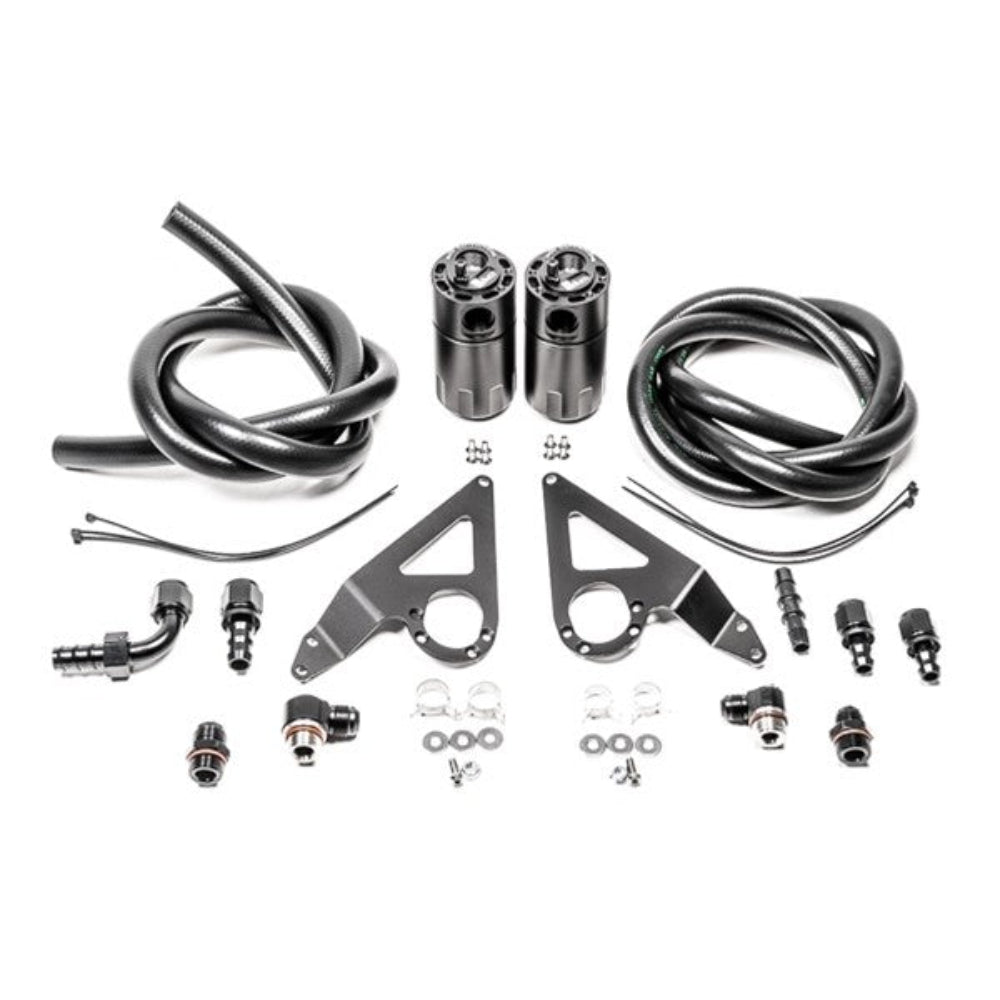

This kit utilizes both the CCV and PCV catch can kits, as shown below.
