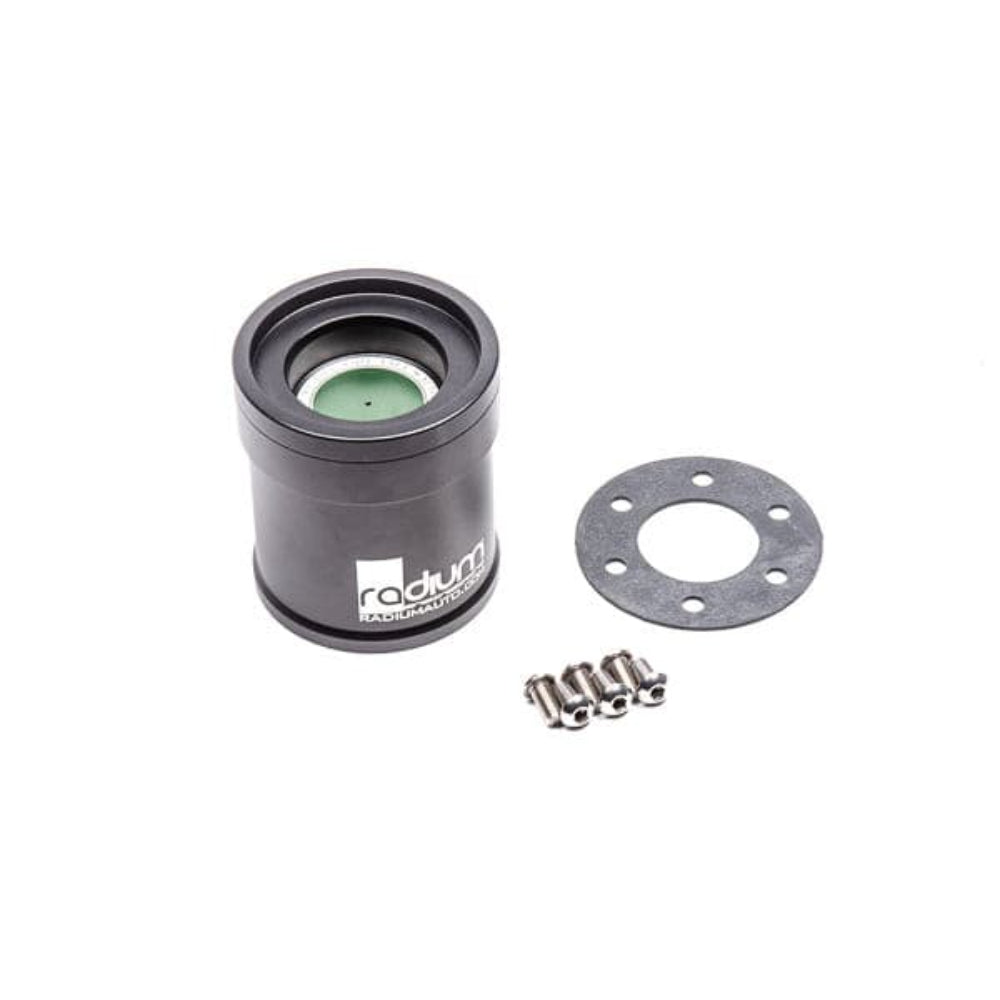

Designed for direct mounting onto a fuel cell. For mating, a 6-bolt flange with a 2.18" PCD bolt circle (as found on the FCST) is required. Includes 20-0549-V Dry Break, 1.5in, Female, Vented as well as an aluminum housing, stainless steel hardware, and a gasket. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.).Specifications:Height: 3.43" (Dry Break to Gasket)Mate: 20-0496 Dry Break, 1.5in, Male

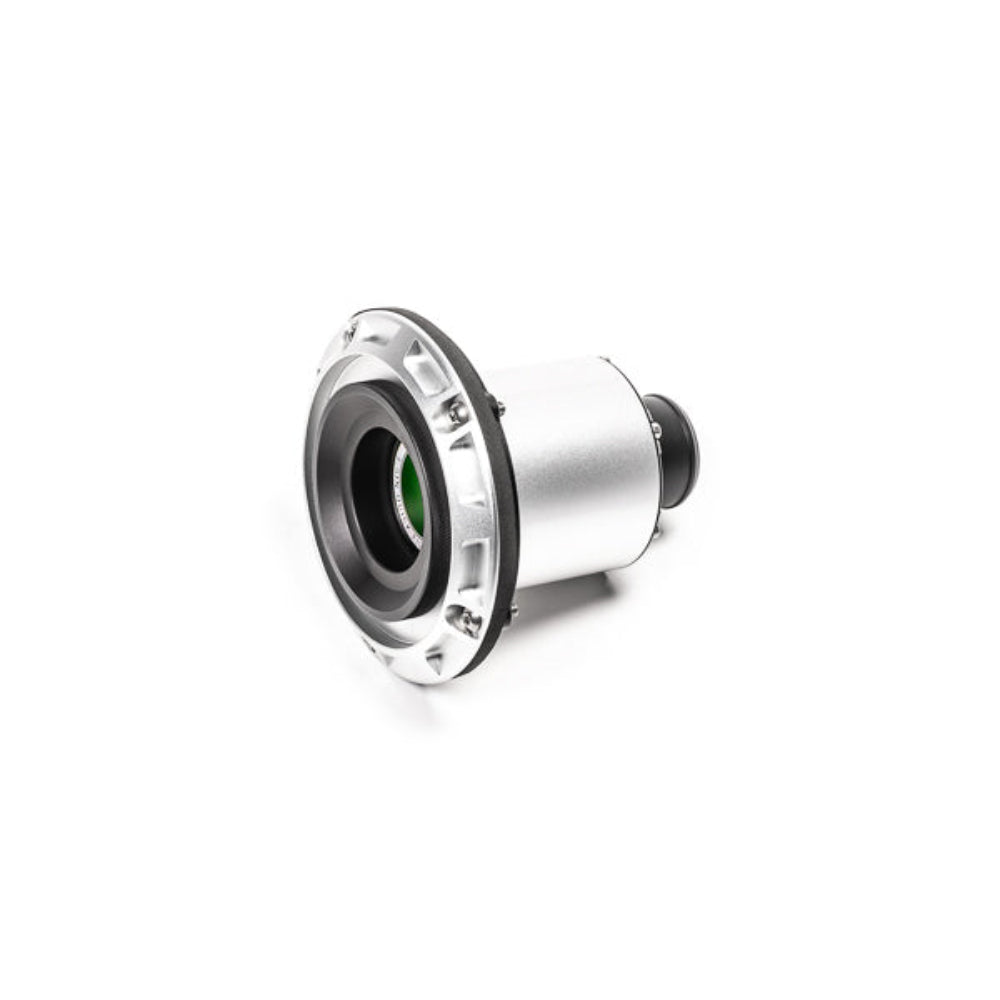

Radium Engineering Remote Mount Vented Female Dry Break 1.5in
Designed for remote mounting to an external surface such as a fender. Requires a 77mm (3.03") hole to be fabricated. Includes a 1.5in female dry break as well as a gasket, stainless steel hardware, an aluminum housing and aluminum nut ring. The vented fuel cap has roll-over protection in case the vehicle ever becomes inverted. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.).
The o-ring sealed 1.5" barbed outlet is interchangeable.
By simply removing 6 screws, a different outlet adapter (sold separately) can be installed.
Specifications:
Filler Hose Requirement: 1.5"
Flange Outer Diameter: 4.75"
Bolt Circle Diameter: 4.25" PCD
Height: 4.08" (Dry Break to Barb)
Mate: 20-0496 Dry Break, 1.5in, Male

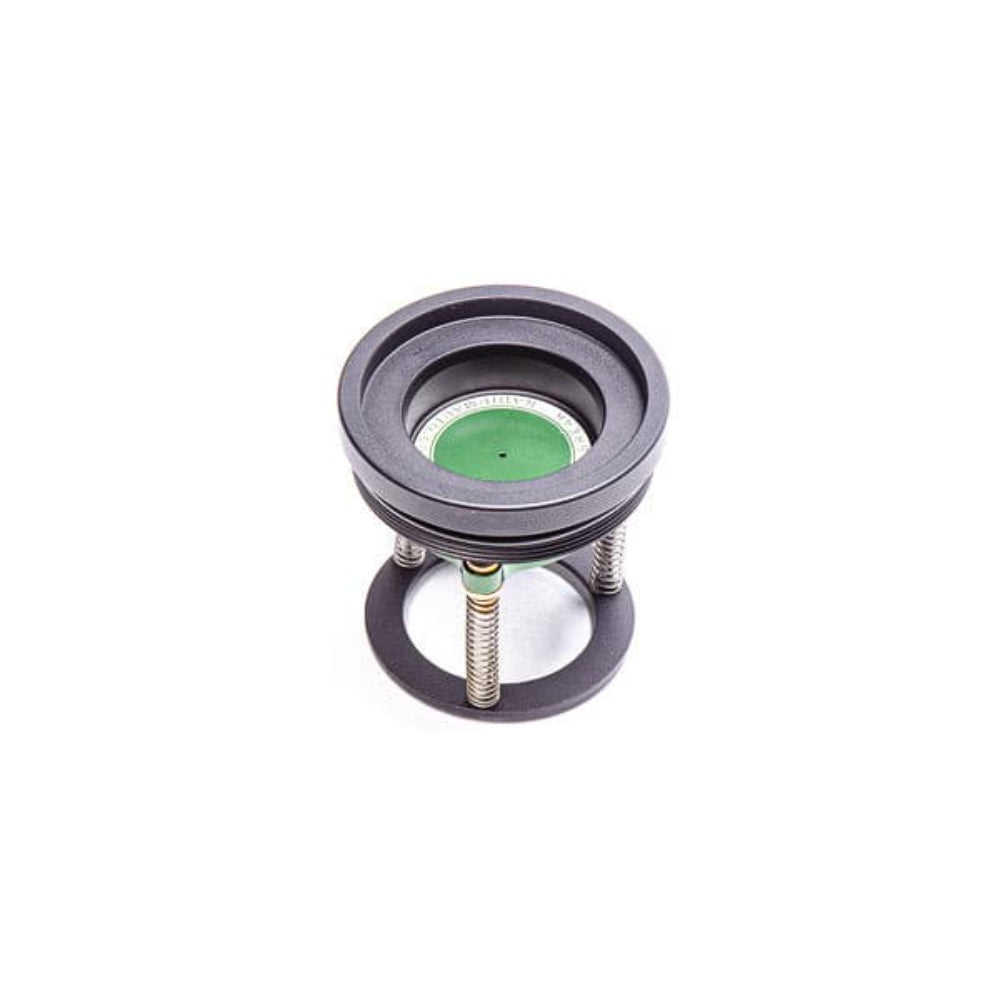

Threaded specifically to install into a Radium female dry break mount (not included). Anodized aluminum construction with stainless steel hardware and bronze bushings. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.). Specifications:Mates to 20-0496 Dry Break, 1.5in, Male
Radium Engineering specializes in high-quality aftermarket automotive performance products for racing and high-performance applications. The company's core product lineup features revolutionary fuel delivery systems, fuel cells, and PCV oil catch can systems, all designed with meticulous attention to both functionality and engineering detail. Through extensive R&D, computer simulation, and rigorous testing, Radium delivers an expanding collection of motorsport parts and application-specific accessories trusted by top competitors and enthusiasts worldwide who demand products that exceed expectations and outperform low-quality alternatives.
