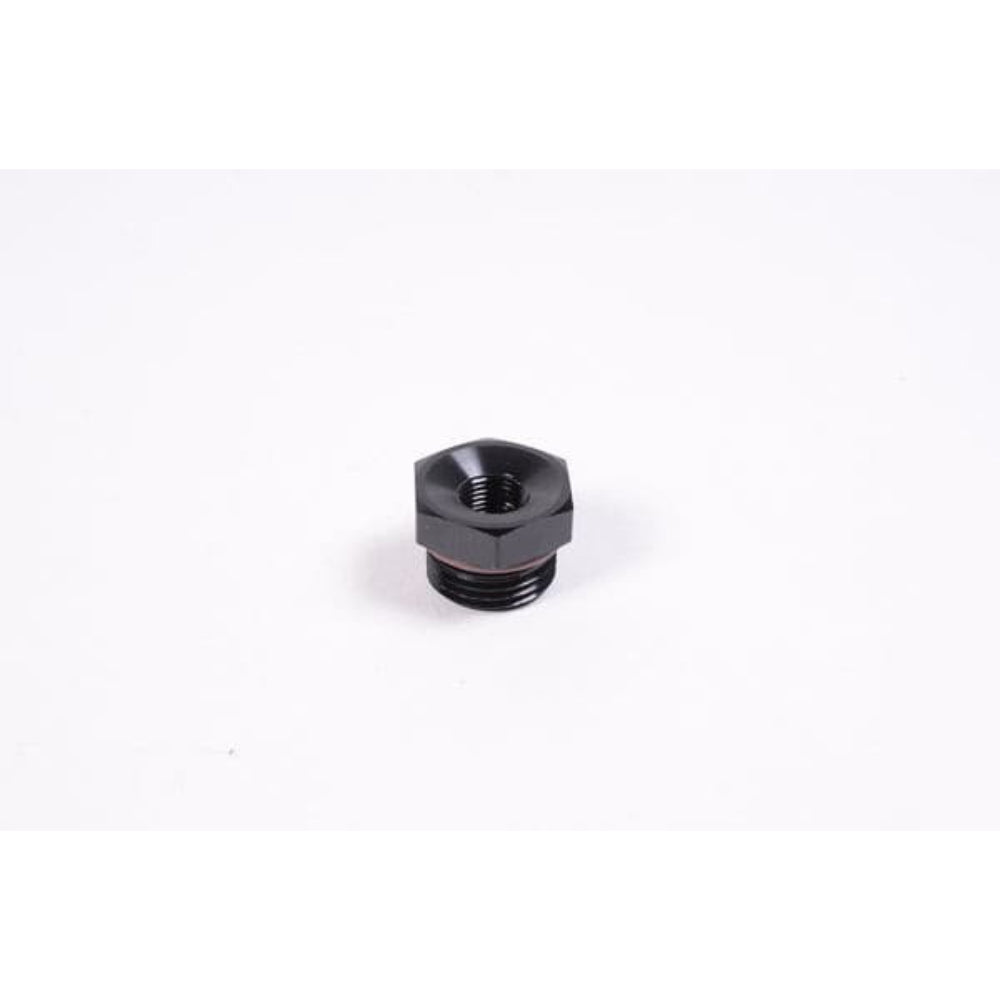

Radium Engineering 8an Orb Converts -8an to 1/8NPT; Commonly used for installing a fuel pressure gauge or pressure sensor; *always use PTFE tape or paste on NPT threads*
Converts 8AN ORB to 10AN male fitting; To be used with -AN hoses and fittings

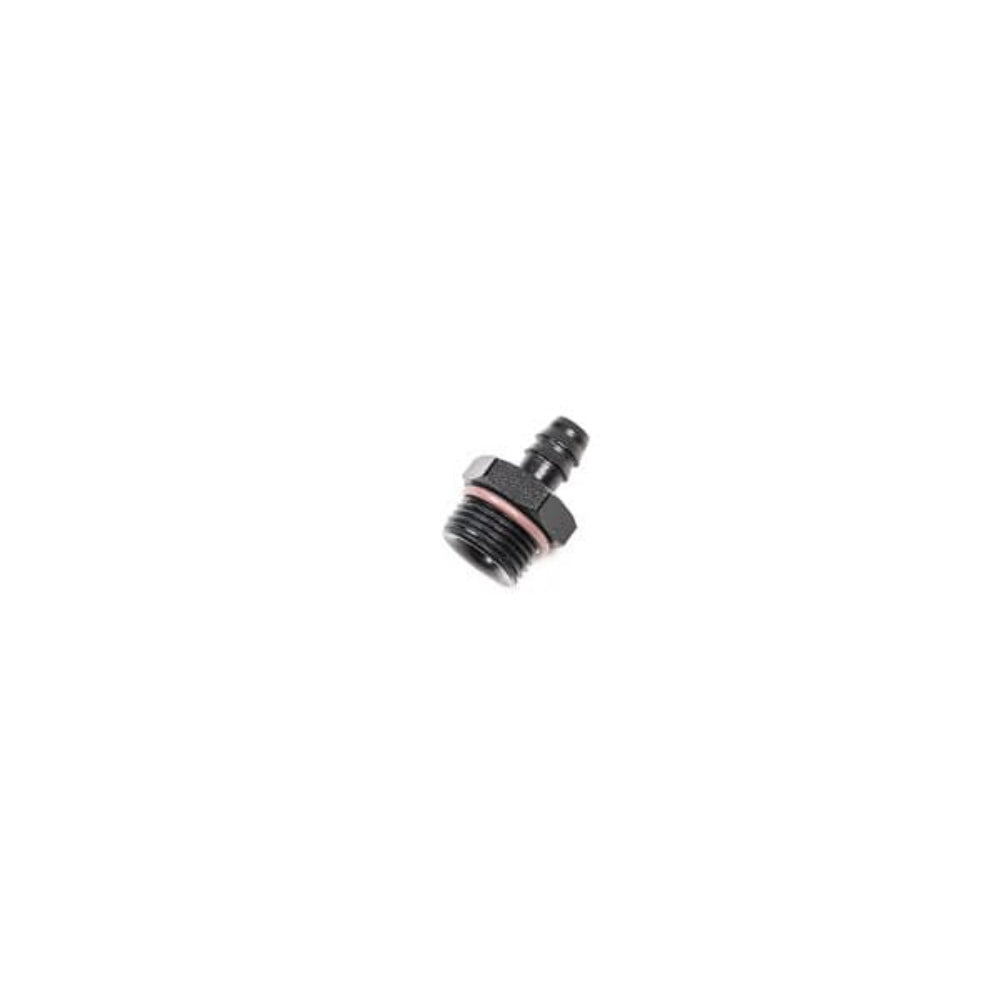

Adapter fitting. 8AN ORB male to 10mm hose barb male. Aluminum.

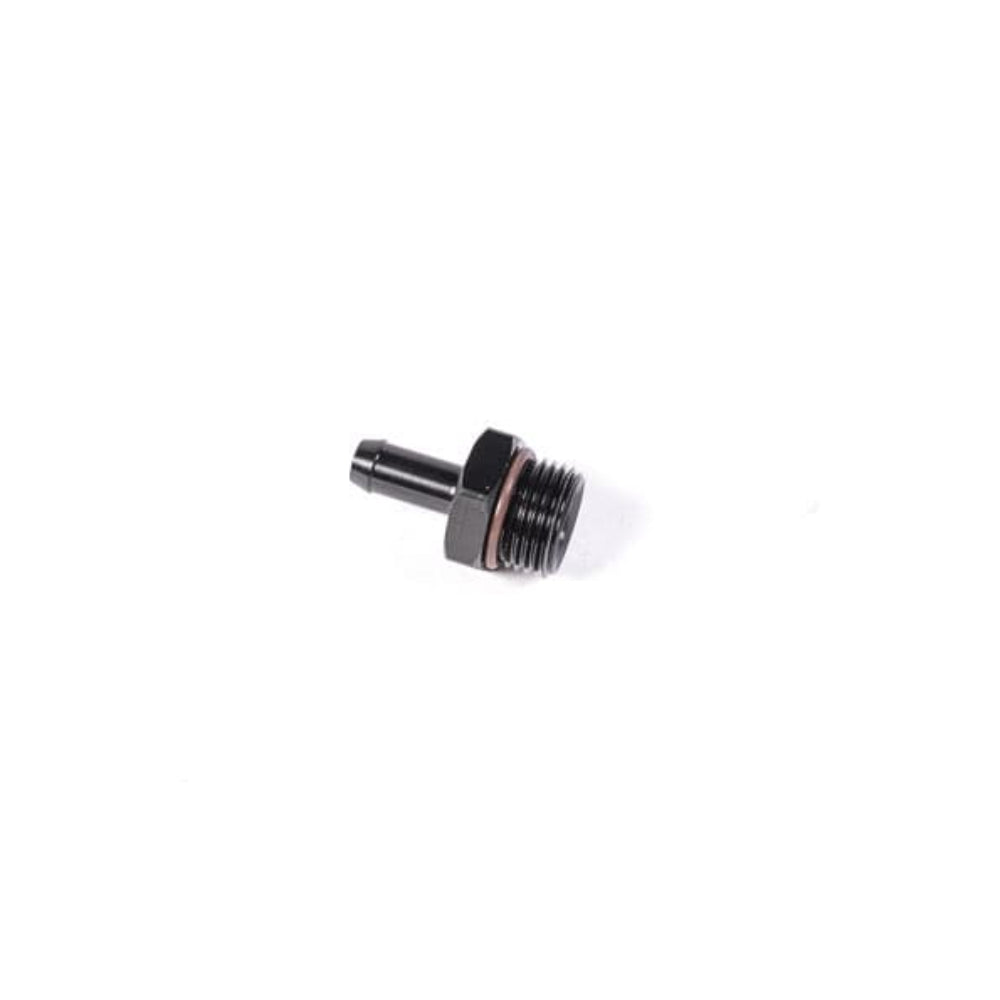

Radium Engineering 8an Orb Converts 8AN ORB to 5/16 SAE barb; Black anodized
These adapter fittings are available in a variety of configurations. They push-on and secure to most modern USA, European, Japanese, etc. fuel injection systems and are used to convert an OEM SAE Quick Connect connectionTo determine the required size, simply measure the outside diameter of the male fitting as shown below.0.3125 = 5/16"0.375 = 3/8"0.50 = 1/2"

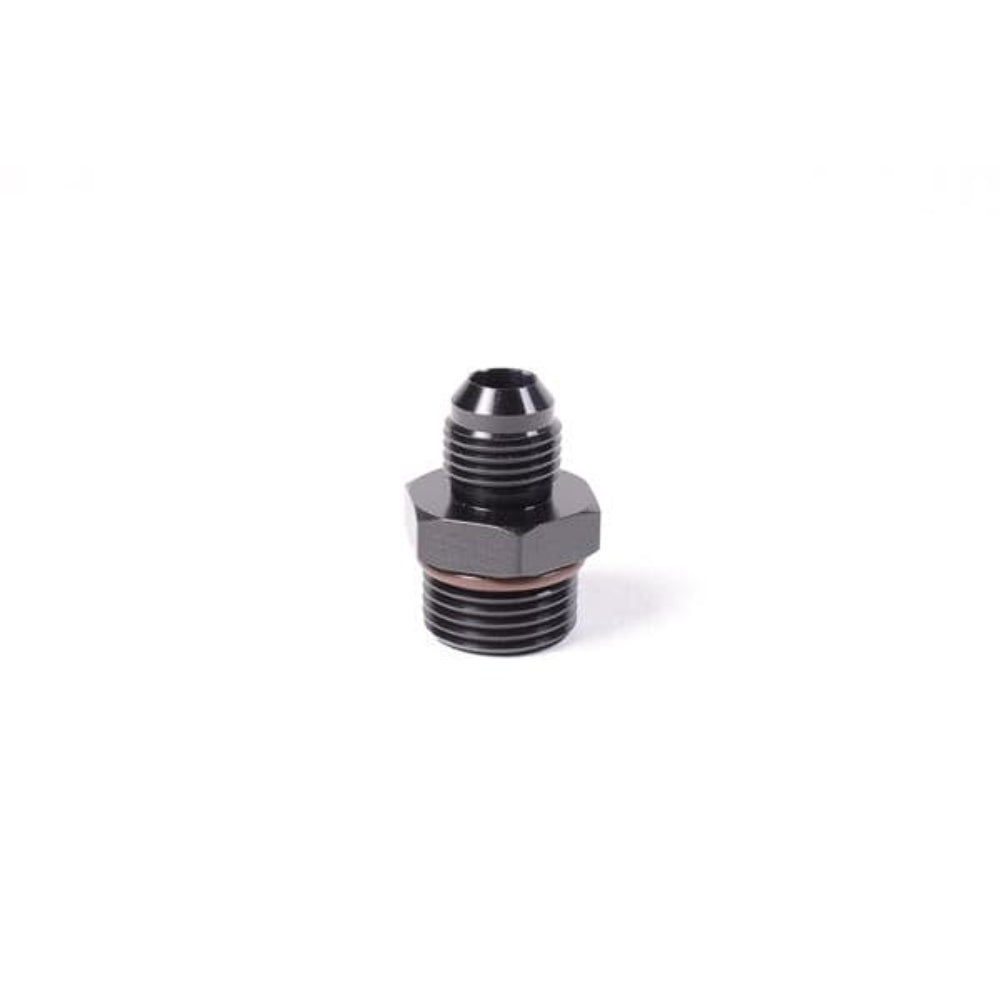

Radium Engineering 8An Orb To 6An Converts 8AN ORB to 6AN male fitting; To be used with -AN hoses and fittings
Radium Engineering 8An Orb To 6An Orb Swivel UnionReplacement fitting for Radium Engineering Direct Mount Regulators (Gen 2 design).
These anodized billet aluminum adapter fittings can be used in any application using a 9/16"-18 O-ring port. This is the same thread pitch used in -6AN (ORB=O-Ring Boss). They all feature FKM O-rings for all oil and fuel types.
Radium Engineering 8An Orb To 8An Male Fitting Converts 8AN ORB to 8AN male fitting; To be used with -AN hoses and fittings
Radium Engineering adapter fittings are designed to be used in many Radium products including fuel rails, surge tanks, fuel pressure regulators, etc. However, they can be used in any application using a -8AN ORB (3/4"-16) O-ring port.
Radium Engineering adapter fittings are designed to be used in many Radium products including fuel rails, surge tanks, fuel pressure regulators etc. However, they can be used in any application using a -8AN ORB (3/4"-16) O-ring port

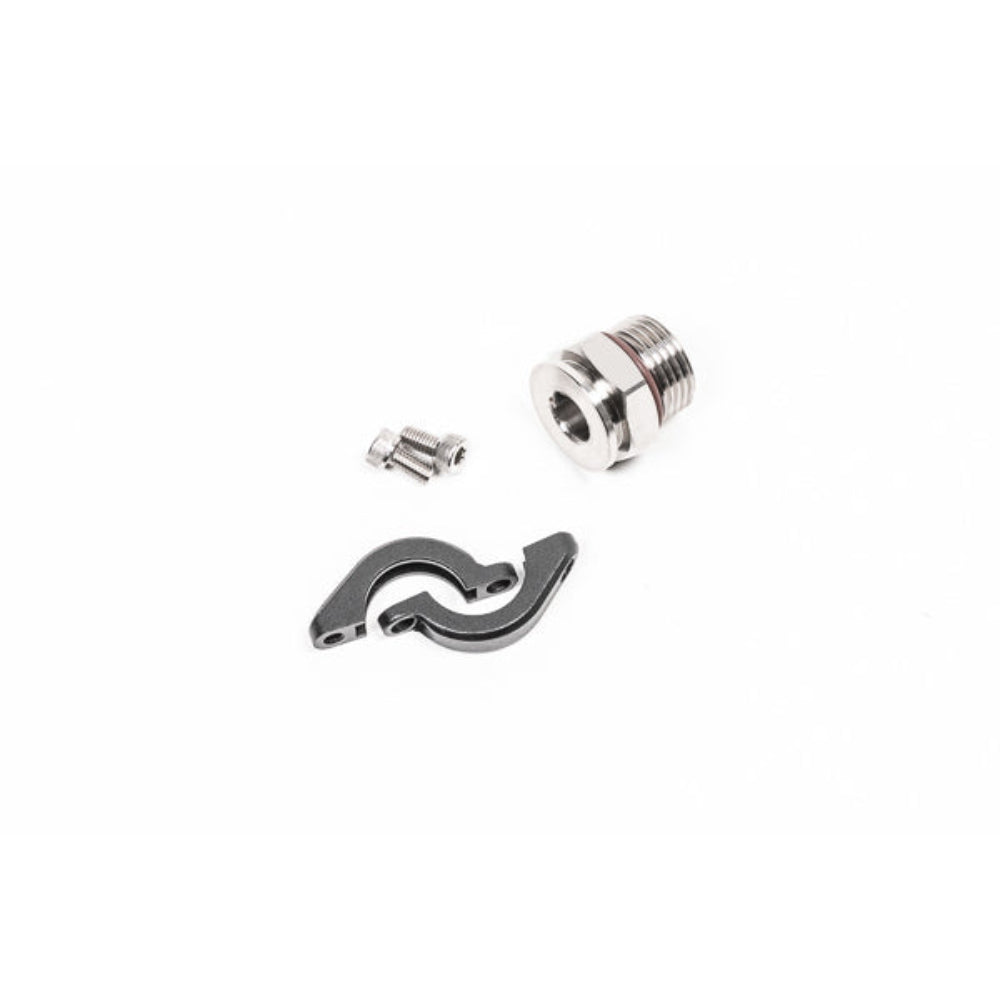

Fitting Threads: 8AN ORB maleFuel Pressure Sensor: 9.5mm BoreApplication: 2022+ Toyota GR Corolla2020+ Toyota GR Yaris2018+ Toyota 2.0L Engines2018+ Toyota 2.5L Enginesetc.Required: Fuel rail must have a 8AN ORB female threaded port.
Radium Engineering specializes in high-quality aftermarket automotive performance products for racing and high-performance applications. The company's core product lineup features revolutionary fuel delivery systems, fuel cells, and PCV oil catch can systems, all designed with meticulous attention to both functionality and engineering detail. Through extensive R&D, computer simulation, and rigorous testing, Radium delivers an expanding collection of motorsport parts and application-specific accessories trusted by top competitors and enthusiasts worldwide who demand products that exceed expectations and outperform low-quality alternatives.
