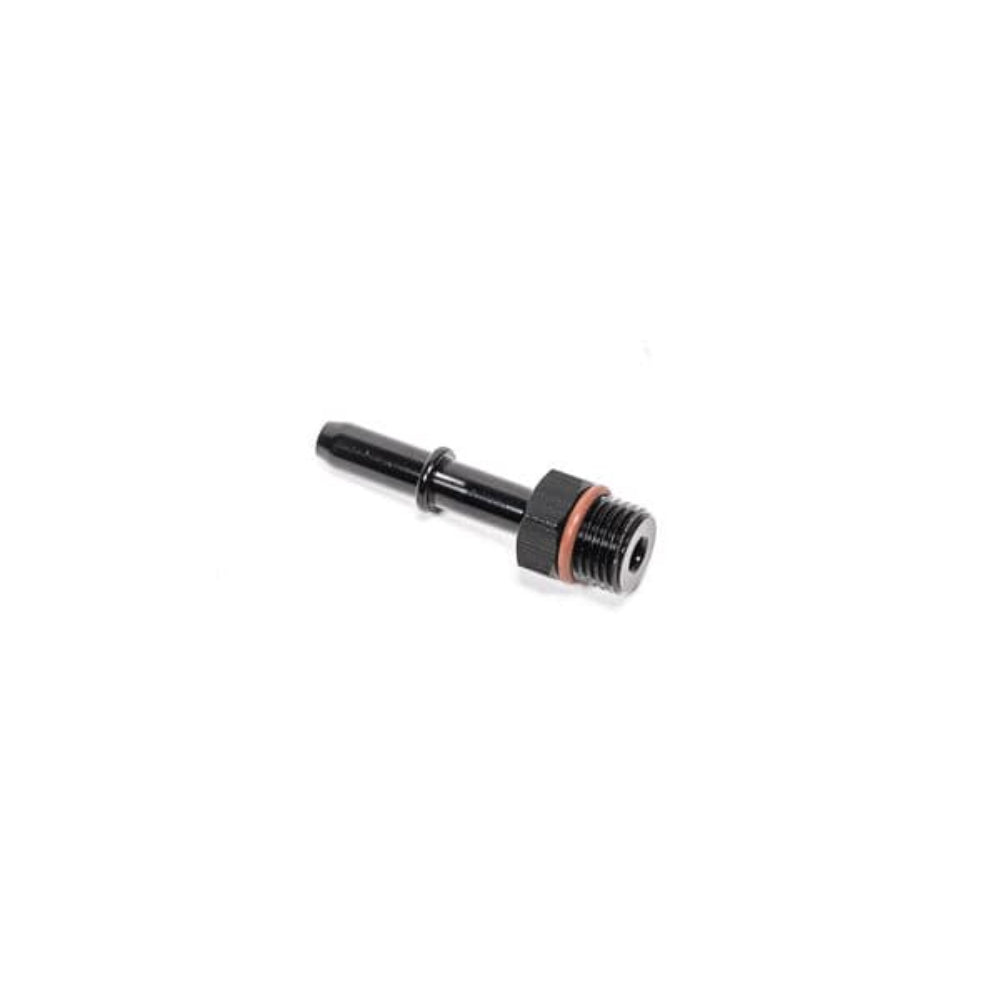

Radium Engineering Anodized aluminum adapter fitting. 5/16 SAE Male to 6AN ORB.
These adapter fittings are available in a variety of configurations. They push-on and secure to most modern USA, European, Japanese, etc. fuel injection systems and are used to convert an OEM SAE Quick Connect connectionTo determine the required size, simply measure the outside diameter of the male fitting as shown below.0.3125 = 5/16"0.375 = 3/8"0.50 = 1/2"
Radium Engineereing Anodized aluminum adapter fitting. 3/8 SAE Male to 6AN ORB.
These adapter fittings are available in a variety of configurations. They push-on and secure to most modern USA, European, Japanese, etc. fuel injection systems and are used to convert an OEM SAE Quick Connect connectionTo determine the required size, simply measure the outside diameter of the male fitting as shown below.0.3125 = 5/16"0.375 = 3/8"0.50 = 1/2"

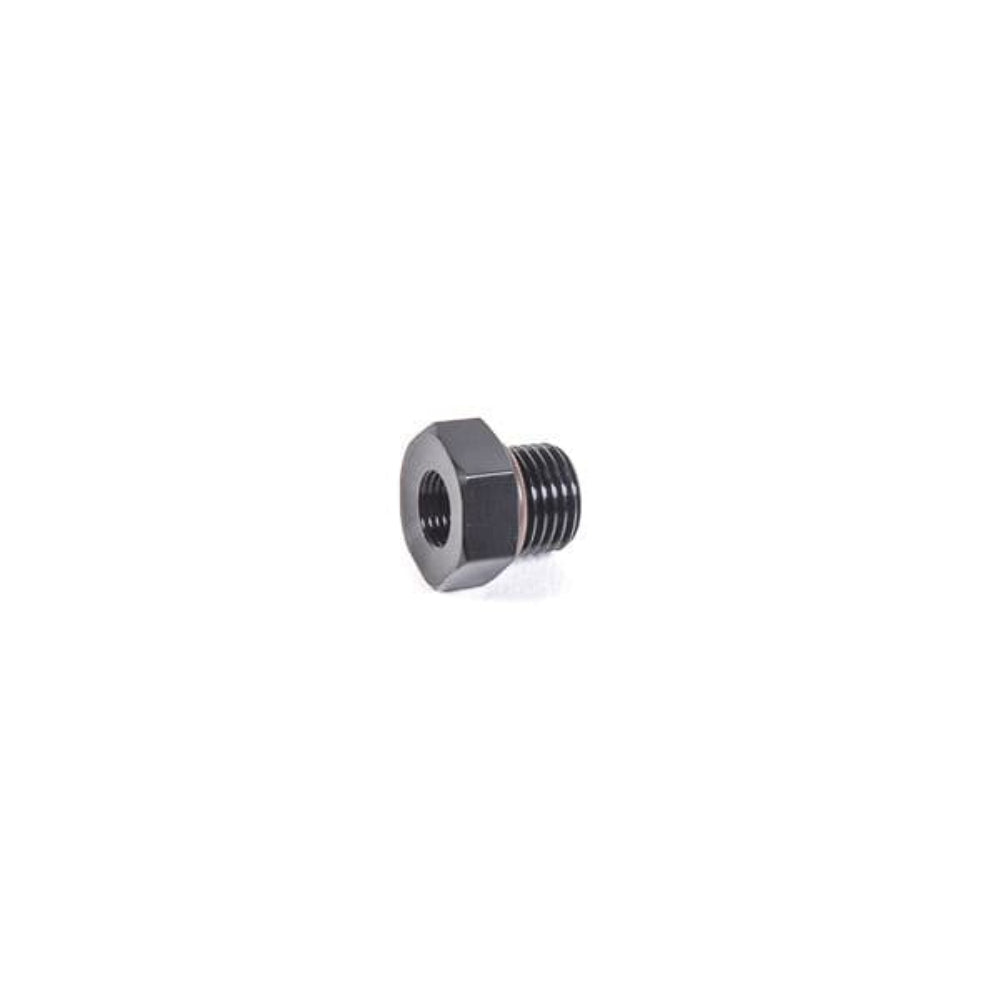

Converts 6AN ORB to 1/8 NPT female fitting; Black anodized aluminum

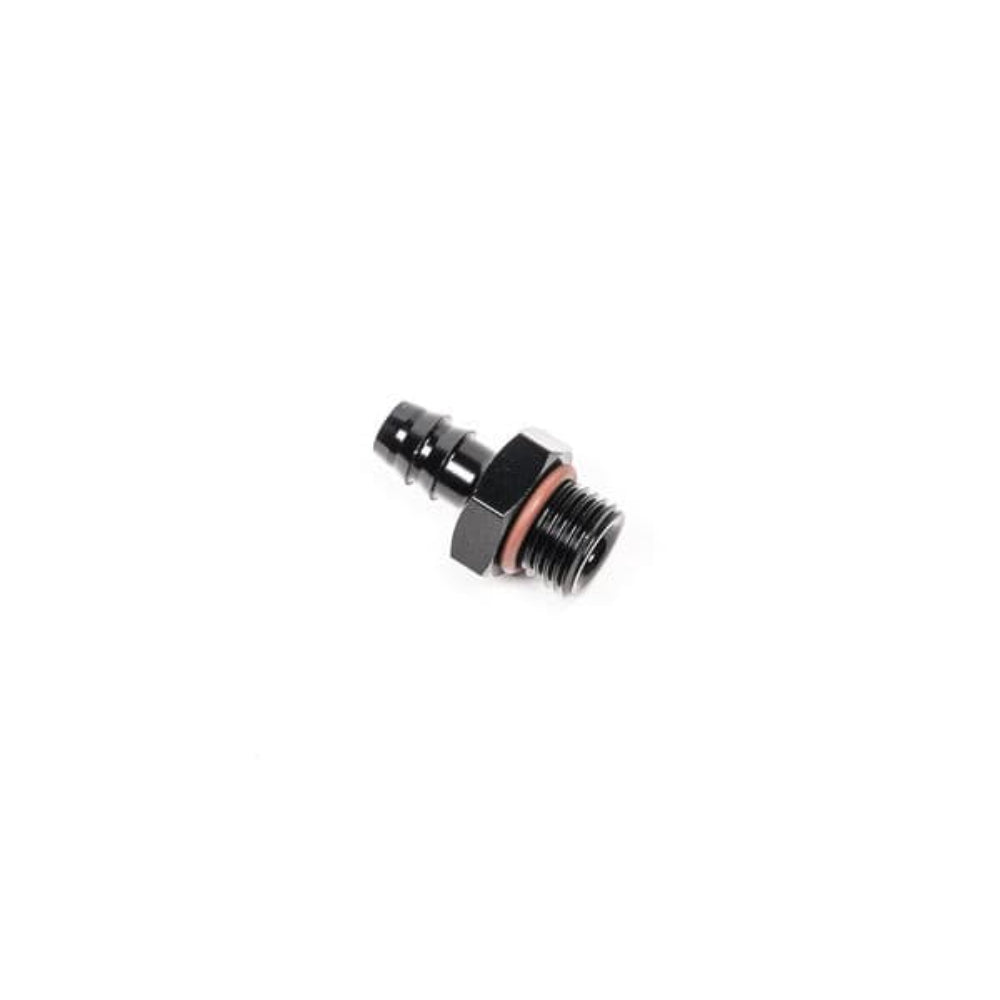

Radium Engineering 6An Orb To 10Mm Barb Adapter fitting. 6AN ORB male to 10mm male hose barb. Aluminum.

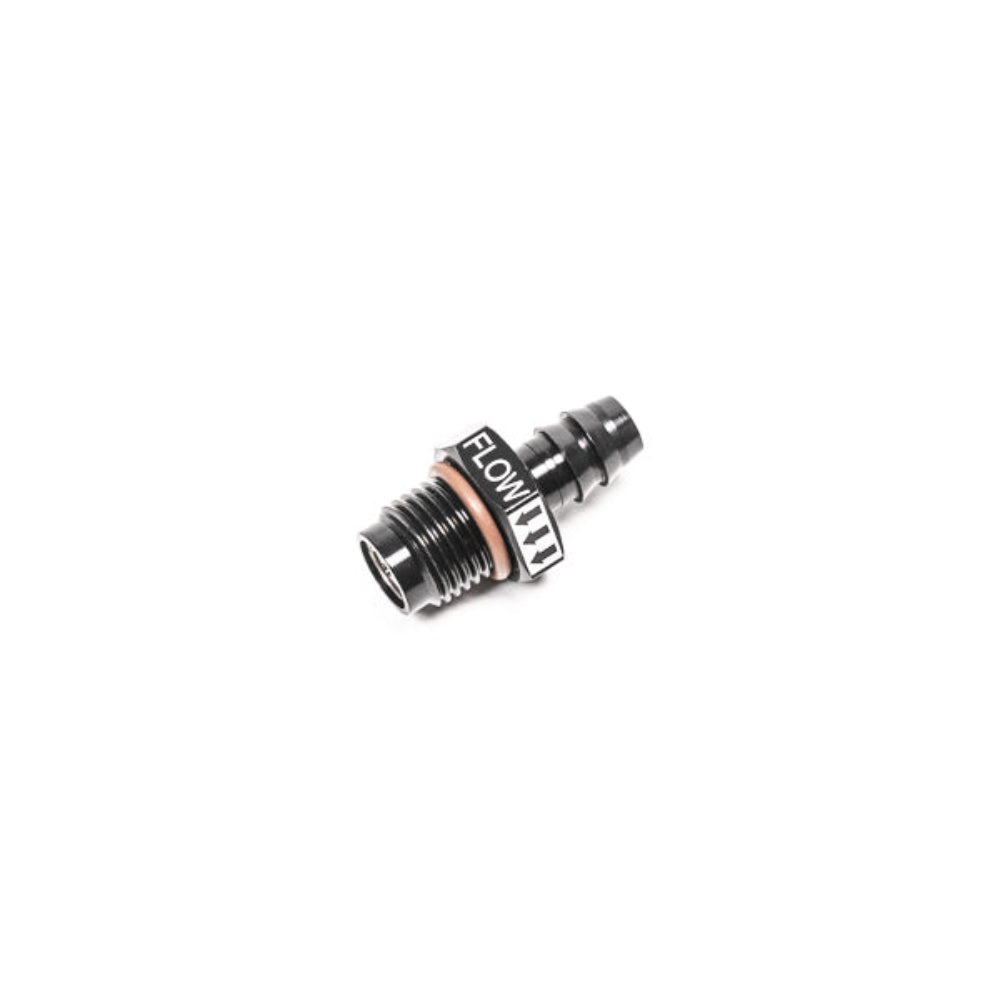

Radium Engineering Universal Check Valve 6AN ORB to 10mm Barb
As depicted below, the flow direction is laser etched on the side of the hex.
NOTE: For internal valve purposes, the length under the threads is extended. This area (shown above) adds an additional 3.4mm when compared to a standard 6AN ORB fitting.
SPECIFICATIONS
O-Ring Seals: FKM
Plunger Seal: FKM
Hardware: Stainless Steel
Spring Material: Stainless Steel
Plunger Material: Stainless Steel
Body Material: Anodized Aluminum
Check Valve Type: Spring-Loaded Piston
Port Threads: 6AN ORB (9/16"-18)
Compatible Hose ID: 9.5-10.5mm (3/8")
Hex Size: 19mm (3/4")
Total Length: 1.4" (46mm)
Cracking Pressure: 0.3 psi @ 70F
Max Operating Pressure: 1000+psi @ 70F
Backflow Holding Pressure: 1000+psi @ 70F

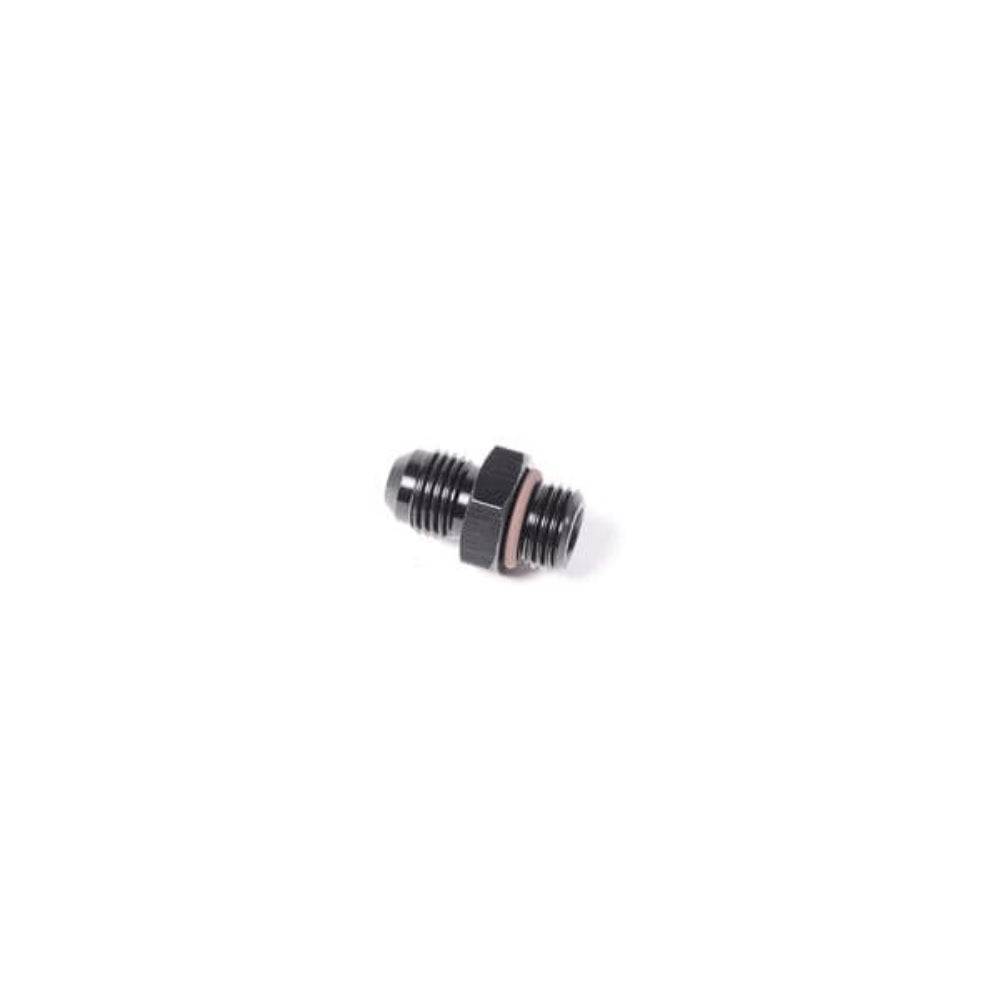

Radium Engineering 6an orb Converts 6AN ORB to 6AN Male fitting, CNC Machined and anodized

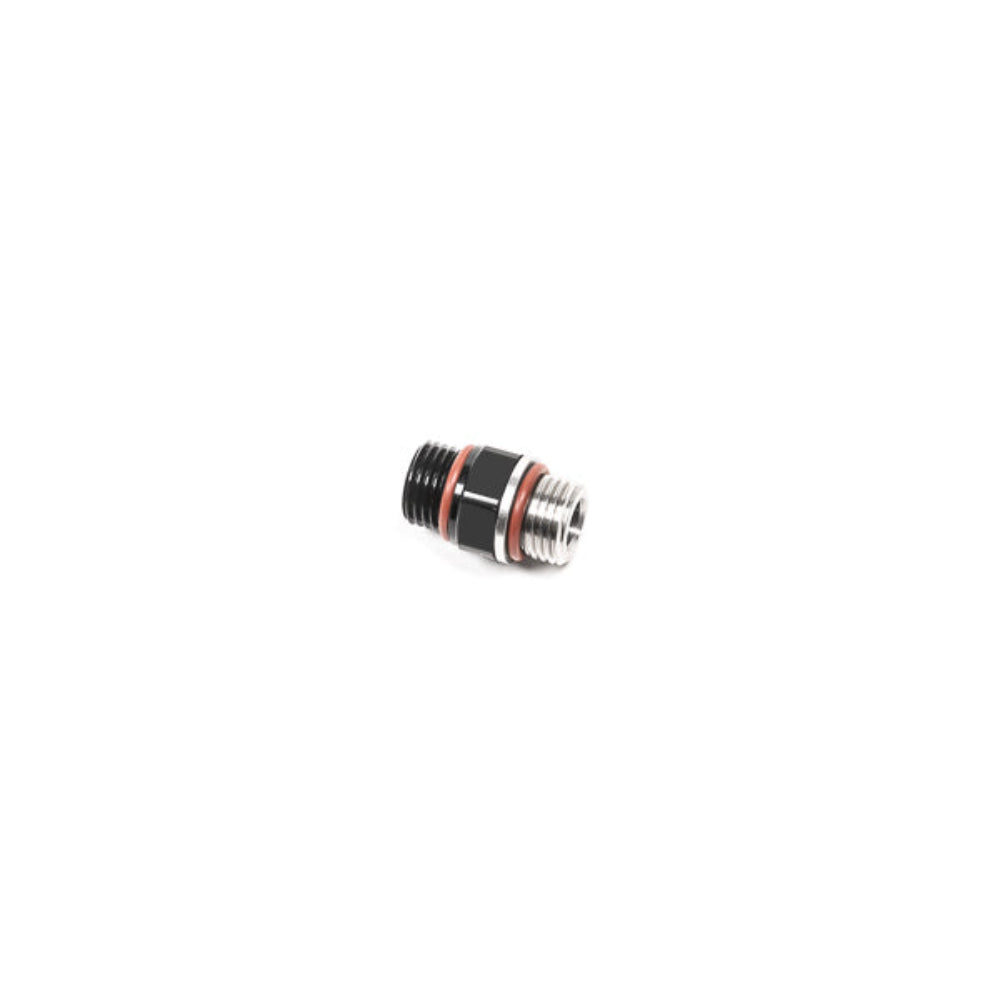

Radium Engineering 6An Orb To 6An Orb Swivel UnionReplacement fitting for Radium Engineering Direct Mount Regulators (Gen 2 design).
Permits DMR compatibility for a 6AN ORB (9/16"-18 threaded) fuel rail.

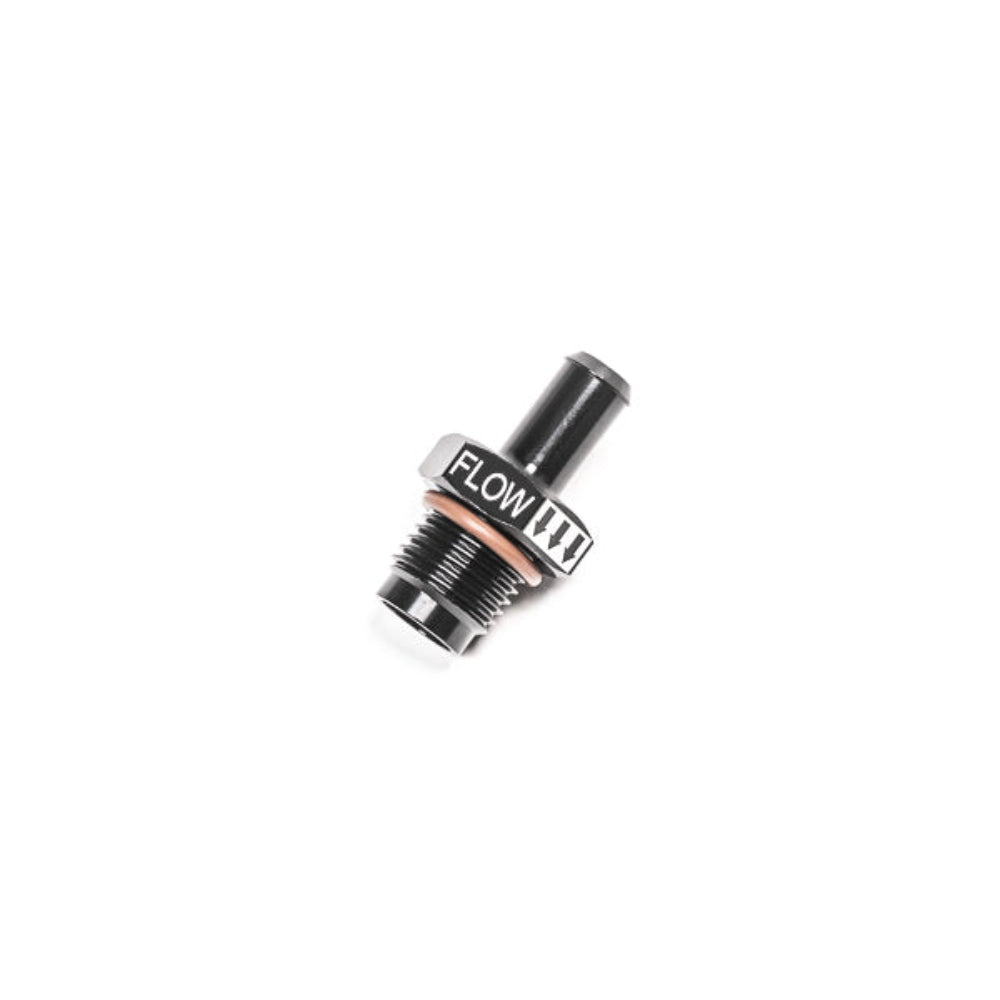

Radium Engineering Universal in-line check valve. 6AN ORB to 8.5mm Barb.
As depicted below, the flow direction is laser etched on the side of the hex.
NOTE: For internal valve purposes, the length under the threads is extended. This area (shown above) adds an additional 3.4mm when compared to a standard 6AN ORB fitting.
SPECIFICATIONS
O-Ring Seals: FKM
Plunger Seal: FKM
Hardware: Stainless Steel
Spring Material: Stainless Steel
Plunger Material: Stainless Steel
Body Material: Anodized Aluminum
Check Valve Type: Spring-Loaded Piston
Port Threads: 6AN ORB (9/16"-18)
Compatible Hose ID: 8-9mm (5/16")
Hex Size: 19mm (3/4")
Total Length: 1.4" (46mm)
Cracking Pressure: 0.3 psi @ 70F
Max Operating Pressure: 1000+psi @ 70F
Backflow Holding Pressure: 1000+psi @ 70F
Radium Engineering 6AN ORB TO M12 Converts -6AN to M12x1.0mm. CNC machined and anodized aluminum

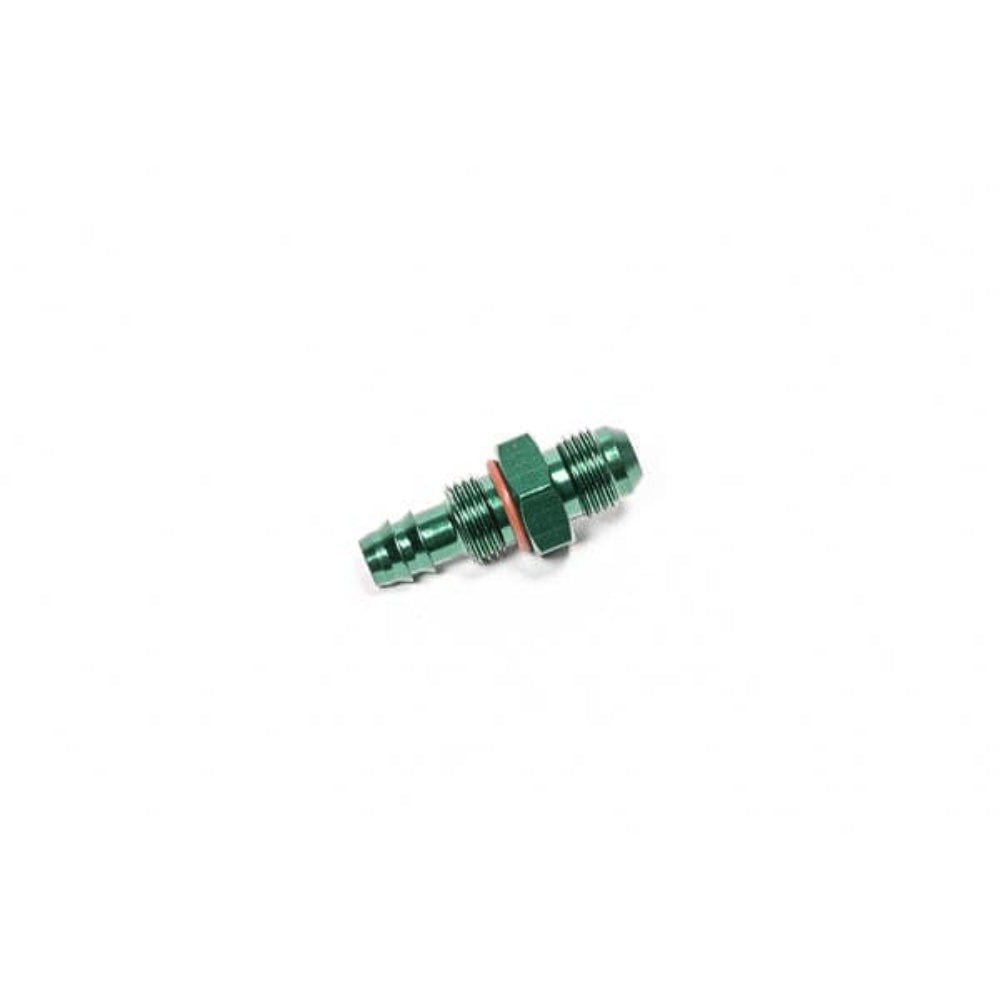

Radium Engineering Bright-dipped green anodized aluminum bulkhead fittings.
NOTES:-The 14-0670 6AN ORB with 10mm Barb to 6AN Male Bulkhead Fitting was introduced in Radium Fuel Surge Tanks after 2021. It includes a preassembled FKM O-ring and requires a 6AN ORB (9/16-18 threaded hole) with SAE chamfer to be drilled into the mating part for sealing.-The 20-0170 6AN ORB with 8.5mm Barb to 6AN Male Bulkhead Fitting was introduced in Radium Fuel Surge Tanks after 2014. It includes a preassembled FKM O-ring and requires a 6AN ORB (9/16-18 threaded hole) with SAE chamfer to be drilled into the mating part for sealing.-The 20-0196 10AN ORB with 5/8" Barb to 10AN Male Bulkhead Fitting was introduced in Radium High Volume Fuel Surge Tanks in 2015. It includes a preassembled FKM O-ring and requires a 10AN ORB (7/8-14 threaded hole) with SAE chamfer to be drilled into the mating part for sealing.
