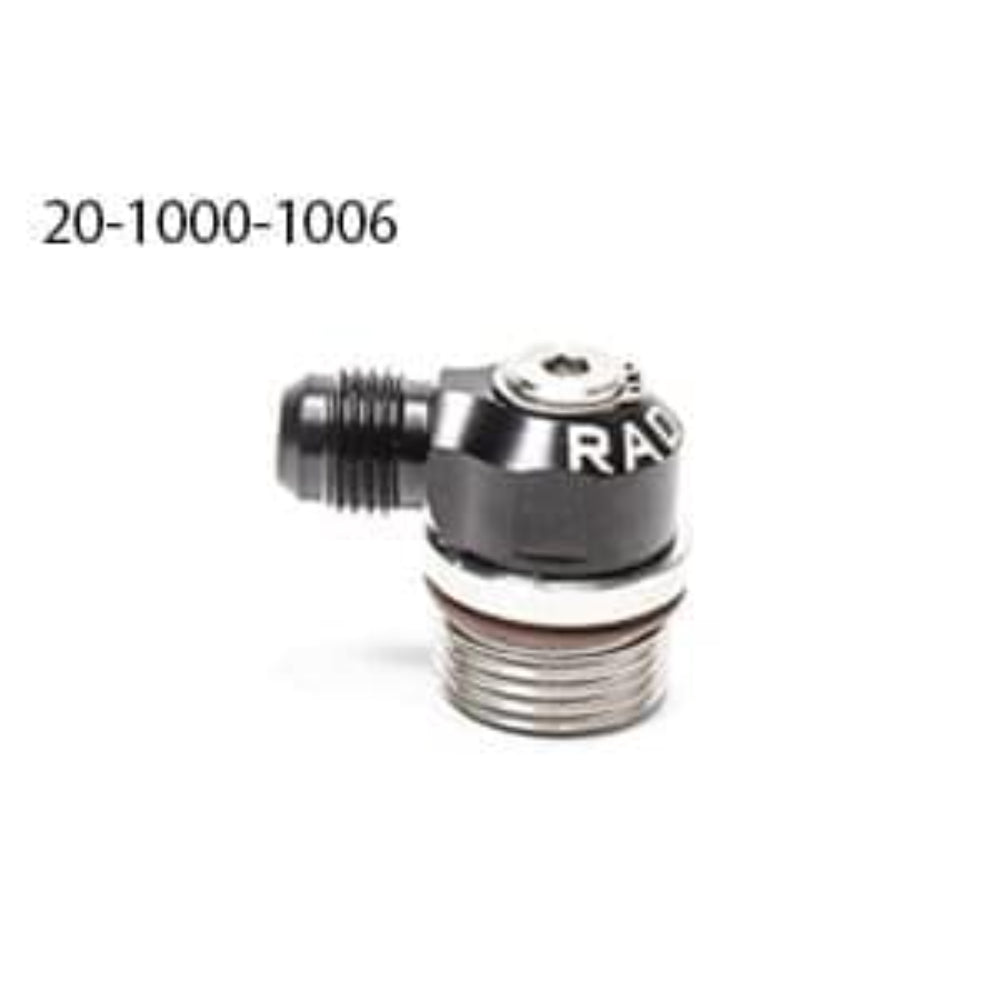

Radium Engineering banjo fittings have the ability to rotate 360 degrees, even after installation. They are an excellent option for 90-degree connections and are very low profile. Swivel fitting. Stainless steel and aluminum construction. Screws into a 10AN ORB (O-ring port) and has a swiveling 6AN male flare fitting.
20-1000-1006 Installed Height (bottom installed surface to top): 0.797in (20.2mm)
Radium Engineering 10AN ORB Swivel Banjo to 6AN banjo fitting have the ability to rotate 360 degrees, even after installation. They are an excellent option for 90-degree connections and are very low profile.
20-1000-1006F Installed Height (bottom installed surface to top): 0.797in (20.2mm)

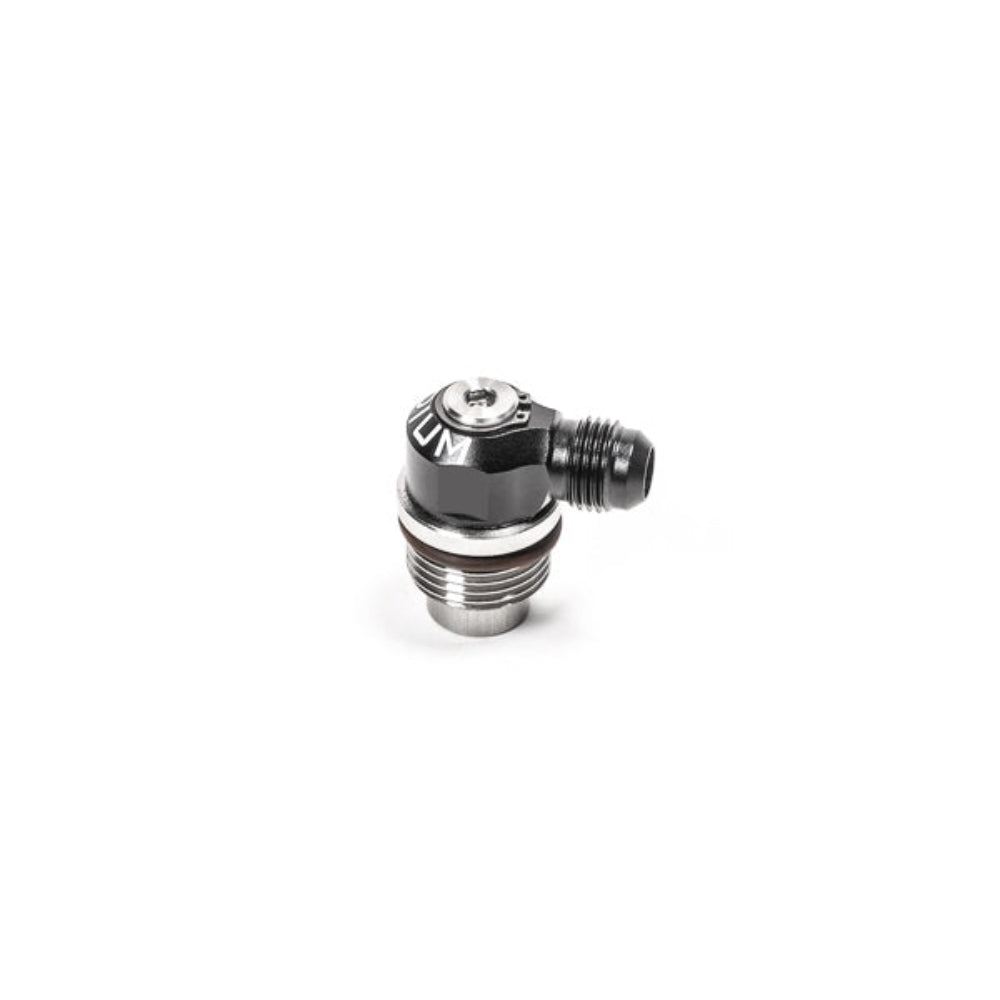

Radium Engineering 10AN ORB Swivel Banjo PCV Valve to 6AN Male PCV valve (positive crankcase ventilation) systems. Do not mistake this for a simple one-way check valve. The PCV valve's internal plunger dynamically meters the appropriate amount of crankcase vent airflow based on current engine load. Proper PCV valves prevent the "vacuum leak" that a check valve would create at low loads. Also, in the event of a backfire, the PCV valve prevents combustible vapors from igniting in the crankcase.
20-1000-1006-PCV SPECIFICATIONSQuick Connect Material: Anodized Aluminum10AN ORB Material: Stainless SteelSealing O-rings: FKM and SiliconeInlet: 10AN ORB (7/8"-14 threads)Outlet: 6AN MaleFeature: Low Profile 90 Degree SwivelNOTE: As shown, this is slightly taller than a standard 10AN ORB fitting. An extra 0.26" (6.7mm) clearance is required for the O-ring to properly seat.
Radium Engineering banjo fittings have the ability to rotate 360 degrees, even after installation. They are an excellent option for 90-degree connections and are very low profileSuitable for use in high pressure fuel and oil systems. Do not exceed 400 psi.
Radium Engineering banjo fittings have the ability to rotate 360 degrees, even after installation. They are an excellent option for 90-degree connections and are very low profileSuitable for use in high pressure fuel and oil systems. Do not exceed 400 psi.rt.
Radium Engineering banjo fittings have the ability to rotate 360 degrees, even after installation. They are an excellent option for 90-degree connections and are very low profileSuitable for use in high pressure fuel and oil systems. Do not exceed 400 psi.
Radium Engineering 10AN ORB Swivel Banjo PCV Valve to 10mm Barb PCV valve (positive crankcase ventilation) systems. Do not mistake this for a simple one-way check valve. The PCV valve's internal plunger dynamically meters the appropriate amount of crankcase vent airflow based on current engine load. Proper PCV valves prevent the "vacuum leak" that a check valve would create at low loads. Also, in the event of a backfire, the PCV valve prevents combustible vapors from igniting in the crankcase.
20-1000-1010B-PCV SPECIFICATIONSQuick Connect Material: Anodized Aluminum10AN ORB Material: Stainless SteelSealing O-rings: FKM and SiliconeInlet: 10AN ORB (7/8"-14 threads)Outlet: 10mm BarbFeature: Low Profile 90 Degree SwivelNOTE: As shown, this is slightly taller than a standard 10AN ORB fitting. An extra 0.26" (6.7mm) clearance is required for the O-ring to properly seat.

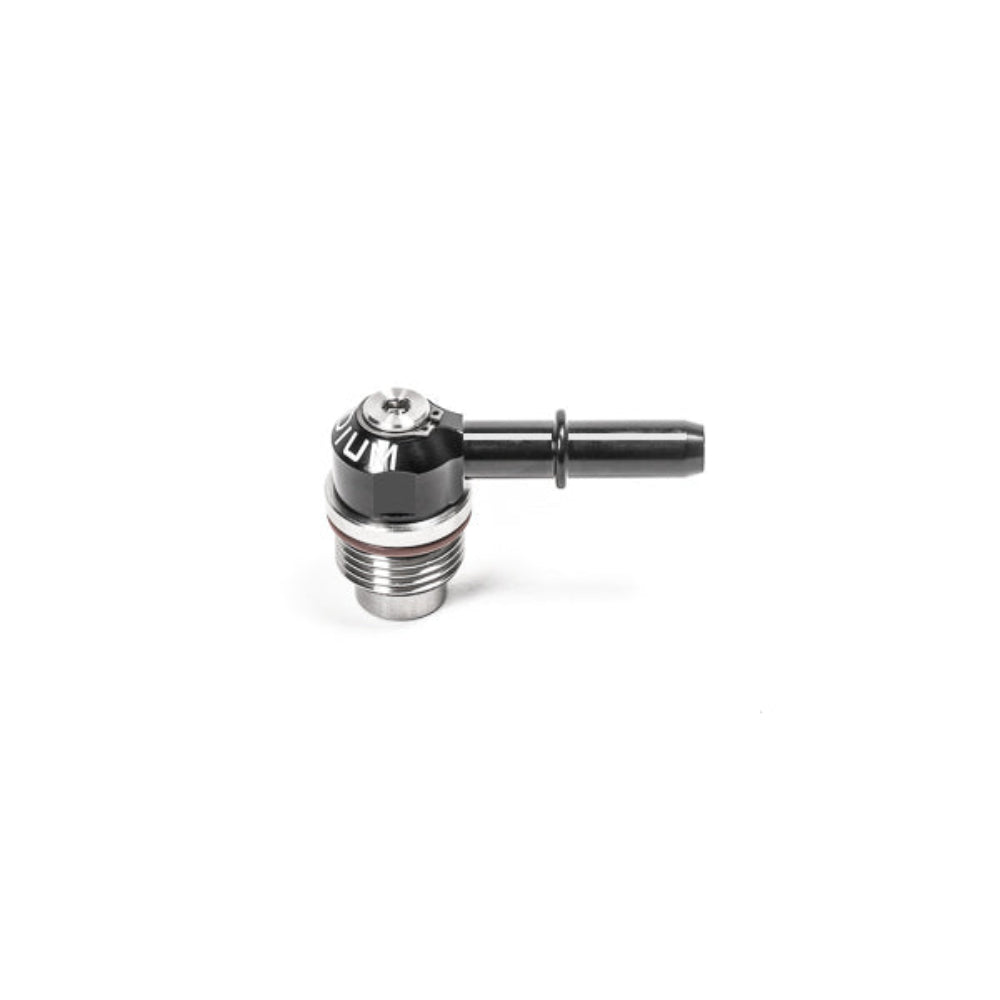

Radium Engineering 10AN ORB Swivel Banjo PCV Valve to 10mm SAE Male PCV valve (positive crankcase ventilation) systems. Do not mistake this for a simple one-way check valve. The PCV valve's internal plunger dynamically meters the appropriate amount of crankcase vent airflow based on current engine load. Proper PCV valves prevent the "vacuum leak" that a check valve would create at low loads. Also, in the event of a backfire, the PCV valve prevents combustible vapors from igniting in the crankcase.
20-1000-1010S-PCV SPECIFICATIONSQuick Connect Material: Anodized Aluminum10AN ORB Material: Stainless SteelSealing O-rings: FKM and SiliconeInlet: 10AN ORB (7/8"-14 threads)Outlet: 10mm SAE Quick Connect MaleFeature: Low Profile 90 Degree SwivelNOTE: As shown, this is slightly taller than a standard 10AN ORB fitting. An extra 0.26" (6.7mm) clearance is required for the O-ring to properly seat.
Radium Engineering banjo fittings have the ability to rotate 360 degrees, even after installation. They are an excellent option for 90-degree connections and are very low profileSuitable for use in high pressure fuel and oil systems. Do not exceed 400 psi.
Radium Engineering banjo fittings have the ability to rotate 360 degrees, even after installation. They are an excellent option for 90-degree connections and are very low profile
Suitable for use in high pressure fuel and oil systems. Do not exceed 400 psi.

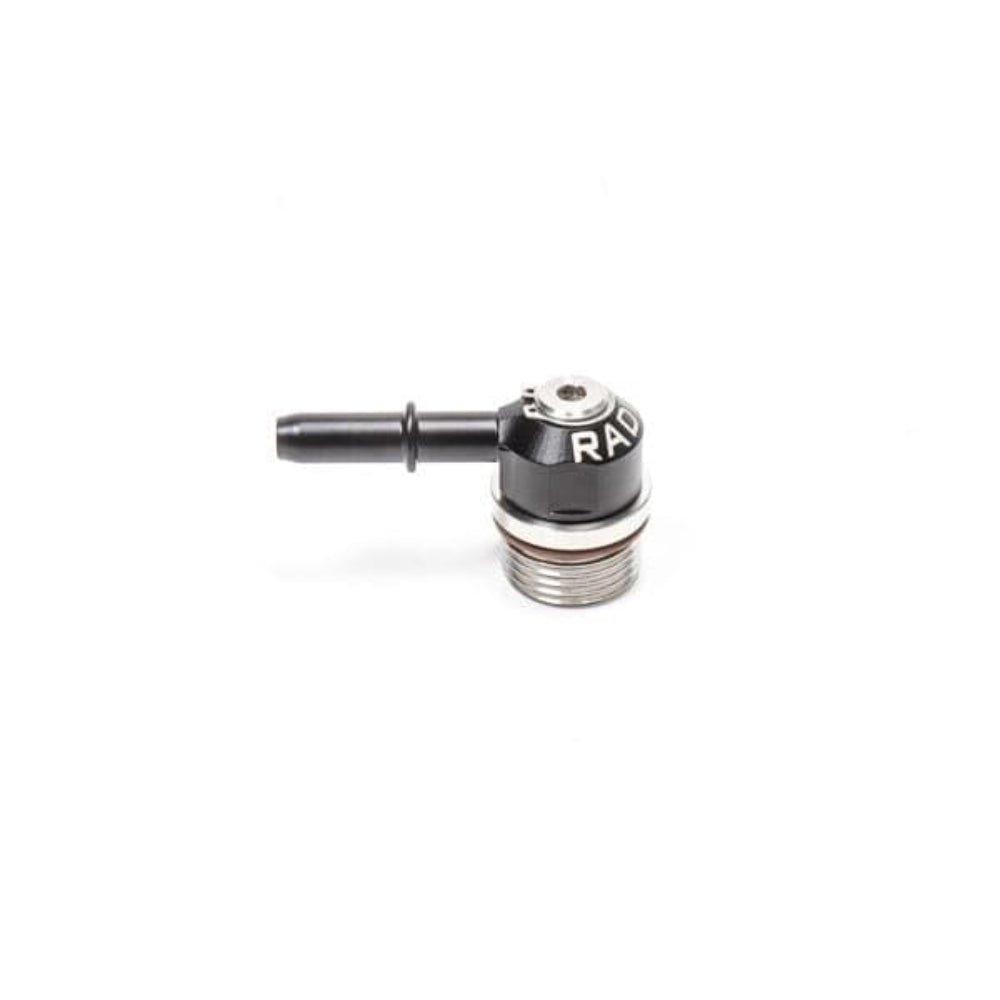

Radium 10An Orb Swivel Banjo To .313 Sae MaleThis 90 degree fittings screws into a 10AN ORB female port and allows attachment of a 5/16 Quick Connect SAE hose fitting. Fitting swivels 360 degrees.
These adapter fittings are available in a variety of configurations. They push-on and secure to most modern USA, European, Japanese, etc. fuel injection systems and are used to convert an OEM SAE Quick Connect connection
To determine the required size, simply measure the outside diameter of the male fitting as shown below.
0.3125 = 5/16"
0.375 = 3/8"
0.50 = 1/2"

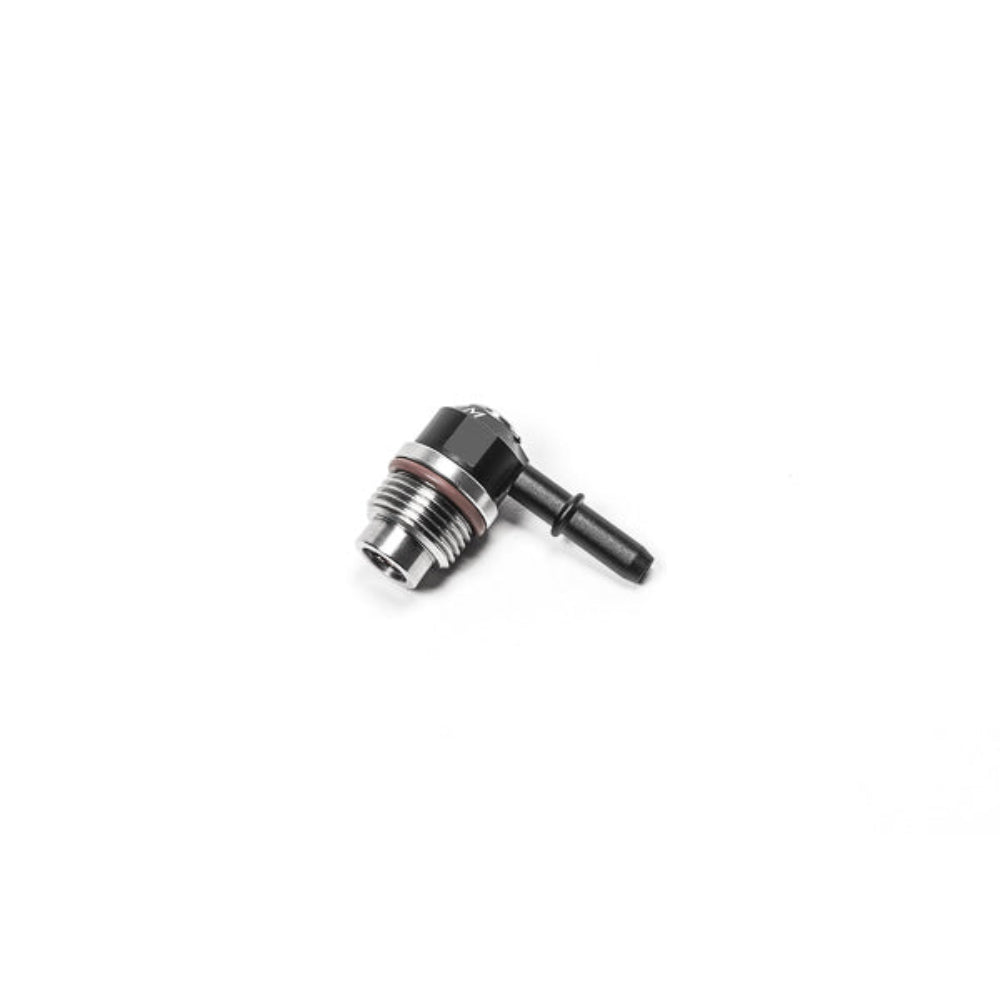

Radium Engineering 10AN ORB Swivel Banjo PCV Valve to 5/16in SAE Male PCV valve (positive crankcase ventilation) systems. Do not mistake this for a simple one-way check valve. The PCV valve's internal plunger dynamically meters the appropriate amount of crankcase vent airflow based on current engine load. Proper PCV valves prevent the "vacuum leak" that a check valve would create at low loads. Also, in the event of a backfire, the PCV valve prevents combustible vapors from igniting in the crankcase.
20-1000-10313-PCV SPECIFICATIONSQuick Connect Material: Anodized Aluminum10AN ORB Material: Stainless SteelSealing O-rings: FKM and SiliconeInlet: 10AN ORB (7/8"-14 threads)Outlet: 5/16" SAE Quick Connect MaleFeature: Low Profile 90 Degree SwivelNOTE: As shown, this is slightly taller than a standard 10AN ORB fitting. An extra 0.26" (6.7mm) clearance is required for the O-ring to properly seat.
Radium Engineering banjo fittings have the ability to rotate 360 degrees, even after installation. They are an excellent option for 90-degree connections and are very low profileSuitable for use in high pressure fuel and oil systems. Do not exceed 400 psi.rt.

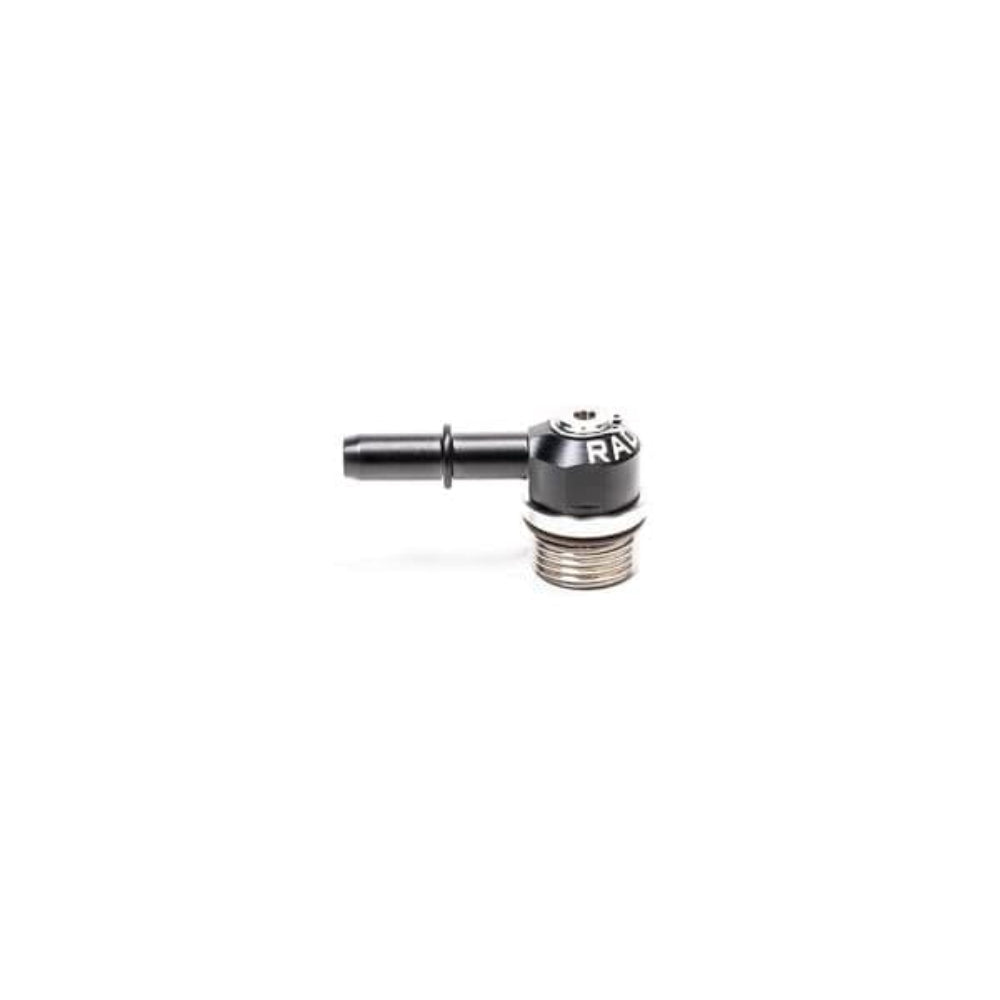

Swivel fitting. Stainless steel and aluminum construction. Screws into a 10AN ORB (O-ring port) and has a swiveling 3/8 SAE Quick Connect male.
These adapter fittings are available in a variety of configurations. They push-on and secure to most modern USA, European, Japanese, etc. fuel injection systems and are used to convert an OEM SAE Quick Connect connectionTo determine the required size, simply measure the outside diameter of the male fitting as shown below.0.3125 = 5/16"0.375 = 3/8"0.50 = 1/2"

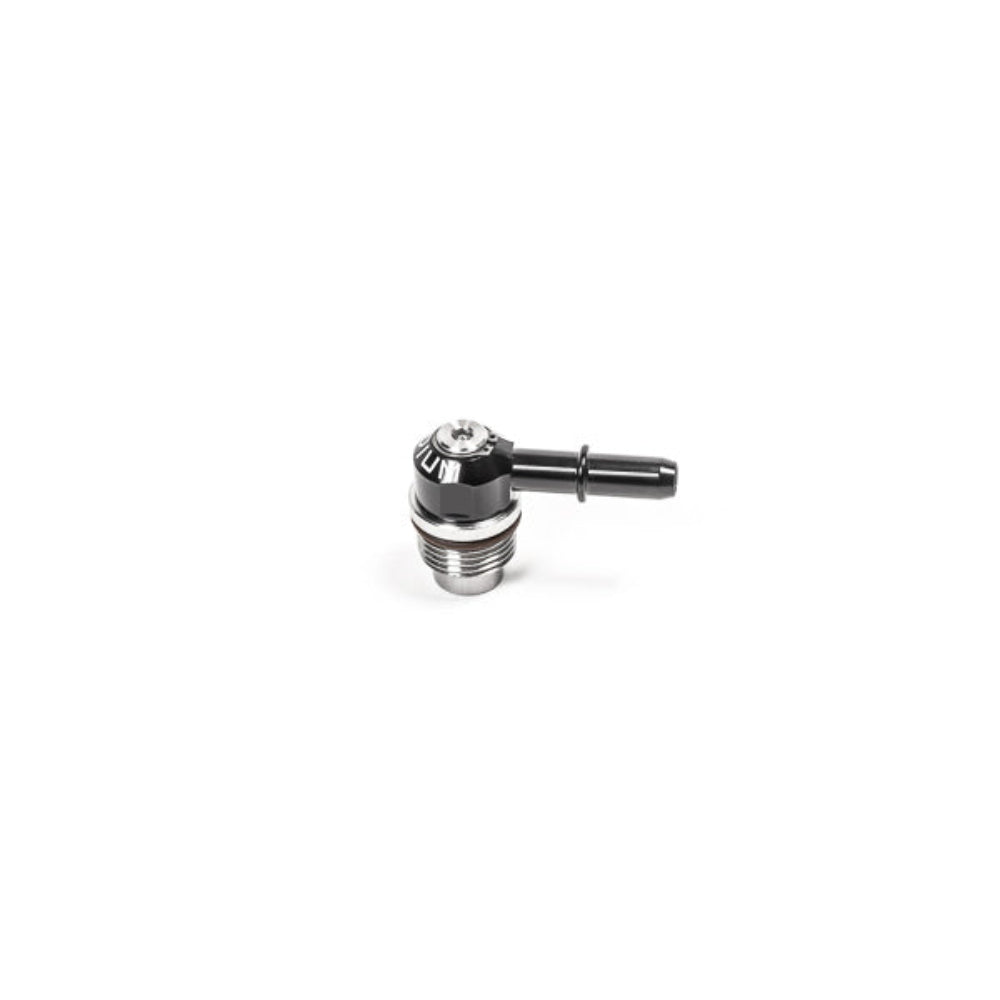

Radium Engineering 10AN ORB Swivel Banjo PCV Valve to 3/8in SAE Male PCV valve (positive crankcase ventilation) systems. Do not mistake this for a simple one-way check valve. The PCV valve's internal plunger dynamically meters the appropriate amount of crankcase vent airflow based on current engine load. Proper PCV valves prevent the "vacuum leak" that a check valve would create at low loads. Also, in the event of a backfire, the PCV valve prevents combustible vapors from igniting in the crankcase.
20-1000-10375-PCV SPECIFICATIONSQuick Connect Material: Anodized Aluminum10AN ORB Material: Stainless SteelSealing O-rings: FKM and SiliconeInlet: 10AN ORB (7/8"-14 threads)Outlet: 3/8" SAE Quick Connect MaleFeature: Low Profile 90 Degree SwivelNOTE: As shown, this is slightly taller than a standard 10AN ORB fitting. An extra 0.26" (6.7mm) clearance is required for the O-ring to properly seat.
Radium Engineering banjo fittings have the ability to rotate 360 degrees, even after installation. They are an excellent option for 90-degree connections and are very low profileSuitable for use in high pressure fuel and oil systems. Do not exceed 400 psi.

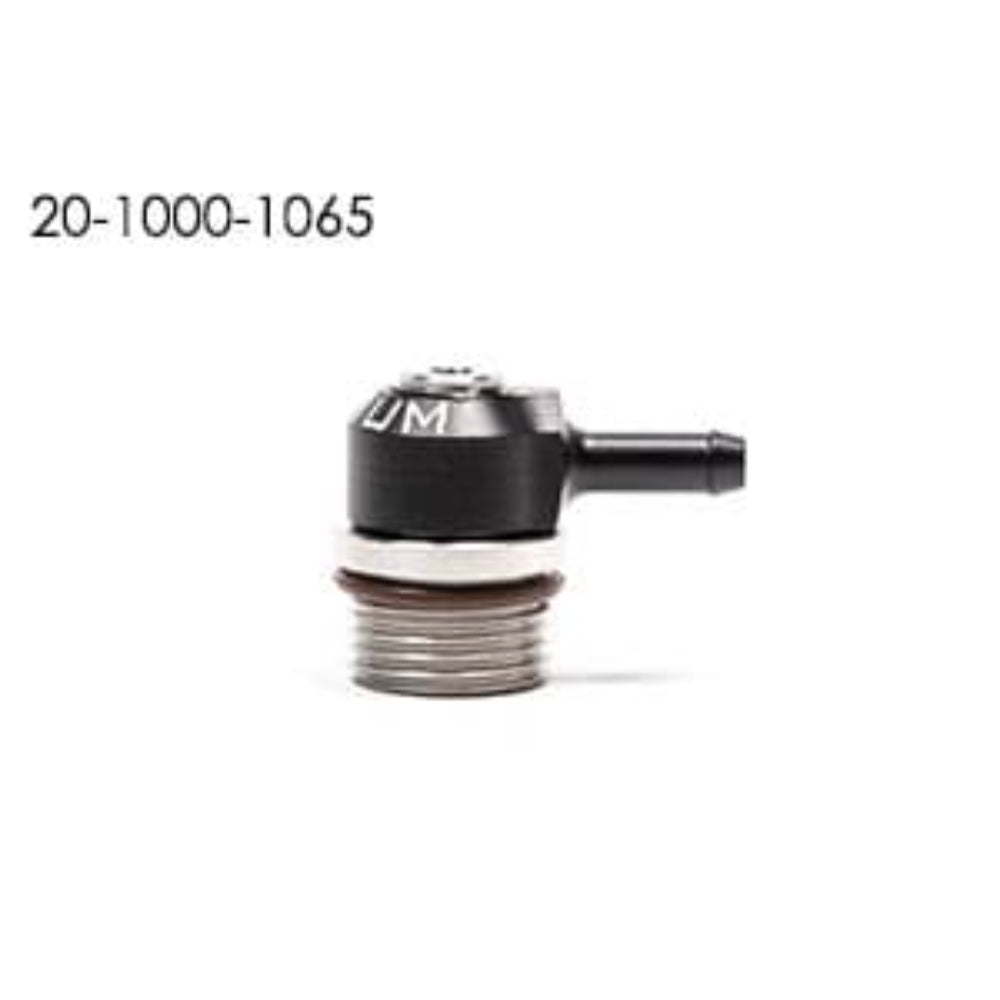

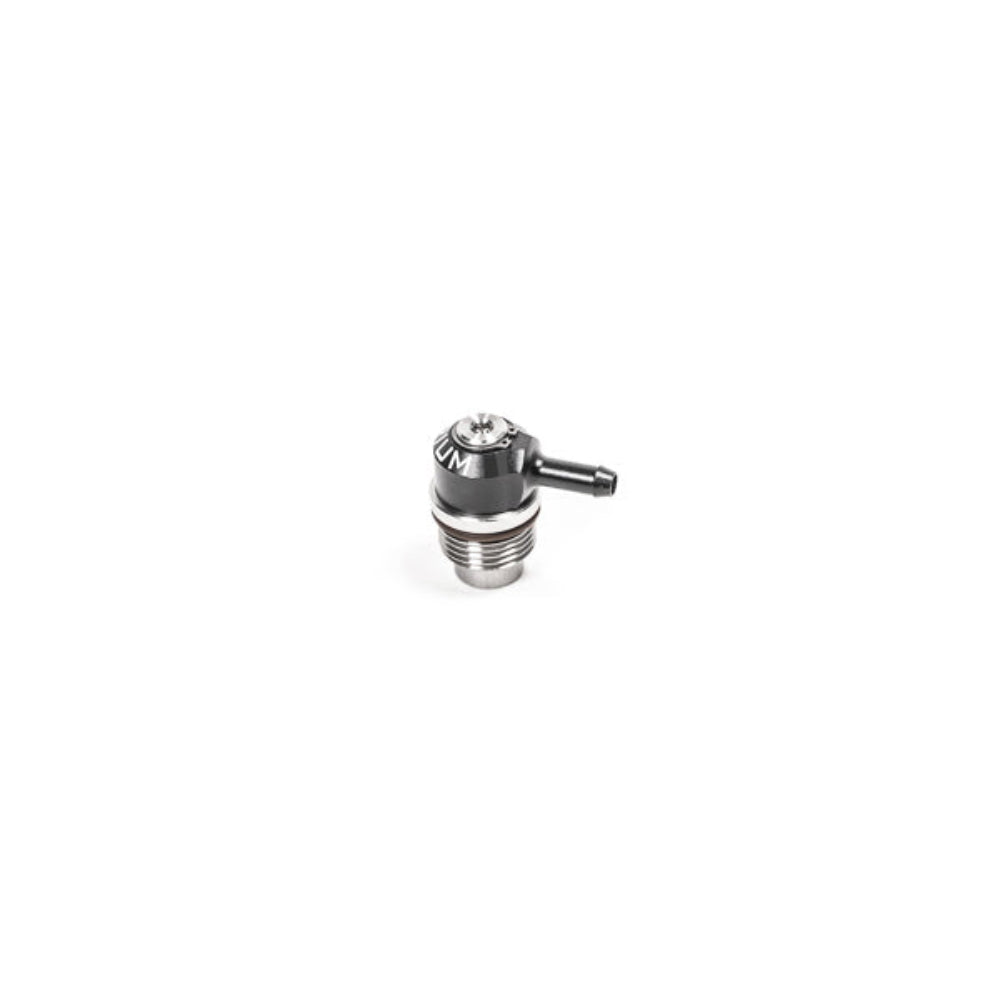

Radium Engineering 10AN ORB Swivel Banjo PCV Valve to 6.5mm Barb PCV valve (positive crankcase ventilation) systems. Do not mistake this for a simple one-way check valve. The PCV valve's internal plunger dynamically meters the appropriate amount of crankcase vent airflow based on current engine load. Proper PCV valves prevent the "vacuum leak" that a check valve would create at low loads. Also, in the event of a backfire, the PCV valve prevents combustible vapors from igniting in the crankcase.
20-1000-1065-PCV SPECIFICATIONSQuick Connect Material: Anodized Aluminum10AN ORB Material: Stainless SteelSealing O-rings: FKM and SiliconeInlet: 10AN ORB (7/8"-14 threads)Outlet: 6.5mm BarbFeature: Low Profile 90 Degree SwivelNOTE: As shown, this is slightly taller than a standard 10AN ORB fitting. An extra 0.26" (6.7mm) clearance is required for the O-ring to properly seat.
Radium Engineering banjo fittings have the ability to rotate 360 degrees, even after installation. They are an excellent option for 90-degree connections and are very low profileSuitable for use in high pressure fuel and oil systems. Do not exceed 400 psi.

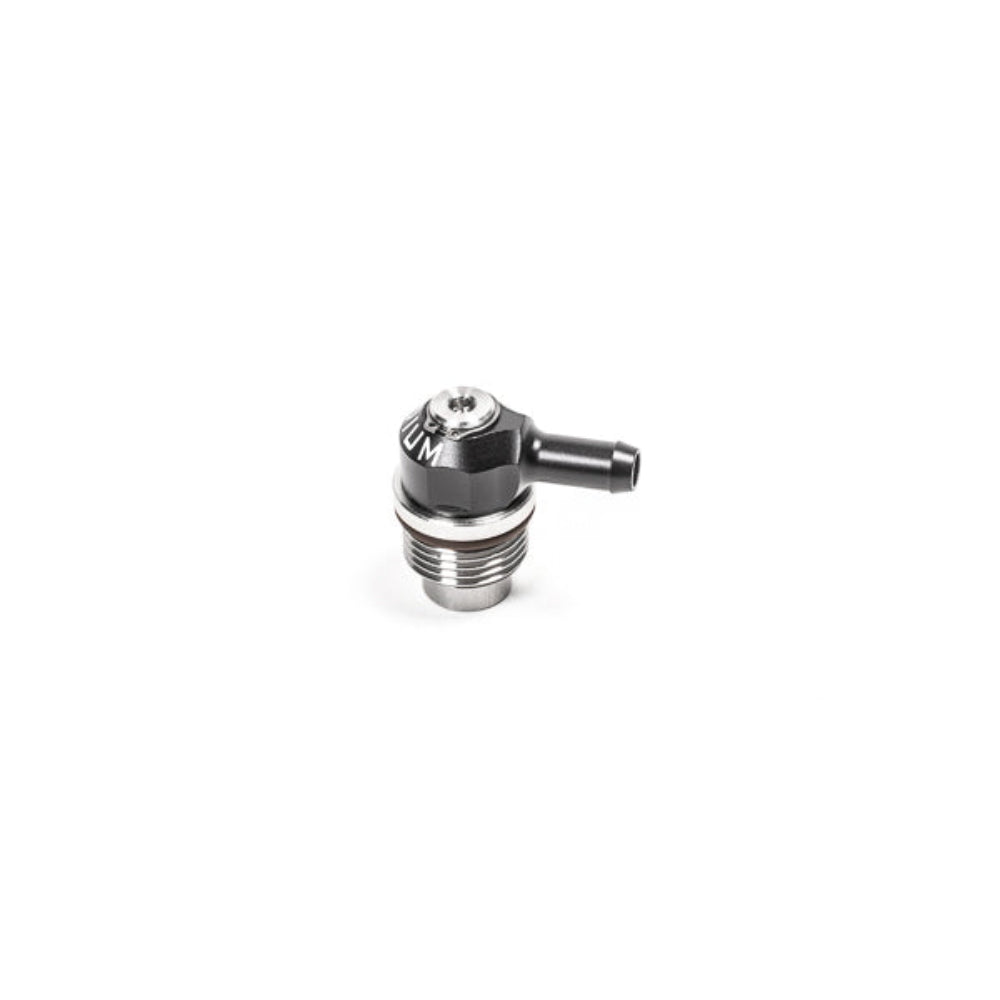

Radium Engineering 10AN ORB Swivel Banjo PCV Valve to 8.5mm Barb PCV valve (positive crankcase ventilation) systems. Do not mistake this for a simple one-way check valve. The PCV valve's internal plunger dynamically meters the appropriate amount of crankcase vent airflow based on current engine load. Proper PCV valves prevent the "vacuum leak" that a check valve would create at low loads. Also, in the event of a backfire, the PCV valve prevents combustible vapors from igniting in the crankcase.
20-1000-1085-PCV SPECIFICATIONSQuick Connect Material: Anodized Aluminum10AN ORB Material: Stainless SteelSealing O-rings: FKM and SiliconeInlet: 10AN ORB (7/8"-14 threads)Outlet: 8.5mm BarbFeature: Low Profile 90 Degree SwivelNOTE: As shown, this is slightly taller than a standard 10AN ORB fitting. An extra 0.26" (6.7mm) clearance is required for the O-ring to properly seat.
