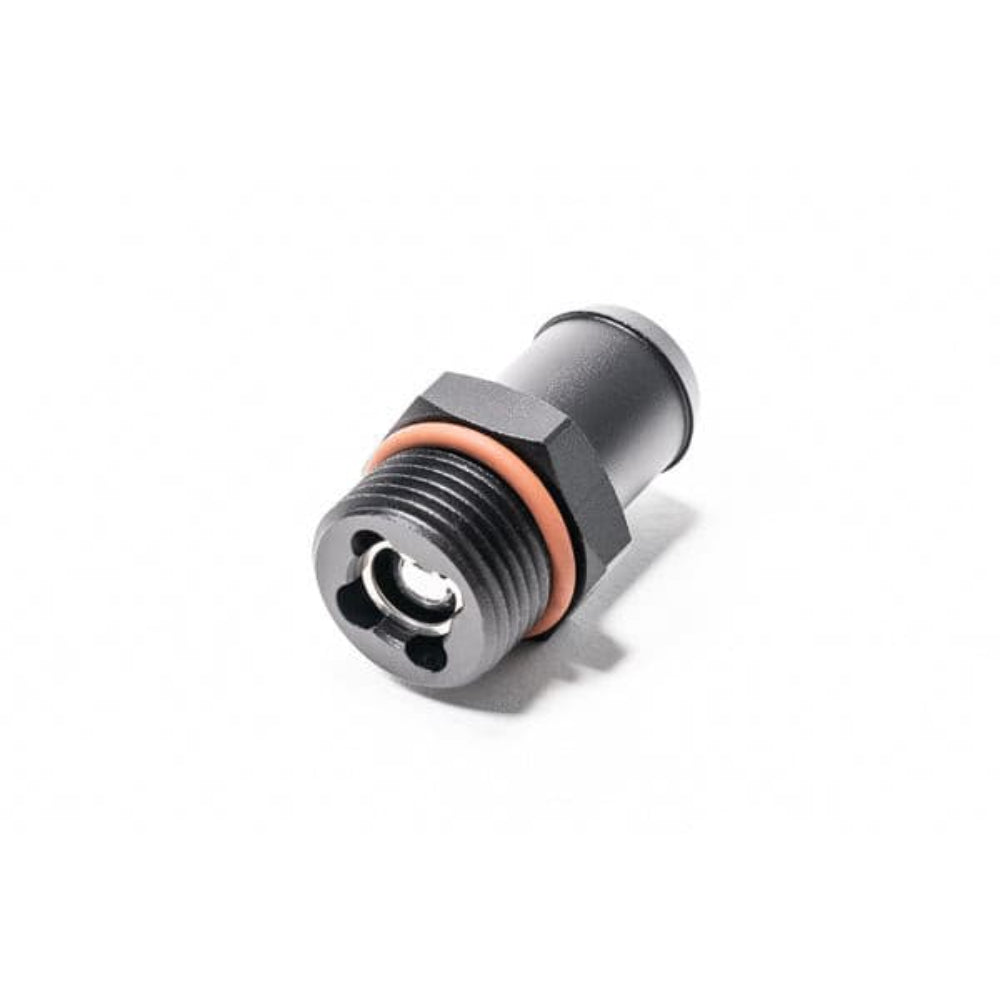

Radium Engineering Roll Over Valve This fitting should always be mounted in the vertical upright position (shown below). In this condition, air flow is permitted to move through the unit in both directions (in and out).
However, when the fitting rotates more than 90 degrees, it becomes a shut-off valve not allowing any flow to pass through.
This part was designed to be compatible with Radium Engineering P/N: 18-0042 AIR FILTER, 0.75IN ID (shown above). This combination is most commonly used with engine (or oil catch can) vents. It permits venting but prevents oil from escaping the engine if the vehicle is accidentally inverted.
SPECIFICATIONS
Threads: 7/8-14 UNF (10AN ORB)
Barb (OD): 0.75" (19mm)
Material (valve): Stainless Steel
Material (retaining ring): Stainless Steel
Material (o-ring): FKM
Material (body): 6061 Auminum
Surface (body): Type-II Anodized

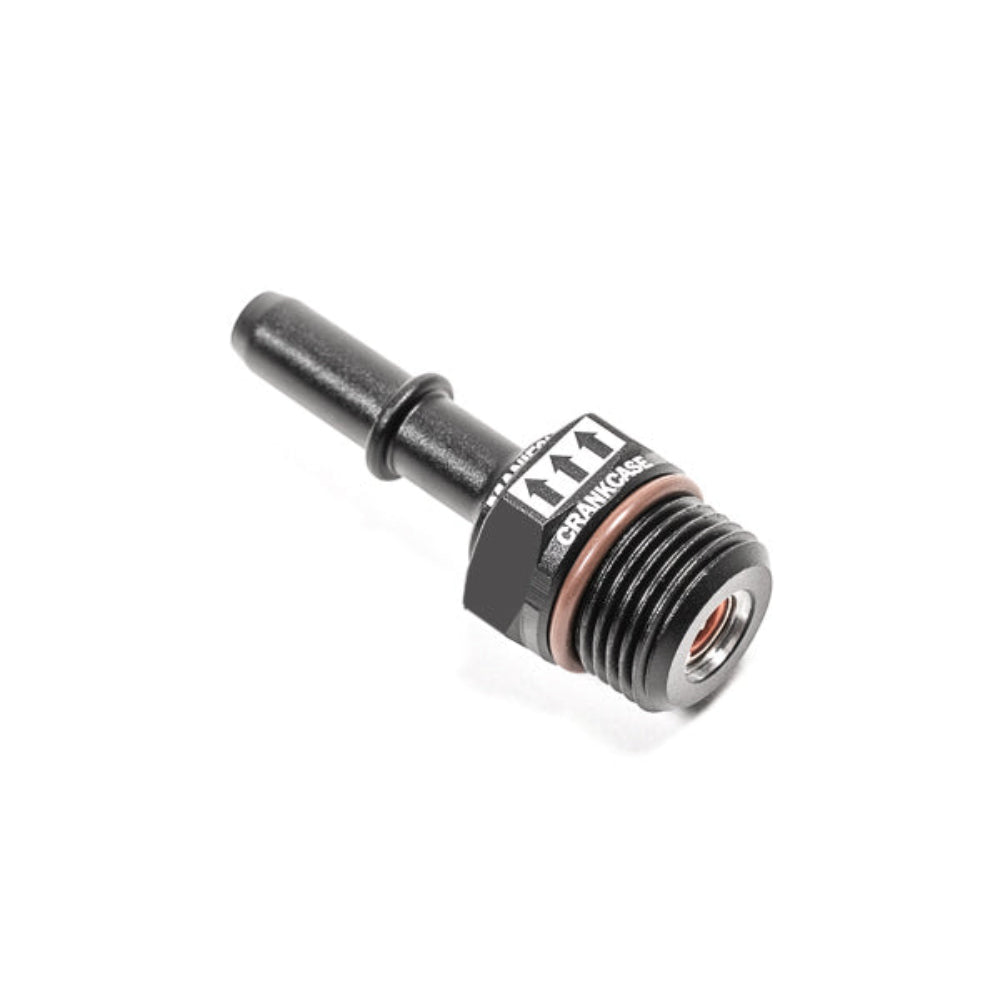

Radium Engineering 10AN ORB to 10mm SAE Male PCV valve (positive crankcase ventilation) systems. Do not mistake this for a simple one-way check valve. The PCV valve's internal plunger dynamically meters the appropriate amount of crankcase vent airflow based on current engine load. Proper PCV valves prevent the "vacuum leak" that a check valve would create at low loads. Also, in the event of a backfire, the PCV valve prevents combustible vapors from igniting in the crankcase.
20-0688 SPECIFICATIONSAluminum: 6061 Type-II AnodizedSealing O-rings: FKM and SiliconeInlet: 10AN ORB (7/8"-14 threads)Outlet: 10mm SAE Quick Connect Male

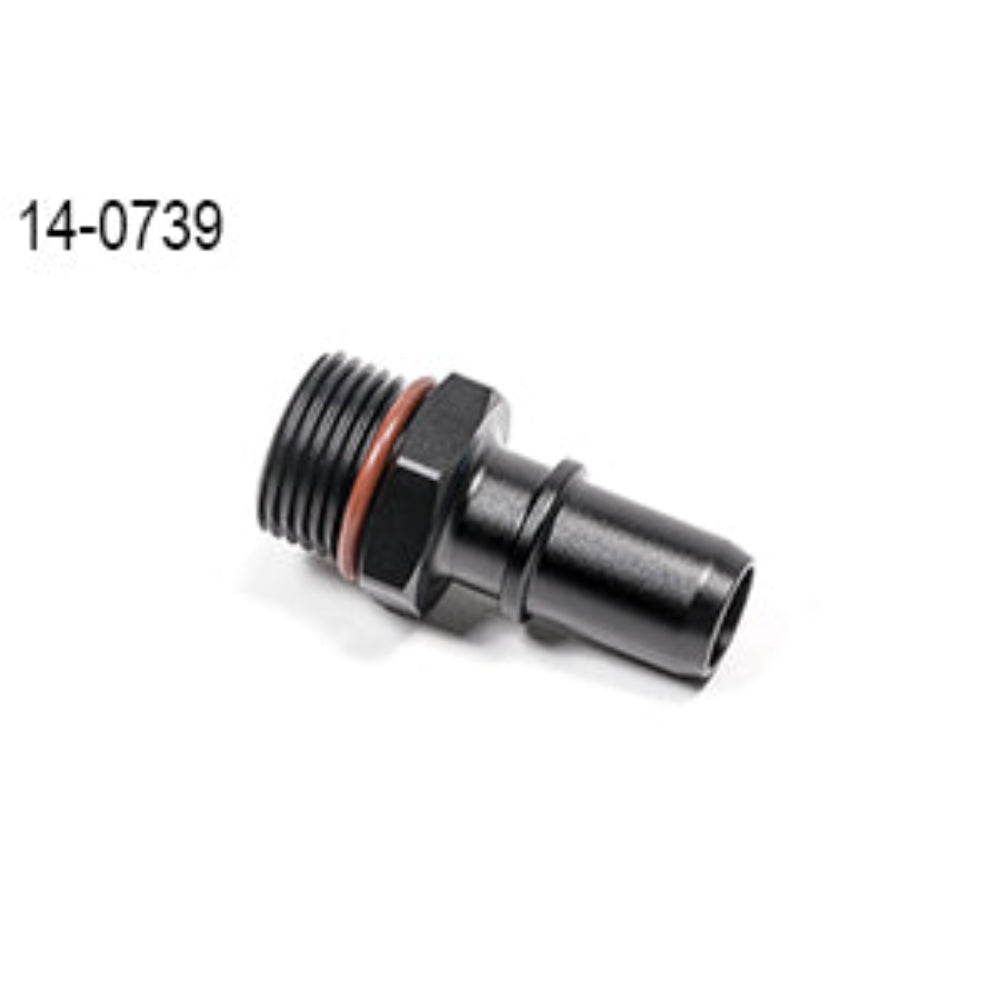

Radium Engineereing Anodized aluminum 10AN ORB to 16mm SAE Male
These adapter fittings are available in a variety of configurations. They push-on and secure to most modern USA, European, Japanese, etc. fuel injection systems and are used to convert an OEM SAE Quick Connect connection

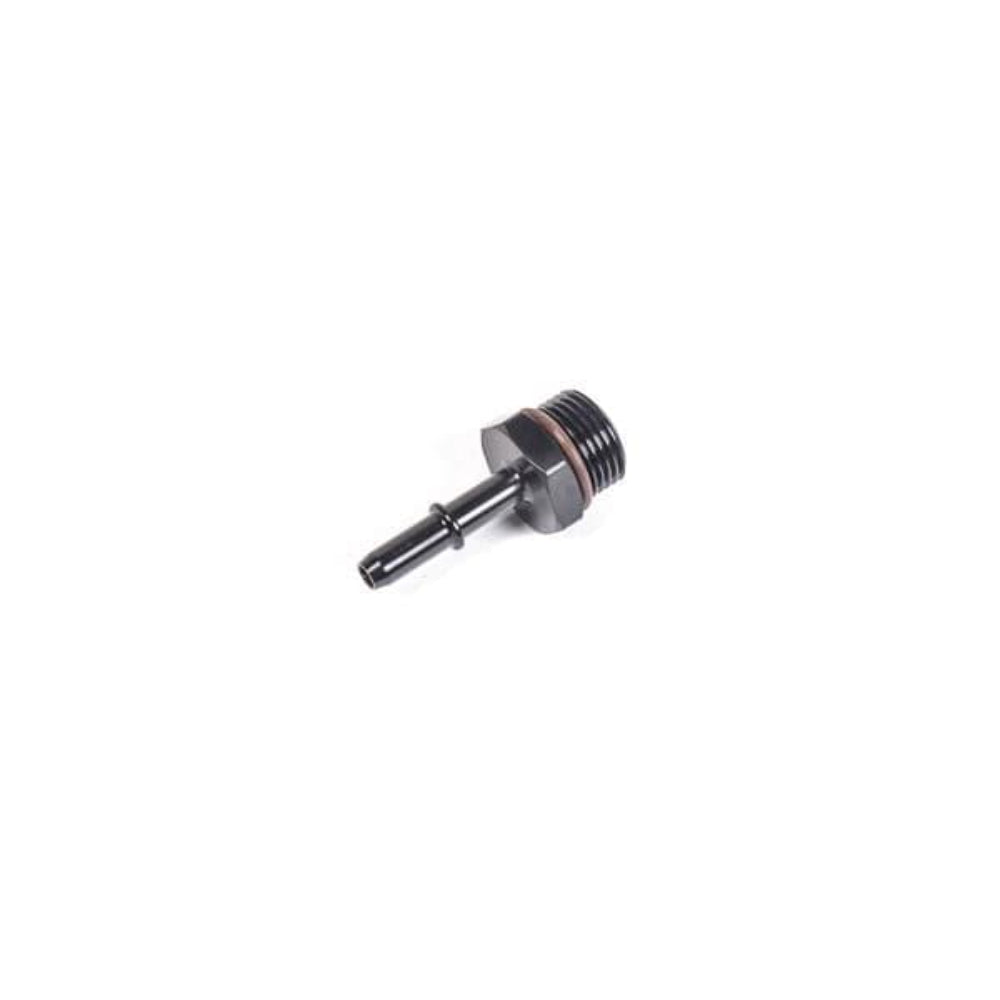

Radium Engineering 10An Orb To 3/8In Sae Male CNC machined aluminum and anodized
These adapter fittings are available in a variety of configurations. They push-on and secure to most modern USA, European, Japanese, etc. fuel injection systems and are used to convert an OEM SAE Quick Connect connectionTo determine the required size, simply measure the outside diameter of the male fitting as shown below.0.3125 = 5/16"0.375 = 3/8"0.50 = 1/2"

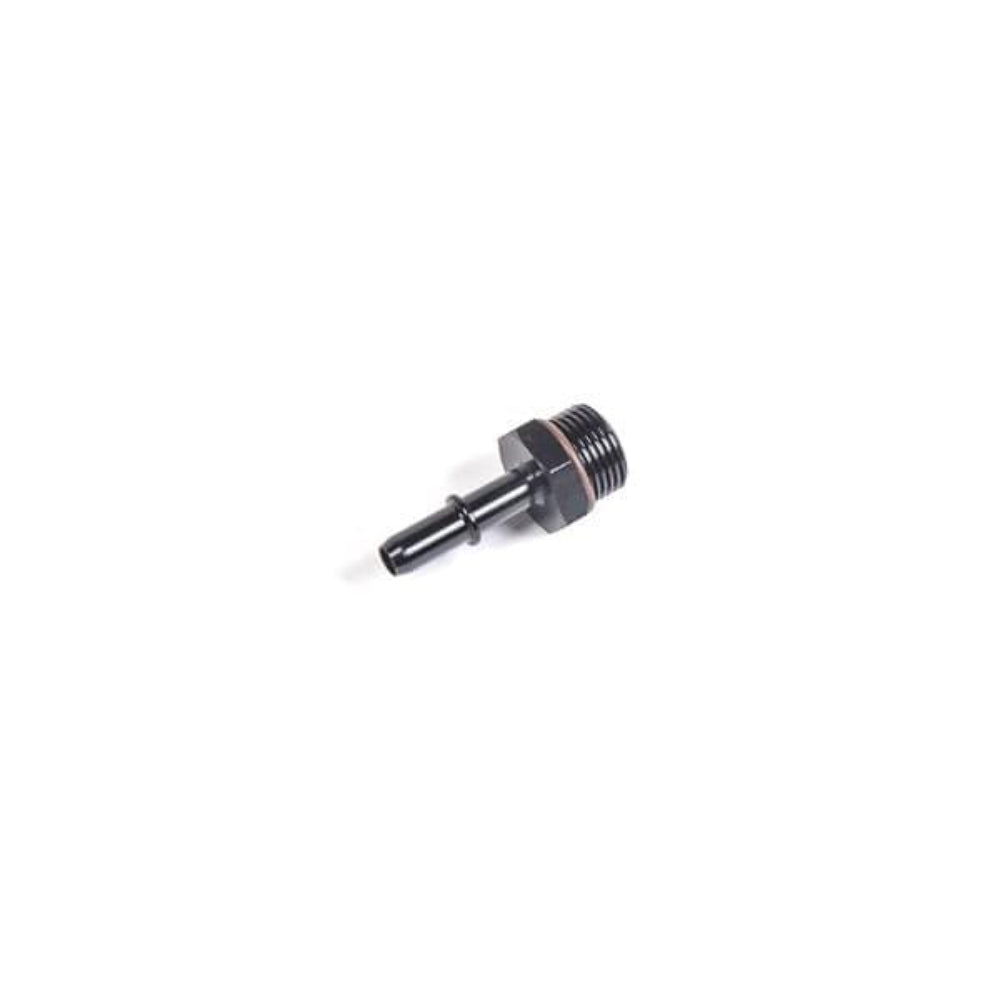

Radium Engineering 10An Orb To 5/16In Sae Male CNC machined aluminum and anodized
These adapter fittings are available in a variety of configurations. They push-on and secure to most modern USA, European, Japanese, etc. fuel injection systems and are used to convert an OEM SAE Quick Connect connectionTo determine the required size, simply measure the outside diameter of the male fitting as shown below.0.3125 = 5/16"0.375 = 3/8"0.50 = 1/2"

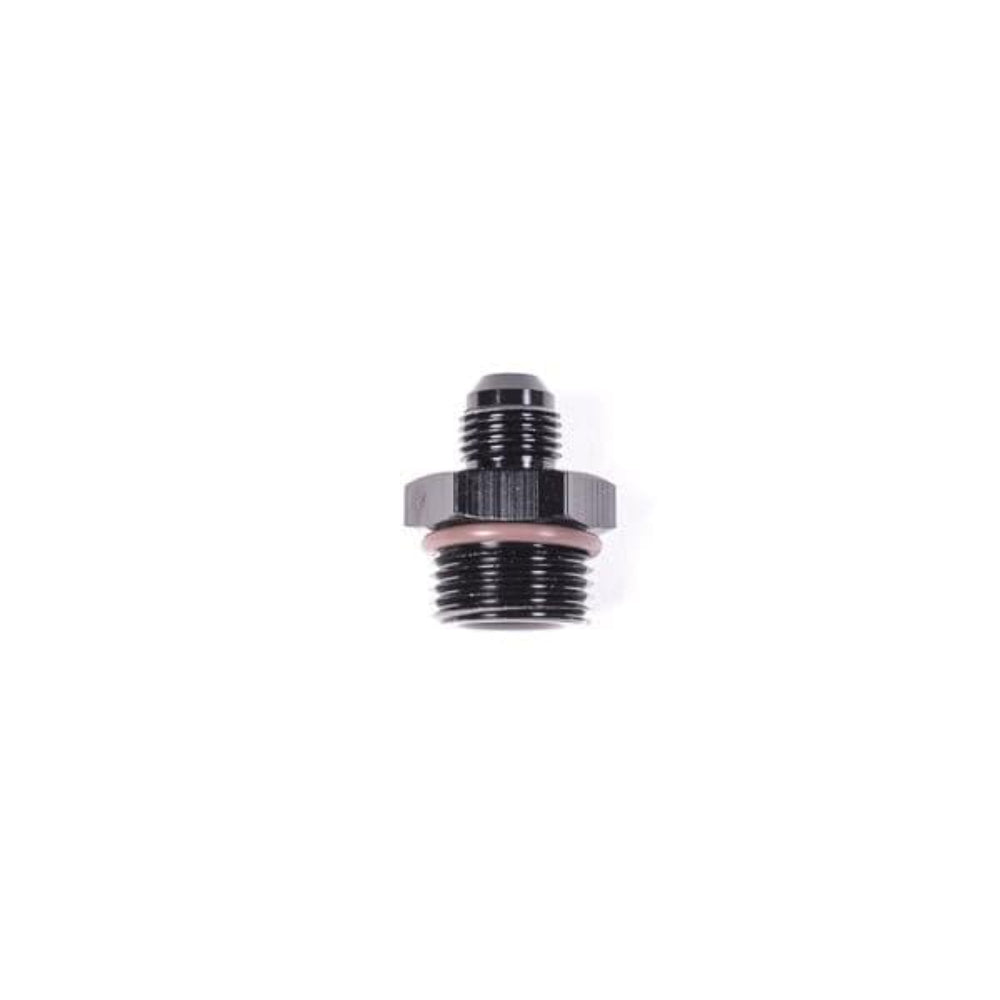

Radium Engineering Converts 10AN ORB to 6AN male fitting; To be used with -AN hoses and fittings
Radium Engineering 10AN ORB to 6AN ORB Swivel Union. ports are an industry standard and found on many automotive plumbing products, including most Radium products. All fittings include FKM O-rings.

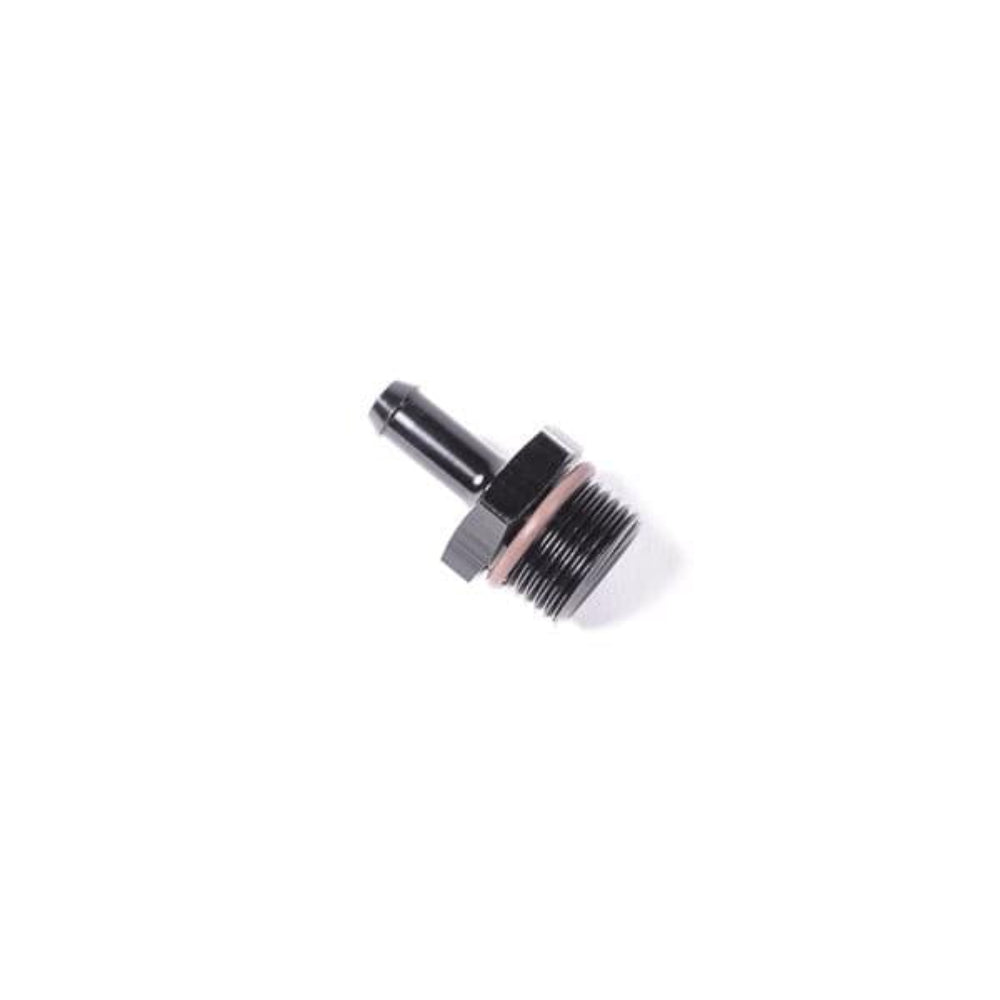

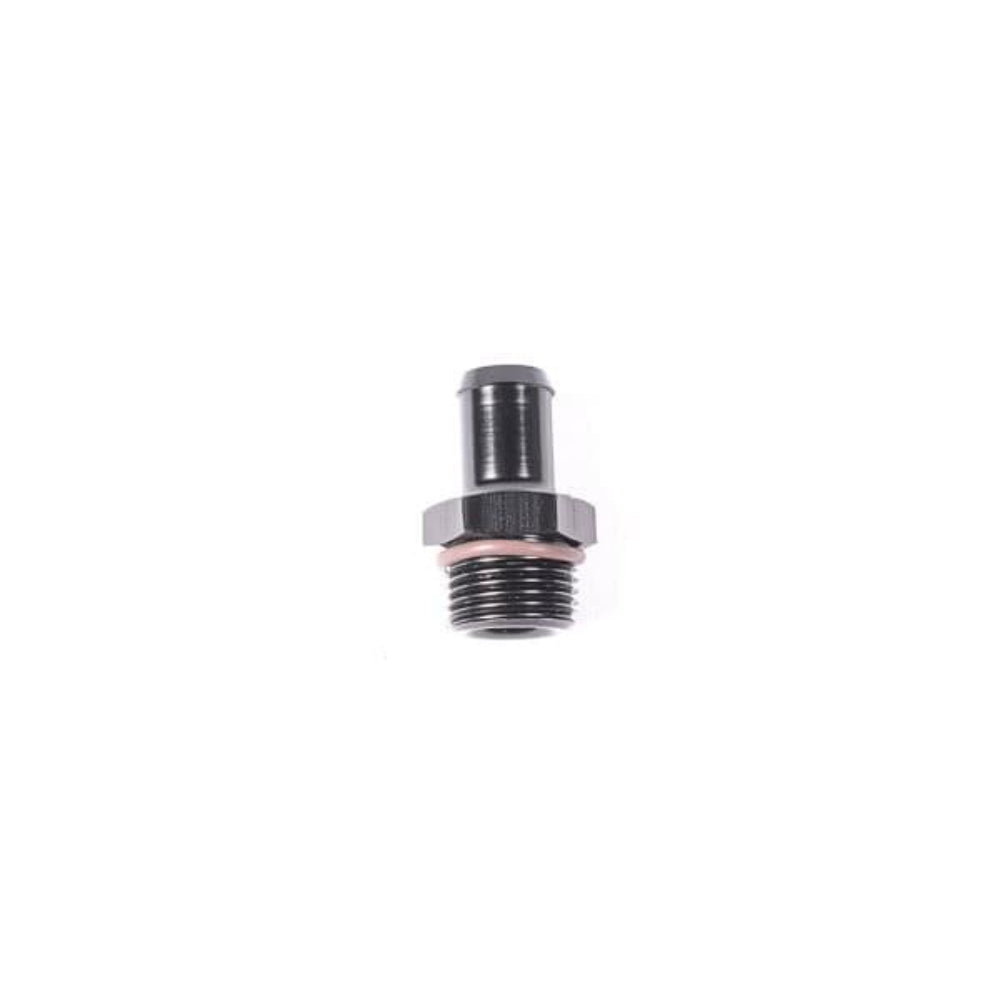

Radium Engineering 10An Orb To Barb For 3/8In Hose Suitable for all types of rubber hose with 3/8" (8-10mm) inside diameter; Hose clamps are recommended

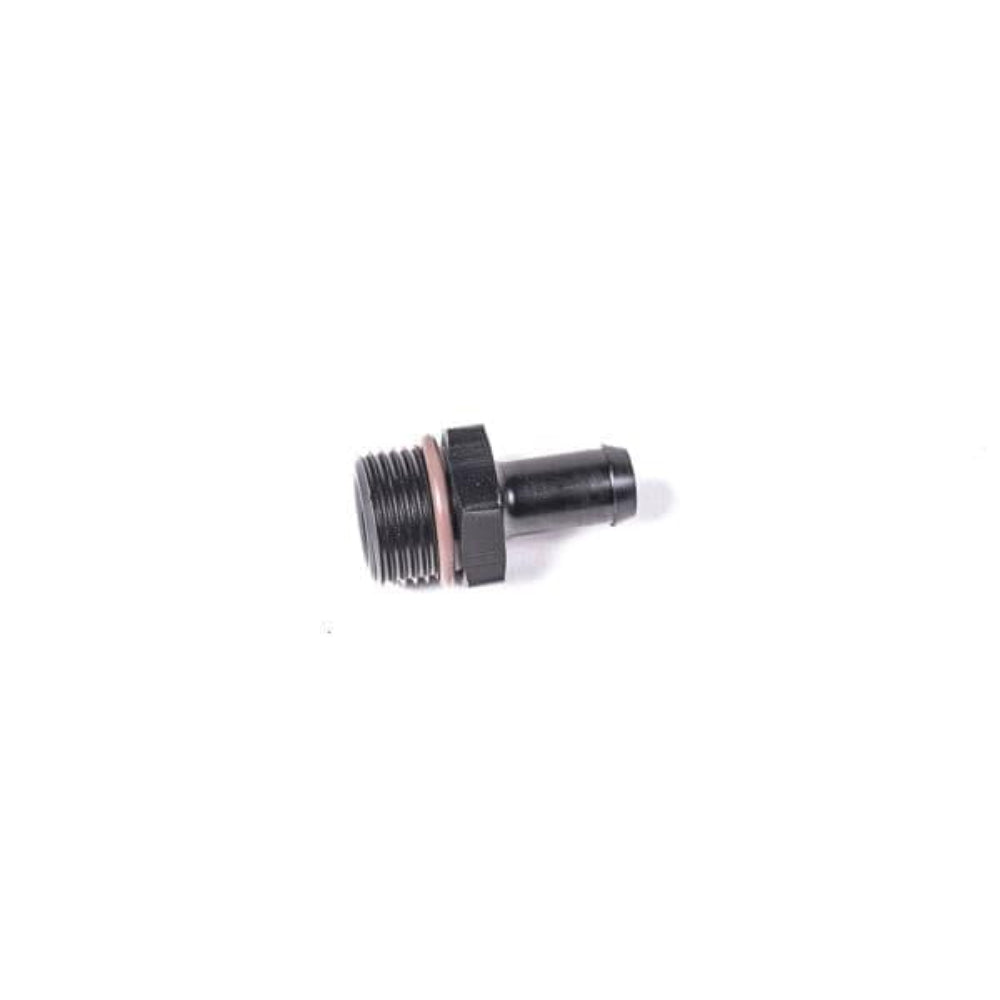

Radium Engineering 10An Orb To Barb For 12-14mm Hose Suitable for all types of rubber hose with 1/2" (12-14mm) inside diameter; Hose clamps are recommended
Radium Engineering 10An Orb To Barb For 15-17mm Hose Suitable for all types of rubber hose with 5/8" (15-17mm) inside diameter; Hose clamps are recommended

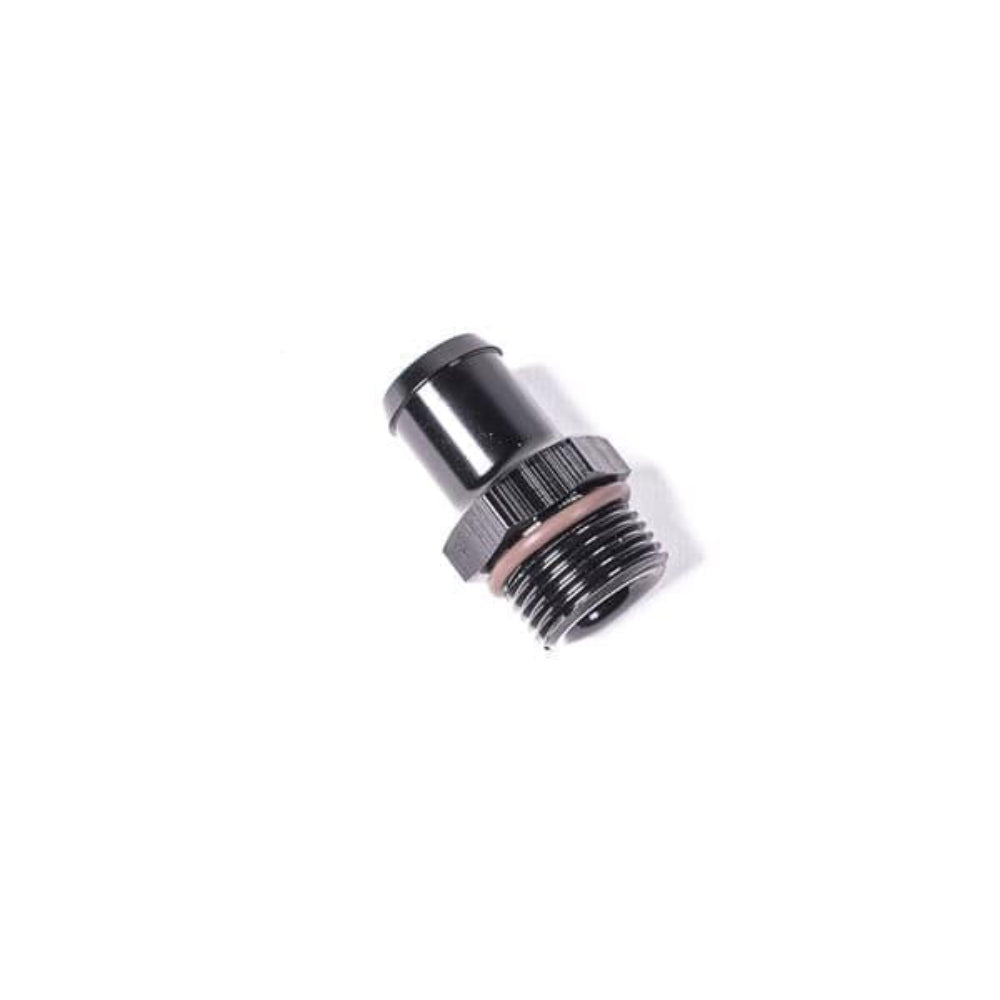

Radium Engineering 10An Orb To Barb For 3/4In Hose Suitable for all types of rubber hose with 3/4" (18-20mm) inside diameter; Hose clamps are recommended
