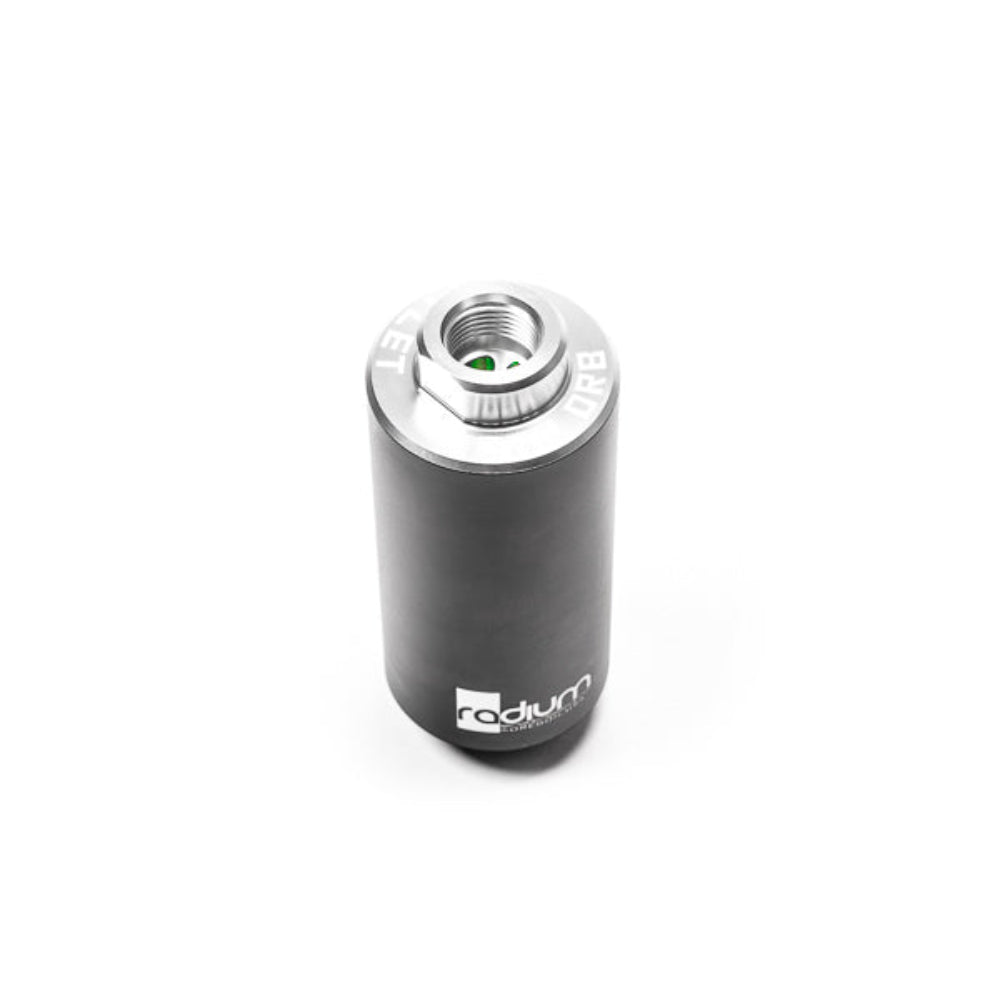

Radium Engineering 10 Micron Stainless Check Valve Fuel Filter

Radium Engineering universal fuel filter is a perfect match for any application needing high flow and industry-leading filtration. Radium Engineering uses one of the largest filtration elements in the industry. This translates into a long service life and minimum flow loss, making this filter perfect for high-horsepower applications. The filter can be completely disassembled for servicing and replacement elements are available. Stainless steel mesh elements can be cleaned and re-used, while the Microglass element must be replaced at the end of it's service life. The filter is designed for EFI fuel pressures and can be safely used on a high pressure fuel feed line.The fuel filter is constructed with a 3 piece body that is CNC machined from 6061 aluminum and Type-II anodized for maximum corrosion resistance. The end caps are sealed to the body with FKM O-rings.
These fuel filters use the same elements and have the same phyical dimensions as the 20-0220-0X fuel filters. The difference is they feature an integrated check valve on the outlet. This filter was flow tested to have a 1psi drop at 300LPH and 2.5psi drop at 700LPH.
Depending on the application, this could be necessary for keeping fuel pressure up after the engine is turned OFF. As an example, some fuel pumps do not include a check valve on the outlet. Another example is some venturi jet pumps operate on the high pressure side rather then on the return side of the fuel system. These examples would benefit from this fuel filter.
