TechSpec Overall Height (in): 18.7
TechSpec Overall Length (in): 26.8
TechSpec Overall Width (ins): 4.1
TechSpec Core Length (in): 21.77
TechSpec Core Height (in): 17.24
TechSpec Fluid Capacity (gal): 5.22
TechSpec Rows: 3
TechSpec Inlet (in): 1.57
TechSpec Outlet (in): 1.57
TechSpec Core Thickness (in): 2.25
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Material: Aluminum
TechSpec Applications: 1988-1991 BMW 325I--1992-1995 BMW 325I/IC/IS--1995-1999 BMW M3--1996-1998 BMW 328I/IC/IS--1998-1999 BMW 323IC/IS
TechSpec Engine Codes: S52--M52--M50TU--M20B25--S50
TechSpec Chassis Codes: E30--E36
Note: This item is for Manual Transmission and Automatic Transmission vehicles. It features threaded rivet provisions for the automatic transmission cooler.--------Stock E30 fan shroud does not fit with this product.--------This product will require conversion brackets for mounting Euro oil cooler
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal-- M14 Sensor Bung w/ Dowty Oil Seal--(2) M6 x 1.0 x 16mm Flange Hex Bolts--Mishimoto Lifetime Warranty
Features:Direct fit for the BMW E30/E36
20-percent more efficient than stock radiator
Reduces coolant temperatures by 30 F (16.6 C)
91-percent increase in coolant capacity
73-percent increase in core thickness
100-percent brazed aluminum core
TIG-welded to perfection
Includes a Mishimoto magnetic oil drain plug with high-quality dowty seal
Mishimoto Lifetime Warranty
Install Difficulty: 3

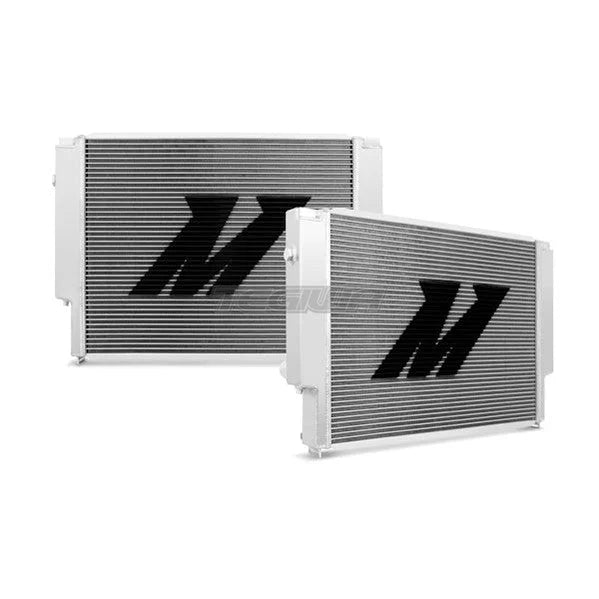

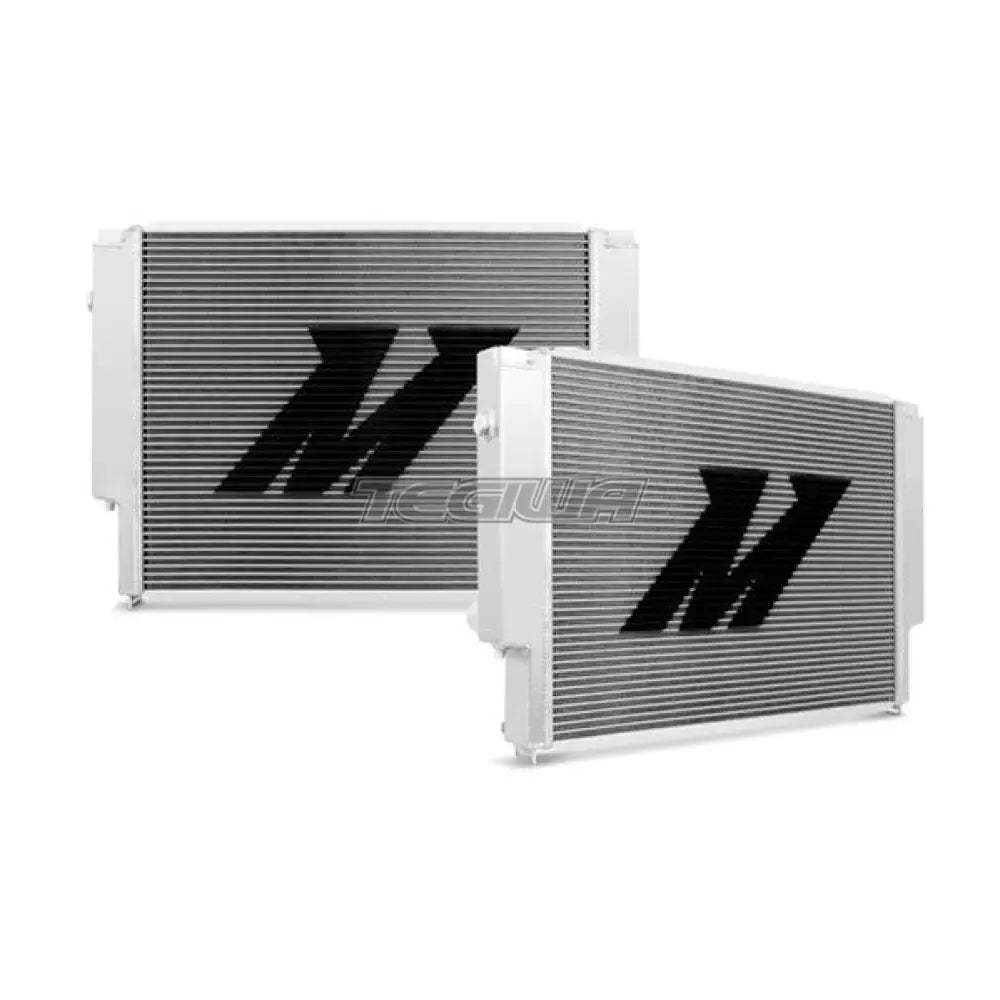

An ideal upgrade for the brittle stock radiator, the Mishimoto E30/E36 X-Line Performance Aluminum Radiator provides your vehicle with enhanced reliability and improved cooling efficiency. BMWs are known to have frequent cooling-related failures due to the use of numerous plastic components throughout the system. A simple coolant leak can result in overheating, accelerated engine wear, or head gasket failure. Whether you have a daily-driven E36 M3 or an M20 spinning a large turbocharger, this radiator provides ideal temperatures on and off the track. Most people overlook the importance of installing an upgraded radiator in their vehicle. This X-Line Performance Aluminum Radiator reduces coolant temperature by 30 degrees Fahrenheit (16.62 degrees Celsius) and is 20-percent more efficient than the stock radiator. Along with providing an increased coolant capacity of 91-percent, this radiator improves heat dissipation, which is beneficial for both stock and modified applications.
