TechSpec Overall Height (in): 28.3
TechSpec Overall Length (in): 14.9
TechSpec Overall Width (ins): 4.1
TechSpec Core Length (in): 23.62
TechSpec Core Height (in): 13.78
TechSpec Fluid Capacity (gal): 2.45
TechSpec Rows: 2
TechSpec Core Thickness (in): 1.57
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Applications: 2008-2012 BMW E82 135i Coupe--2010-2012 BMW E82 M Coupe--2009-2012 BMW E84 X1 28i/28ix/35ix--2007-2012 BMW E88 135i--2011-2012 BMW E89 Z4 28i--2009-2012 BMW E89 Z4 35i--2006-2011 BMW E90 335i/335xi--2007-2013 BMW E92 335i/335xi/335is--2007-2013 BMW E93 335i/335xi/335is
TechSpec Engine Codes: N54--N55
TechSpec Chassis Codes: E82--E84--E88--E89--E90--E92--E93

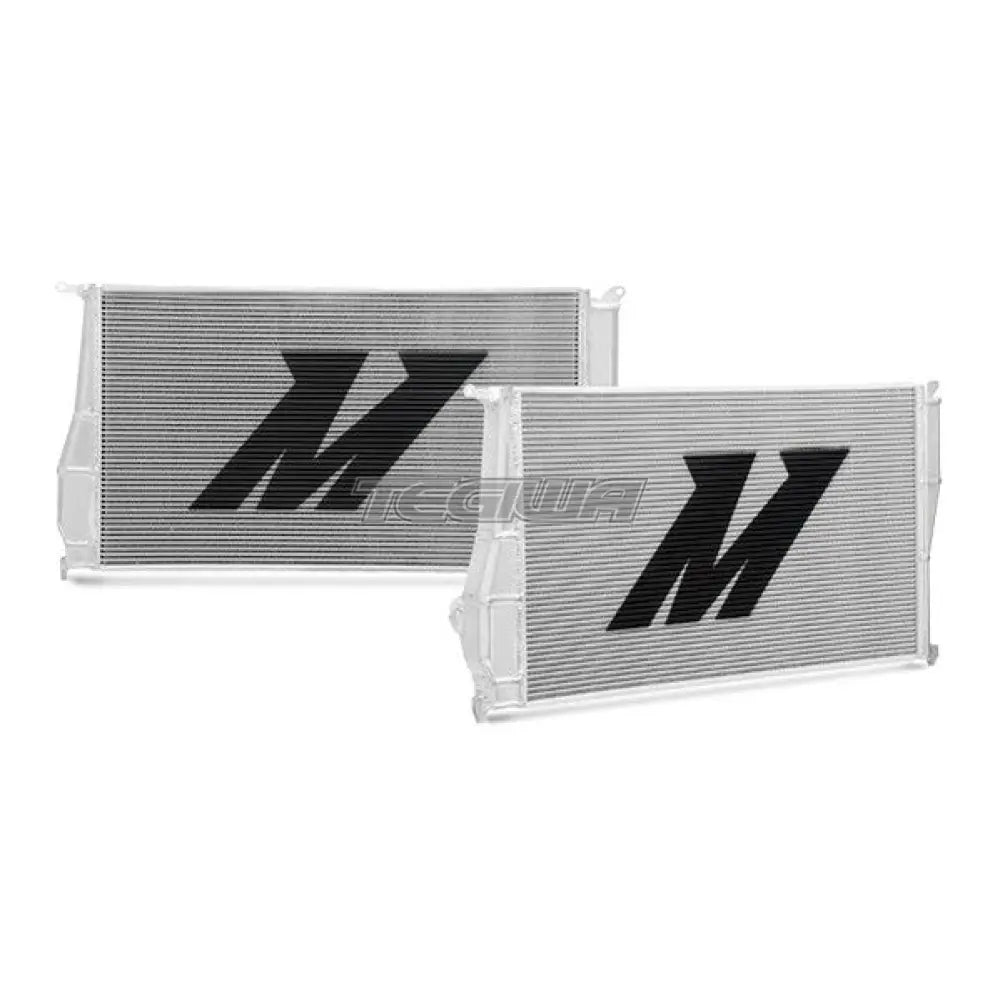

Note: This item is for Manual Transmission vehicles. Vehicles equipped with an automatic transmission will require modification to fit the installation of a Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator-- Magnetic Drain Plug w/ Dowty Oil Seal--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2006-2013 BMW 335i and 2007-2012 BMW 135i
Fully brazed two-row aluminum core with robotically TIG-welded end tanks
No modification necessary for installation, functions with all stock equipment

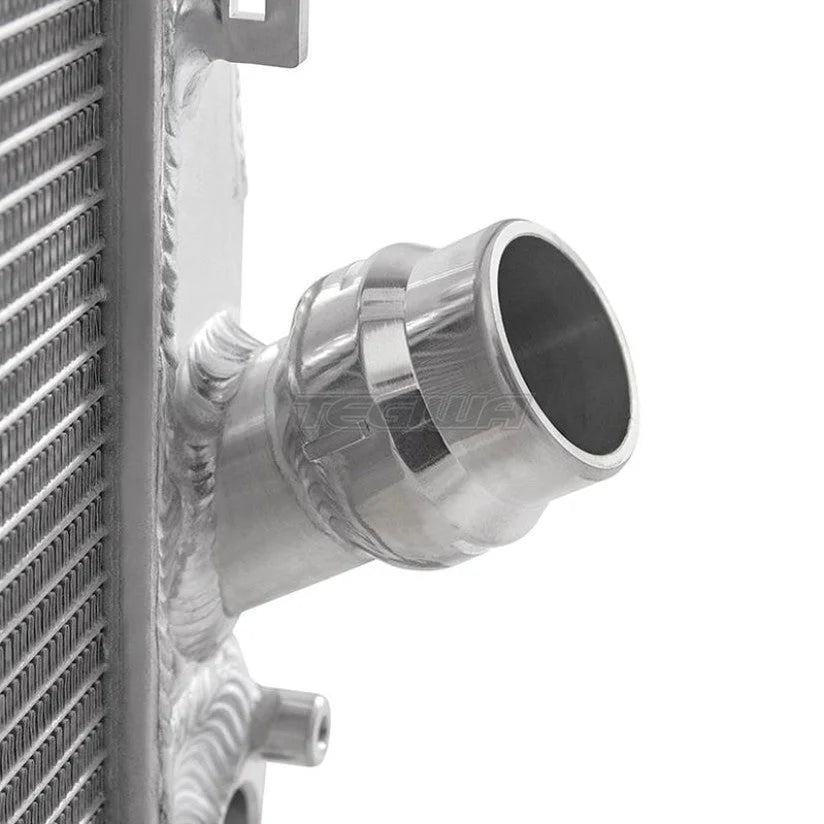

Precision designed CNC-machined quick-disconnect fittings mate perfectly with stock hoses
35-percent increase in coolant capacity
25-percent increase in core thickness
Includes a Mishimoto Magnetic Oil Drain Plug with high-quality dowty seal

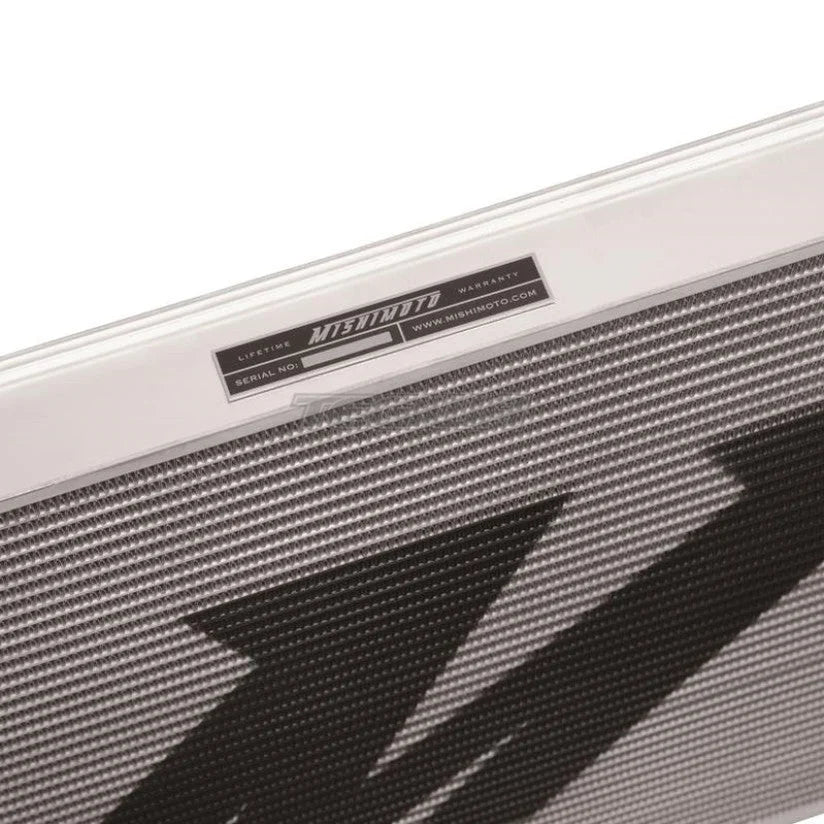

Mishimoto Lifetime Warranty
Install Difficulty: 3
ASM: 2008-2012 BMW E82 135i Coupe
TechSpec Overall Height (in): 28.3

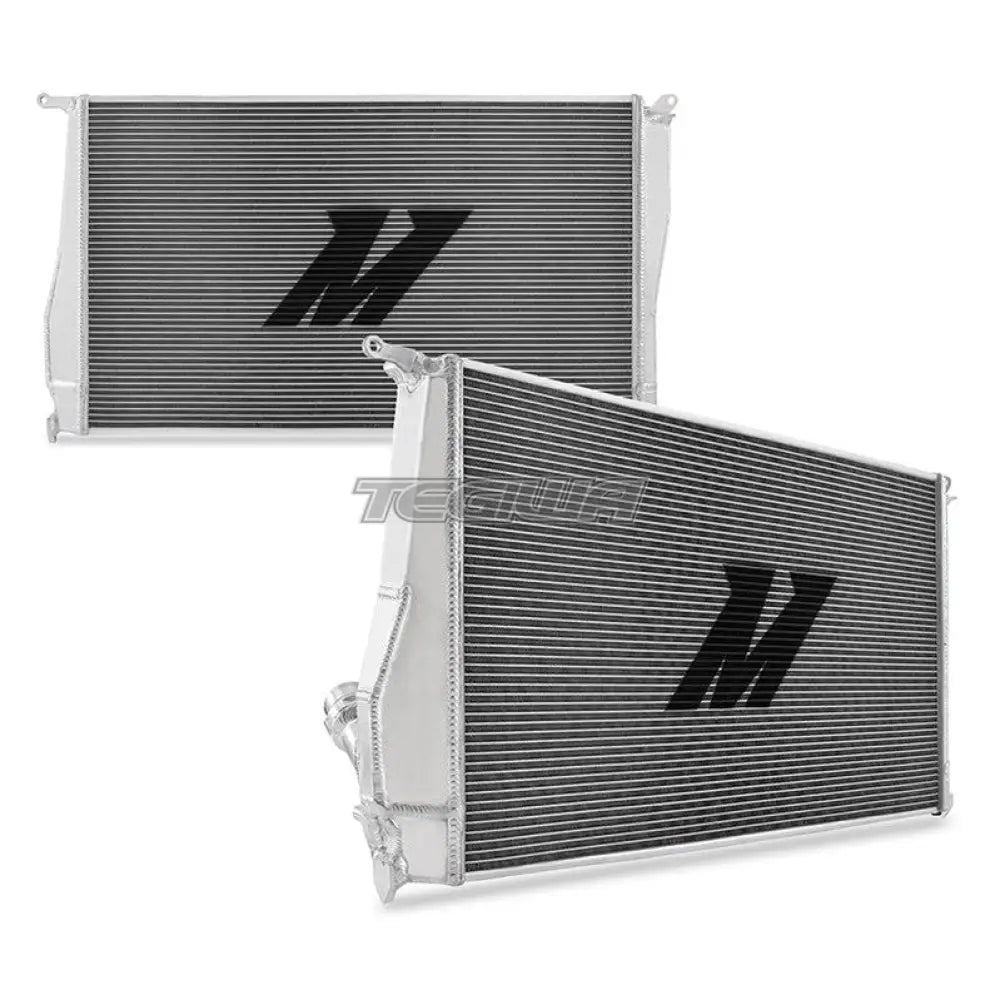

KEY: Mishimoto BMW 335i/135i (Automatic) Performance Aluminum Radiator, 2006-2013
TechSpec Overall Length (in): 14.9
TechSpec Overall Width (ins): 4.1
TechSpec Core Length (in): 23.62
TechSpec Core Height (in): 13.78
TechSpec Fluid Capacity (gal): 2.45
TechSpec Rows: 2
TechSpec Core Thickness (in): 1.57
TechSpec Material: Aluminum
TechSpec Applications: 2008-2012 BMW E82 135i Coupe--2010-2012 BMW E82 M Coupe--2009-2012 BMW E84 X1 28i/28ix/35ix--2007-2012 BMW E88 135i--2011-2012 BMW E89 Z4 28i--2009-2012 BMW E89 Z4 35i--2006-2011 BMW E90 335i/335xi--2007-2013 BMW E92 335i/335xi/335is--2007-2013 BMW E93 335i/335xi/335is
TechSpec Engine Codes: N54--N55
TechSpec Chassis Codes: E82--E84--E88--E89--E90--E92--E93
Note: Mishimoto recommends checking the coolant hose quick-disconnect O-rings for wear and replacing as necessary in order to prevent future leaks.
TechSpec Includes: Mishimoto Radiator-- Magnetic Drain Plug w/ Dowty Oil Seal--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2006-2013 BMW 335i and 2007-2012 BMW 135i
Fully brazed two-row aluminum core with robotically TIG-welded end tanks
No modification necessary for installation, functions with all stock equipment
Precision designed CNC-machined quick-disconnect fittings mate perfectly with stock hoses
35-percent increase in coolant capacity
25-percent increase in core thickness
Includes a Mishimoto Magnetic Oil Drain Plug with high-quality dowty seal
Mishimoto Lifetime Warranty
Install Difficulty: 3

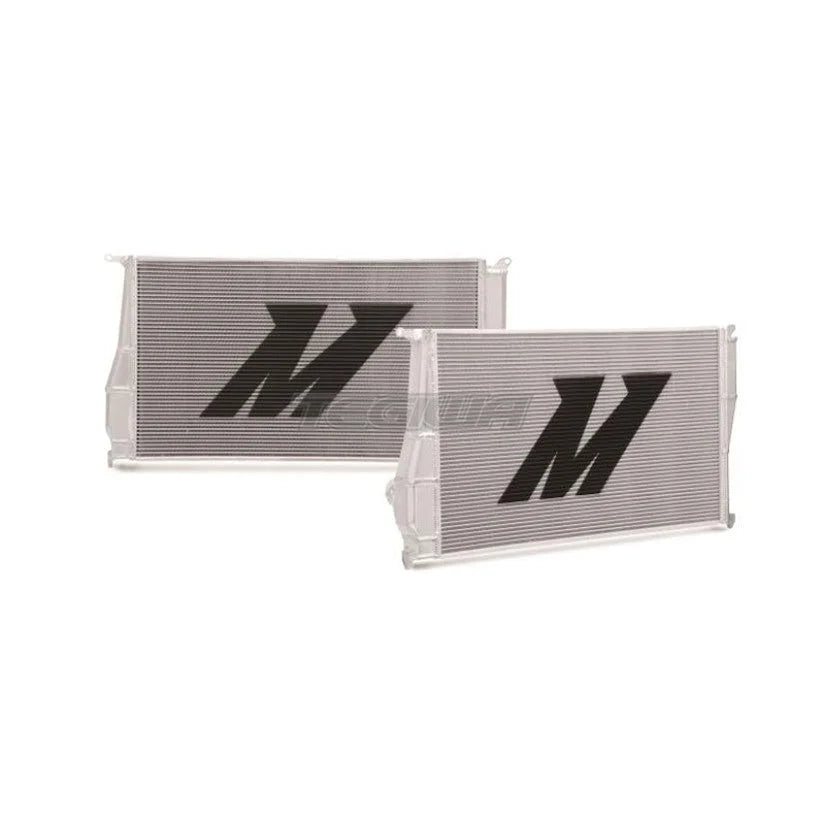

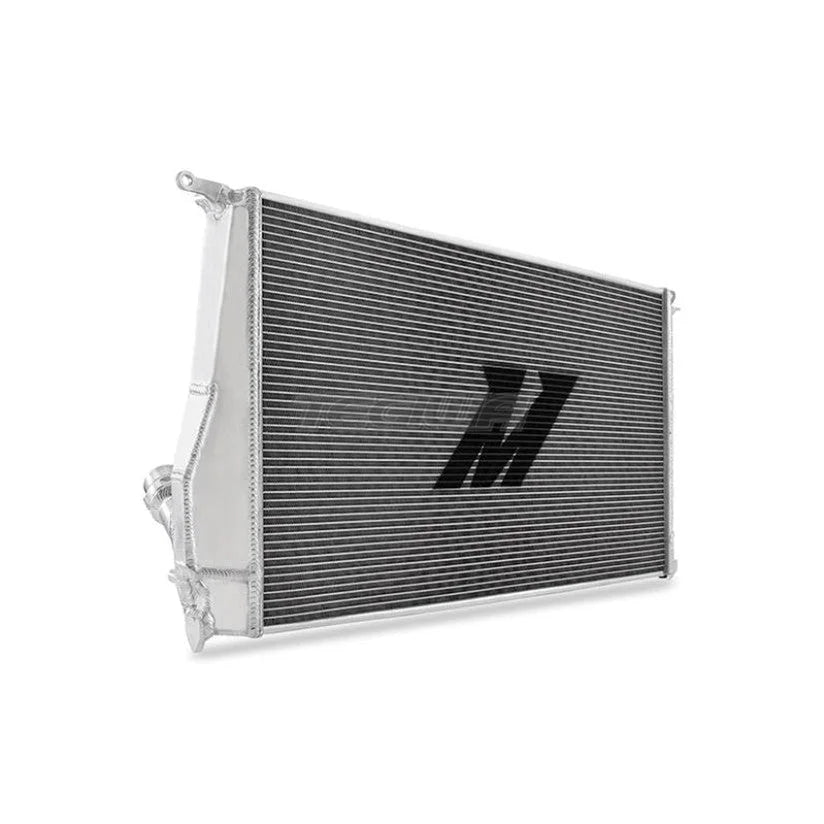

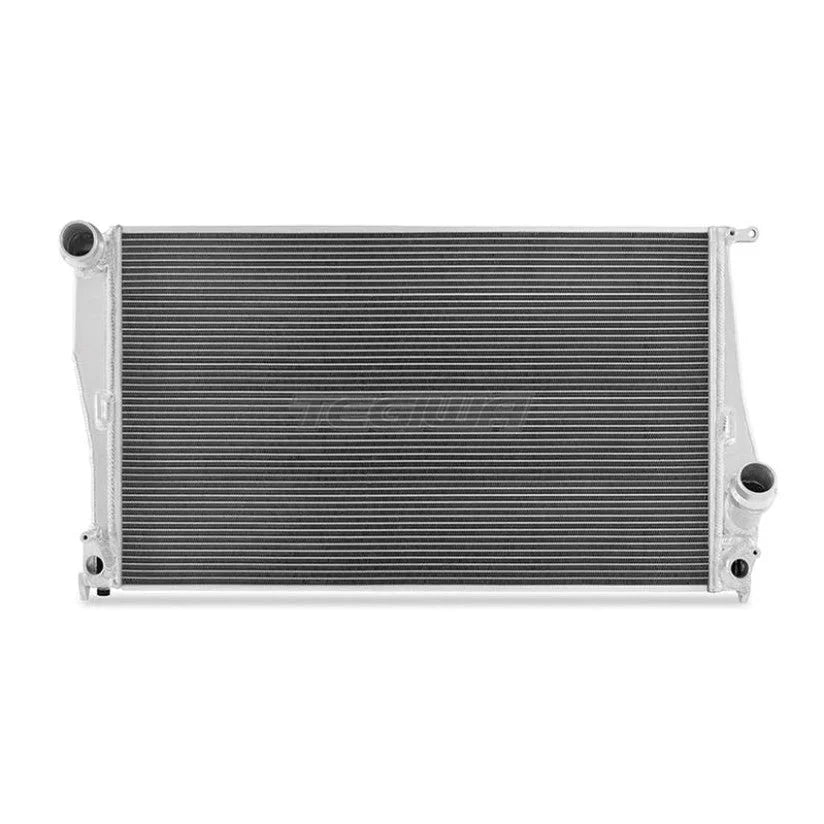

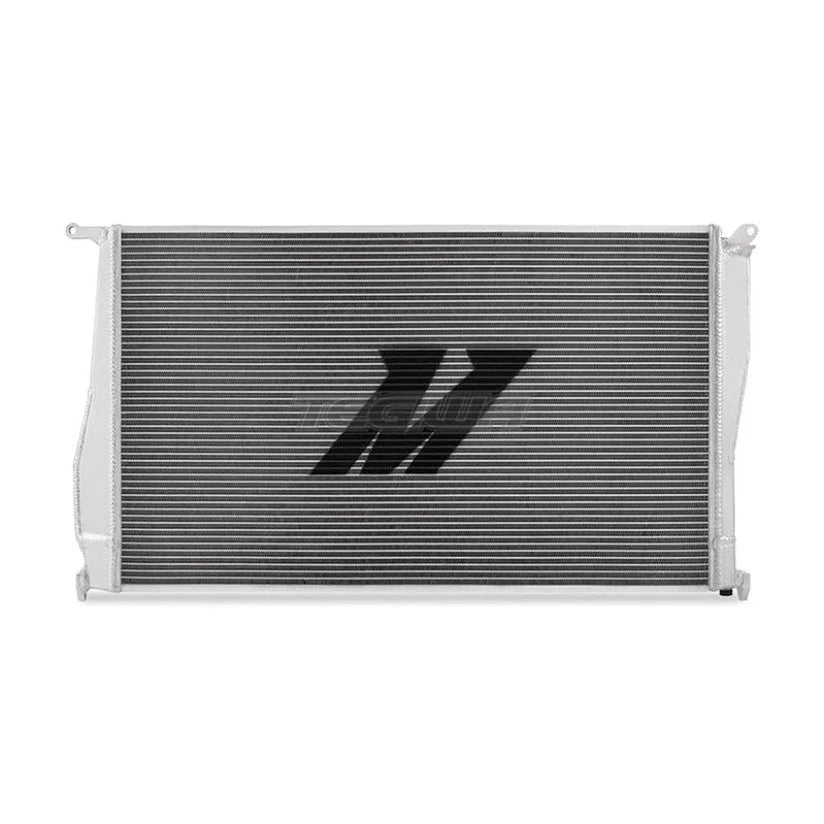

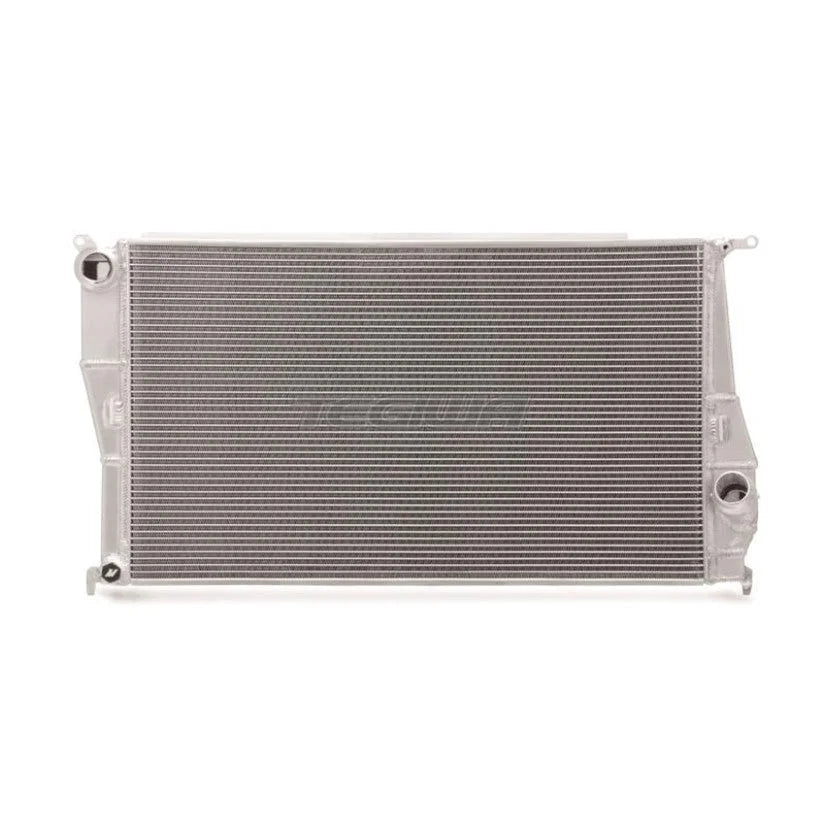

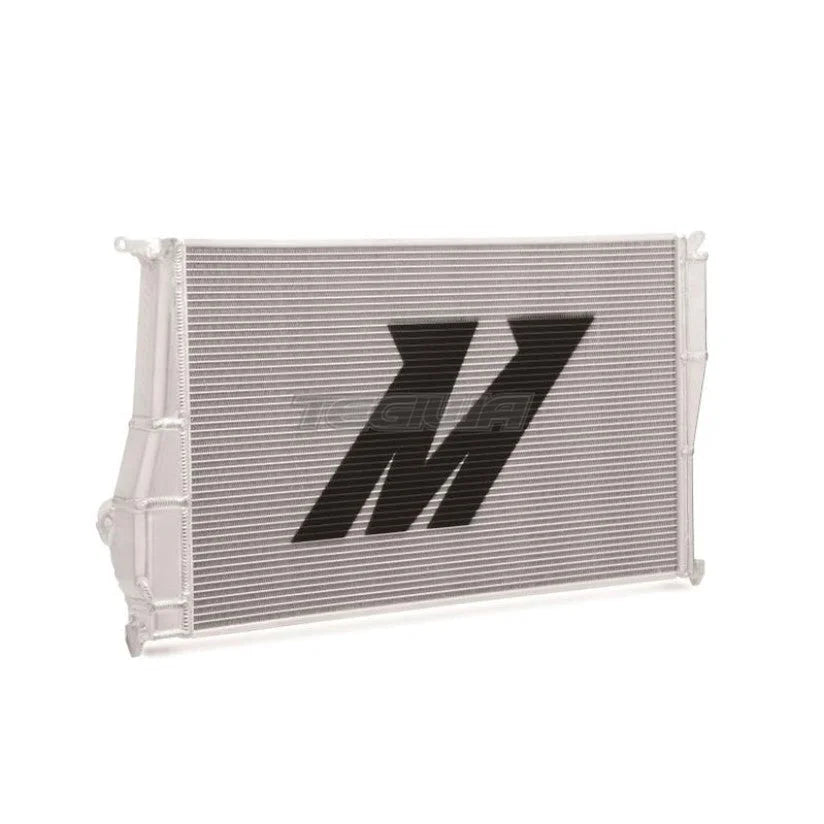

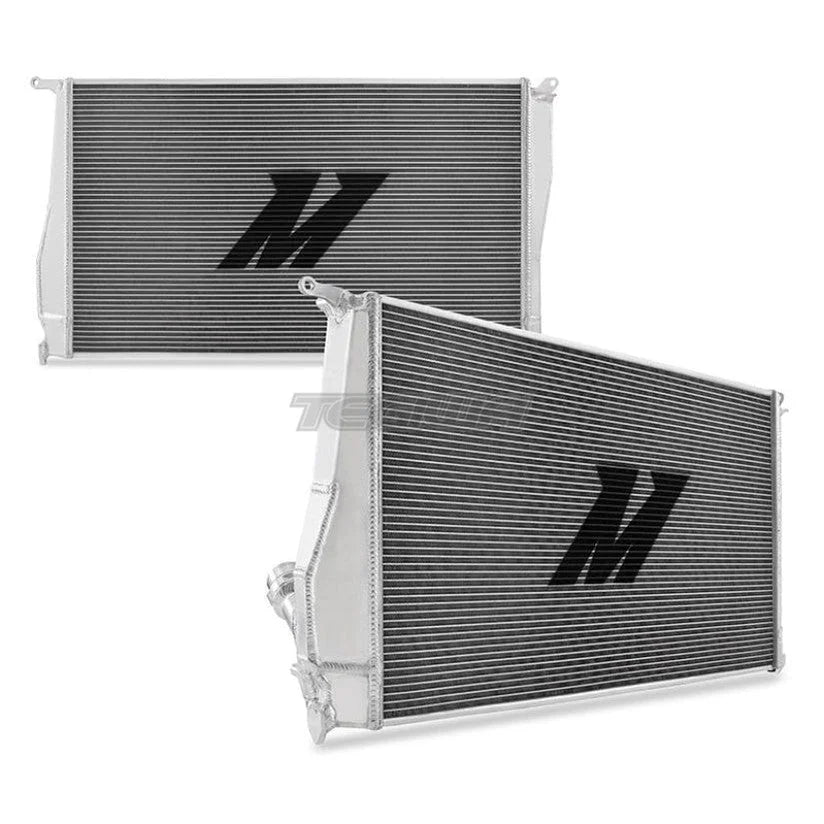

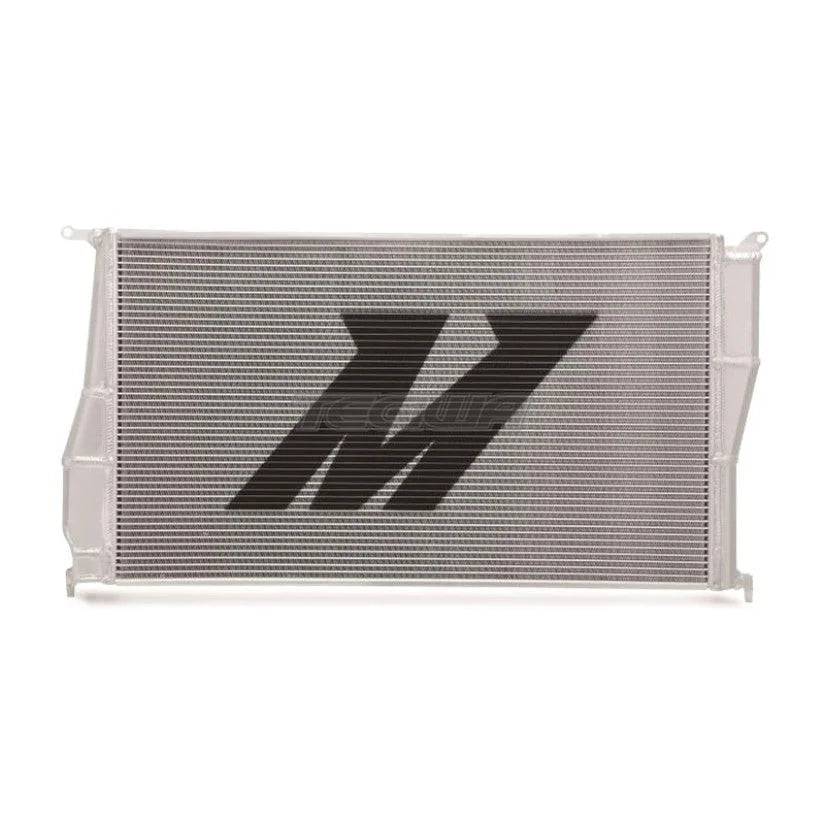

The E90 BMW is a great platform for soaking up highway miles during the weekday and taking to the track on the weekend. Aggressive driving results in increased engine temperatures necessitating an effective solution for keeping your straight six cool. Mishimoto has the perfect upgrade, the BMW 335i/335xi/135i Performance Aluminum Radiator, to eliminate rising temperatures. The Mishimoto 335i/335xi/135i radiator features all-aluminum construction with TIG-welded end tanks to a 100-percent brazed aluminum core and CNC-machined quick-disconnect inlet and outlet connections. This radiator is constructed from high-quality aircraft aluminum with a brushed finish for the perfect combination of performance and style. The Mishimoto 335i/335xi/135i radiator is precision engineered for flawless drop-in fitment while providing a 35-percent increase in coolant capacity. This radiator also includes a Mishimoto Magnetic Drain Plug with dowty seal, which removes circulating metal fragments from the cooling system, providing further engine protection. As with all our products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship. Say goodbye to the days of broken stock plastic inlet and outlet connections!
