TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: 3.8L Lambda V6
TechSpec Chassis Codes: BK38
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.

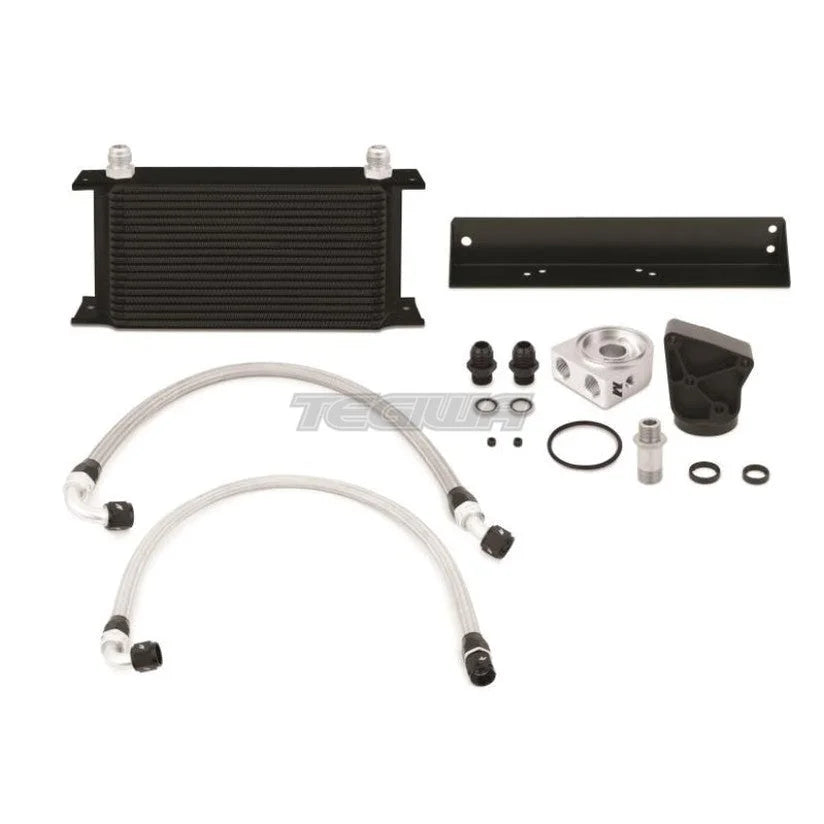

TechSpec Includes: Application Specific Mounting Bracket--19-Row Oil Cooler--2ft 7in Stainless Steel Braided Hose w/ -10AN Fittings--3ft 3.5in Stainless Steel Braided Hose w/ -10AN Fittings--Oil Sandwich Plate--6061 Aluminum CNC Oil Filter Housing, Black--Stainless Steel Sandwich Plate Adapter, M20--Straight Fittings M20 x -10AN, Black--1/8-in NPT Plugs--Large O-ring--Small Factory-style O-rings--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2010-2012 Hyundai Genesis 3.8--2010-2012 Hyundai Genesis 3.8 GT--2010-2012 Hyundai Genesis 3.8 Grand Touring--2010-2012 Hyundai Genesis 3.8 Track--2010-2012 Hyundai Genesis 3.8 R-Spec
Note: This product requires the use of an oil filter for the Hyundai Genesis 2.0T
Features:
Direct fit for the Hyundai Genesis Coupe 3.8
37 degree temperature drop
Custom adapter allows use of spin-on filter
Minimal pressure loss
Thermostatic option available
Stealth black and sleek silver cooler options
Lifetime Warranty
Install Difficulty: 3

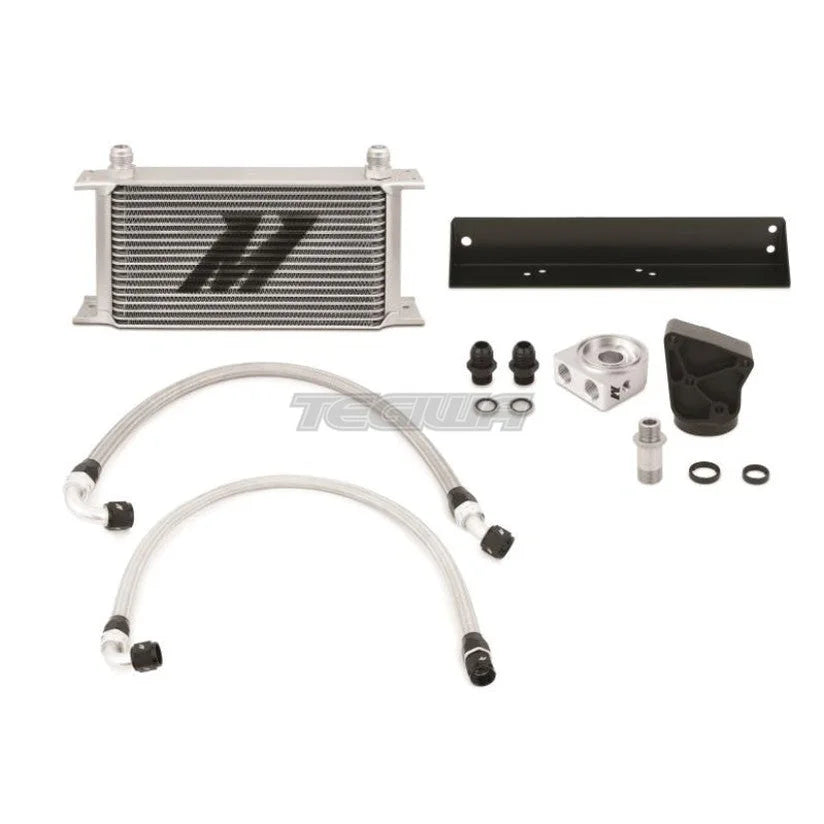

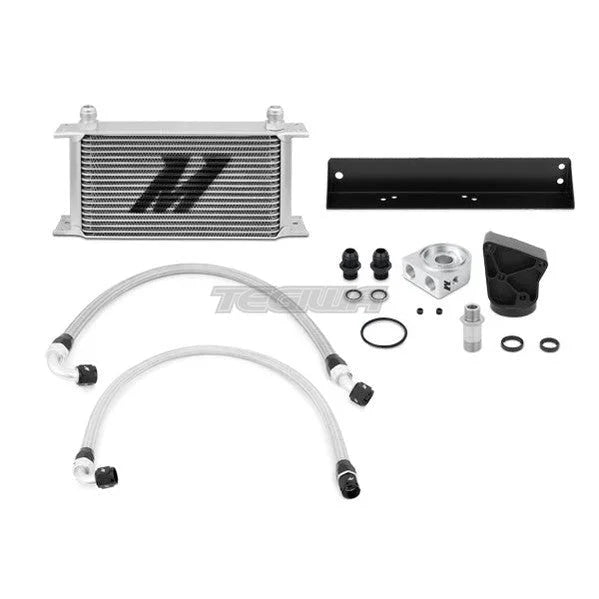

OptionLabel: Silver Cooler, Non-Thermostatic
TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: 3.8L Lambda V6
TechSpec Chassis Codes: BK38
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Includes: Application Specific Mounting Bracket--19-Row Oil Cooler--2ft 7in Stainless Steel Braided Hose w/ -10AN Fittings--3ft 3.5in Stainless Steel Braided Hose w/ -10AN Fittings--Oil Sandwich Plate--6061 Aluminum CNC Oil Filter Housing, Black--Stainless Steel Sandwich Plate Adapter, M20--Straight Fittings M20 x -10AN, Black--1/8-in NPT Plugs--Large O-ring--Small Factory-style O-rings--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2010-2012 Hyundai Genesis 3.8--2010-2012 Hyundai Genesis 3.8 GT--2010-2012 Hyundai Genesis 3.8 Grand Touring--2010-2012 Hyundai Genesis 3.8 Track--2010-2012 Hyundai Genesis 3.8 R-Spec
Note: This product requires the use of an oil filter for the Hyundai Genesis 2.0T
Features:
Direct fit for the Hyundai Genesis Coupe 3.8
37 degree temperature drop
Custom adapter allows use of spin-on filter
Minimal pressure loss
Thermostatic option available
Stealth black and sleek silver cooler options
Lifetime Warranty
Install Difficulty: 3
OptionLabel: Black Cooler, Non-Thermostatic
TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: 3.8L Lambda V6
TechSpec Chassis Codes: BK38
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Includes: Application Specific Mounting Bracket--19-Row Oil Cooler--2ft 7in Stainless Steel Braided Hose w/ -10AN Fittings--3ft 3.5in Stainless Steel Braided Hose w/ -10AN Fittings--Oil Sandwich Plate--6061 Aluminum CNC Oil Filter Housing, Black--Stainless Steel Sandwich Plate Adapter, M20--Straight Fittings M20 x -10AN, Black--1/8-in NPT Plugs--Large O-ring--Small Factory-style O-rings--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2010-2012 Hyundai Genesis 3.8--2010-2012 Hyundai Genesis 3.8 GT--2010-2012 Hyundai Genesis 3.8 Grand Touring--2010-2012 Hyundai Genesis 3.8 Track--2010-2012 Hyundai Genesis 3.8 R-Spec
Note: This product requires the use of an oil filter for the Hyundai Genesis 2.0T
Features:
Direct fit for the Hyundai Genesis Coupe 3.8
37 degree temperature drop
Custom adapter allows use of spin-on filter
Minimal pressure loss
Thermostatic option available
Stealth black and sleek silver cooler options
Lifetime Warranty
Install Difficulty: 3

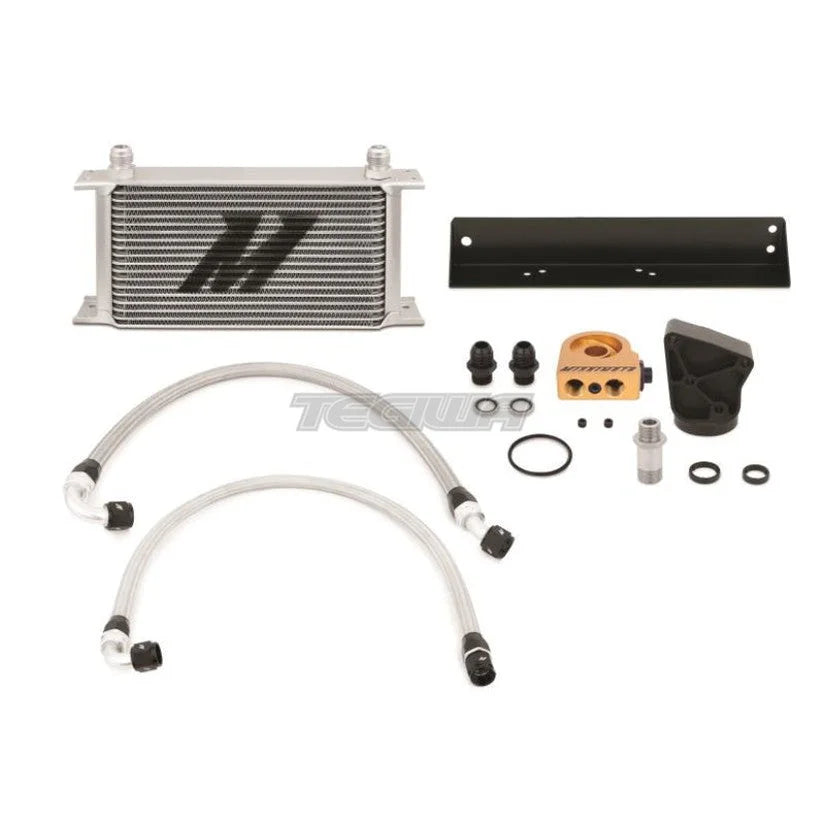

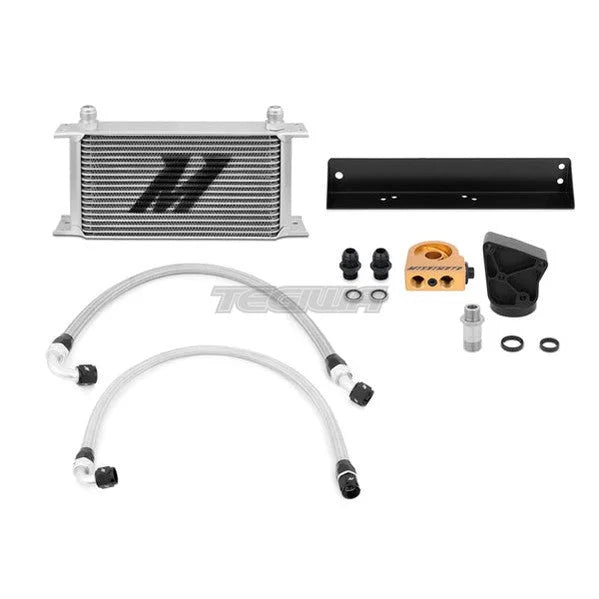

OptionLabel: Silver Cooler, Thermostatic
TechSpec Rows: 19
TechSpec Core Length (in): 11
TechSpec Core Height (in): 5.43
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: 3.8L Lambda V6
TechSpec Chassis Codes: BK38
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Includes: Application Specific Mounting Bracket--19-Row Oil Cooler--2ft 7in Stainless Steel Braided Hose w/ -10AN Fittings--3ft 3.5in Stainless Steel Braided Hose w/ -10AN Fittings--Oil Sandwich Plate--6061 Aluminum CNC Oil Filter Housing, Black--Stainless Steel Sandwich Plate Adapter, M20--Straight Fittings M20 x -10AN, Black--1/8-in NPT Plugs--Large O-ring--Small Factory-style O-rings--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2010-2012 Hyundai Genesis 3.8--2010-2012 Hyundai Genesis 3.8 GT--2010-2012 Hyundai Genesis 3.8 Grand Touring--2010-2012 Hyundai Genesis 3.8 Track--2010-2012 Hyundai Genesis 3.8 R-Spec
Note: This product requires the use of an oil filter for the Hyundai Genesis 2.0T
Features:
Direct fit for the Hyundai Genesis Coupe 3.8
37 degree temperature drop
Custom adapter allows use of spin-on filter
Minimal pressure loss
Thermostatic option available
Stealth black and sleek silver cooler options
Lifetime Warranty
Install Difficulty: 3
OptionLabel: Black Cooler, Thermostatic

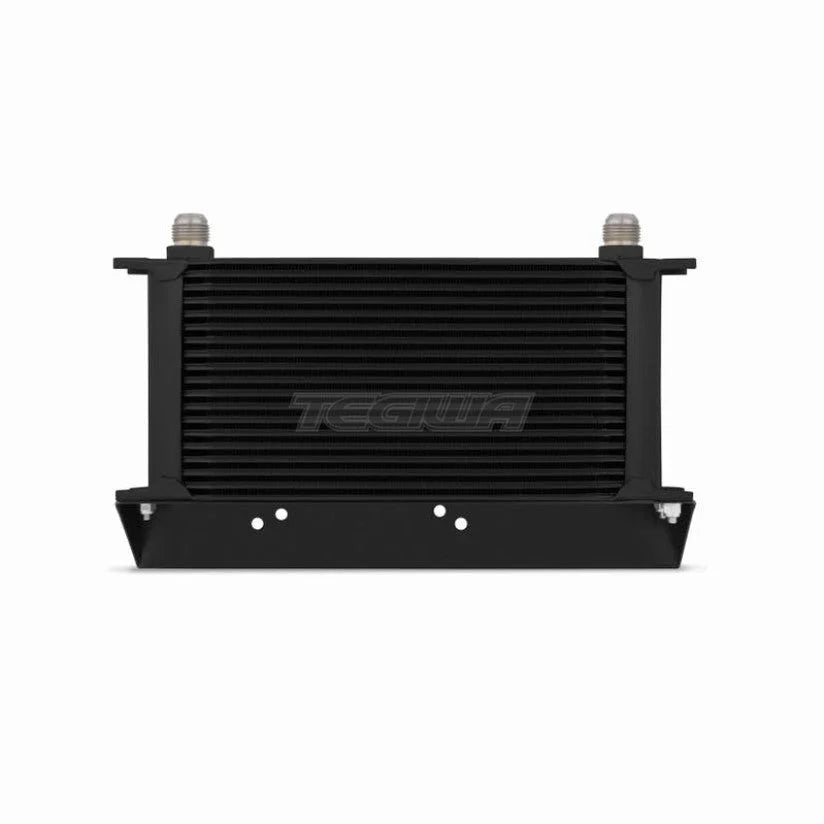

Mishimoto is proud to announce our new direct-fit oil cooler kit designed specifically for the 2010in2013 Hyundai Genesis Coupe with 3.8L V6! High oil temperatures lead to rapid oil degradation that can result in increased engine wear and potential failure.Protect your street or track Genesis by installing the Mishimoto oil cooler kit for efficient temperature regulation.This kit includes a precision-engineered, CNC-machined aluminum oil filter housing, which replaces the factory housing and canister filter.This allows for the use of an oil sandwich plate and a conventional spin-on filter.The Mishimoto oil cooler kit includes preassembled lines and an efficient 19-row oil cooler that mounts in the front grille for optimum airflow and cooling capability.This oil cooler kit increases overall oil capacity by .75 qt and is proven to reduce temperatures by 37 F while maintaining minimal pressure drop.This kit is available with a thermostatic sandwich plate for additional oil temperature control, and your choice of a stealth black or silver cooler.As with all our products, this kit includes the Mishimoto lifetime warranty.
