TechSpec Applications: 2001-2007 Lancer Evolution 7/8/9 GSR--2005-2007 Lancer Evolution 8/9 MR
Note: CARB compliant for 2003-2006 model years only.----The upper intercooler pipes are not designed to work with the stock airbox. An aftermarket open element air filter is required to use with these upper intercooler pipes.

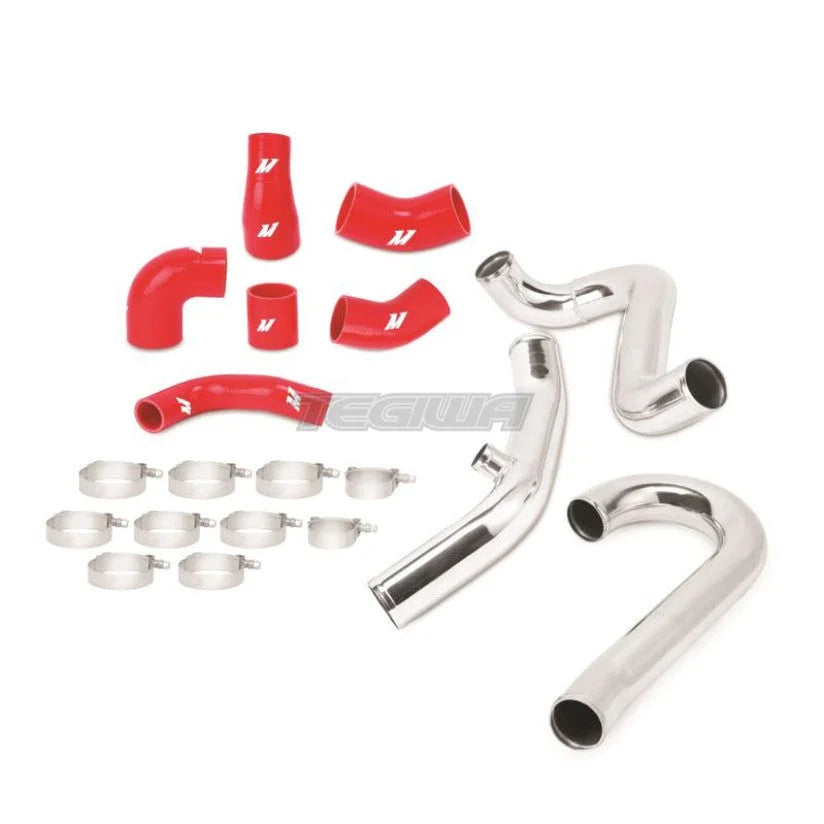

TechSpec Includes: (3) Performance Aluminum Intercooler Pipes--(6) Silicone Couplers--(10) T-Bolt Clamps--(1) CARB Sticker--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the Mitsubishi Lancer Evolution 7/8/9
Lightweight, mandrel bent, polished aluminum pipes
Eliminates restrictive bends found in the stock piping, providing more efficient airflow
Improves turbocharger spool and provides support for high-horsepower vehicles
Bead-rolled ends to prevent boost leaks and coupler disconnection
Black, blue, or red silicone couplers provide increased heat and pressure tolerance
Mishimoto Lifetime Warranty
CARB EO Number: D-759
Install Difficulty: 3

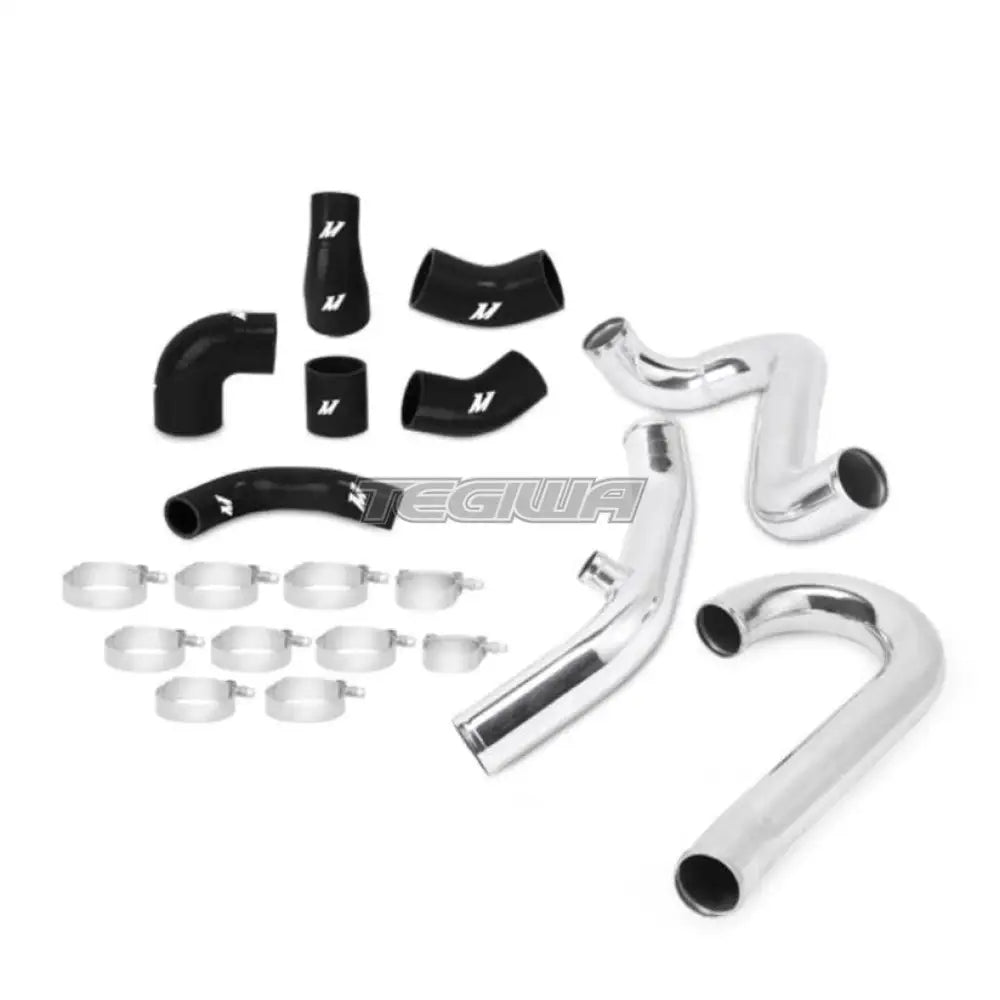

OptionLabel: Black
TechSpec Applications: 2001-2007 Lancer Evolution 7/8/9 GSR--2005-2007 Lancer Evolution 8/9 MR
Note: CARB compliant for 2003-2006 model years only.----The upper intercooler pipes are not designed to work with the stock airbox. An aftermarket open element air filter is required to use with these upper intercooler pipes.
TechSpec Includes: (3) Performance Aluminum Intercooler Pipes--(6) Silicone Couplers--(10) T-Bolt Clamps--(1) CARB Sticker--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the Mitsubishi Lancer Evolution 7/8/9
Lightweight, mandrel bent, polished aluminum pipes
Eliminates restrictive bends found in the stock piping, providing more efficient airflow
Improves turbocharger spool and provides support for high-horsepower vehicles
Bead-rolled ends to prevent boost leaks and coupler disconnection
Black, blue, or red silicone couplers provide increased heat and pressure tolerance
Mishimoto Lifetime Warranty
CARB EO Number: D-759
Install Difficulty: 3

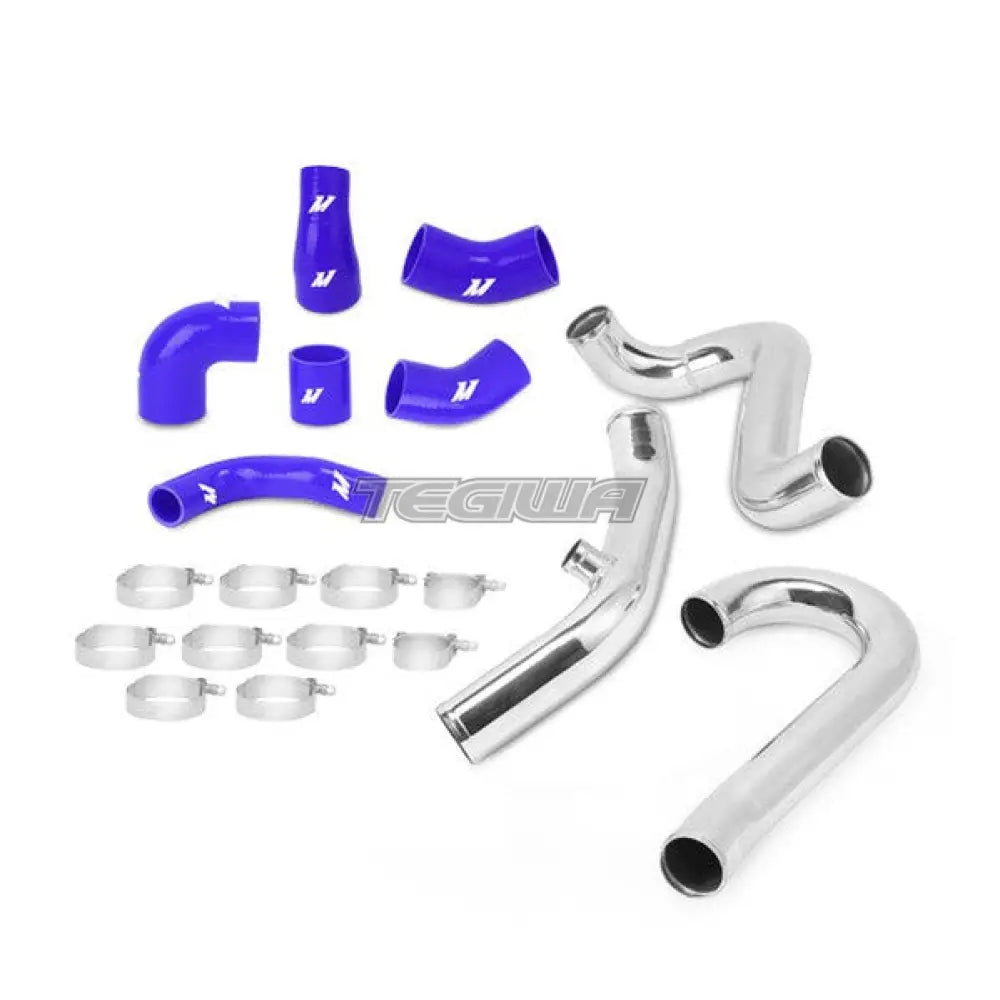

OptionLabel: Blue
TechSpec Applications: 2001-2007 Lancer Evolution 7/8/9 GSR--2005-2007 Lancer Evolution 8/9 MR
Note: CARB compliant for 2003-2006 model years only.----The upper intercooler pipes are not designed to work with the stock airbox. An aftermarket open element air filter is required to use with these upper intercooler pipes.
TechSpec Includes: (3) Performance Aluminum Intercooler Pipes--(6) Silicone Couplers--(10) T-Bolt Clamps--(1) CARB Sticker--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the Mitsubishi Lancer Evolution 7/8/9
Lightweight, mandrel bent, polished aluminum pipes
Eliminates restrictive bends found in the stock piping, providing more efficient airflow
Improves turbocharger spool and provides support for high-horsepower vehicles
Bead-rolled ends to prevent boost leaks and coupler disconnection
Black, blue, or red silicone couplers provide increased heat and pressure tolerance
Mishimoto Lifetime Warranty
CARB EO Number: D-759
Install Difficulty: 3

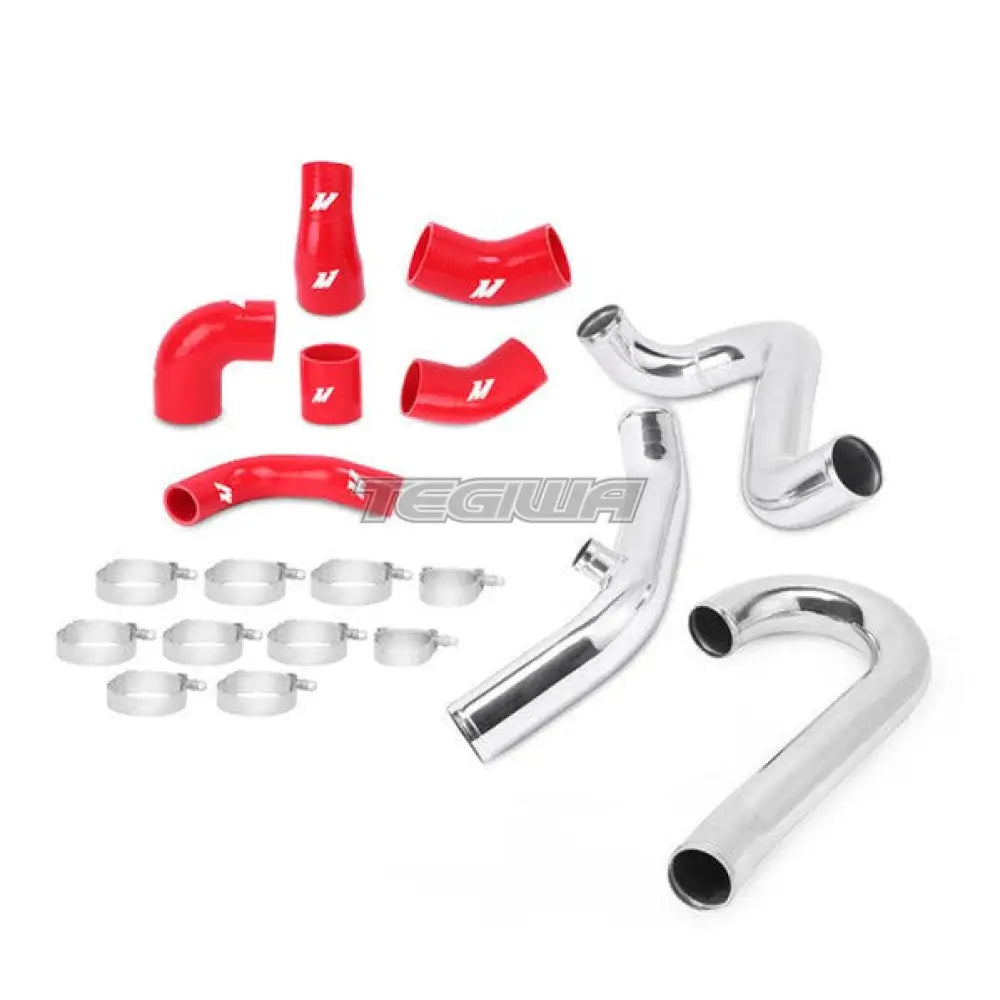

OptionLabel: Red

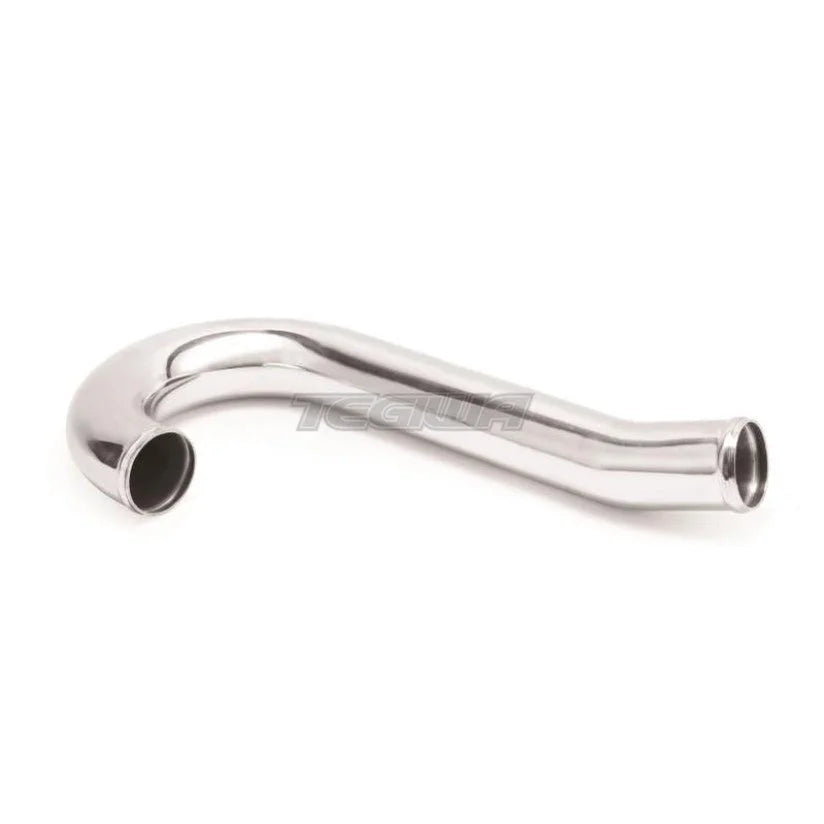

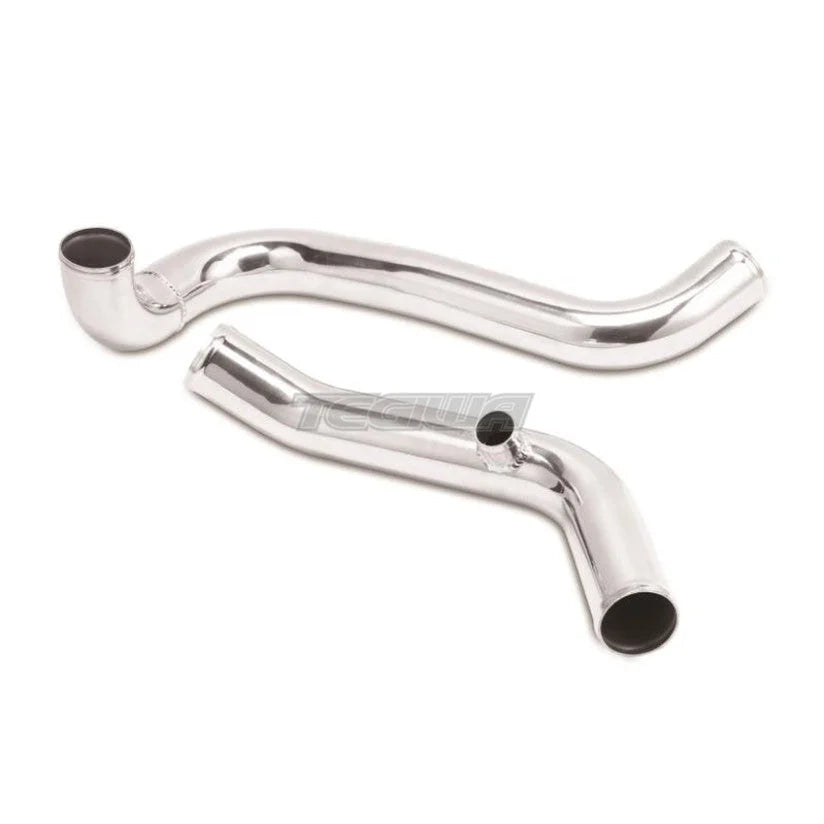

Improve airflow and turbo spool with Mishimoto mandrel bent aluminum intercooler pipes for the Mitsubishi Lancer Evolution 7/8/9. These pipe kits are designed with high-horsepower vehicles in mind and feature bead-rolled pipe ends for prevention of leaks and coupler disconnection. The Mishimoto Evolution 7/8/9 Intercooler Pipe Kit features silicone couplers that provide increased heat and pressure tolerance compared to the stock rubber counterparts. Whether you have a daily driven Evolution or a stripped and caged time attack car, airflow efficiency is key to optimizing your charge air system. The Mishimoto Evolution 7/8/9 intercooler pipes are available for purchase separately or as a kit. As with all our products, this kit is guaranteed by the Mishimoto Lifetime Warranty, ensuring superior quality and craftsmanship.
