TechSpec Applications: 2015+ Ford F-150 EcoBoost--2017+ Ford Raptor 3.5L V6 EcoBoost--2018+ Ford Expedition 3.5L V6 EcoBoost--2018+ Lincoln Navigator 3.5L V6 EcoBoost
TechSpec Engine Codes: 2.7L V6 EcoBoost--3.5L V6 EcoBoost
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Overall Length (in): 29
TechSpec Overall Height (in): 9.5
TechSpec Overall Width (in): 7
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 4.72
TechSpec Core Length (in): 19.6
TechSpec Core Height (in): 9.4
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 3
TechSpec Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim--(1) Bypass Valve Bracket--Mounting Hardware--Bypass Valve Hardware--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the 2015+ Ford F-150 EcoBoost
10F (5.5C) reduction in intake air temp
77-percent increase in internal core volume
163-percent increase in external fin surface area
CNC-machined inlets and outlets are ridged for greater holding power
All-aluminum, TIG-welded construction
Internal fin design for maximum heat transfer with minimal pressure drop
Fits with stock and Mishimoto 2.7L and 3.5L intercooler pipe kits
Fits with stock intercooler fans without modification
Available in Sleek Silver or Stealth Black
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 3

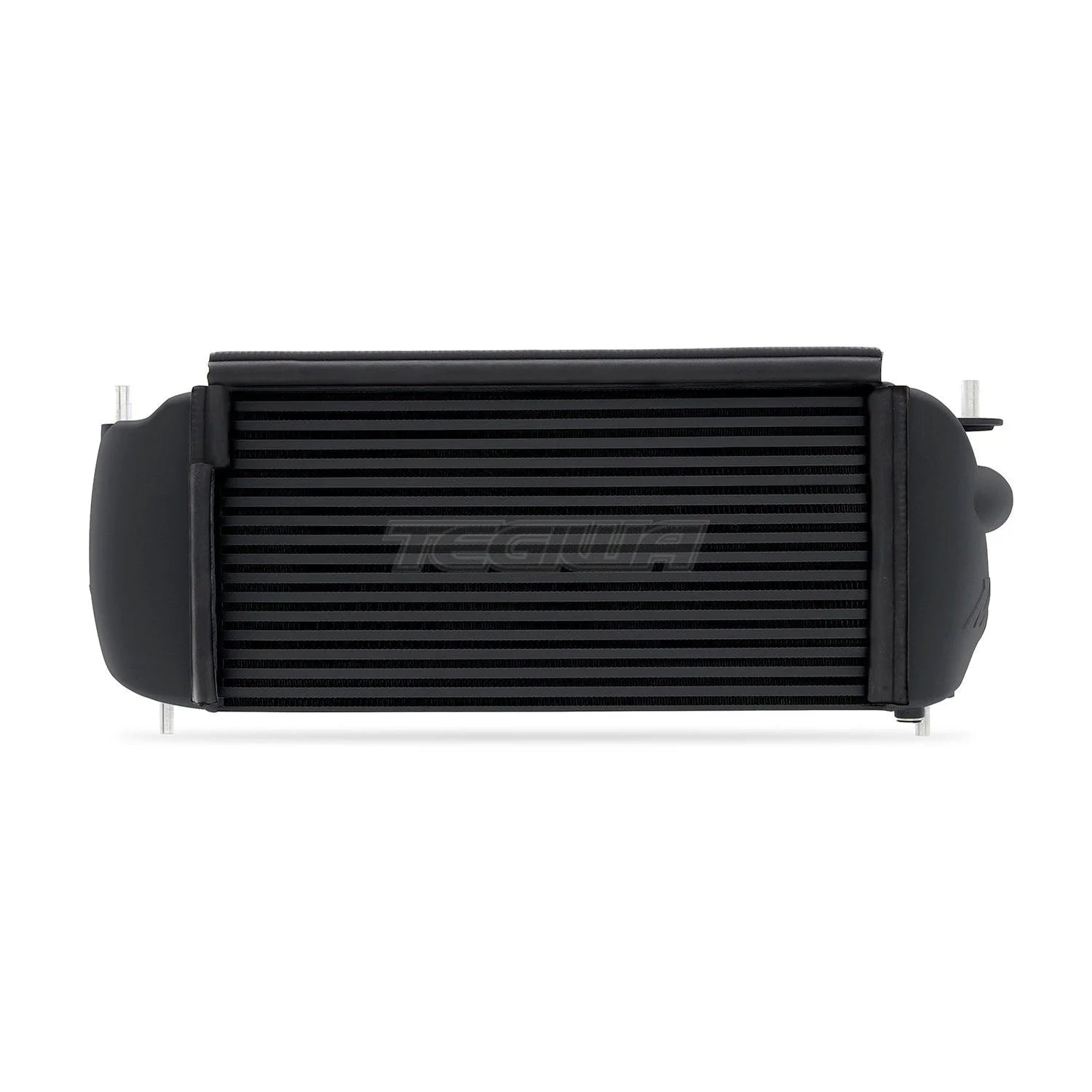

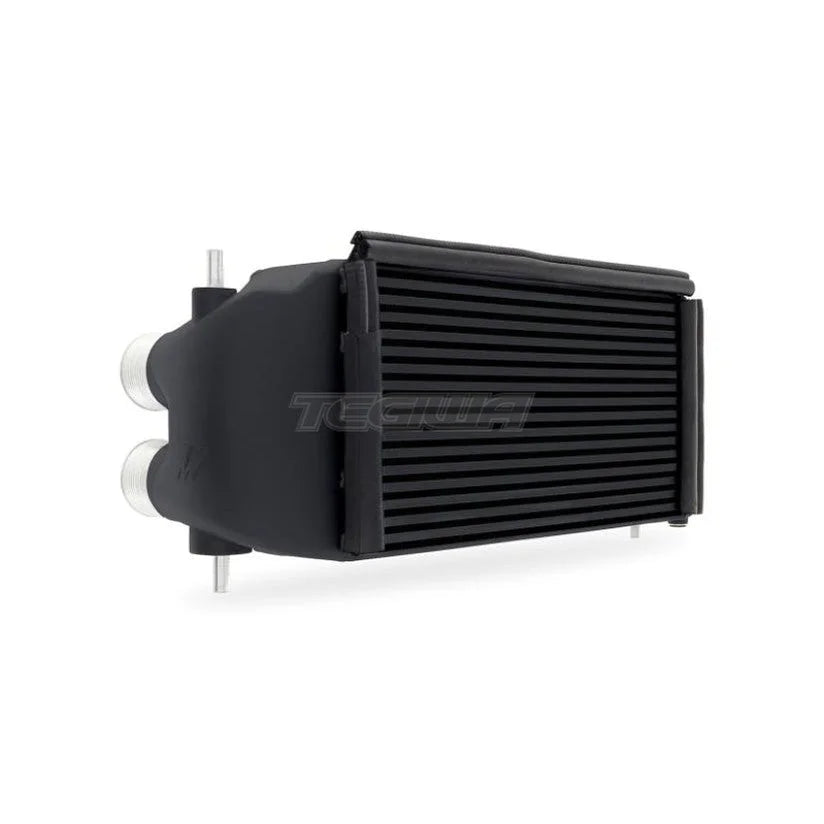

OptionLabel: Stealth Black
TechSpec Applications: 2015+ Ford F-150 EcoBoost--2017+ Ford Raptor 3.5L V6 EcoBoost--2018+ Ford Expedition 3.5L V6 EcoBoost--2018+ Lincoln Navigator 3.5L V6 EcoBoost
TechSpec Engine Codes: 2.7L V6 EcoBoost--3.5L V6 EcoBoost
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Overall Length (in): 29
TechSpec Overall Height (in): 9.5
TechSpec Overall Width (in): 7
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 4.72
TechSpec Core Length (in): 19.6
TechSpec Core Height (in): 9.4
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 3
TechSpec Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim--(1) Bypass Valve Bracket--Mounting Hardware--Bypass Valve Hardware--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the 2015+ Ford F-150 EcoBoost
10F (5.5C) reduction in intake air temp
77-percent increase in internal core volume
163-percent increase in external fin surface area
CNC-machined inlets and outlets are ridged for greater holding power
All-aluminum, TIG-welded construction
Internal fin design for maximum heat transfer with minimal pressure drop
Fits with stock and Mishimoto 2.7L and 3.5L intercooler pipe kits
Fits with stock intercooler fans without modification
Available in Sleek Silver or Stealth Black
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 3

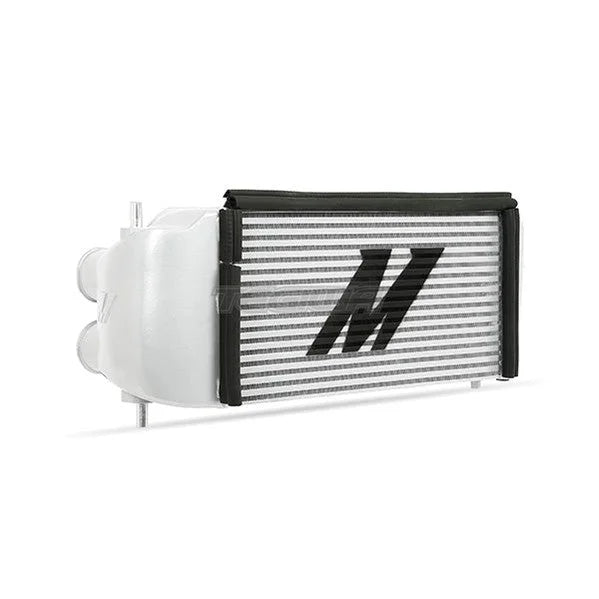

OptionLabel: Sleek Silver

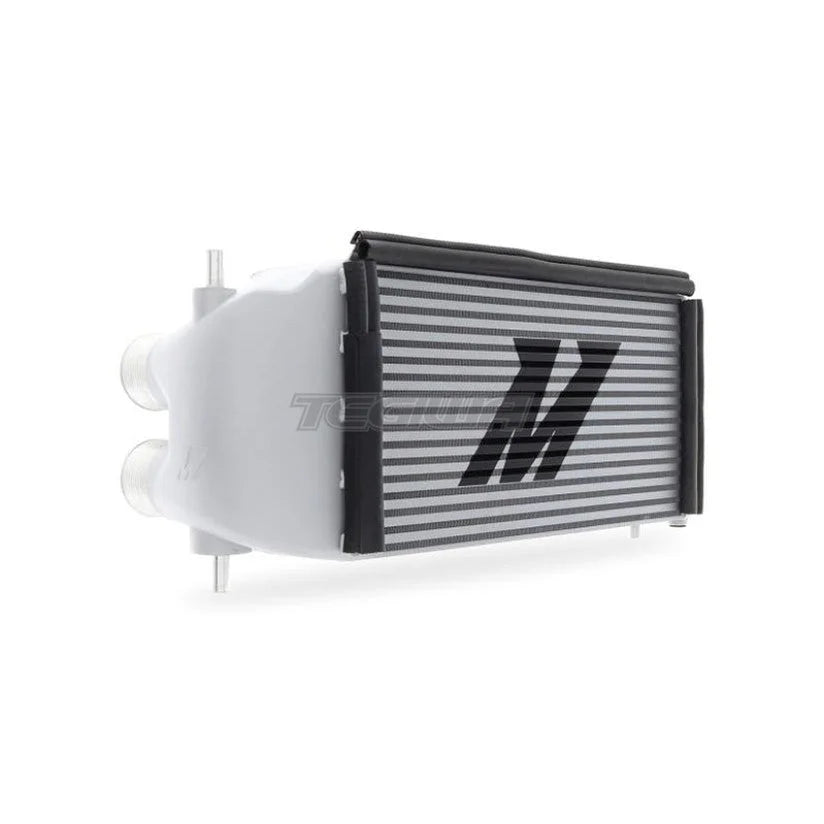

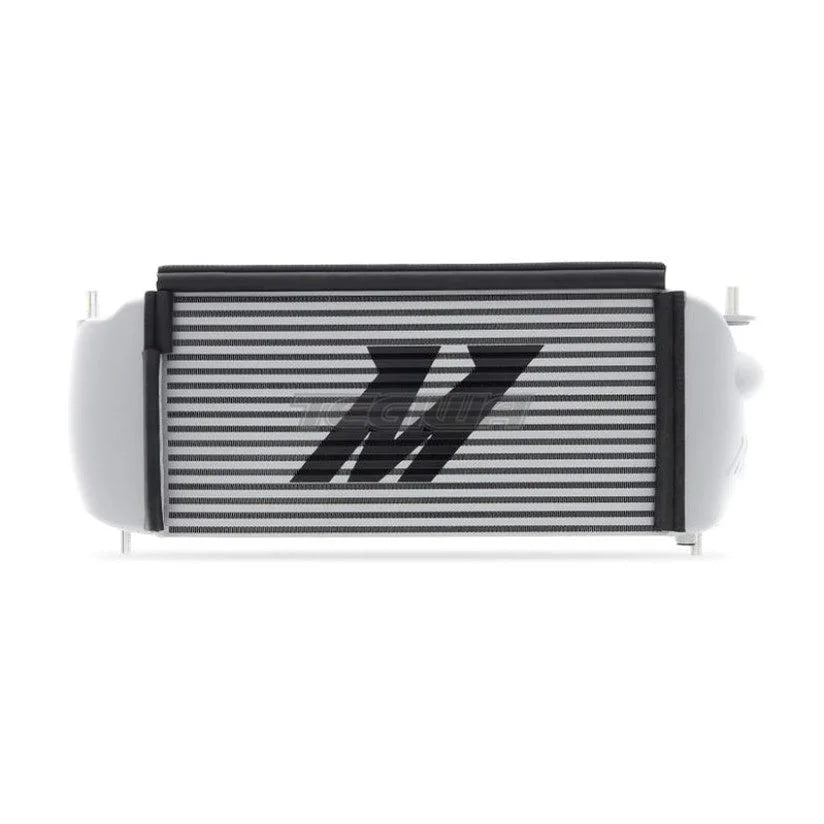

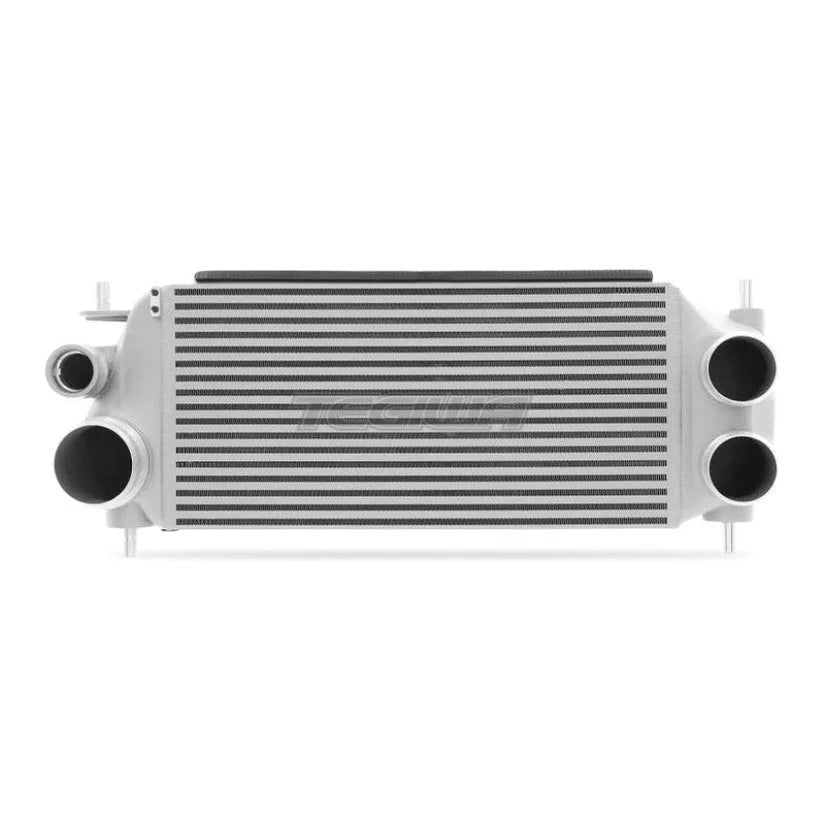

Keep those air intake temps down! With Mishimoto's Performance Intercooler for the 2015+ Ford F-150 EcoBoost, your engine will reach a better level of cooling from the help of both an increase in core volume by 77-percent over stock and external fin surface area by 163-percent. We put our core through some grueling tests to see how our design can alleviate the effects of heat soak. With temperature drops averaging 10 degrees under the stock numbers, your F-150 will take in cooler air, providing better performance and increased tuning potential.
