TechSpec Applications: 2011-2016 Ford F-250 w/ 6.7L Powerstroke--2011-2016 F-350 w/ 6.7L Powerstroke--2011-2016 F-450 w/ 6.7L Powerstroke--2011-2016 F-550 w/ 6.7L Powerstroke
Note: Mishimoto has improved this product by including an O-ring and spring clip. If you did not receive these components with your kit, contact our customer experience team or remove the stock O-ring and spring clip and install them onto your Mishimoto CNC-machined coupling.

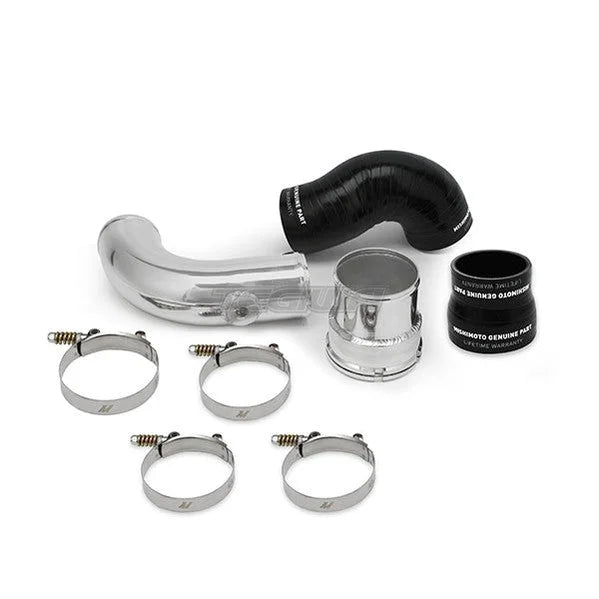

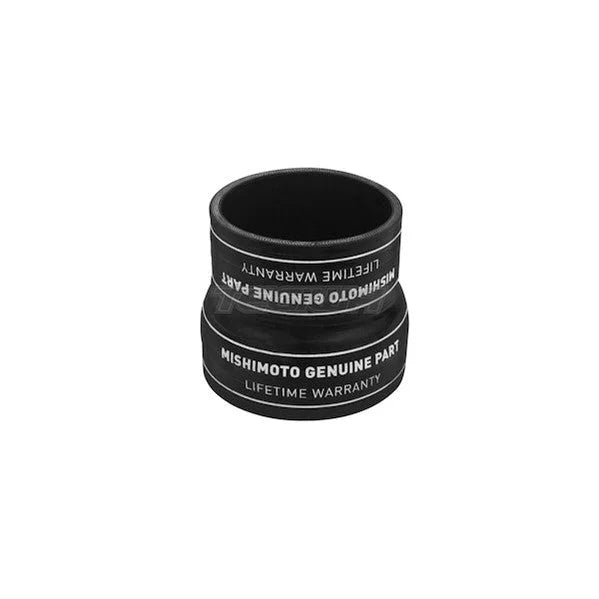

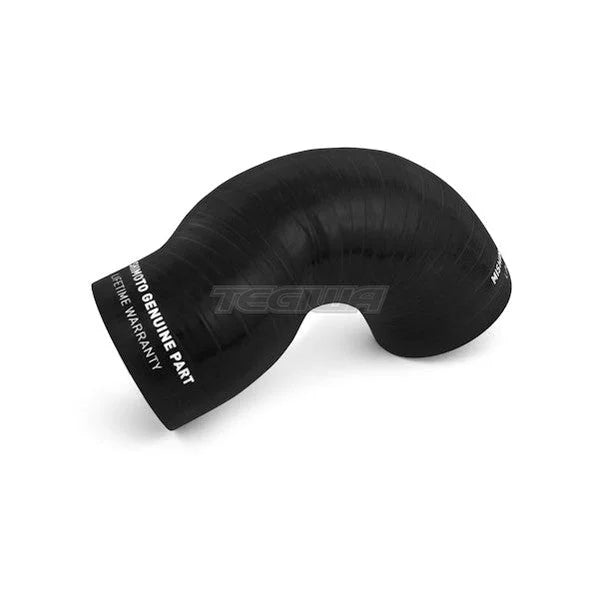

TechSpec Includes: (1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange, O-Ring, and Spring Clip--(1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing--(2) Silicone Boots with DuraCore Technology--(4) Constant-Tension T-Bolt Clamps--(2) Aluminum Mishimoto M Logo Badges--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:Direct fit for the 2011-2016 6.7L Powerstroke
Replaces weak stock plastic pipe
Installs in under an hour

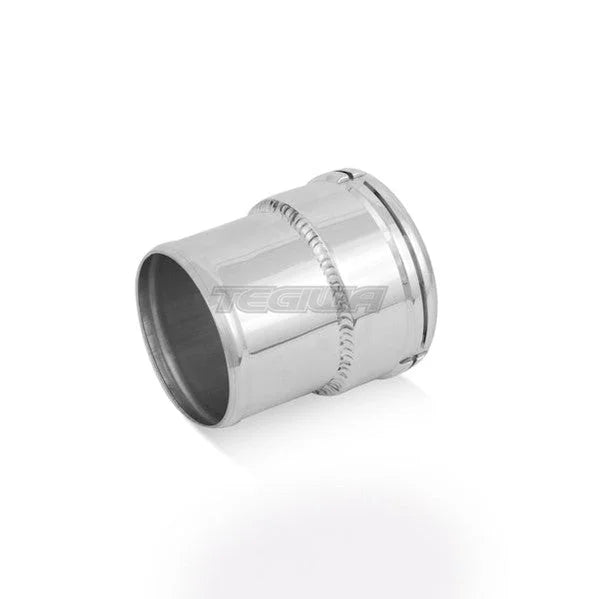

CNC-machined stock-style coupling allows for quick install
Mandrel-bent, polished aluminum pipe eliminates restrictive bends
Does not require additional tuning
Includes new O-ring and spring clip
Includes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant Tension T-Bolt Clamps
Mishimoto Lifetime Warranty

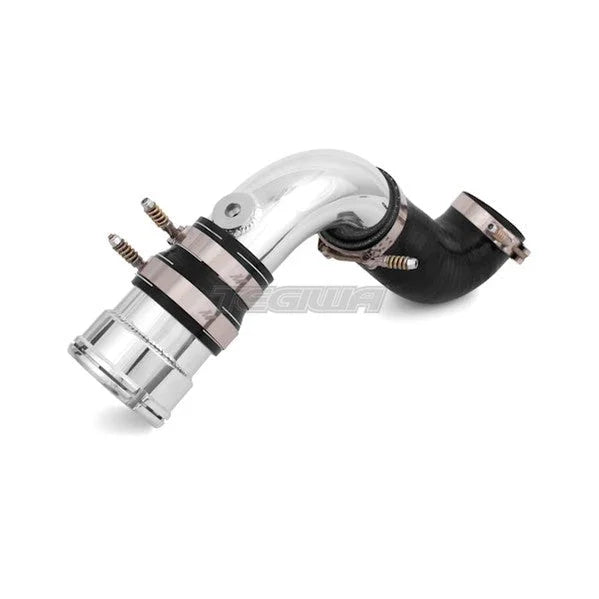

Mishimoto has developed a cold-side intercooler pipe and boot kit for the 2011+ 6.7L Powerstroke. The factory plastic pipe and boot commonly explode or burst due to the heat and increased boost levels of your high-powered 6.7L upgrade to the Mishimoto kit for increased reliability, durability, and performance. The Mishimoto cold-side pipe is constructed of mandrel-bent aluminum with a polished finish. A 100-percent CNC-machined 6061 aluminum coupling allows you to retain your trucks factory emissions components and allows for a quick install. The Mishimoto cold-side pipe eliminates restrictive bends in the factory pipe, allowing for improvements in airflow, power, and EGTs. This kit includes Mishimoto silicone Boots with DuraCore technology. Mishimoto DuraCore technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone Diesel Boots. Compared to normal silicone, DuraCore provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts. To add even more reliability this kit includes Mishimoto Constant-Tension T-bolt Clamps for accurate and consistent holding power. This cold-side pipe and boot kit is the perfect addition to your 6.7L Powerstroke truck. It is made in the USA and includes the Mishimoto Lifetime Warranty.
