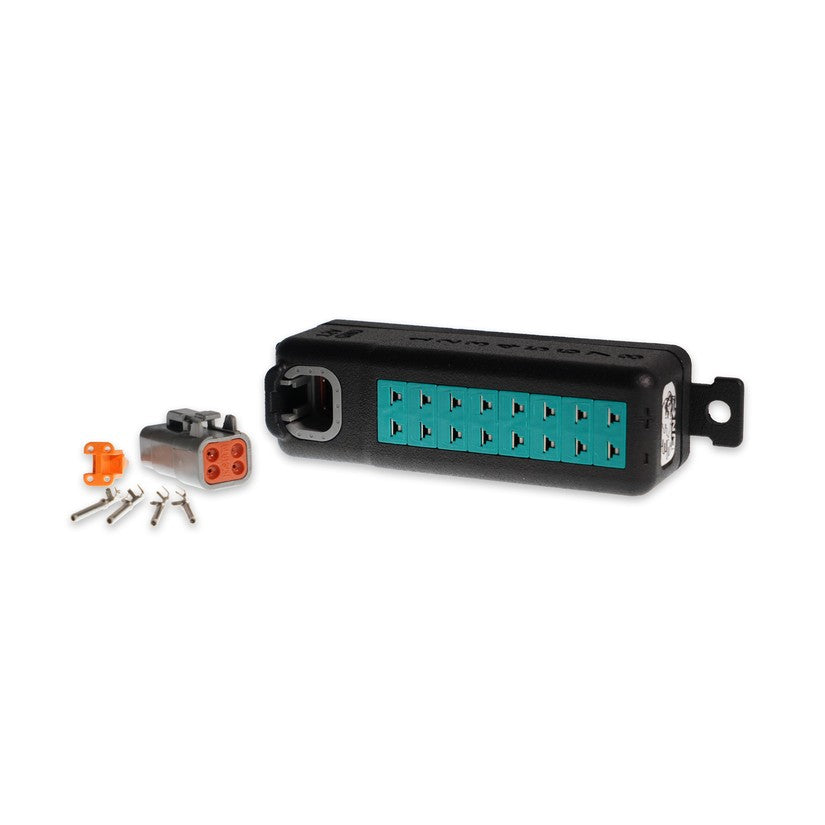

An 8-channel EGT-to-CAN module, powered by CANchecked, for connecting up to eight Type-K thermocouples to a Link CAN bus for exhaust gas temperature, intercooler, turbo, cylinder head or other high-temperature monitoring.
Key Features
- 8 cold junction compensated Type-K inputs
- Measuring range 0 to 1250 degrees C, 0.25 degree C resolution (14-bit)
- Four-pin DTM connector for CAN and power, pin compatible with Link's standard CAN pinout and CAN cable range
- Short-circuit and missing-thermocouple detection
- Wireless configuration and live monitoring via smartphone or PC
- CAN 2.0A/B support with flexible configuration and adjustable sample frequency up to 100Hz
Please Note
- Also available in 4-channel (TCC04) and 6-channel (TCC06) versions
- Box contents: CAN EGT module, DTM4 mating connector kit, 2 Link stickers
Compatible With
- Link ECUs and CAN devices
