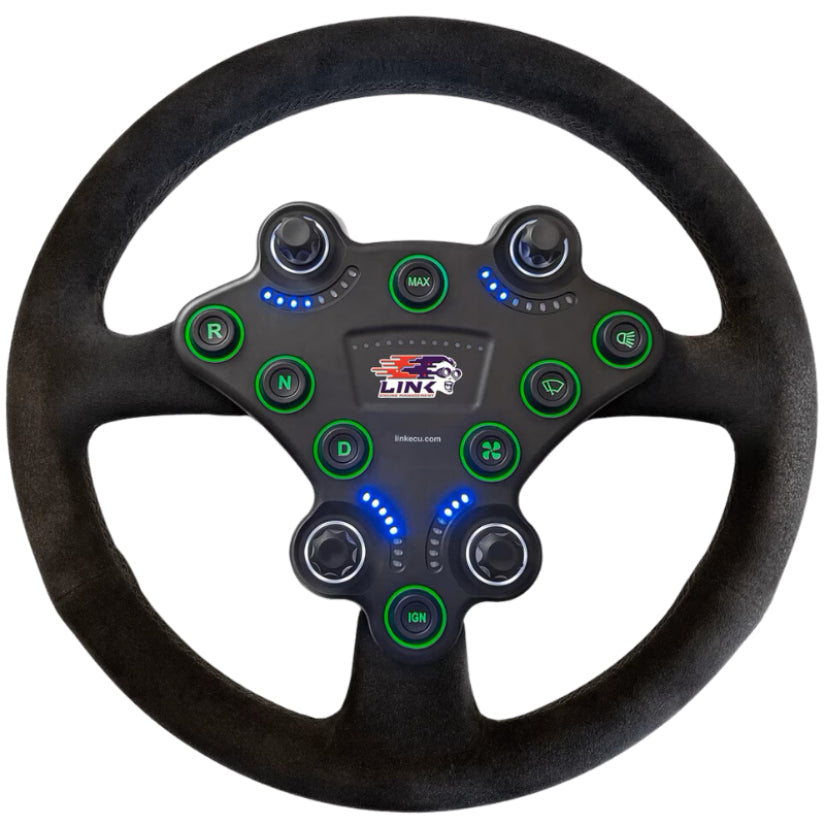

A CAN-bus steering wheel button panel with four rotary knobs and eight backlit buttons, giving drivers full control of ECU functions from the wheel without reaching for a separate keypad.
Key Features

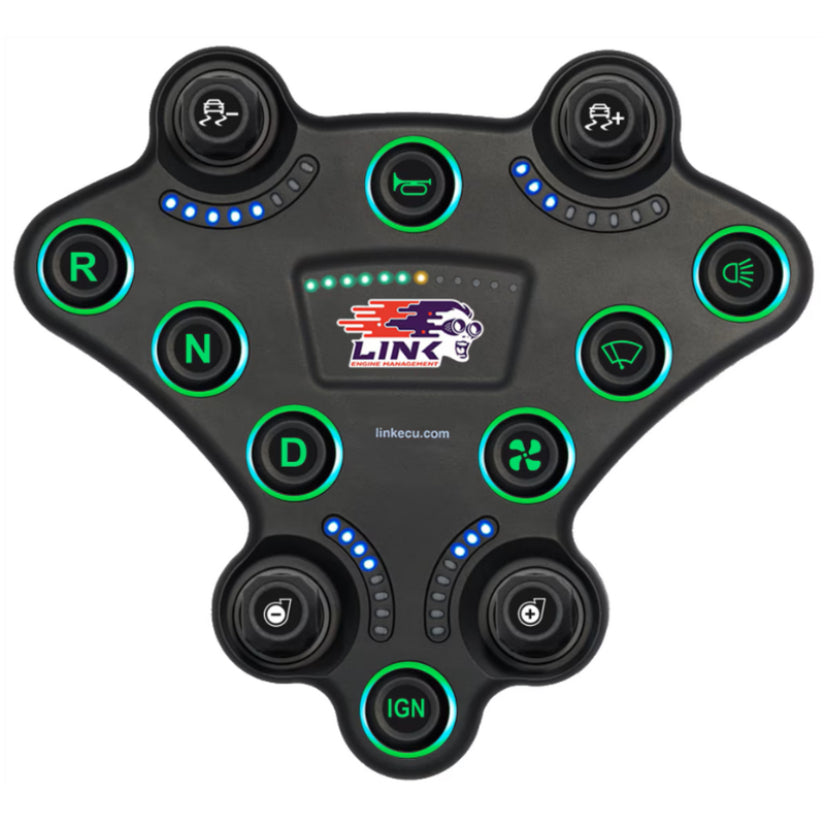

- Four rotary knobs, each surrounded by eight blue LEDs, plus eight buttons with customisable RGB indicator rings
- 12 fixed centre LEDs, configurable for feedback such as RPM
- Four analogue inputs for additional sensors or switches
- Configurable via G4X/G5 PCLink, including LED backlight colour, indicator ring colour, and momentary, latched or toggle switching modes

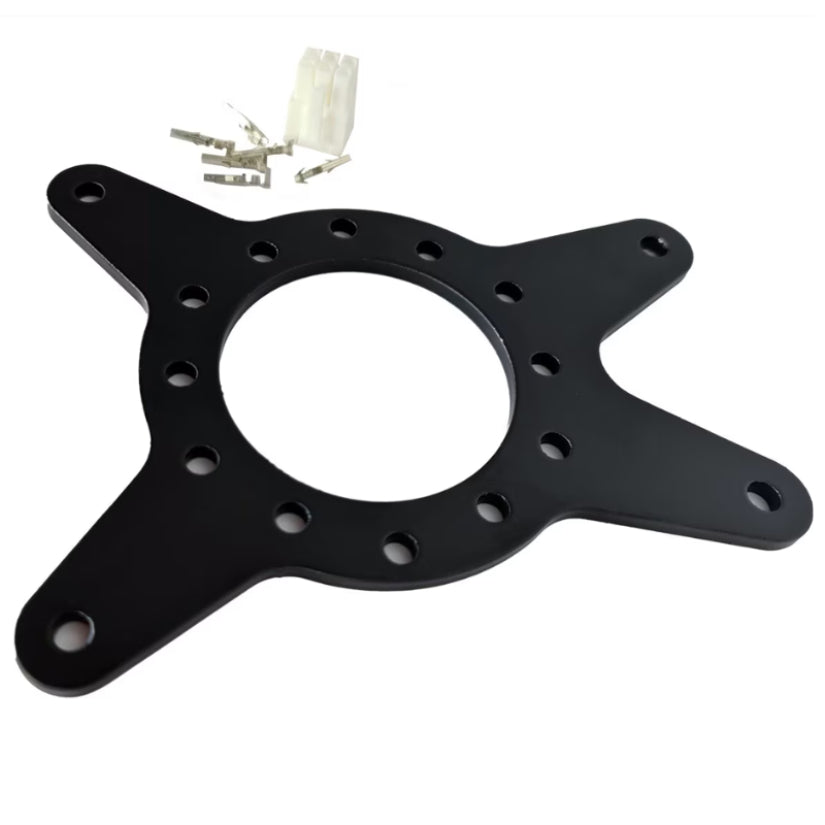

- Includes a mounting plate adapter supporting common bolt patterns, including Sparco, QSP, MOMO (6x70mm) and Nardi (6x74mm)
Please Note
- Ships with blank button inserts; function inserts are purchased separately
- Steering wheel is not included
- Box contents: RacePad, mounting bracket, DTM4 mating connector kit, Molex mating connector kit, Link sticker, and one Link logo button insert
Compatible With
