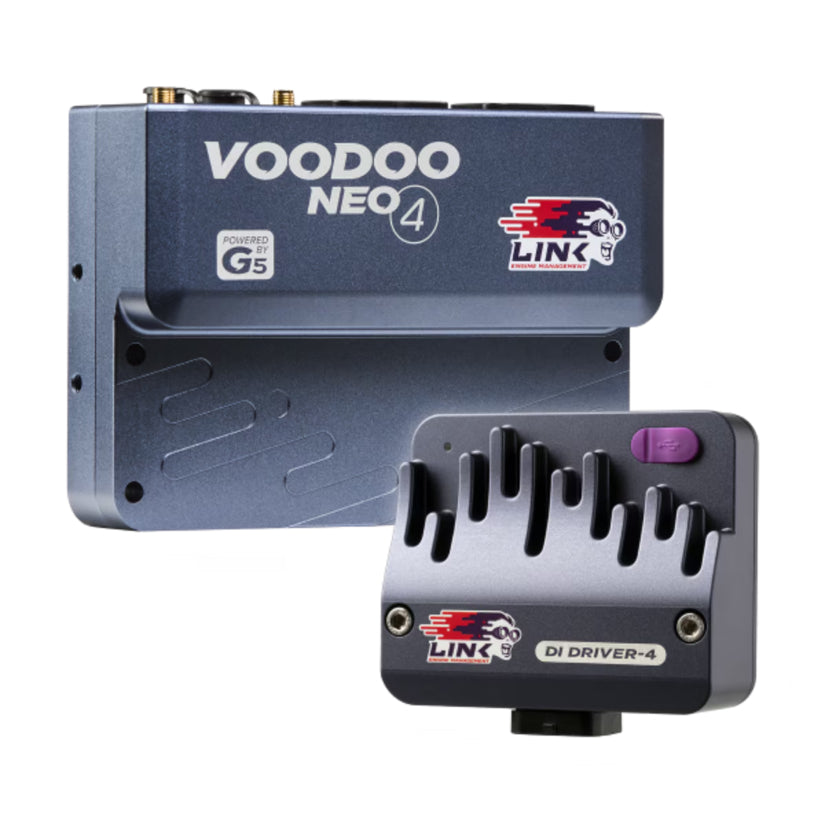

A complete direct injection bundle pairing the compact Link G5 Voodoo Neo 4 ECU with a DI Driver-4 module, for full control of 4-cylinder direct injection or staged port/direct injection engines.
Key Features
- G5 Voodoo Neo 4 ECU, supporting 4-cylinder direct injection or 6-cylinder staged port/direct injection with direct spark
- DI Driver-4 module, providing the peak-and-hold drive current for up to 4 direct injectors and 1 high-pressure fuel pump, stackable for larger systems
- USB-C, Wi-Fi, Ethernet, GPS and CAN connectivity
- 1GB onboard logging at up to 100kHz across 250 channels
- 8 injector outputs, 6 ignition outputs, 12 auxiliary outputs and 6 flexible ADIOs
- Built-in wideband controller and dual E-throttle H-bridge outputs
- Sealed CNC enclosure with flexible mounting options
Please Note
- DI Driver-4 configured over USB-C using the free DI Link software
Compatible With
- 4-cylinder direct injection or staged port/direct injection engine builds
