Subframe and mount kits are often in stock, but we occasionally see up 4-6 week lead times during peak seasons.

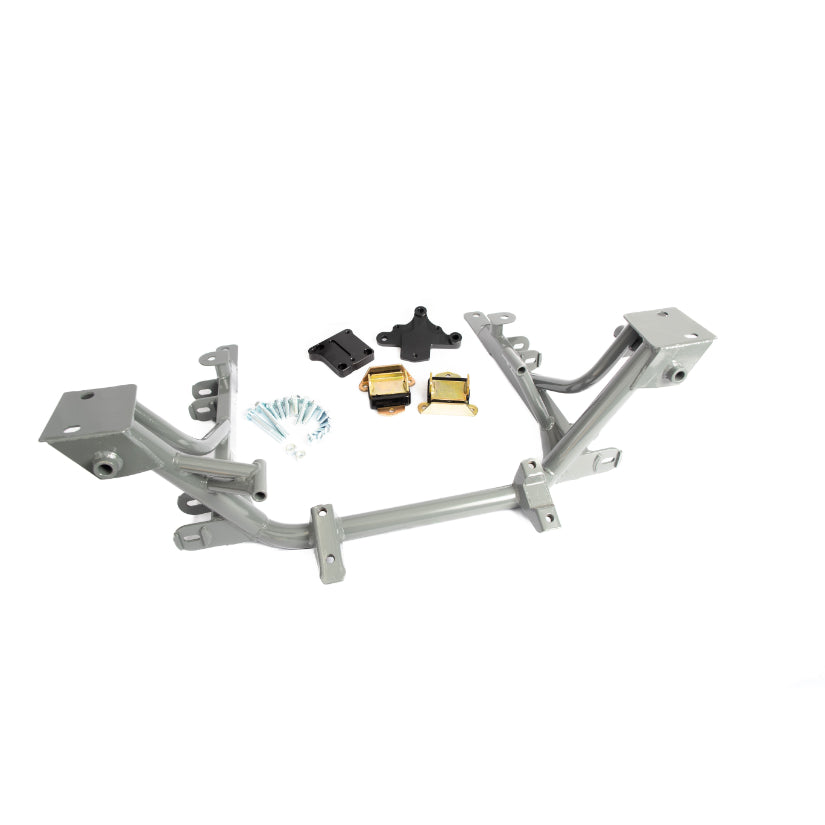

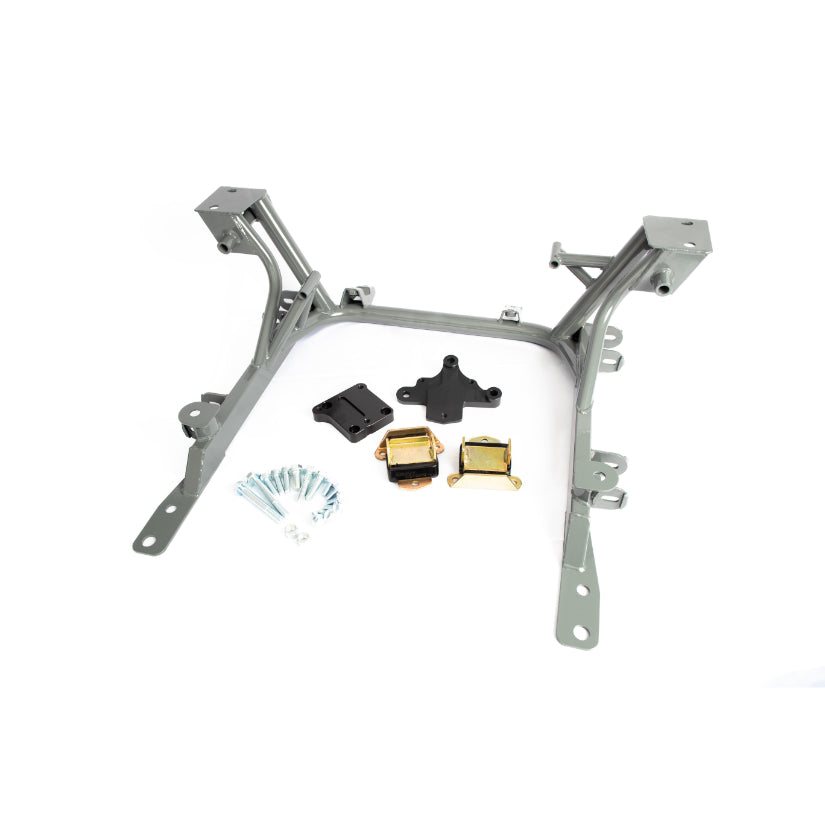

In order to fit a K24A series engine in the Miata, a custom subframe is needed to provide adequate engine, oil pan, and exhaust clearance.
This right-hand drive subframe retains factory steering geometry, unlike many Miata engine swaps in the past. This key feature keeps that legendary Miata steering feel once your K swap is installed.
Our steel subframe and mounts are laser-cut, welded, and powder-coated to provide extraordinary strength, rigidity, durability, corrosion resistance, and a lighter weight over the OEM subframe and mounts.

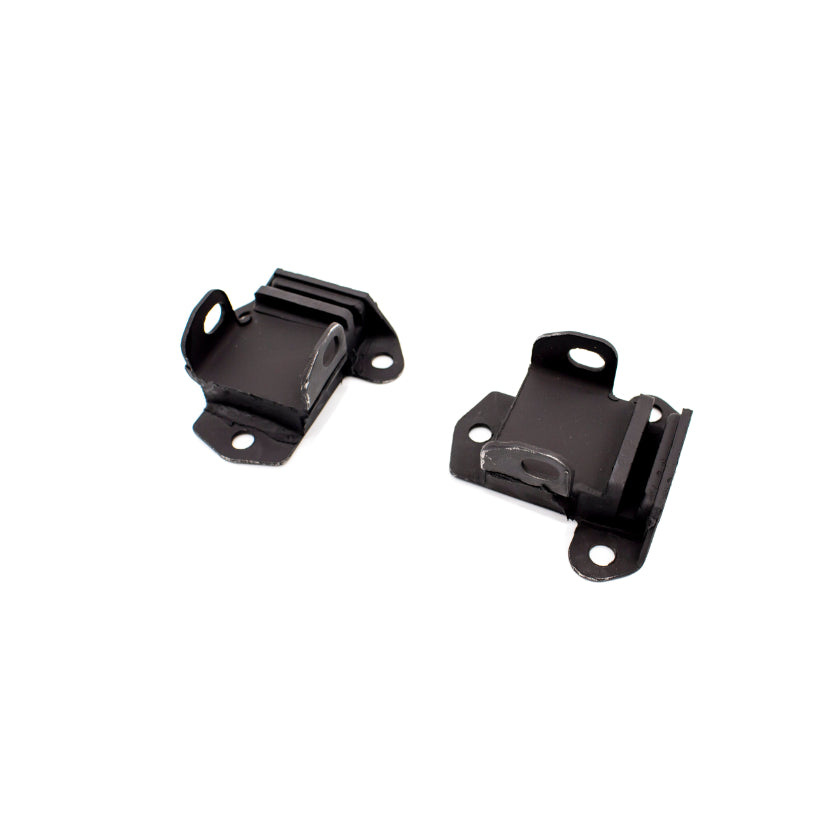

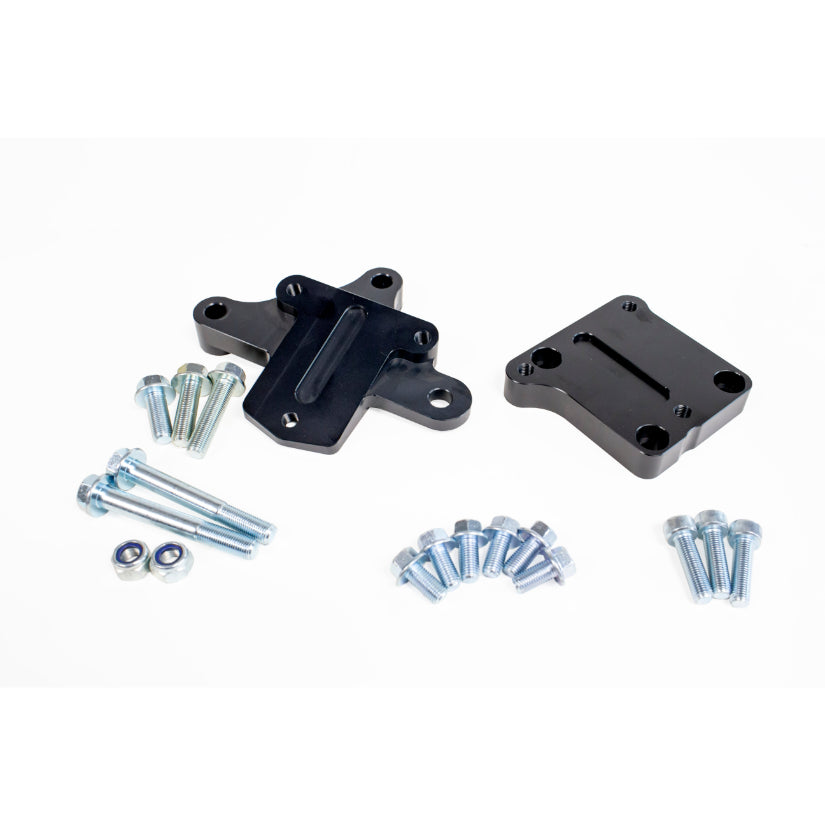

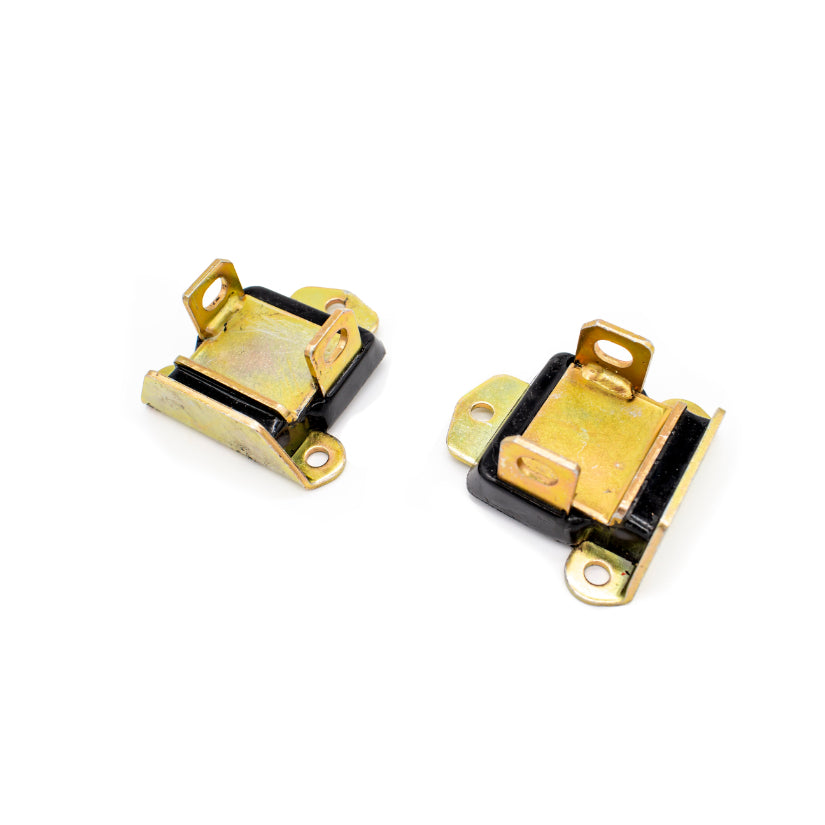

Our version 2 engine mount brackets are now machined in-house out of 6061 billet aluminum and then anodize hard-coated black for durability. The engine mount pads are available in either rubber for street use, or Energy Suspension polyurethane for track use. Engine mount pads are interchangeable on the brackets, so users can swap back and forth between materials if desired.
Fitment Details - Please Read!
This subframe and engine mount kit fits right-hand drive NA and NB Miatas (1990-2005) with the following K series engines:
- K24A2 (2004-2008 TSX)
- K24A3 (same as U.S. spec TSX engine, available internationally)
- JDM K24A engine with RBB head
- K24A4 (2003-2005 Accord)
- K20Z3 (2006-2011 Civic Si)
Note that this mounting kit does NOT fit K24A1, K20A2, and K20Z1 engine blocks.
If you are using our KMiata 3" stainless exhaust with the V2 engine mounts, you'll also need to pair it with the V2 midpipe, available here.
