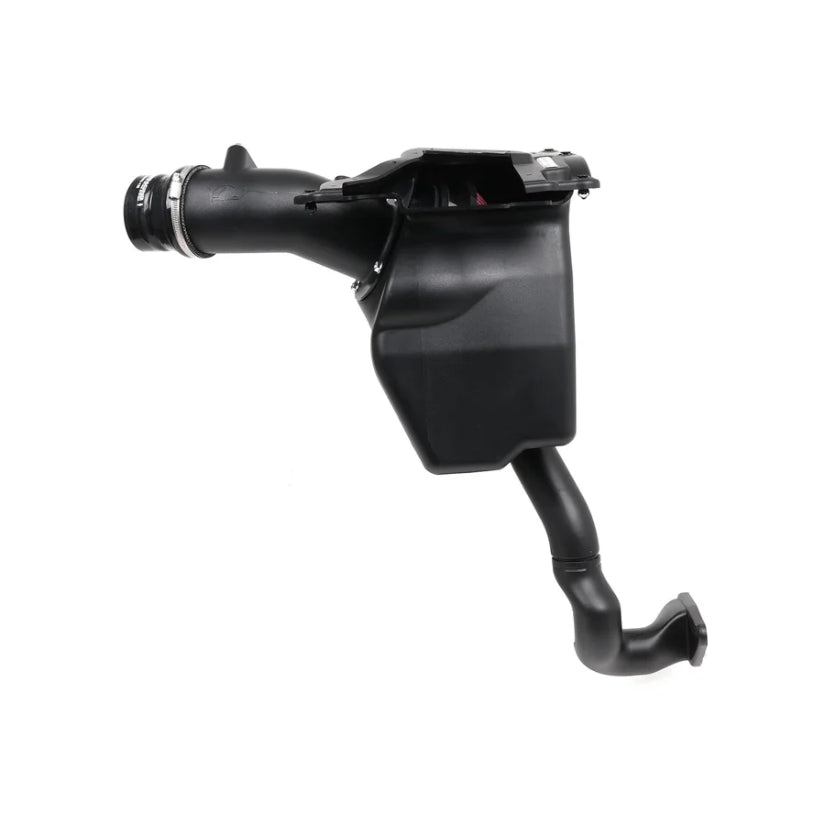

On Hybrid Racing's 433.5 wheel horsepower shop FK8, the factory MAF sensor in the 76mm housing hit 4.96 volts near the top of the pull and stopped climbing; in the 89mm housing it stayed in range. That is why the Formula is offered with two MAF housings. The 76mm Street suits standard and lightly modified cars, the 89mm Race is for builds that need the headroom, and everything else in the kit is the same. The filter sits sealed inside an XLPE airbox with a reflective shield on the turbo side, fed by the factory grille opening plus two lower inlet tubes behind the bumper. Tuned and MAF-scaled against a tuned factory airbox on the same 2019 FK8, it added around 7 wheel horsepower and 8 lb-ft on average from 2,500 to 6,800rpm.
Key Features
- Around 7 wheel horsepower and 8 lb-ft more on average from 2,500 to 6,800rpm, tuned against a tuned factory airbox
- 76mm Street or 89mm Race MAF housing, both using the factory Honda MAF sensor

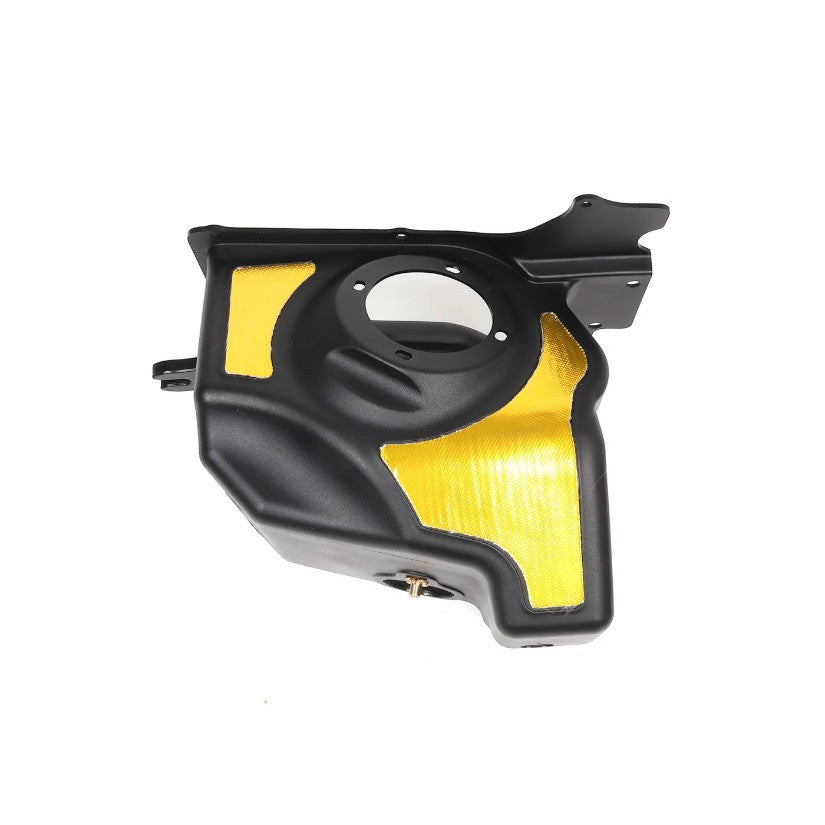

- Enclosed XLPE airbox with reflective heat shield, fed from the grille and two lower outside-air inlets
- More turbo, induction and recirculating valve sound on throttle
- Filter lifts out through the lid without removing the airbox; washable oiled-cotton element
- Uses the factory mounting points and turbo inlet pipe; no cutting, drilling or bumper removal
Kit Includes

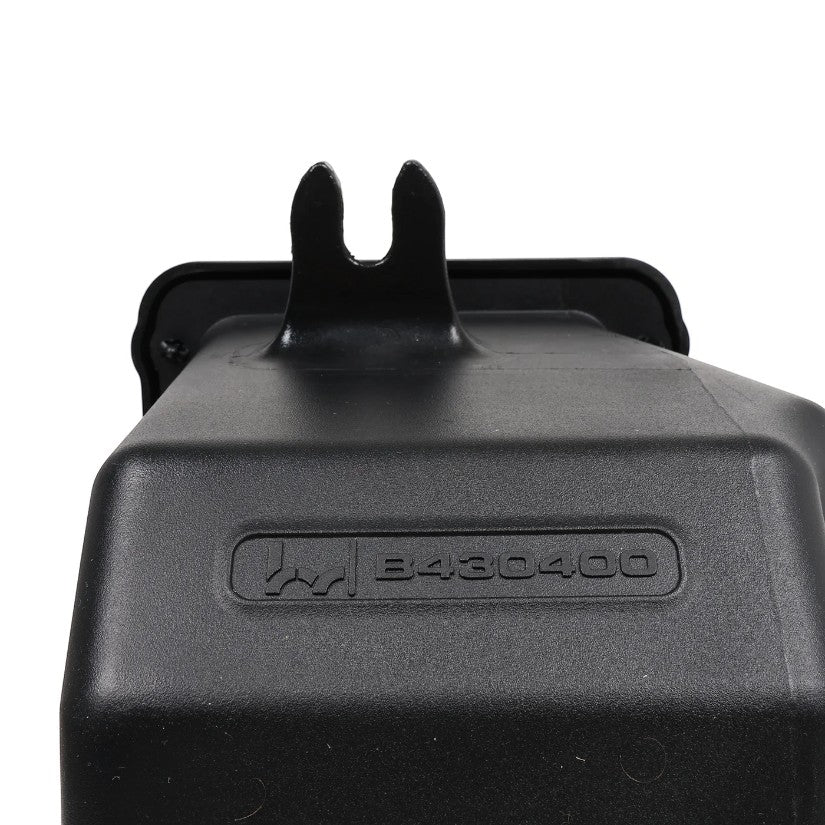

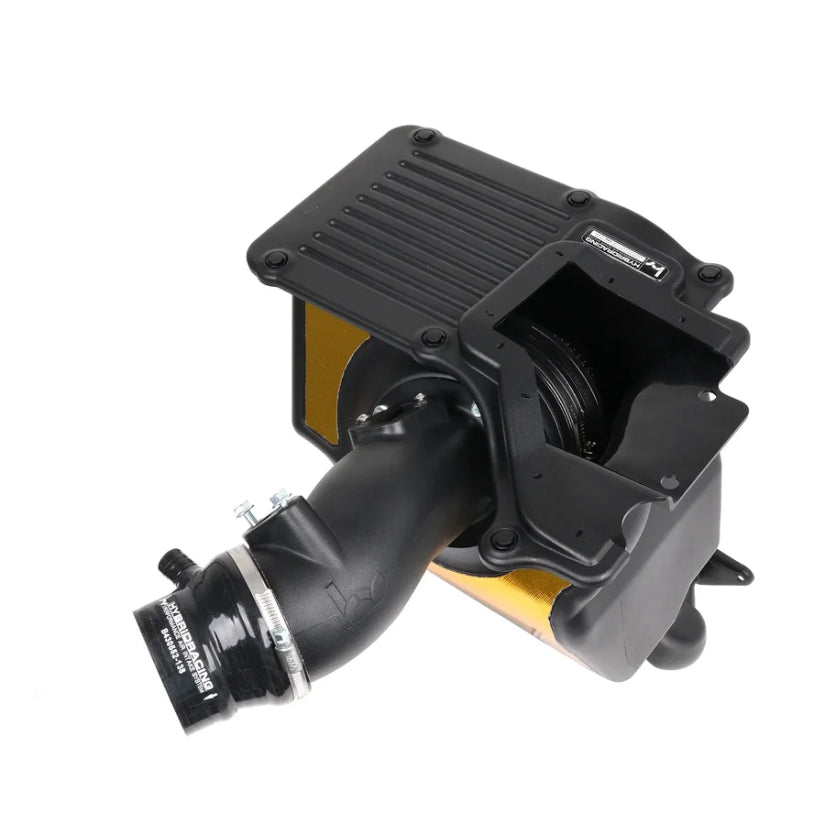

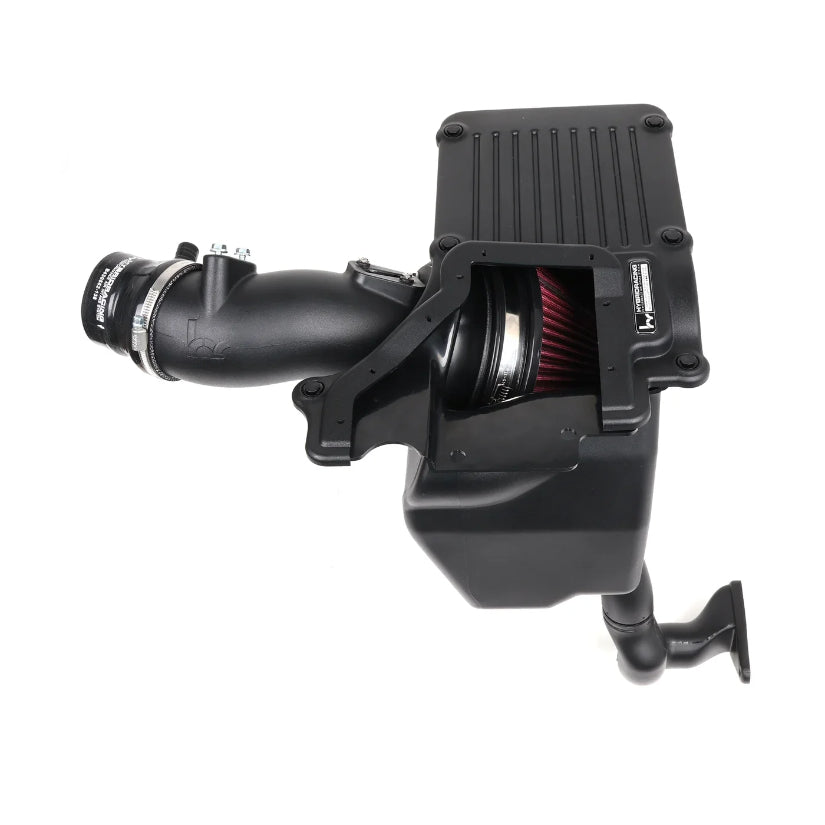

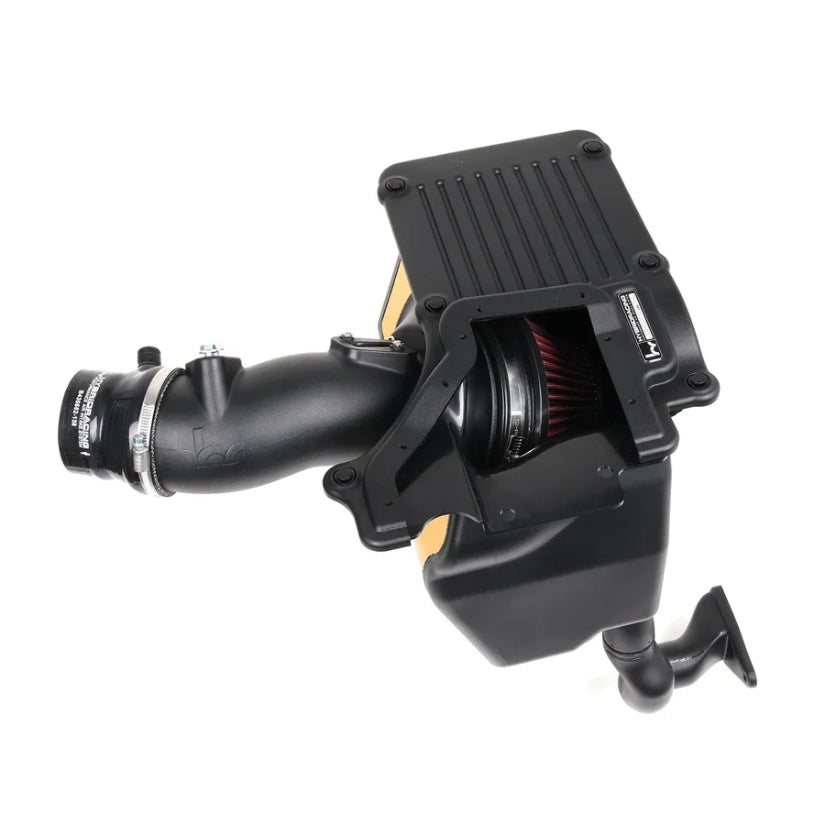

- XLPE airbox and lid with reflective heat shields
- 76mm Street or 89mm Race MAF housing with matched velocity stack

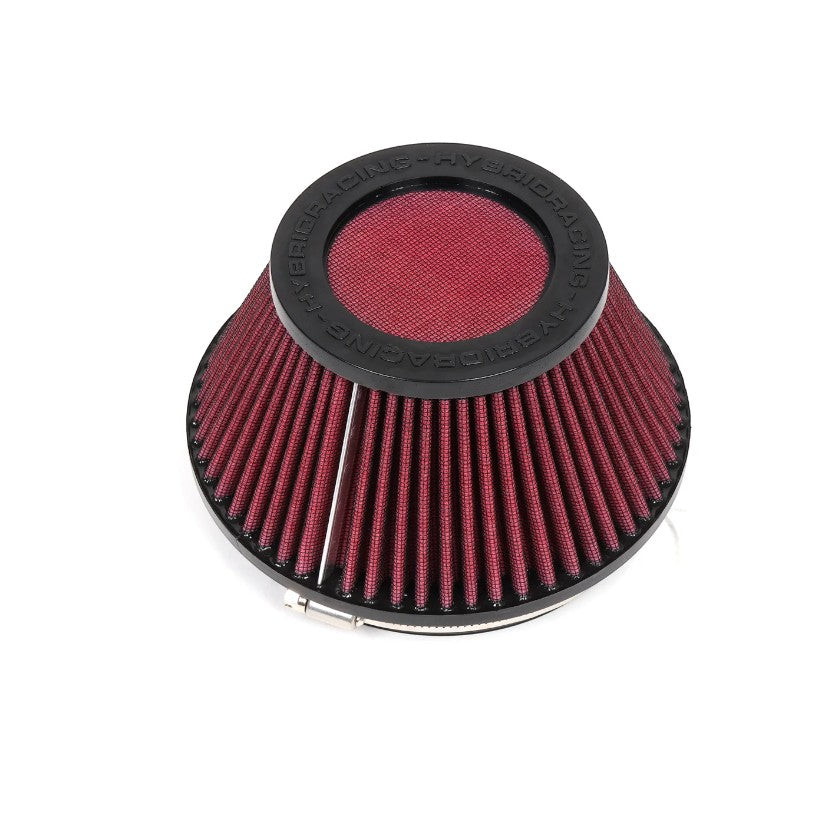

- Red reusable oiled-cotton filter
- Silicone coupler for the factory turbo inlet pipe
- Two lower outside-air inlet tubes
- Clamps, mounting hardware, hex key and split loom for the factory MAF harness
Please Note
- Select the 76mm Street or 89mm Race housing from the options.
- The 76mm Street runs on the factory ECU; Hondata FlashPro with the Formula MAF scaling is recommended. The 89mm Race requires FlashPro or equivalent.
- The supplied coupler is around 69mm inside at the turbo inlet. Aftermarket turbo inlet pipes may need a different coupler.
- Fitting takes one to two hours and involves removing the driver-side front wheel and arch liner for the lower feeds.
Compatible With

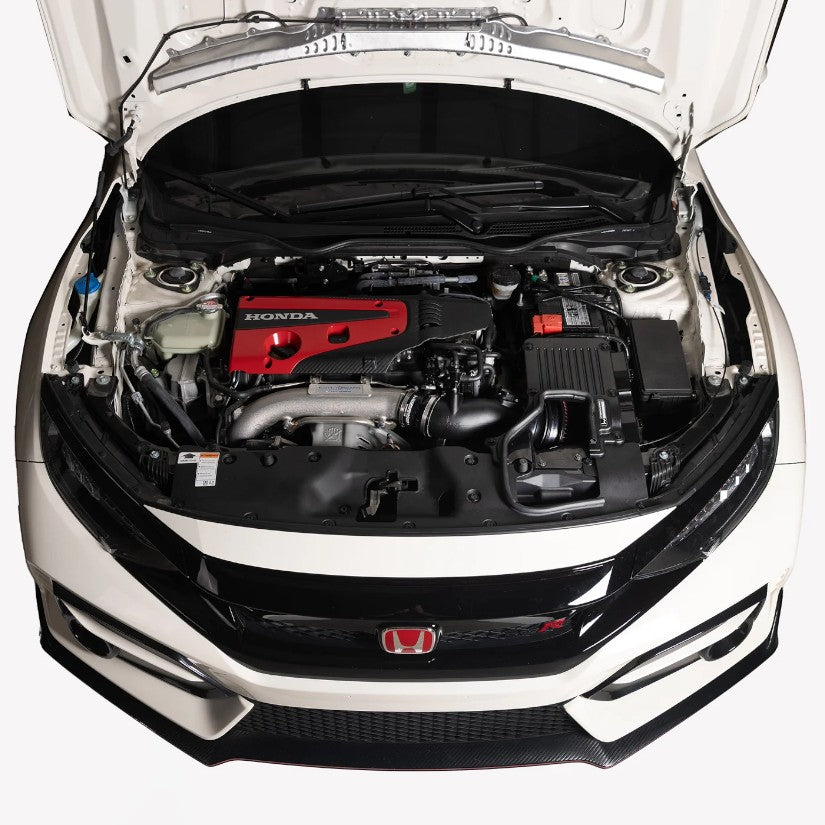

- Honda Civic Type R FK8 (2017 to 2021), including the 2021 Limited Edition
