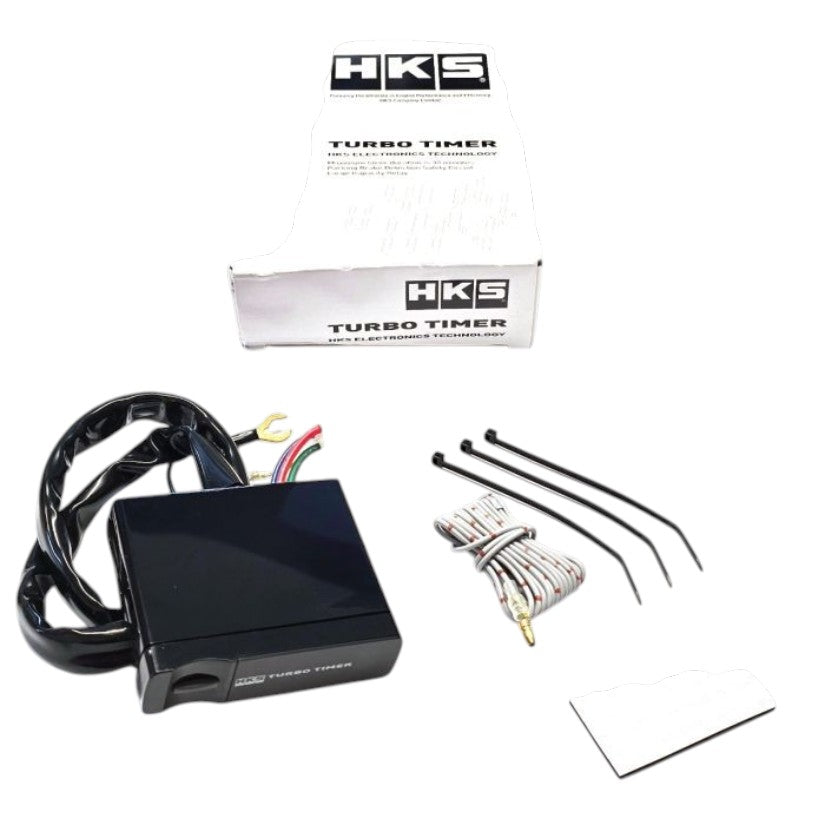

HKS Turbo Timer Type-X 10th Anniversary Edition

10th generation Turbo Timer evolutionally advanced with the turbo engines. The original turbo timer was developed to prevent turbocharger bearing seizure by after-idling. Simple and Highly Operable Model from 35-year History

Spec:

Single button control and red LED numerical display simplify operation and improve visibility.

5 time ranges selectable between 1, 3, 5, 10, and 30min. Maximum timer duration is 30 minutes.

Accurate time duration can be selected by manual setting.

Handbrake detective safety circuit

High capacity relay

Timer operation stops under unstable conditions caused by low voltage of a battery, etc.

Simple, and easy to use

Application： Turbo vehicles that start the engine using the ignition key.

Not applicable to a vehicle equipped with the push-button ignition.

Existing Turbo Timer Harness is compatible.
※This product is not compatible some vehicles. Refer to the application list before purchasing this product.

Features

Simple after-idling function and easy operation

Optimal touch button size for simple operation

Wavy panel design around the button for better operability. Capable of operating the button even in the dark.

Accurate setting is possible even by quick operation.

One-digit display for easy recognition of the set time

Time duration changed simply by pushing the button. Intuitive operations is possible.

One seven-segment LED simply shows the timer setting.

Selecting ""OFF mode"" turns off the display and buzzer.

●Extension of Timer Duration

Maximum timer duration is 30 minutes.
Not only protecting the turbocharger, but also maintaining the temperature in a vehicle in summer and winter is possible.

DC12V Negative Ground （Operation Voltage: DC101～16V）

Large Capacity Relay Equipped
Ignition: 25A / Accessary: 25A

Ignition: 25A / Accessary: 25A

Operating Temperature: -20～60℃（-4 to 140 °F）

Setting Time Range: ：1, 3, 5, 10, and 30 min.
