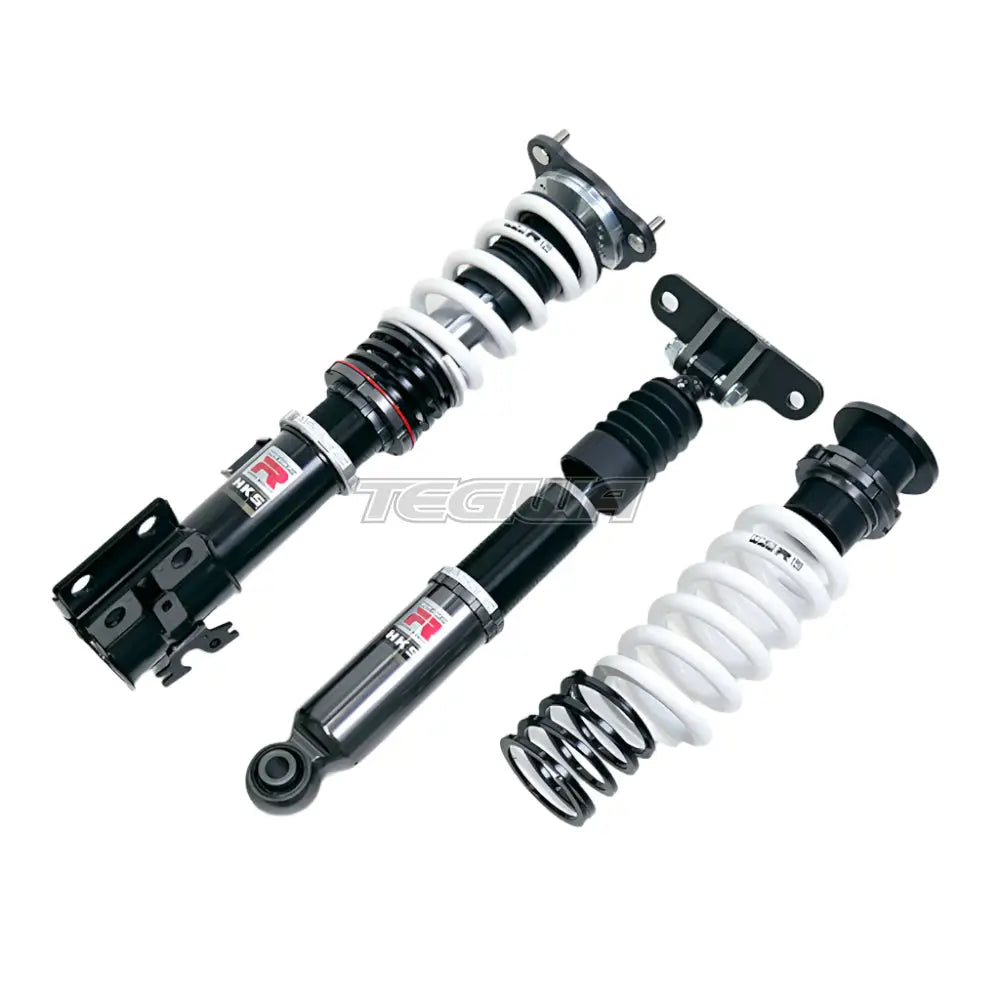

HKS Hipermax R Adjustable Coilovers Toyota GR Yaris Gen 2 24+

HKS are known to be obsessed with High Quality and HKS Hipermax S Adjustable Coilovers for the GR Yaris Gen 2 are no exception.
Integration of quality over cost principles of tuning is something that HKS built their reputation on.

With the body rigidity increased in the Gen2, the damping characteristics have been reviewed. While pursuing responsiveness, event at the limit
gentle characteristics have been achieved.

The rear spring rate has been increased compared to the previous model, and high roll rigidity and stability have been achieved for circuit driving
with high-grip tires, a re-tuning has been performed so that you can step on the accelerator boldly even in high-speed corners.

Assuming that the car will be driven to and from the circuit, we paid particular attention to suppressing high-rate thrust and vibration by adjusting the
damping force to a softer setting.

Tested the main course of Fuji Speedway with ADVAN A052 265/35-18. Excellent results were obtained with the front camber at -4°40', front and
rear toe out at 1.9mm, and the damping force dial set to 7 steps for the front and 6 steps for the rear. Please use this as a reference when setting
up.

Spring Specifications

Spring Rate

• Front (F): 118 N/mm (12 kgf/mm)

• Rear (R): 177 N/mm (18 kgf/mm)

Free Spring Length

• Front (F): 150 mm (Straight barrel)

• Rear (R): 170 mm (Straight barrel)

Set Height When Shipped

• Front (F): -24 mm (Range: 0 to -54 mm)

• Rear (R): -21 mm (Range: 0 to -71 mm)

Upper Mount

• Front/Rear (F/R): Pillow type

Upper Mount Adjustment When Shipped

• Adjustability: Non-changeable

Spring Rate Tolerance

• Front/Rear (F/R): ±20 N/mm (±2 kgf/mm)

JAN Code

• Code: 4957266323687
