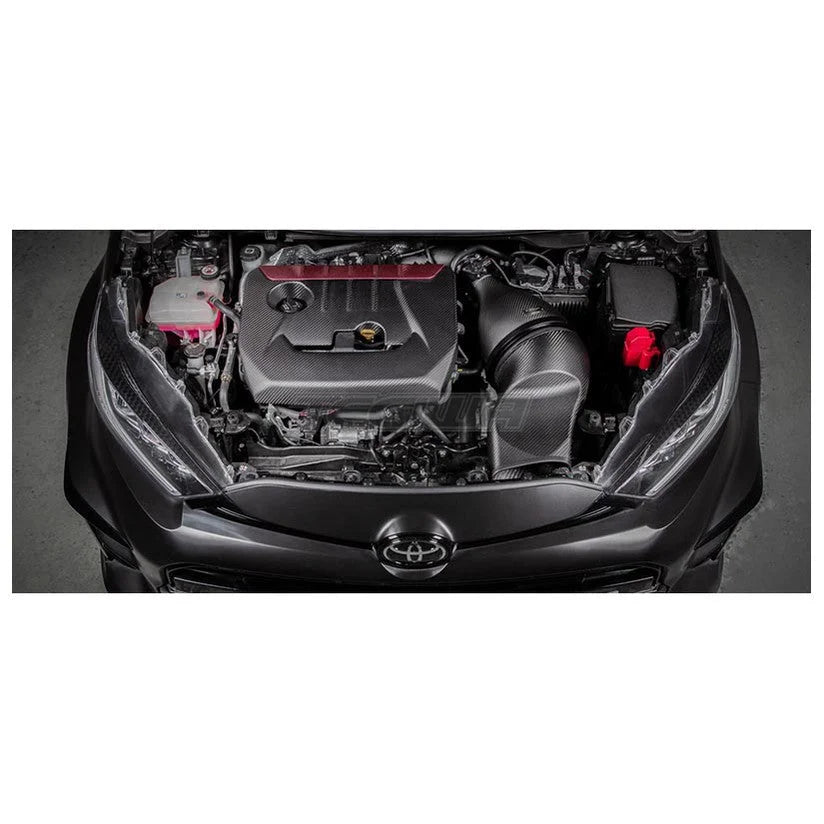

The Eventuri Carbon Intake for the Toyota GR Yaris (G16E-GTS) was developed through extensive data logging of temperatures, flow rates and dyno testing. The fully sealed system improves on the OEM airbox intake air temperatures while increasing internal volume to reduce pressure drop and pumping losses, allowing the turbo to operate more efficiently and reach peak boost sooner.
The patented Venturi filter housing provides the maximum internal volume possible for the GR Yaris and maintains laminar flow to the turbo tube. The bespoke cone filter has an outside diameter of 210mm (8.3") with a filtration surface area of over 130,000mm², rated to 940 CFM at 28" H2O. Dyno tested by RaceCal (UK) and Master Tuning Asia (Hong Kong), both independently showing consistent gains across the entire RPM range.
Performance gain: 15hp / 18ft-lb
Filter Type:

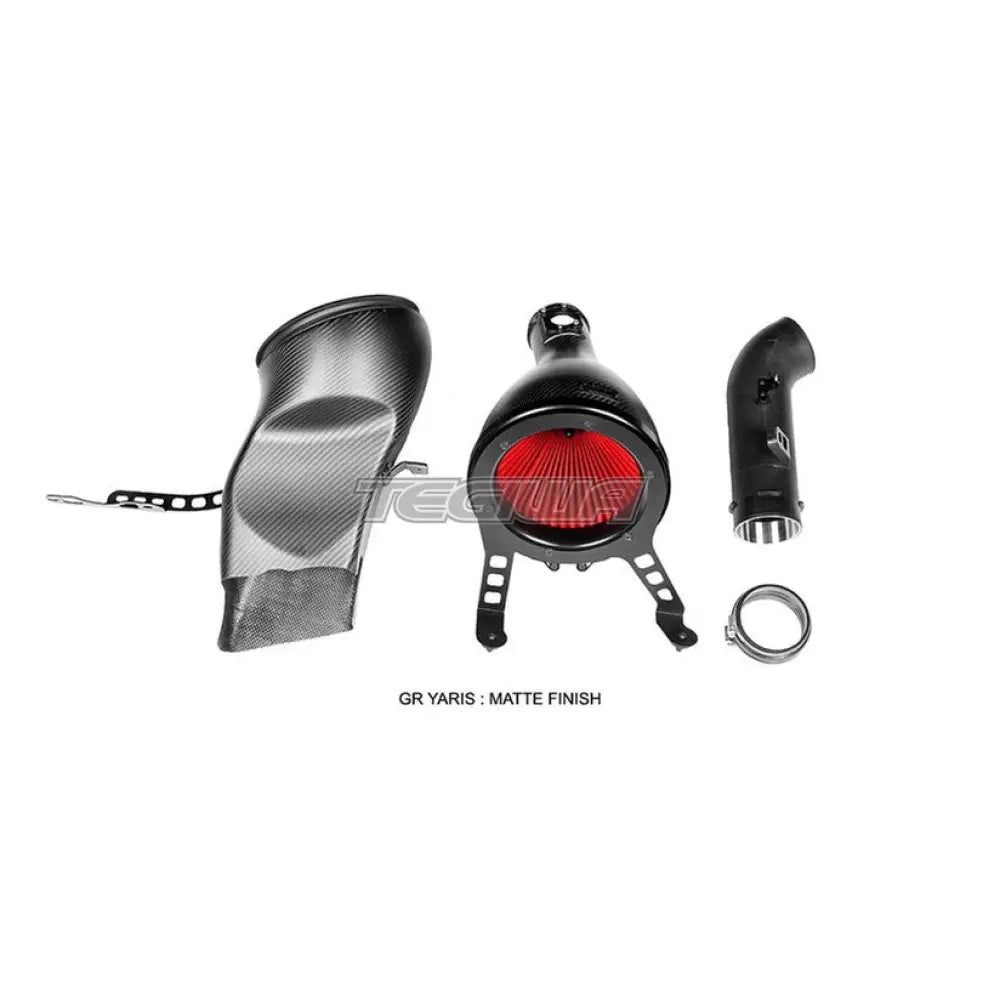

Kit Includes:
- Carbon fibre patented Venturi filter housing with integrated MAF section
- Bespoke high-flow dry cone filter
- Carbon fibre inlet duct
- Rear tube manufactured to OEM specifications
- Custom EPDM hose
- CNC-machined MAF boss and bracket mounts
- Laser cut stainless steel brackets
- Custom hardware
Key Features:
- Patented Venturi carbon fibre filter housing with integrated MAF section - eliminates the two 90-degree direction changes of the OEM airbox
- Fully sealed system improves intake air temperatures over the OEM airbox
- Bespoke Gen 2 dry cone filter - 210mm (8.3") outer diameter, 130,000mm² filtration surface area, 940 CFM at 28" H2O, ISO-tested to OEM standards
- Carbon fibre inlet duct draws ambient air from behind the front bumper with de-restricted opening
- Redesigned rear tube with smoother bend radius - glass fibre reinforced thermoplastic with CNC-machined reinforcement ring
- Custom EPDM coupler accommodates engine vibration and movement
- 100% prepreg carbon fibre with no fibreglass

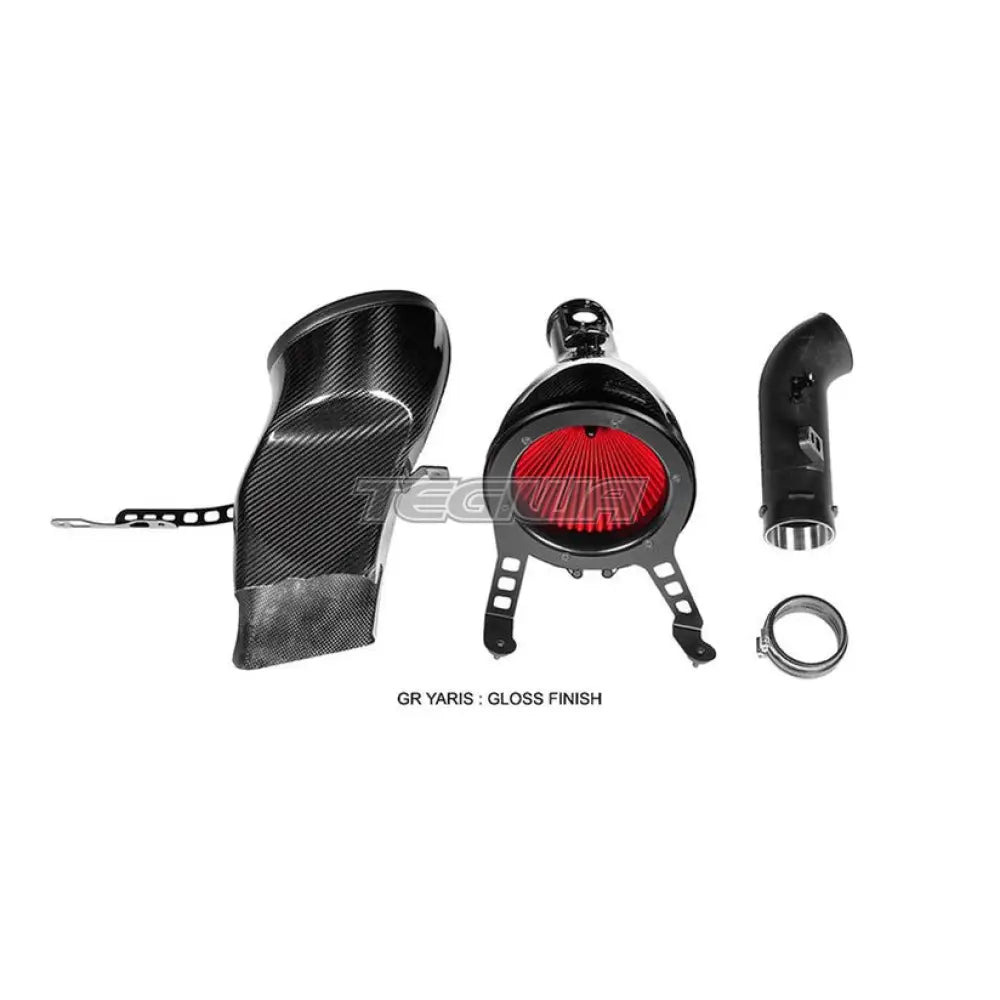

- Available in gloss or matte finish
Compatible With:
- Toyota GR Yaris (G16E-GTS)
