The Eventuri Carbon Intake for the Audi F3 RS Q3 was originally developed for high power builds on the RS3 platform, and has been engineered to offer the highest possible flow rate whilst maintaining the lowest possible intake temperatures. Every component provides the turbo with a smooth, free flowing path - the intake tube has a 103mm (4") internal diameter with a smooth curvature from the filter housing all the way to the turbo inlet, and the entire system is 100% prepreg carbon fibre with no fibreglass, for smooth internal surfaces and excellent heat insulation.
The patented Venturi housing provides the maximum internal volume possible in the RS Q3 engine bay and delivers laminar flow to the turbo tube, paired with a bespoke filter with a huge 210mm (8.3") outer diameter and over 130,000mm² of filtration surface area. The duct seals the filter opening to the front slam panel, with a lifted front section providing an extra opening behind the bonnet equivalent to an additional 7" diameter hole for the intake to draw from. The result is a sealed system capable of flowing 840 CFM at 28" H₂O - a 58% improvement in maximum flow rate over the stock airbox, measured on a Superflow SF-1020 flow bench.
Performance gain (stock turbo): 15-18hp and 19-23ft-lb
Performance gain (hybrid turbo): 25-30hp and 20-24ft-lb
Flow bench data: Stock intake 530 CFM, Eventuri intake 840 CFM
Filter Type:

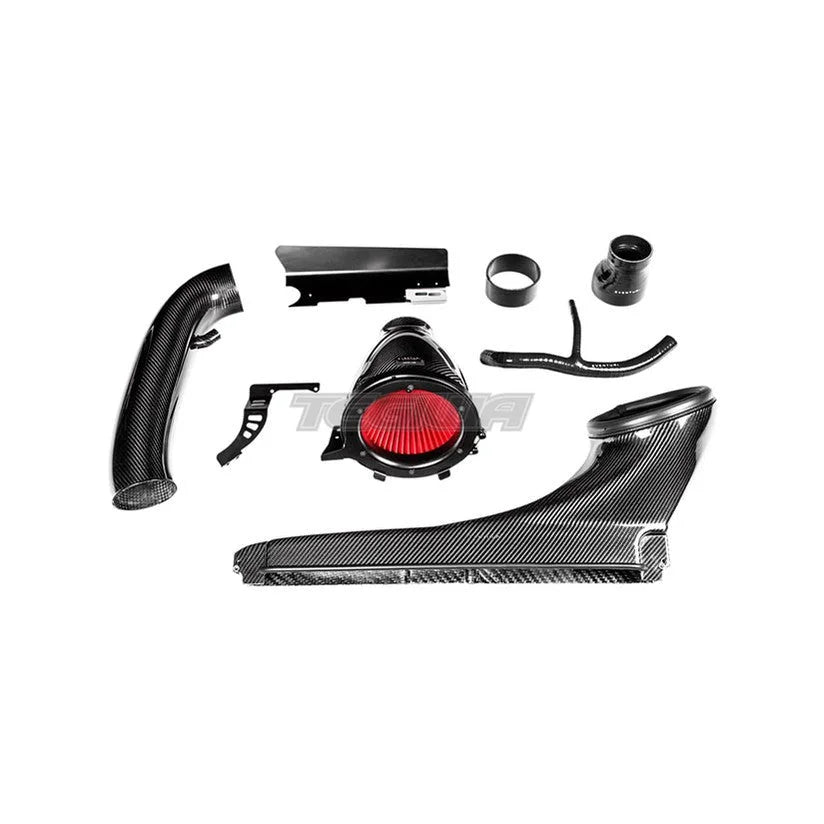

Kit Includes:
- Carbon fibre patented Venturi filter housing with 103mm outlet
- Bespoke high flow dry cone filter
- Carbon fibre inlet duct (compatible with OE and APR throttle body)
- Carbon fibre tube with 103mm internal diameter
- OPF (DWNA) breather adapter
- Heat shield with gold reflective backing
- Laser cut stainless steel brackets
- Silicone breather hose
- Silicone couplers and reducer
Key Features:
- Patented Venturi housing maximises internal volume and delivers laminar flow to the turbo tube
- 103mm (4") internal diameter intake tube with smooth curvature from housing to turbo inlet
- Sealed duct with an extra opening behind the bonnet, equivalent to an additional 7" diameter feed
- Flows 840 CFM at 28" H₂O - up to 58% more than the stock airbox
- 100% prepreg carbon fibre with no fibreglass, for smooth internal surfaces and heat insulation
- Sealed system keeps intake air temperatures at a minimum
Compatible With:
- Audi RS Q3 (F3)
- Audi RS Q3 Sportback (F3)
